with double / triple glazing

DYNAMIC Fireplace inserts with double / triple glazing

DYNAMIC fireplace inserts with double and triple glazing are the ideal choice for low-energy houses. First-class materials in combination with sophisticated structural design offer the perfect heat source for long winter nights.

DYNAMIC fireplace inserts are well suited for low-energy houses thanks to their double and triple glazing. The glass in the doors includes a design print. Right-sided opening doors can be switched to left-sided opening. Fireplace inserts are equipped with an EAI (external air intake) system and designed for accumulation as well as convection operation. The combustion chamber is lined with chamotte bricks and a hinged iron grate with an ash tray. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. A MAMMOTH side accumulation set and upper accumulation rings can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert.

DYNAMIC 2g 35.46.01

Steel

DYNAMIC 2g 35.46.01 - Steel
In product comparison: 0 pc
Go to product comparison

intended for convection as well as accumulation operation

double glazing

suitable for low-energy houses

maximum of 3 side accumulation sets

Technical parameters
  • Height990 mm
  • Width514 mm
  • Depth427 mm
  • Door height426 mm
  • Door width305 mm
  • Weight135 kg
  • Regulated output2,0-6,0 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter125 mm
  • Draught12 Pa
  • Efficiency80,3 %
  • Average wood consumption1,1 kg/h

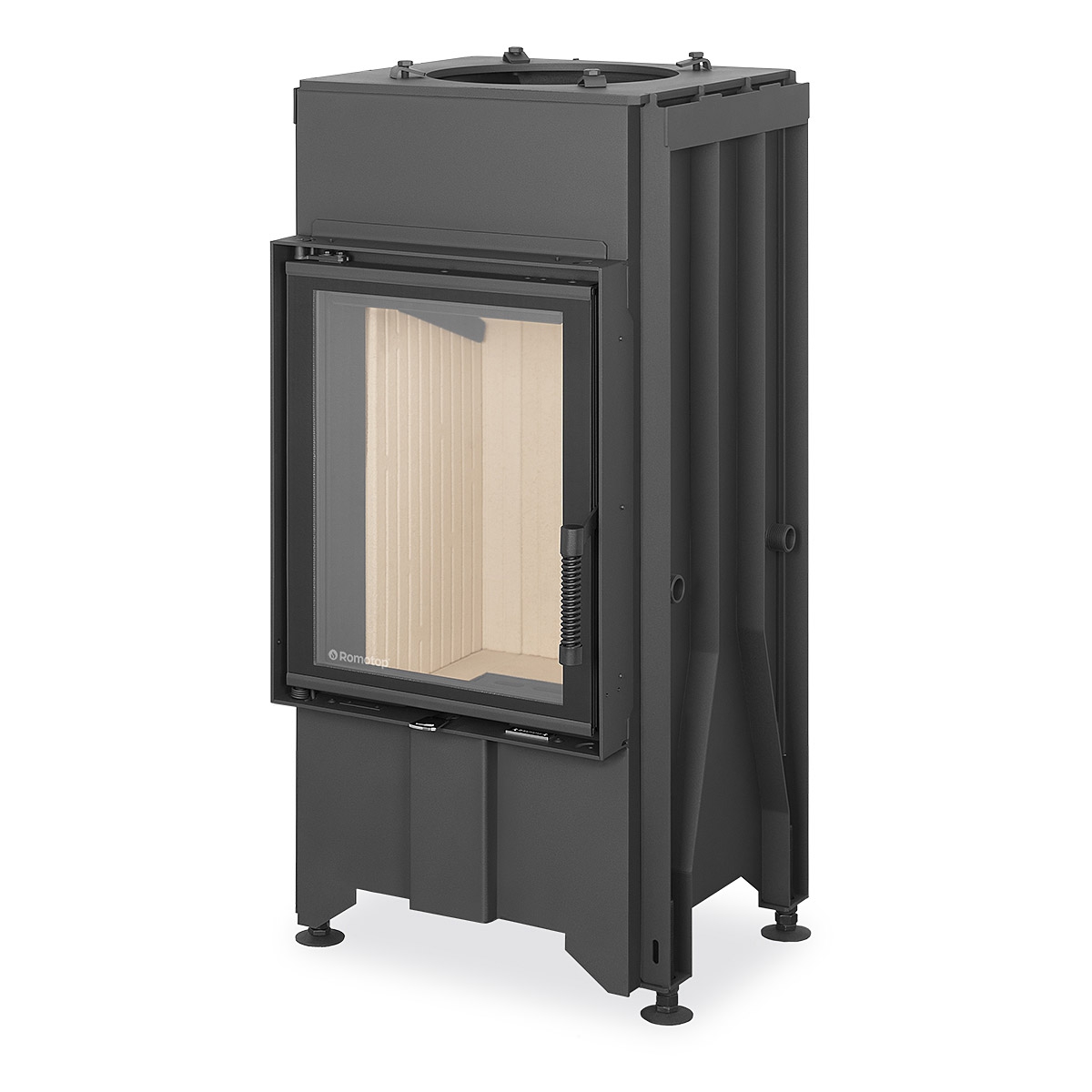

DYNAMIC 2G 44.55.01

Steel

DYNAMIC 2G 44.55.01 - Steel
In product comparison: 0 pc
Go to product comparison

intended for convection as well as accumulation operation

double glazing

suitable for low-energy houses

maximum of 2 side accumulation sets

Technical parameters
  • Height1053 mm
  • Width524 mm
  • Depth478,5 mm
  • Door height517 mm
  • Door width404 mm
  • Weight165 kg
  • Regulated output3,5-9,1 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency85,1 %
  • Average wood consumption2,1 kg/h

DYNAMIC 2G 44.55.13

Steel

DYNAMIC 2G 44.55.13 - Steel
In product comparison: 0 pc
Go to product comparison

intended for convection as well as accumulation operation

triple glazing

suitable for low-energy houses

maximum of 2 side accumulation sets

Technical parameters
  • Height1053 mm
  • Width524 mm
  • Depth397 mm
  • Door height517 mm
  • Door width404 mm
  • Weight140 kg
  • Regulated output2,0-6,0 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency83,0 %
  • Average wood consumption1,1 kg/h

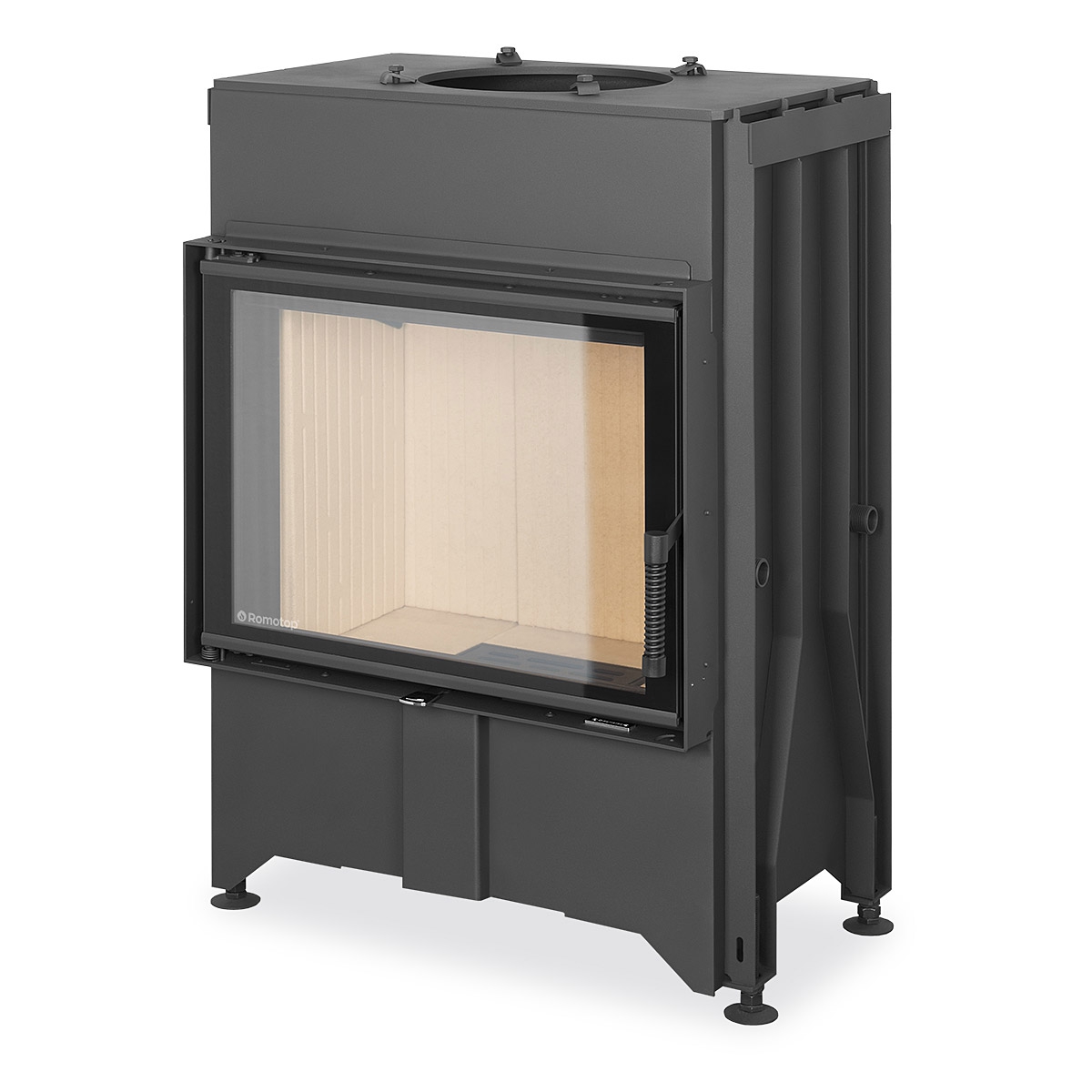

DYNAMIC 2G 66.50.01

Steel

DYNAMIC 2G 66.50.01 - Steel
In product comparison: 0 pc
Go to product comparison

intended for convection as well as accumulation operation

double glazing

suitable for low-energy houses

maximum of 2 side accumulation sets

Technical parameters
  • Height1003 mm
  • Width720 mm
  • Depth482 mm
  • Door height467 mm
  • Door width624 mm
  • Weight205 kg
  • Regulated output3,9-10,1 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency85,0 %
  • Average wood consumption2,2 kg/h

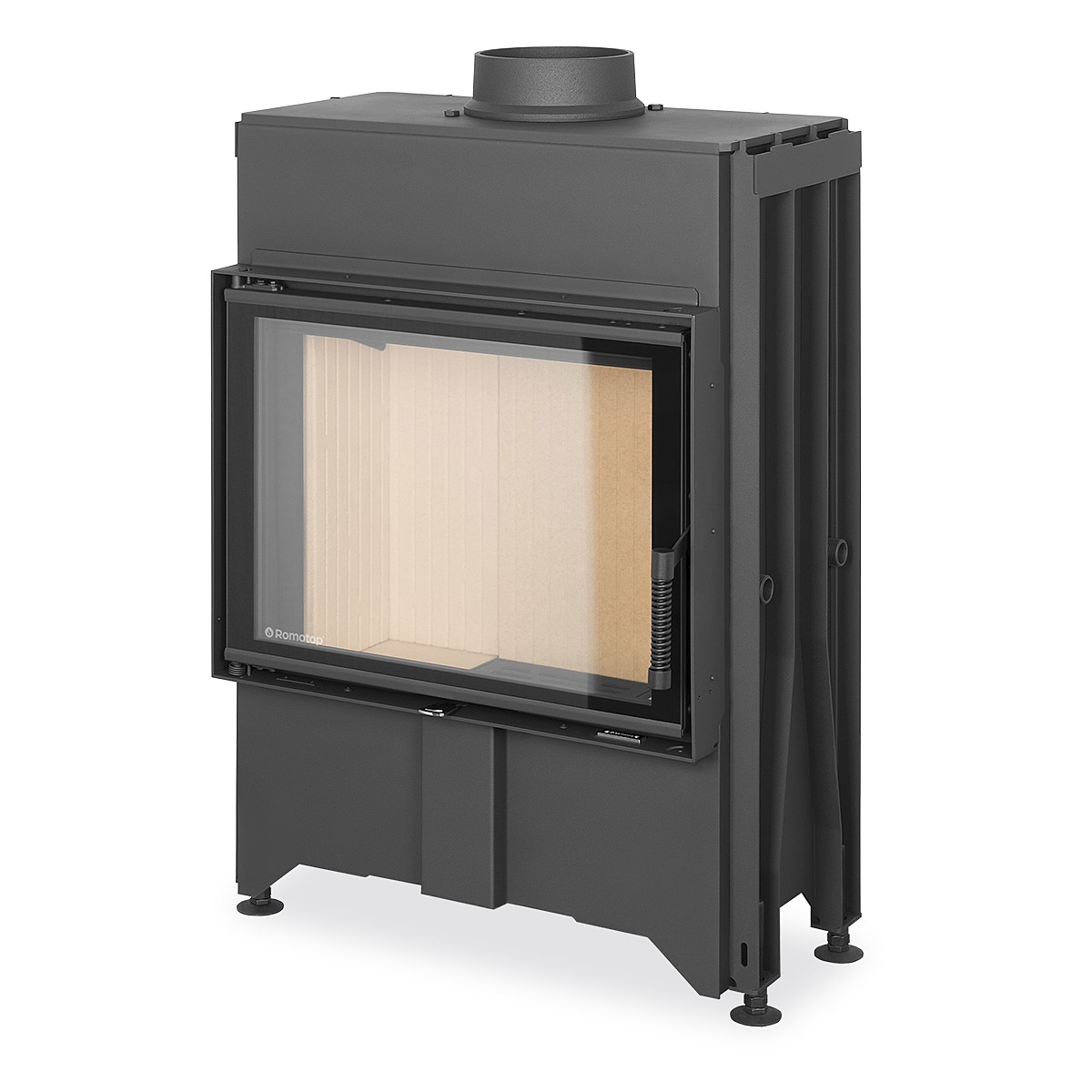

DYNAMIC 2G 66.50.13

Steel

DYNAMIC 2G 66.50.13 - Steel
In product comparison: 0 pc
Go to product comparison

intended for convection as well as accumulation operation

triple glazing

suitable for low-energy houses

maximum of 2 side accumulation sets

Technical parameters
  • Height1003 mm
  • Width720 mm
  • Depth397 mm
  • Door height467 mm
  • Door width624 mm
  • Weight175 kg
  • Regulated output2,4-6,2 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency84,6 %
  • Average wood consumption1,3 kg/h

KV 025 N01

Steel

KV 025 N01 - Steel
In product comparison: 0 pc
Go to product comparison
  • order code: KV 025N 01

intended for permanent accumulation operation with draft systems

double glazing

Technical parameters
  • Height990 mm
  • Width504 mm
  • Depth691 mm
  • Door height414 mm
  • Door width403 mm
  • Weight175 kg
  • Regulated output5,3-30,0 kW
  • Smoke flue diameter180-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency90,0 %
  • Average wood consumption2,7 kg/h

DYNAMIC 2g 35.46.01

Steel

DYNAMIC 2g 35.46.01 - Steel
  • order code: D2K 01

DYNAMIC 2G 44.55.01

Steel

DYNAMIC 2G 44.55.01 - Steel
  • order code: D2L 01

DYNAMIC 2G 44.55.13

Steel

DYNAMIC 2G 44.55.13 - Steel
  • order code: D2L 13

DYNAMIC 2G 66.50.01

Steel

DYNAMIC 2G 66.50.01 - Steel
  • order code: D2M 01

DYNAMIC 2G 66.50.13

Steel

DYNAMIC 2G 66.50.13 - Steel
  • order code: D2M 13

KV 025 N01

Steel

KV 025 N01 - Steel
  • order code: KV 025N 01
  • Technical parameters
  • Accessories
  • Download
  • 3D-model
Technical parameters
  • Height990 mm
  • Width514 mm
  • Depth427 mm
  • Door height426 mm
  • Door width305 mm
  • Weight135 kg
  • Regulated output2,0-6,0 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter125 mm
  • Draught12 Pa
  • Efficiency80,3 %
  • Average wood consumption1,1 kg/h
Technical parameters
  • Height1053 mm
  • Width524 mm
  • Depth478,5 mm
  • Door height517 mm
  • Door width404 mm
  • Weight165 kg
  • Regulated output3,5-9,1 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency85,1 %
  • Average wood consumption2,1 kg/h
Technical parameters
  • Height1053 mm
  • Width524 mm
  • Depth397 mm
  • Door height517 mm
  • Door width404 mm
  • Weight140 kg
  • Regulated output2,0-6,0 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency83,0 %
  • Average wood consumption1,1 kg/h
Technical parameters
  • Height1003 mm
  • Width720 mm
  • Depth482 mm
  • Door height467 mm
  • Door width624 mm
  • Weight205 kg
  • Regulated output3,9-10,1 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency85,0 %
  • Average wood consumption2,2 kg/h
Technical parameters
  • Height1003 mm
  • Width720 mm
  • Depth397 mm
  • Door height467 mm
  • Door width624 mm
  • Weight175 kg
  • Regulated output2,4-6,2 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency84,6 %
  • Average wood consumption1,3 kg/h
Technical parameters
  • Height990 mm
  • Width504 mm
  • Depth691 mm
  • Door height414 mm
  • Door width403 mm
  • Weight175 kg
  • Regulated output5,3-30,0 kW
  • Smoke flue diameter180-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency90,0 %
  • Average wood consumption2,7 kg/h
