with side opening and bent / split corner glazing

HEAT Fireplace inserts with side opening and bent / split corner glazing

HEAT corner fireplace inserts with side opening are a compelling and modern addition to any interior. Let their pleasant warmth captivate you - making any home cozier, adding a touch of timeless design and a unique atmosphere.

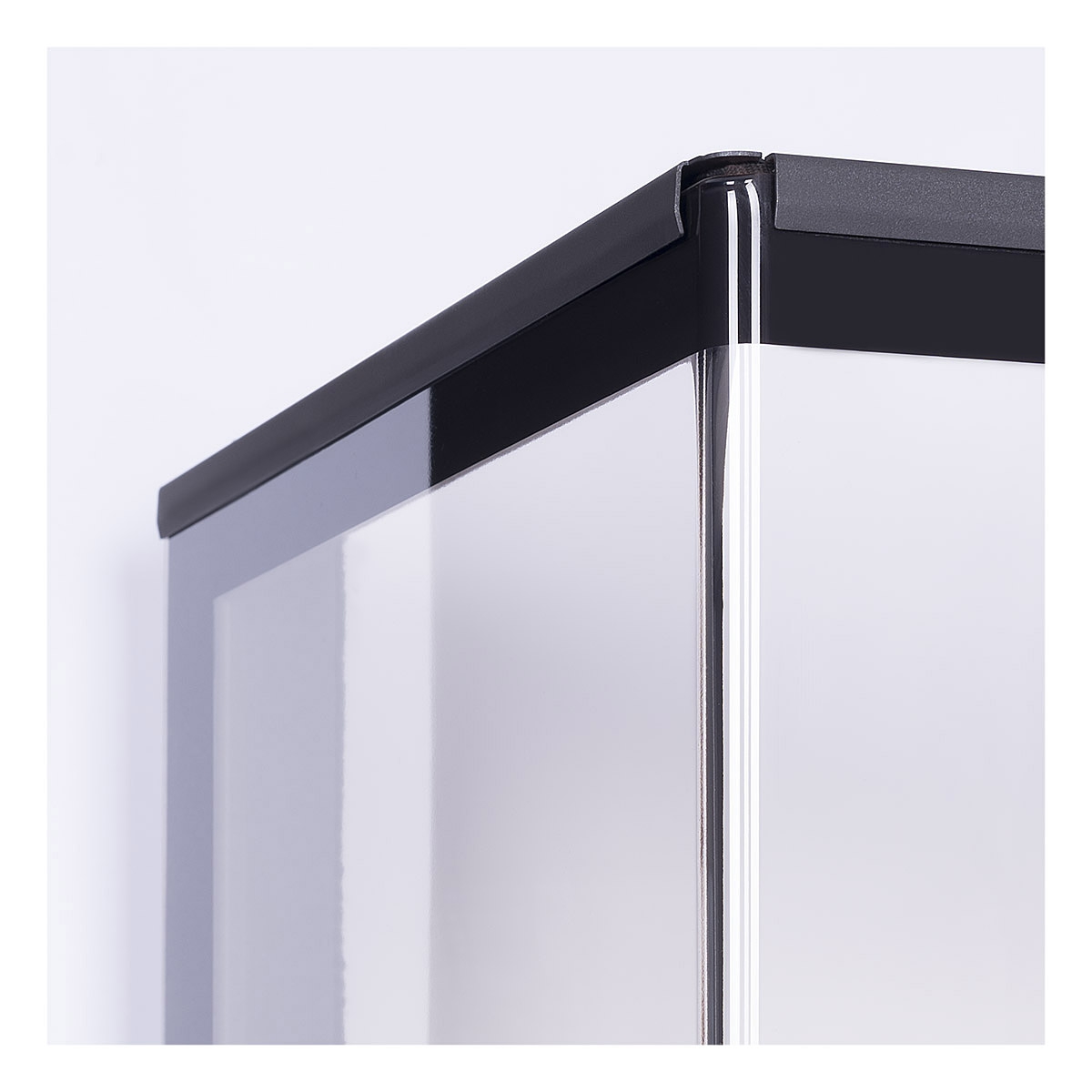

HEAT fireplace inserts are intended for convection as well as accumulation operation with the use of ventilation grates. Corner glazing (left, right) can be curved or made of two parts. The door frame is made of a special rigid rolled profile. The glass in the doors includes a design print. An EAI (external air intake) system is included. The combustion chamber is lined with chamotte bricks and a hinged iron grate with an ash tray. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. A MAMMOTH side accumulation set and upper accumulation rings can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert.

HEAT R/L 2g S 50.44.33.13(23)

Steel

HEAT R/L 2g S 50.44.33.13(23) - Steel
In product comparison: 0 pc
Go to product comparison
  • Bent glazing - right variant - order code: HR2SV 13
  • Bent glazing - left variant - order code: HL2SV 13
  • Split glazing - right variant - order code: HR2SV 23
  • Split glazing - left variant - order code: HL2SV 23

suitable for low-energy houses

maximum of 2 side accumulation sets

Technical parameters
  • Height983 mm
  • Width500 mm
  • Depth375 mm
  • Door height407 mm
  • Door width477 mm
  • Door depth307 mm
  • Weight100 kg
  • Regulated output2,3-5,9 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Draught11 Pa
  • Efficiency83,5 %
  • Average wood consumption1,4 kg/h

HEAT R/L 2g S 50.51.40.01(21)

Steel

HEAT R/L 2g S 50.51.40.01(21) - Steel
In product comparison: 0 pc
Go to product comparison
  • Prices on request at your seller
  • Bent glazing - right variant - order code: HR2SE 01
  • Bent glazing - left variant - order code: HL2SE 01
  • Split glazing - right variant - order code: HR2SE 21
  • Split glazing - left variant - order code: HL2SE 21

order codes HL2SE 01, HL2SE 21 - we are sorry, but these models have been sold out and cancelled from our product range

suitable for low-energy houses

maximum of 2 side accumulation sets

Technical parameters
  • Height1126 mm
  • Width570 mm
  • Depth470 mm
  • Door height470 mm
  • Door width500 mm
  • Door depth400 mm
  • Weight130 kg
  • Regulated output3,3-8,4 kW
  • Smoke flue diameter150-180 mm
  • Flue socket diameter180 mm
  • External air intake diameter125 mm
  • Draught10 Pa
  • Efficiency82,0 %
  • Average wood consumption1,9 kg/h

HEAT R/L 2g S 60.44.33.13(23)

Steel

HEAT R/L 2g S 60.44.33.13(23) - Steel
In product comparison: 0 pc
Go to product comparison
  • Prices on request at your seller
  • Bent glazing - right variant - order code: HR2SY 13
  • Bent glazing - left variant - order code: HL2SY 13
  • Split glazing - right variant - order code: HR2SY 23
  • Split glazing - left variant - order code: HL2SY 23

suitable for low-energy houses

maximum of 2 side accumulation sets

Technical parameters
  • Height983 mm
  • Width600 mm
  • Depth375 mm
  • Door height407 mm
  • Door width577 mm
  • Door depth307 mm
  • Weight115 kg
  • Regulated output2,9-7,4 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Draught11 Pa
  • Efficiency85,7 %
  • Average wood consumption1,6 kg/h

HEAT R/L 2g S 65.51.40.01(21)

Steel

HEAT R/L 2g S 65.51.40.01(21) - Steel
In product comparison: 0 pc
Go to product comparison
  • Prices on request at your seller
  • Bent glazing - right variant - order code: HR2SG 01
  • Bent glazing - left variant - order code: HL2SG 01
  • Split glazing - right variant - order code: HR2SG 21
  • Split glazing - left variant - order code: HL2SG 21

maximum of 2 side accumulation sets

Technical parameters
  • Height1146 mm
  • Width714,5 mm
  • Depth468,5 mm
  • Door height470 mm
  • Door width650 mm
  • Door depth400 mm
  • Weight162 kg
  • Regulated output3,5-9,0 kW
  • Smoke flue diameter180-250 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency84,8 %
  • Average wood consumption1,9 kg/h

HEAT R/L 2g S 70.44.33.13(23)

Steel

HEAT R/L 2g S 70.44.33.13(23) - Steel
In product comparison: 0 pc
Go to product comparison
  • Prices on request at your seller
  • Bent glazing - right variant - order code: HR2SX 13
  • Bent glazing - left variant - order code: HL2SX 13
  • Split glazing - right variant - order code: HR2SX 23
  • Split glazing - left variant - order code: HL2SX 23

suitable for low-energy houses

maximum of 2 side accumulation sets

Technical parameters
  • Height983 mm
  • Width700 mm
  • Depth375 mm
  • Door height407 mm
  • Door width677 mm
  • Door depth307 mm
  • Weight130 kg
  • Regulated output3,5-9,1 kW
  • Smoke flue diameter150-180 mm
  • Flue socket diameter150 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency86,6 %
  • Average wood consumption2,0 kg/h

HEAT R/L 2g S 50.44.33.13(23)

Steel

HEAT R/L 2g S 50.44.33.13(23) - Steel
  • Bent glazing - right variant - order code: HR2SV 13
  • Bent glazing - left variant - order code: HL2SV 13
  • Split glazing - right variant - order code: HR2SV 23
  • Split glazing - left variant - order code: HL2SV 23

HEAT R/L 2g S 50.51.40.01(21)

Steel

HEAT R/L 2g S 50.51.40.01(21) - Steel
  • Bent glazing - right variant - order code: HR2SE 01
  • Bent glazing - left variant - order code: HL2SE 01
  • Split glazing - right variant - order code: HR2SE 21
  • Split glazing - left variant - order code: HL2SE 21

HEAT R/L 2g S 60.44.33.13(23)

Steel

HEAT R/L 2g S 60.44.33.13(23) - Steel
  • Bent glazing - right variant - order code: HR2SY 13
  • Bent glazing - left variant - order code: HL2SY 13
  • Split glazing - right variant - order code: HR2SY 23
  • Split glazing - left variant - order code: HL2SY 23

HEAT R/L 2g S 65.51.40.01(21)

Steel

HEAT R/L 2g S 65.51.40.01(21) - Steel
  • Bent glazing - right variant - order code: HR2SG 01
  • Bent glazing - left variant - order code: HL2SG 01
  • Split glazing - right variant - order code: HR2SG 21
  • Split glazing - left variant - order code: HL2SG 21

HEAT R/L 2g S 70.44.33.13(23)

Steel

HEAT R/L 2g S 70.44.33.13(23) - Steel
  • Bent glazing - right variant - order code: HR2SX 13
  • Bent glazing - left variant - order code: HL2SX 13
  • Split glazing - right variant - order code: HR2SX 23
  • Split glazing - left variant - order code: HL2SX 23
  • Technical parameters
  • Accessories
  • Alternative products
  • Download
Technical parameters
  • Height 983 mm
  • Width 500 mm
  • Depth 375 mm
  • Door height 407 mm
  • Door width 477 mm
  • Door depth 307 mm
  • Weight 100 kg
  • Regulated output 2,3-5,9 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Draught 11 Pa
  • Efficiency 83,5 %
  • Average wood consumption 1,4 kg/h
Technical parameters
  • Height 1126 mm
  • Width 570 mm
  • Depth 470 mm
  • Door height 470 mm
  • Door width 500 mm
  • Door depth 400 mm
  • Weight 130 kg
  • Regulated output 3,3-8,4 kW
  • Smoke flue diameter 150-180 mm
  • Flue socket diameter 180 mm
  • External air intake diameter 125 mm
  • Draught 10 Pa
  • Efficiency 82,0 %
  • Average wood consumption 1,9 kg/h
Technical parameters
  • Height 983 mm
  • Width 600 mm
  • Depth 375 mm
  • Door height 407 mm
  • Door width 577 mm
  • Door depth 307 mm
  • Weight 115 kg
  • Regulated output 2,9-7,4 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Draught 11 Pa
  • Efficiency 85,7 %
  • Average wood consumption 1,6 kg/h
Technical parameters
  • Height 1146 mm
  • Width 714,5 mm
  • Depth 468,5 mm
  • Door height 470 mm
  • Door width 650 mm
  • Door depth 400 mm
  • Weight 162 kg
  • Regulated output 3,5-9,0 kW
  • Smoke flue diameter 180-250 mm
  • Flue socket diameter 200 mm
  • External air intake diameter 150 mm
  • Draught 12 Pa
  • Efficiency 84,8 %
  • Average wood consumption 1,9 kg/h
Technical parameters
  • Height 983 mm
  • Width 700 mm
  • Depth 375 mm
  • Door height 407 mm
  • Door width 677 mm
  • Door depth 307 mm
  • Weight 130 kg
  • Regulated output 3,5-9,1 kW
  • Smoke flue diameter 150-180 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 150 mm
  • Draught 12 Pa
  • Efficiency 86,6 %
  • Average wood consumption 2,0 kg/h
