HEAT fireplace inserts WITH SIDE OPENING AND SPLIT CORNER GLAZING

HEAT Fireplace inserts with side opening and split corner glazing

HEAT corner fireplace inserts with side opening are a compelling and modern addition to any interior. Let their pleasant warmth captivate you - making any home cozier, adding a touch of timeless design and a unique atmosphere.

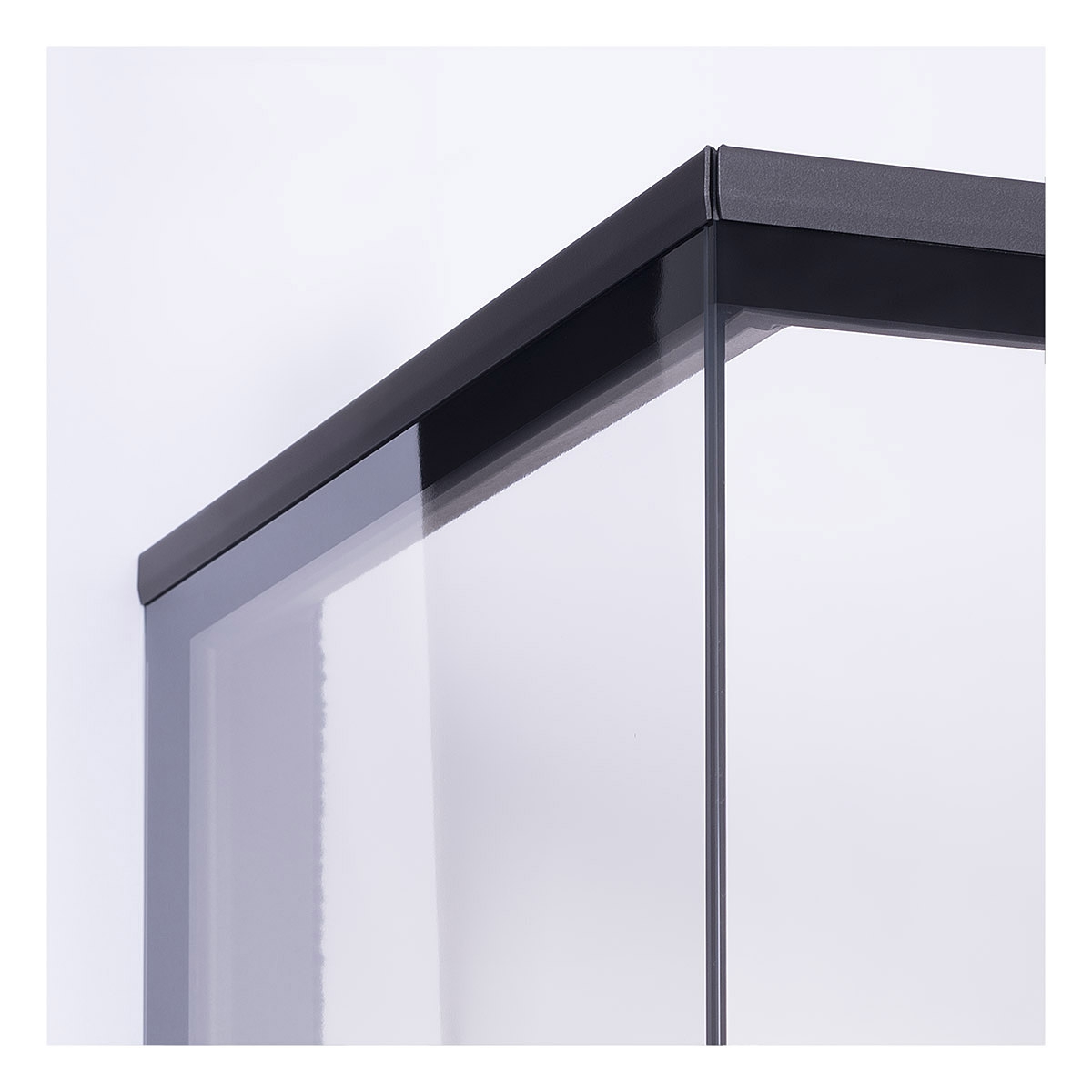

HEAT fireplace inserts are intended for convection as well as accumulation operation with the use of ventilation grates. Corner glazing (left, right) is made of two parts. The door frame is made of a special rigid rolled profile. The glass in the doors includes a design print. An EAI (external air intake) system is included. The combustion chamber is lined with chamotte bricks and a hinged iron grate with an ash tray. Secondary air intake washes over the glass in the door to prevent the cumulation of deposits. Primary and secondary air intake is regulated by a single control element. A MAMMOTH side accumulation set and upper accumulation rings can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert.

Gallery
Common characteristics

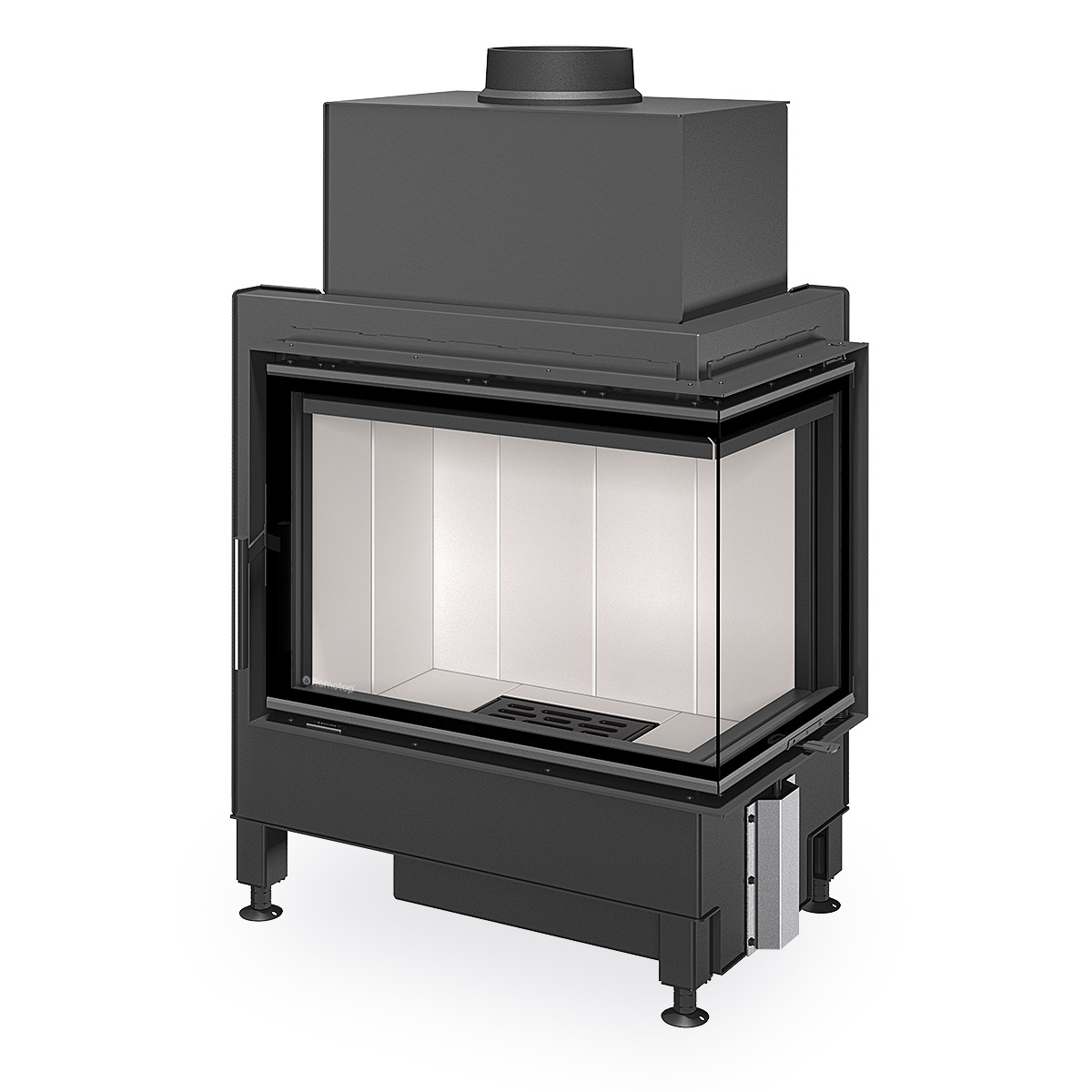

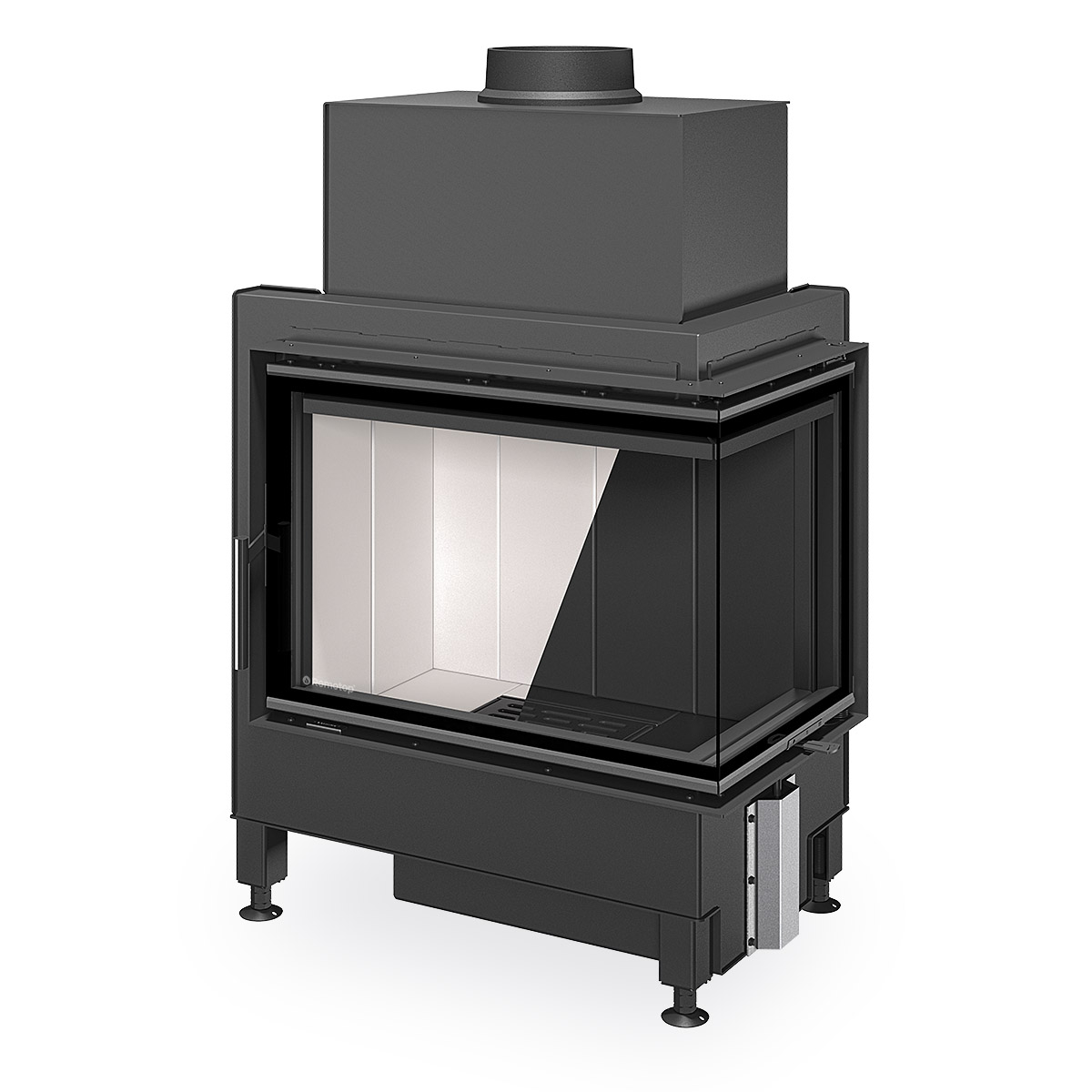

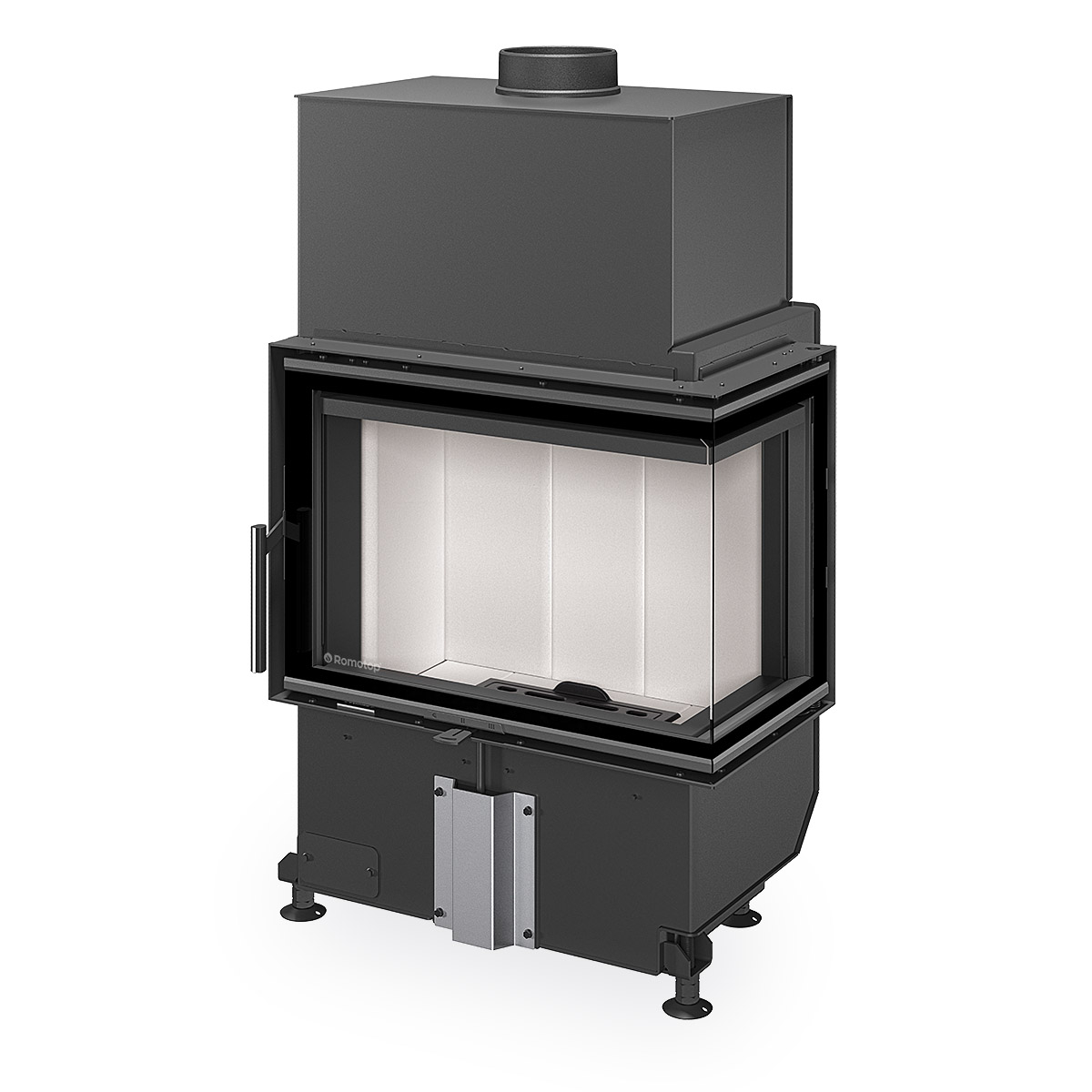

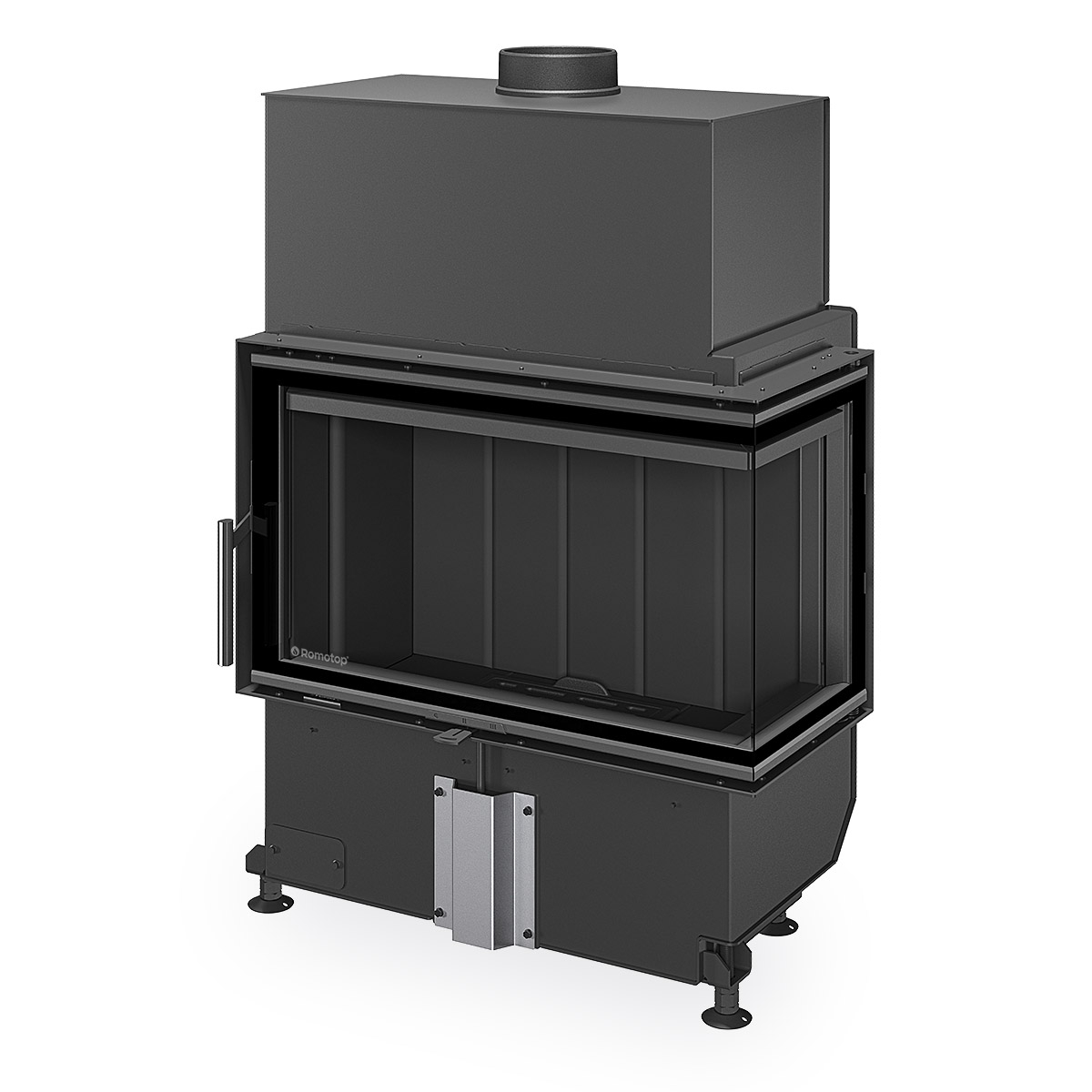

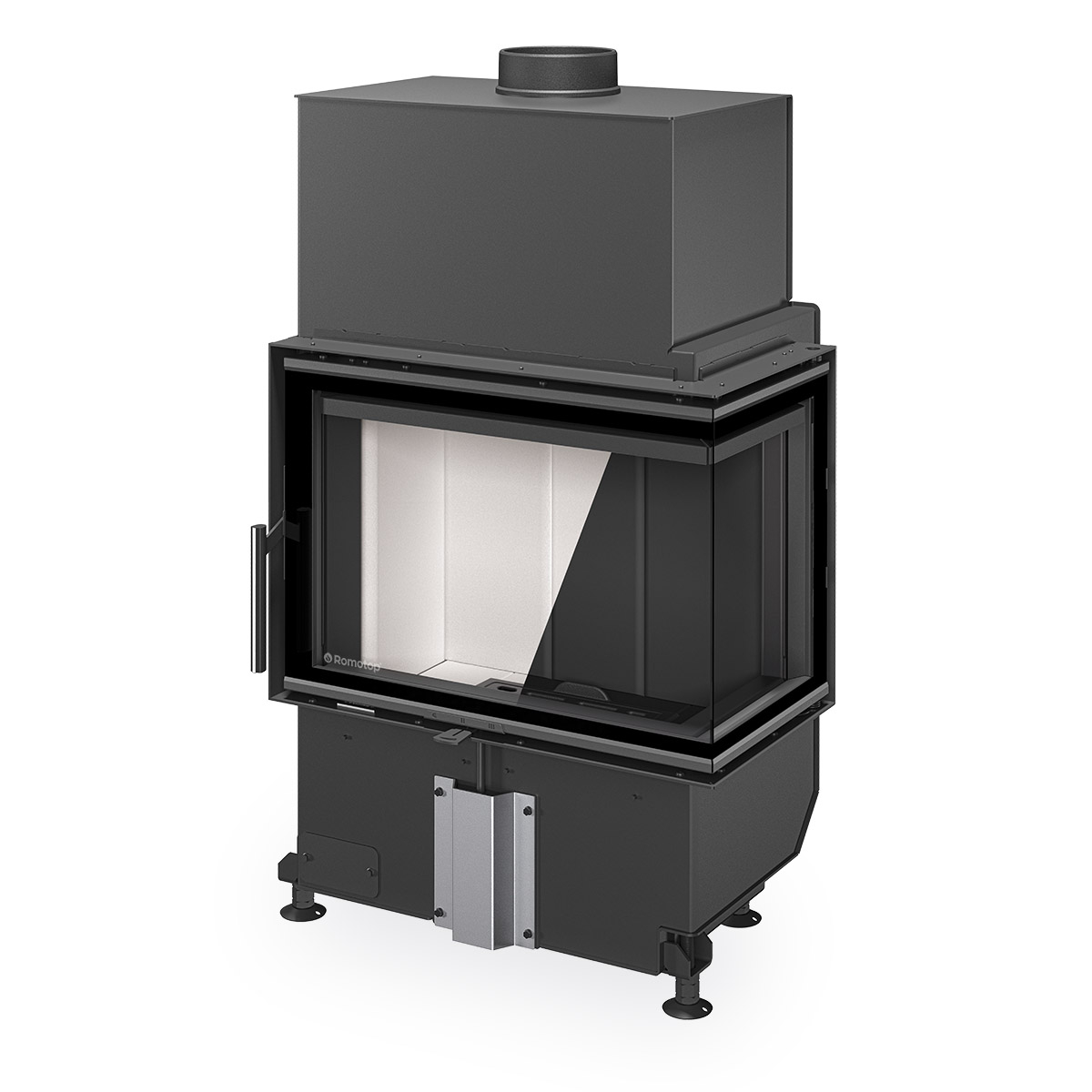

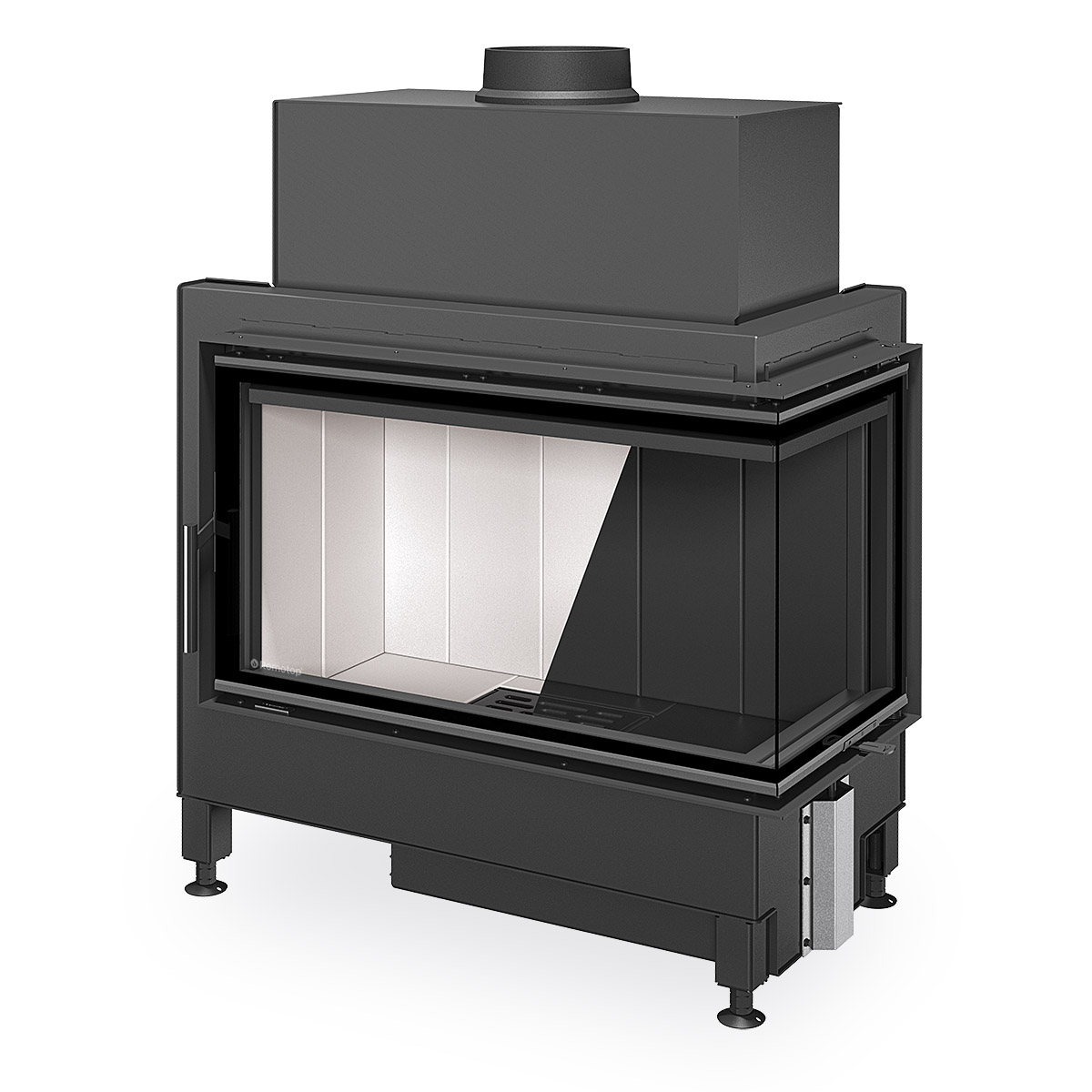

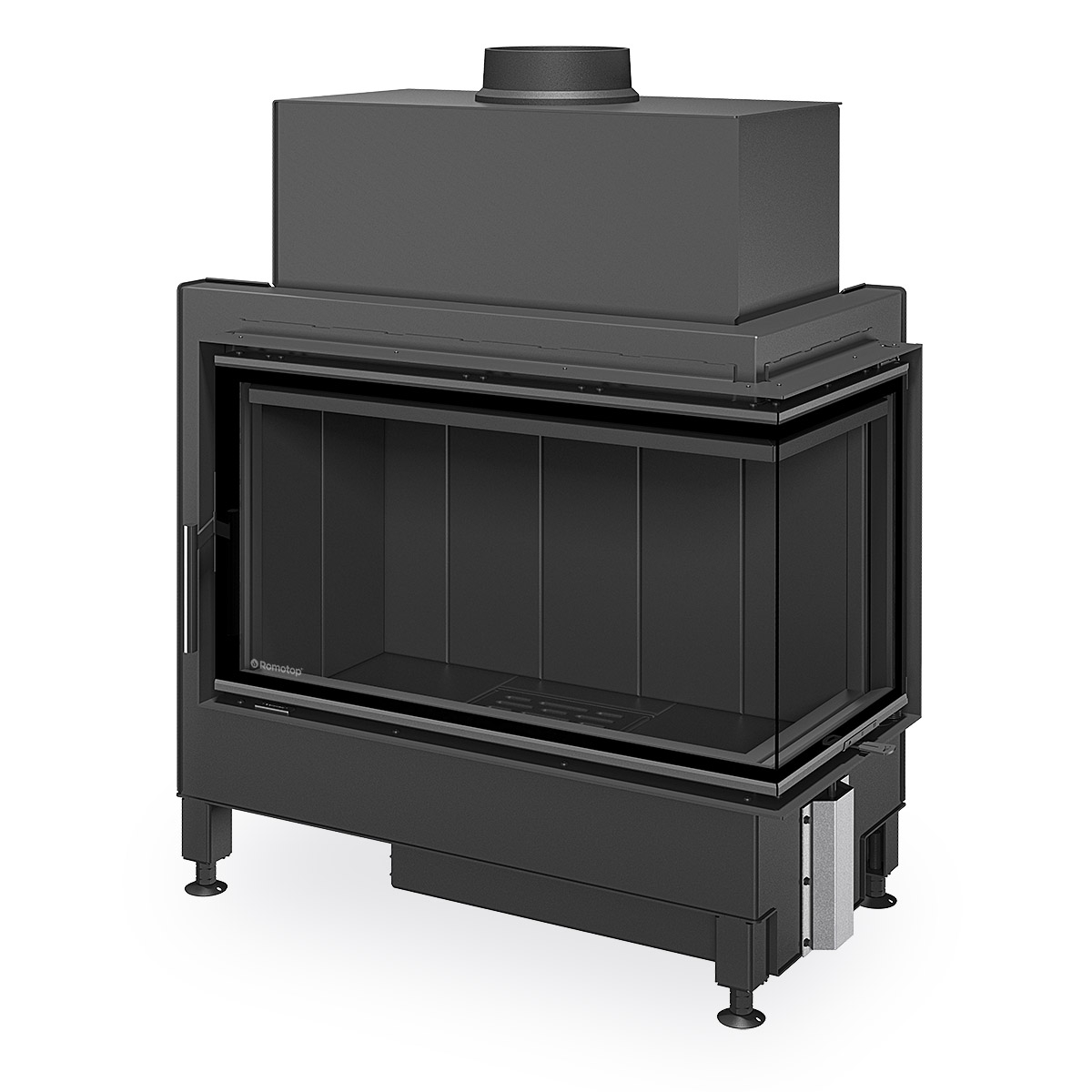

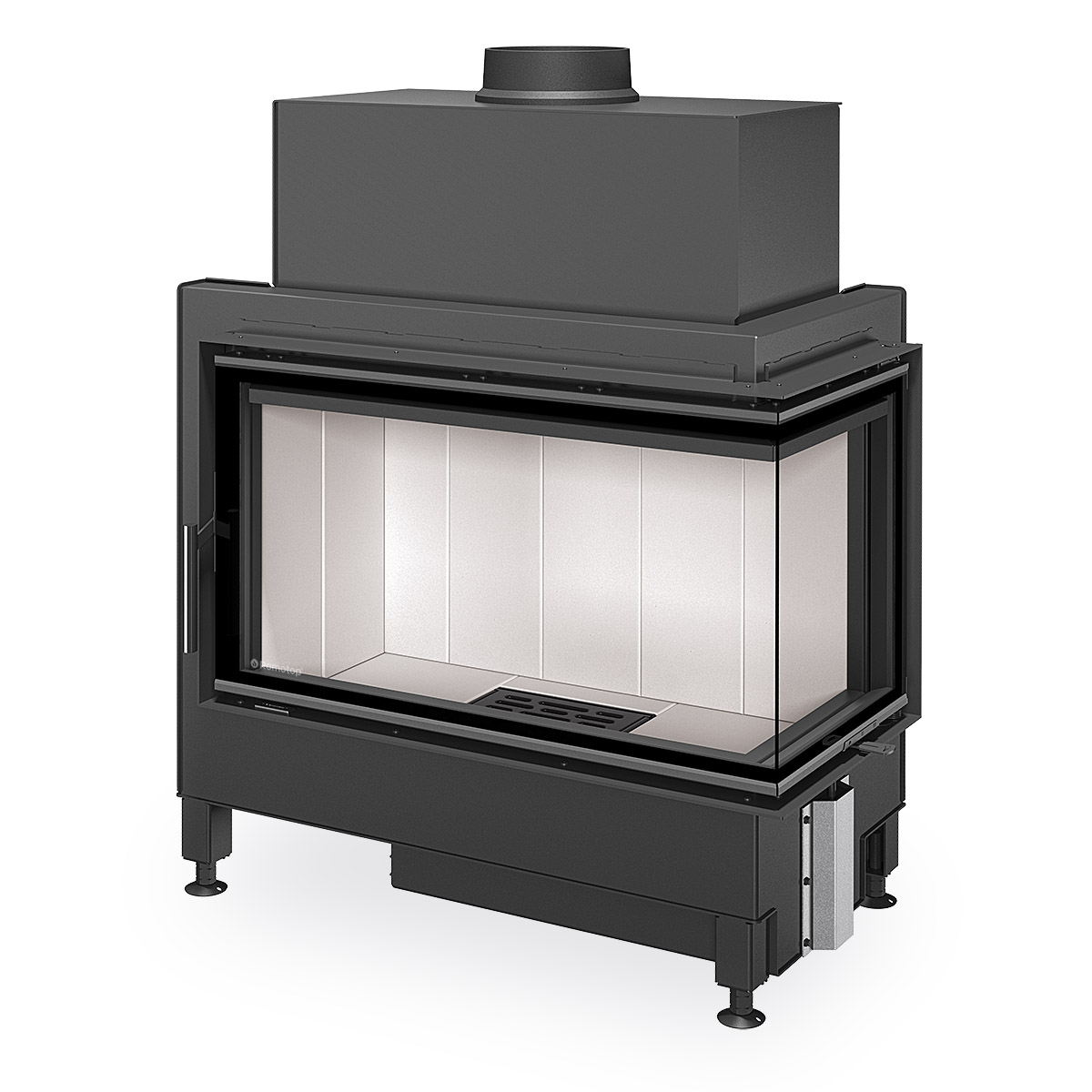

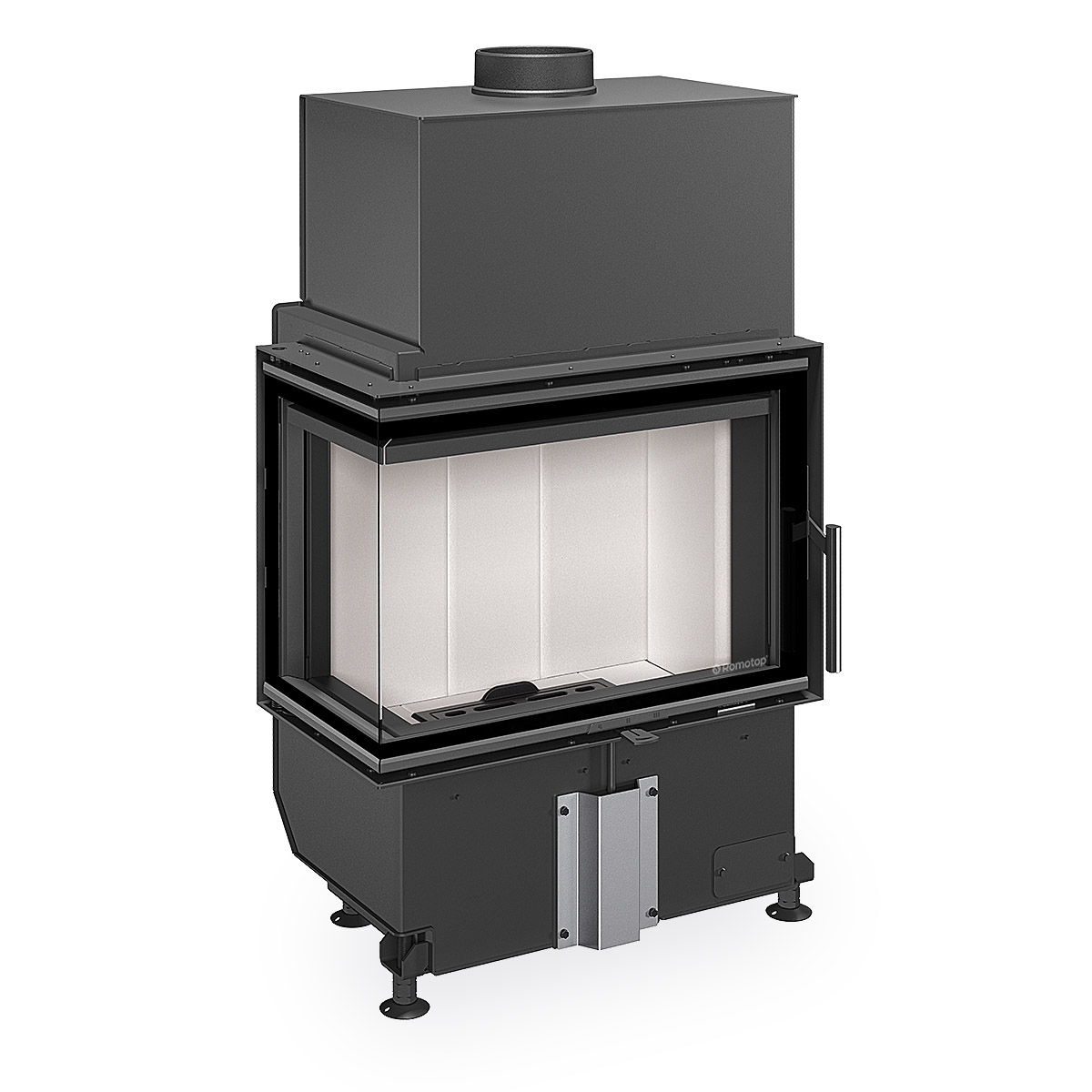

The picture shows the right variant of the fireplace insert. The picture shows the right variant of the fireplace insert. The picture shows the right variant of the fireplace insert. The picture shows the right variant of the fireplace insert.

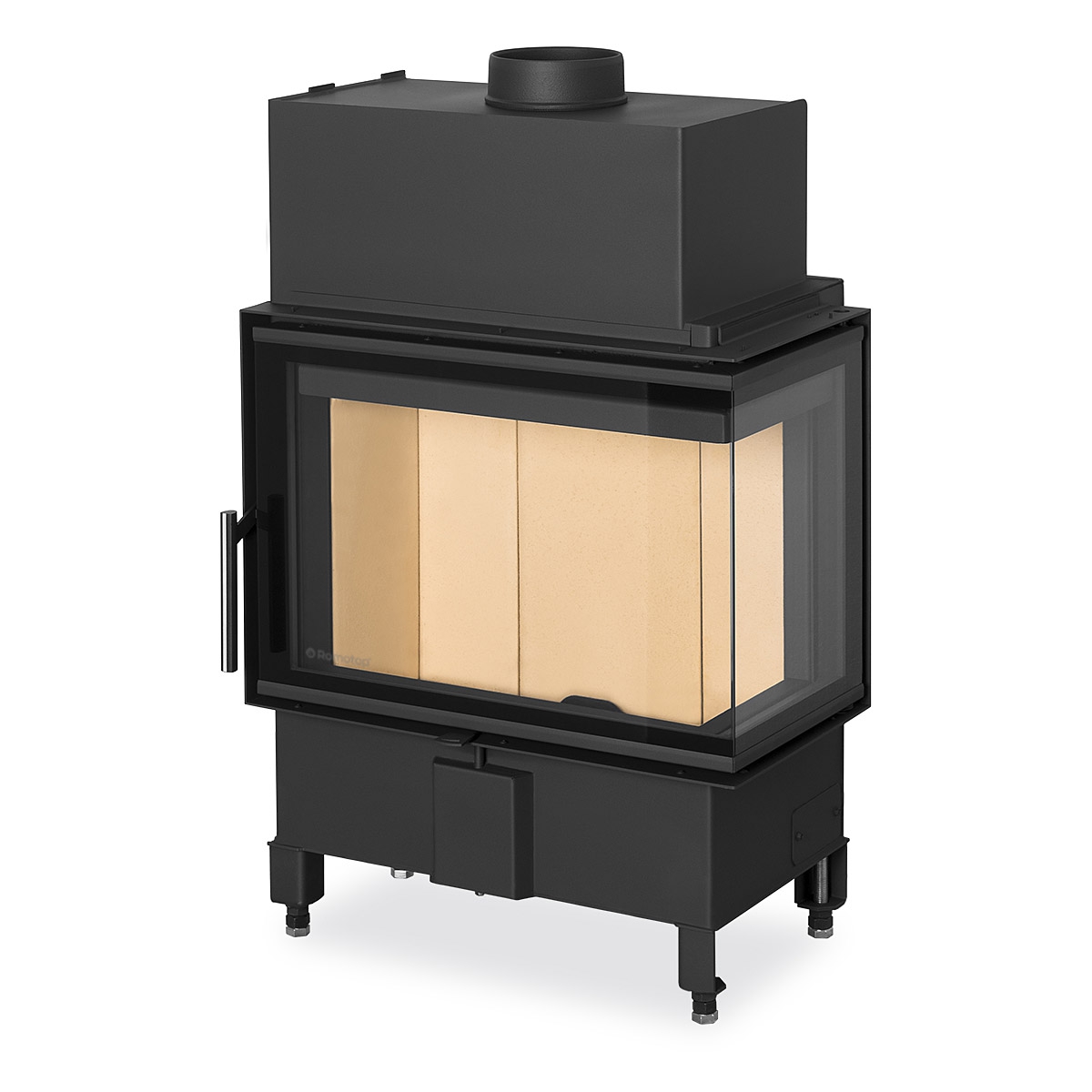

HEAT R/L 2g S 60.44.33.23

HEAT fireplace inserts WITH SIDE OPENING AND SPLIT CORNER GLAZING | HEAT R/L 2g S 60.44.33.23
In product comparison: 0 pc
Go to product comparison

suitable for low-energy houses

maximum of 2 side accumulation sets

Technical parameters
  • Height983 mm
  • Width600 mm
  • Depth375 mm
  • Door height407 mm
  • Door width577 mm
  • Door depth307 mm
  • Weight113 kg
  • Regulated output2,9-7,4 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Draught12 Pa
  • Efficiency85,7 %
  • Average wood consumption1,6 kg/h

HEAT R/L 2G S 65.51.40.21

HEAT fireplace inserts WITH SIDE OPENING AND SPLIT CORNER GLAZING | HEAT R/L 2G S 65.51.40.21
In product comparison: 0 pc
Go to product comparison

without grate set (optional)

maximum of 2 side accumulation sets

Technical parameters
  • Height1146 mm
  • Width714,5 mm
  • Depth468,5 mm
  • Door height470 mm
  • Door width652 mm
  • Door depth397 mm
  • Weight162 kg
  • Regulated output3,5-9,0 kW
  • Smoke flue diameter180-250 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency84,8 %
  • Average wood consumption1,9 kg/h

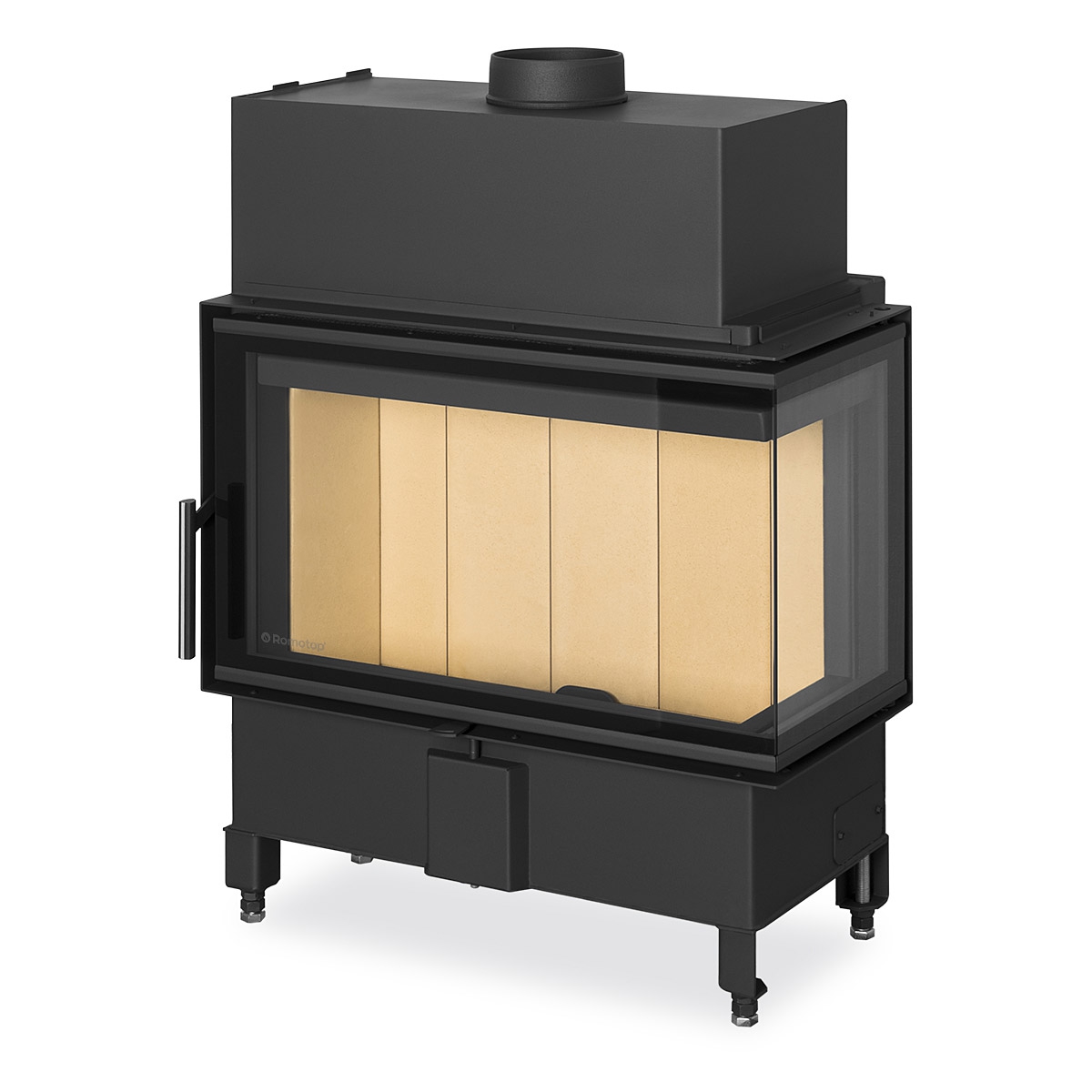

HEAT R/L 2G S 70.44.33.23

HEAT fireplace inserts WITH SIDE OPENING AND SPLIT CORNER GLAZING | HEAT R/L 2G S 70.44.33.23
In product comparison: 0 pc
Go to product comparison

suitable for low-energy houses

maximum of 2 side accumulation sets

Technical parameters
  • Height983 mm
  • Width700 mm
  • Depth375 mm
  • Door height407 mm
  • Door width677 mm
  • Door depth307 mm
  • Weight128 kg
  • Regulated output3,5-9,1 kW
  • Smoke flue diameter150-180 mm
  • Flue socket diameter150 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency86,6 %
  • Average wood consumption2,0 kg/h

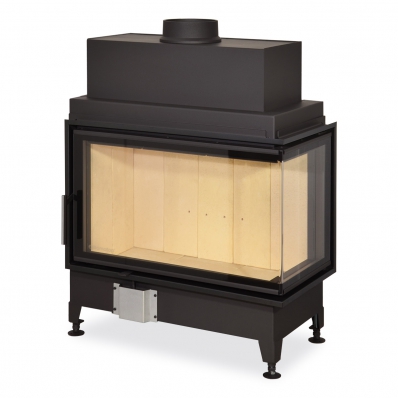

HEAT R/L 2G S 81.51.40.21

HEAT fireplace inserts WITH SIDE OPENING AND SPLIT CORNER GLAZING | HEAT R/L 2G S 81.51.40.21
In product comparison: 0 pc
Go to product comparison

without grate set (optional)

maximum of 2 side accumulation sets

Technical parameters
  • Height1146 mm
  • Width874,5 mm
  • Depth468,5 mm
  • Door height470 mm
  • Door width810 mm
  • Door depth400 mm
  • Weight186 kg
  • Regulated output6,0-15,6 kW
  • Smoke flue diameter200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency83,2 %
  • Average wood consumption3,4 kg/h

HEAT R/L 2g S 60.44.33.23

HEAT R/L 2g S 60.44.33.23
  • Split glazing - right variant - order code: HR2SY 23
  • Split glazing - left variant - order code: HL2SY 23

HEAT R/L 2G S 65.51.40.21

HEAT R/L 2G S 65.51.40.21

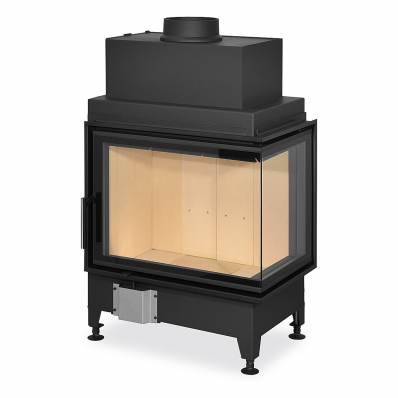

  • Split glazing - right variant - order code: HR2SG 21
  • Split glazing - left variant - order code: HL2SG 21

HEAT R/L 2G S 70.44.33.23

HEAT R/L 2G S 70.44.33.23
  • Split glazing - right variant - order code: HR2SX 23
  • Split glazing - left variant - order code: HL2SX 23

HEAT R/L 2G S 81.51.40.21

HEAT R/L 2G S 81.51.40.21
  • Split glazing - right variant - order code: HR2SF 21
  • Split glazing - left variant - order code: HL2SF 21
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 983 mm
  • Width 600 mm
  • Depth 375 mm
  • Door height 407 mm
  • Door width 577 mm
  • Door depth 307 mm
  • Weight 113 kg
  • Regulated output 2,9-7,4 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Draught 12 Pa
  • Efficiency 85,7 %
  • Average wood consumption 1,6 kg/h
Technical parameters
  • Height 1146 mm
  • Width 714,5 mm
  • Depth 468,5 mm
  • Door height 470 mm
  • Door width 652 mm
  • Door depth 397 mm
  • Weight 162 kg
  • Regulated output 3,5-9,0 kW
  • Smoke flue diameter 180-250 mm
  • Flue socket diameter 200 mm
  • External air intake diameter 150 mm
  • Draught 12 Pa
  • Efficiency 84,8 %
  • Average wood consumption 1,9 kg/h
Technical parameters
  • Height 983 mm
  • Width 700 mm
  • Depth 375 mm
  • Door height 407 mm
  • Door width 677 mm
  • Door depth 307 mm
  • Weight 128 kg
  • Regulated output 3,5-9,1 kW
  • Smoke flue diameter 150-180 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 150 mm
  • Draught 12 Pa
  • Efficiency 86,6 %
  • Average wood consumption 2,0 kg/h
Technical parameters
  • Height 1146 mm
  • Width 874,5 mm
  • Depth 468,5 mm
  • Door height 470 mm
  • Door width 810 mm
  • Door depth 400 mm
  • Weight 186 kg
  • Regulated output 6,0-15,6 kW
  • Smoke flue diameter 200 mm
  • Flue socket diameter 200 mm
  • External air intake diameter 150 mm
  • Draught 12 Pa
  • Efficiency 83,2 %
  • Average wood consumption 3,4 kg/h
