ESQUINA 3G

ESQUINA 3G Fireplace stoves

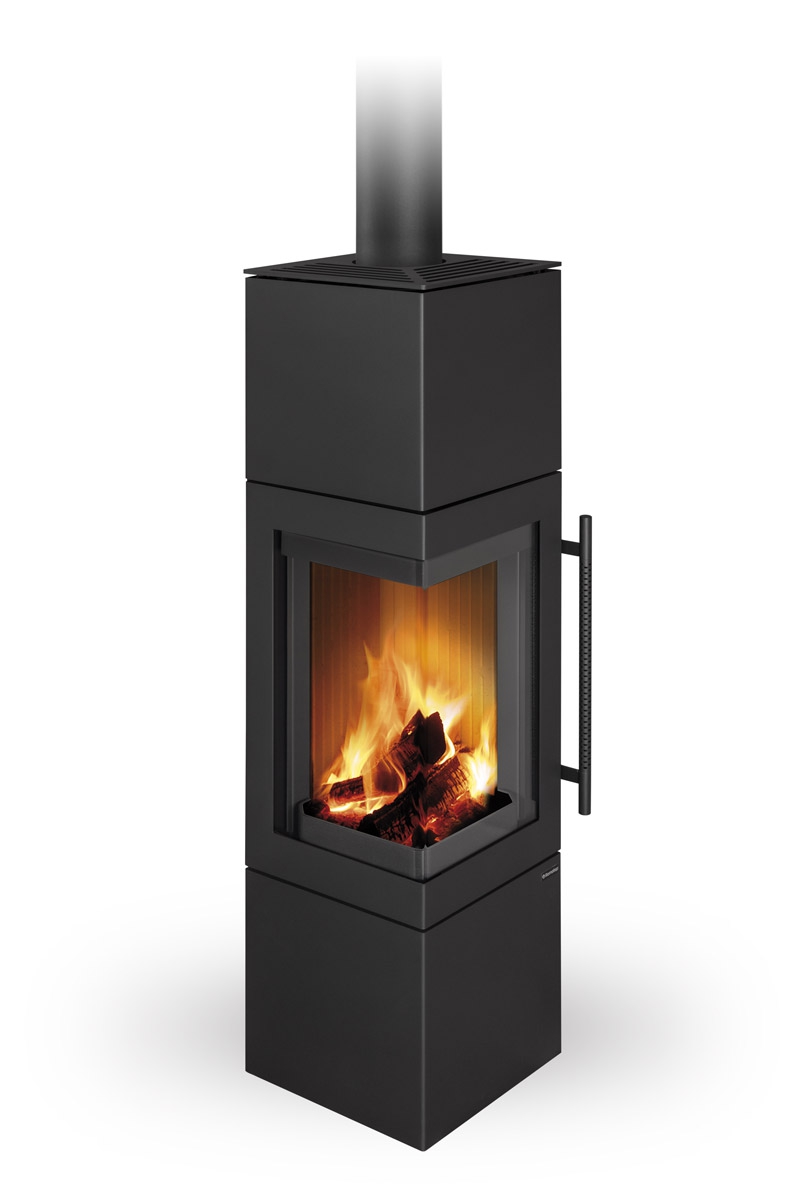

The compact square-shapped fireplace stove model with its high corner glass door catches the eye with its unique view of the fire from all angles.

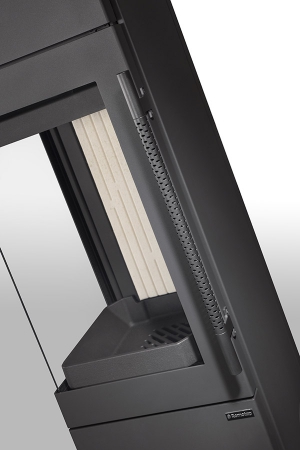

The ESQUINA 3G fireplace stove is suitable for low-energy homes. An EAI (External Air Intake) system is included. The ventilated designer handle permits use when the stove is lit. The door can be locked in the open position. The standard version includes the option to connect an upper or rear flue gas exhaust. Thanks to the secondary air intake, the door glass is air-washed to prevent the cumulation of soot. The combustion chamber is lined with white MATRIX chamotte brick. The primary and secondary air intakes are regulated by a single control element.

ESQUINA 3G

Steel

ESQUINA 3G - Steel
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1506 mm
  • Width403 mm
  • Depth403 mm
  • Weight170 kg
  • Regulated output3,0-7,7 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1383 mm
  • Draught12 Pa
  • Efficiency81,4 %
  • Average wood consumption1,7 kg/h

ESQUINA 3G

Steel

ESQUINA 3G - Steel
  • order code: ESQUINA 3G
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 1506 mm
  • Width 403 mm
  • Depth 403 mm
  • Weight 170 kg
  • Regulated output 3,0-7,7 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1383 mm
  • Draught 12 Pa
  • Efficiency 81,4 %
  • Average wood consumption 1,7 kg/h
