ALEDO 03

ALEDO 03

We are sorry, but this model has been sold out and cancelled from our product range.

Please look at following alternative models:

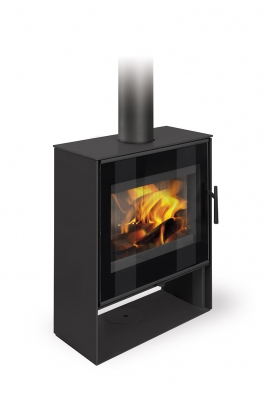

The elegant fireplace stove design, a large door with a roaring fire. ALEDO stove can create magic moments in every house.

•  suitable for low-energy houses
•  large door glazing
•  design printed glazing
•  resistant cast iron grate
•  preheating of the secondary air to keep the glass clean
•  ready for an external connection of the combustion air intake (EAI)
•  combustion chamber lined with genuine bricks
•  possibility to connect an upper or rear flue gas exhaust
•  regulation of primary and secondary air intake with a single control lever

  • Technical parameters
  • Alternative products
  • Download
Technical parameters
  • Height 840 mm
  • Width 696 mm
  • Depth 322 mm
  • Door height 589 mm
  • Door width 644 mm
  • Weight 164 kg
  • Regulated output 3,0-7,8 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 729 mm
  • Draught 11 Pa
  • Efficiency 83,5 %
  • Average wood consumption 1,6 kg/h
