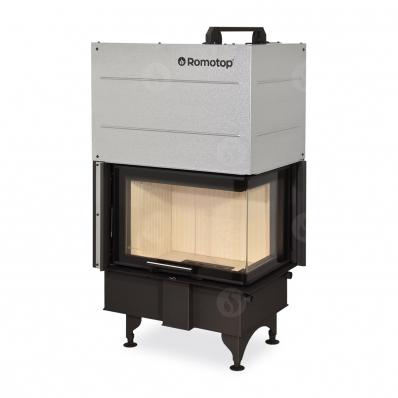

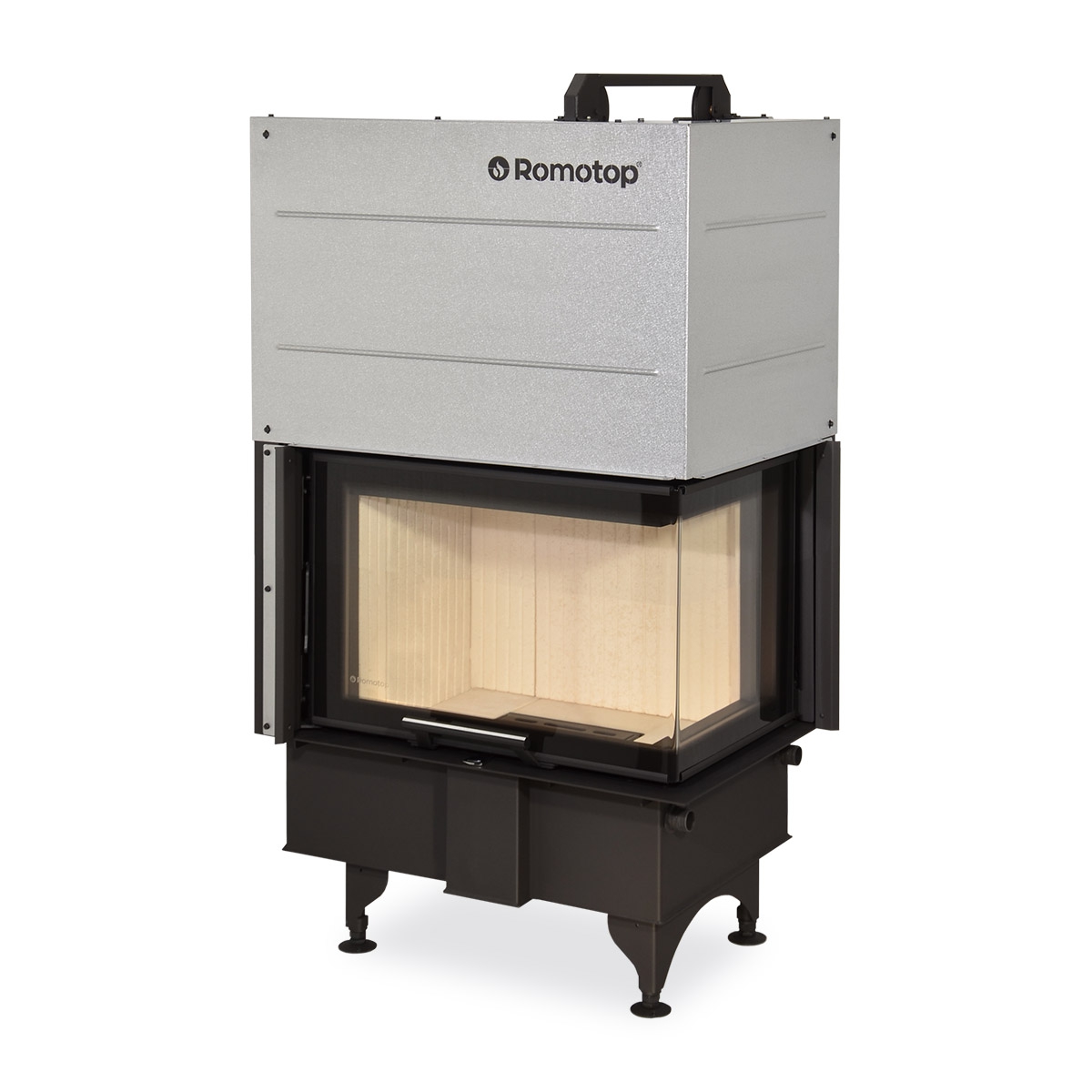

ANGLE R/L 2g L 66.44.44.01

ANGLE R/L 2g L 66.44.44.01

Combustion aesthetics
• completely reworked combustion air distribution
DOUBLE SPIN flue gas system

New system for door suspension at the center of gravity
• minimization of mechanical stress on door frame and running gear

ROMOTOP convection flaps
dissipation of excessive heat from the space above door
• significantly longer service life of running gear
• keeping the convection tightness
flaps are shut even in case of slight door opening

Heavy duty professional ball running gear
• precision door guide, correctly fitted door, tightness of combustion chamber
• distribution of mechanical stress to numerous roller elements, long service life
• location of running gear on the outside of the fireplace insert

Torsionally reinforced door frame
prevents frame deformation leading to possible cracks in glass

Innovative glass attachment

away from edges capable of initiating cracks

Combustion quality
• precise door guide in ball running gear
DOUBLE SPIN flue gas system
• door with smooth close finish
• extra combustion air

Comfort
• more ergonomic door opening
• ROMOTOP convection flaps
• new 200 mm spigot ensures both, standard direct installing with pipes and direct installing of ROMOTOP MAMMOTH rings right on the insert

  • Technical parameters
  • Accessories
  • Alternative products
  • Download
  • 3D-model
Technical parameters
  • Height 1430 mm
  • Width 743 mm
  • Depth 605 mm
  • Door height 407 mm
  • Door width 620 mm
  • Door depth 400 mm
  • Weight 255 kg
  • Regulated output 3,5-9,0 kW
  • Smoke flue diameter 180-250 mm
  • Flue socket diameter 200 mm
  • External air intake diameter 150 mm
  • Draught 12 Pa
  • Efficiency 84,8 %
  • Average wood consumption 1,9 kg/h
