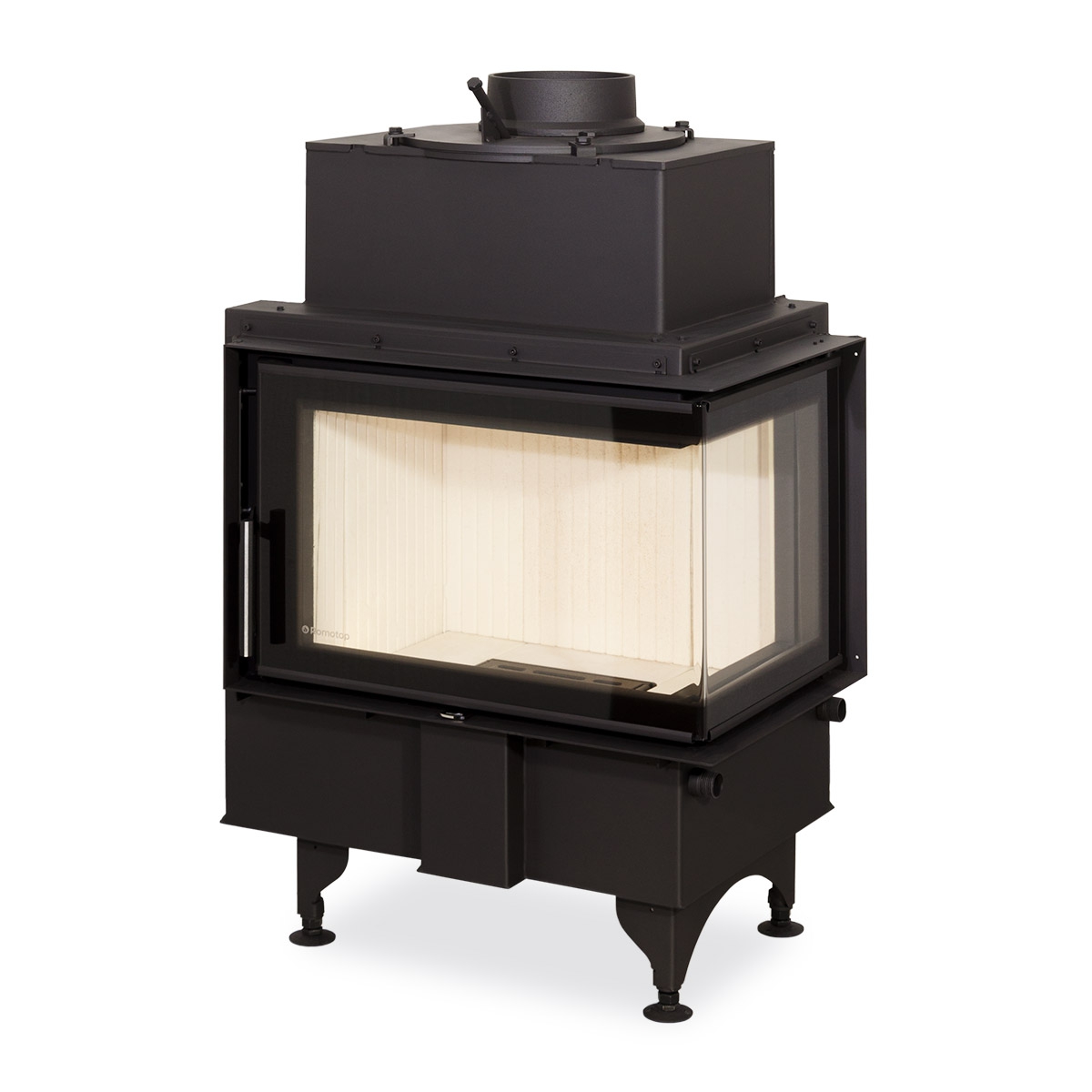

ANGLE R/L 2g S 66.44.44.01

ANGLE R/L 2g S 66.44.44.01

We are sorry, but this model has been sold out and cancelled from our product range.

Combustion aesthetics
• completely reworked combustion air distribution
DOUBLE SPIN flue gas system

Torsionally reinforced door frame
prevents frame deformation leading to possible cracks in glass

Innovative glass attachment

away from edges capable of initiating cracks

Comfort
• more ergonomic door opening
• new 200 mm spigot ensures both, standard direct installing with pipes and direct installing of ROMOTOP MAMMOTH rings right on the insert

  • Technical parameters
  • Accessories
  • Alternative products
  • Download
  • 3D-model
Technical parameters
  • Height 1130 mm
  • Width 741 mm
  • Depth 568 mm
  • Door height 407 mm
  • Door width 620 mm
  • Door depth 400 mm
  • Weight 185 kg
  • Regulated output 3,5-9,0 kW
  • Smoke flue diameter 180-250 mm
  • Flue socket diameter 200 mm
  • External air intake diameter 150 mm
  • Draught 12 Pa
  • Efficiency 84,8 %
  • Average wood consumption 1,9 kg/h
3D-model
