CARA C 03

CARA C 03

We are sorry, but this model has been sold out and cancelled from our product range.

Please look at following alternative models:

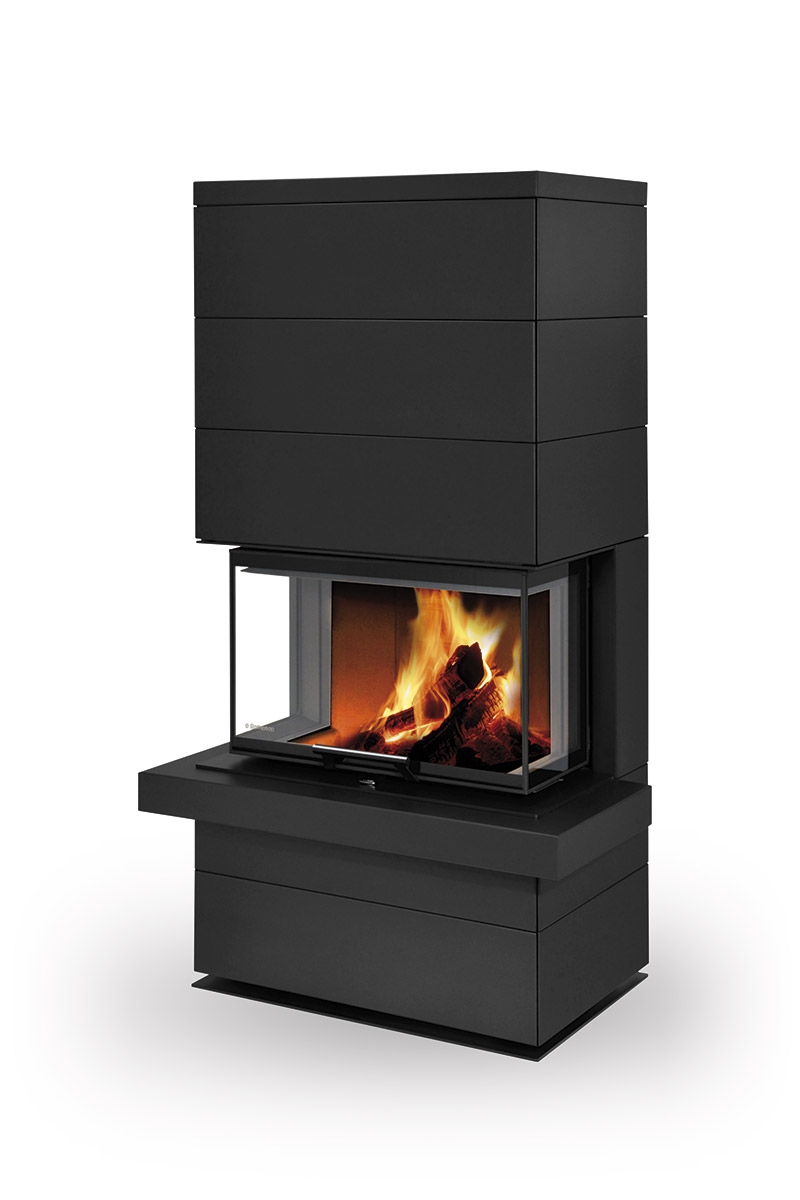

The CARA C 03 design fireplace stove responds to trends and needs of the modern interior architecture. Sensitively balanced exterior proportions, clean lines and dominating large three-sided glazing create an imposing unit addressing the most demanding customers.

The precise and light movement of the door, made possible through the SILENT LIFT system, complements it all. The rear shielding allows you to place the fireplace right next to a wall. An EAI (External Air Intake) system is included. The innovative DOUBLE SPIN flue gas system increases the stove’s efficiency. The standard version includes the option to connect an upper or rear flue gas exhaust. Thanks to the secondary air intake, the door glass is air-washed to prevent the cumulation of soot. The combustion chamber is lined with chamotte bricks. It does not include a grate as standard, but this can be added on demand. The stove is connected to a tertiary air intake. The primary and secondary air intakes are regulated by a single control element. Additionally, you can purchase extra accumulation elements that radiate heat long after the fireplace has gone out.

  • Technical parameters
  • Accessories
  • Alternative products
  • Download
  • 3D-model
Technical parameters
  • Height 1643 mm
  • Width 924 mm
  • Depth 577 mm
  • Door height 420 mm
  • Door width 670 mm
  • Door depth 272 mm
  • Weight 295 kg
  • Regulated output 3,9-10,1 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1346 mm
  • Draught 11 Pa
  • Efficiency 82,9 %
  • Average wood consumption 2,2 kg/h
3D-model
