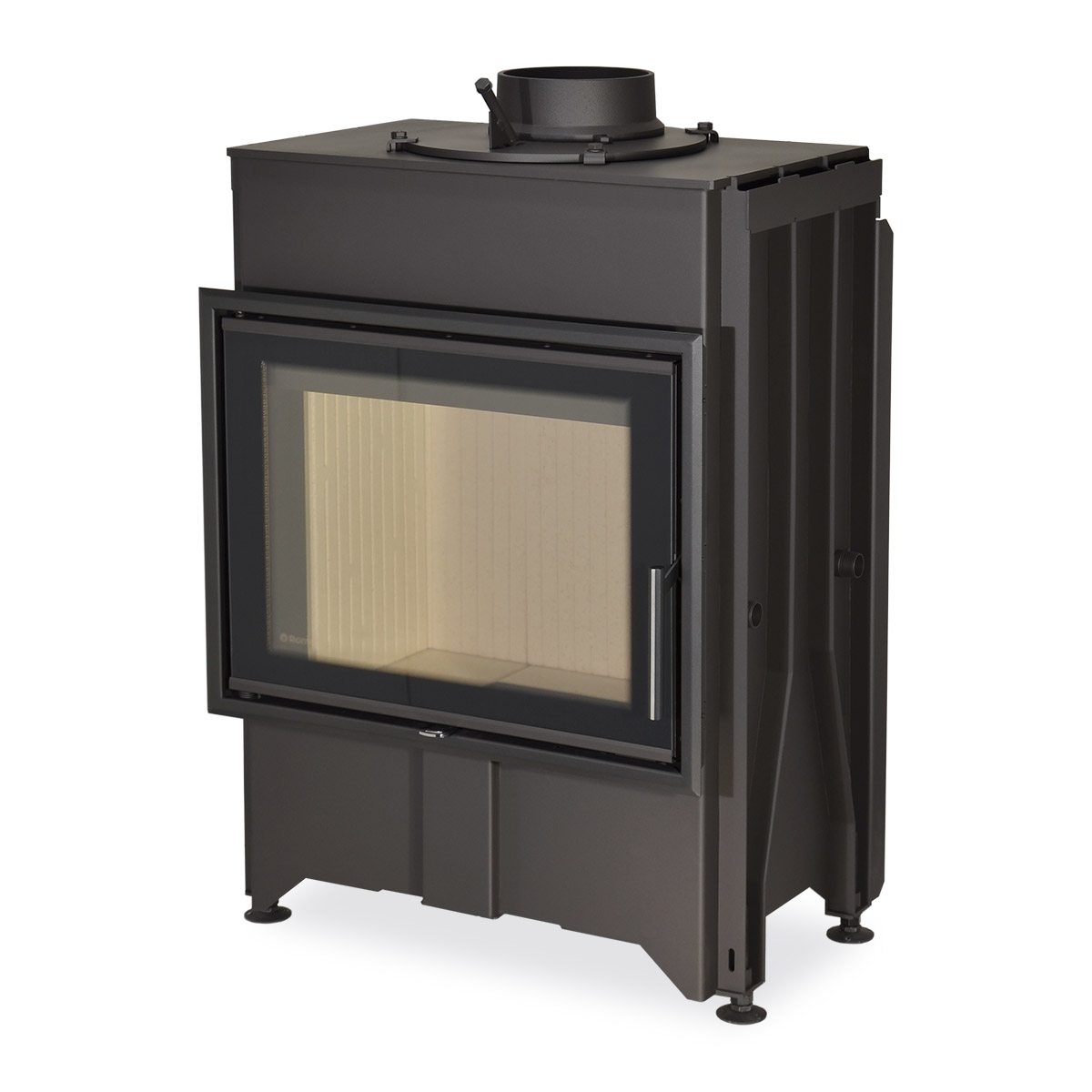

DYNAMIC 2G 66.50.01

DYNAMIC 2G 66.50.01

We are sorry, but this model has been sold out and cancelled from our product range.

Please look at following alternative models:

DYNAMIC fireplace inserts with double and triple glazing are the ideal choice for low-energy houses. First-class materials in combination with sophisticated structural design offer the perfect heat source for long winter nights.

DYNAMIC fireplace inserts are well suited for low-energy houses thanks to their double and triple glazing. The glass in the doors includes a design print. Fireplace inserts are equipped with an EAI (external air intake) system and designed for accumulation as well as convection operation. The combustion chamber is lined with chamotte bricks and a hinged iron grate with an ash tray. Secondary air intake washes over the glass in the door to prevent the cumulation of deposits. Primary and secondary air intake is regulated by a single control element. A MAMMOTH side accumulation set and upper accumulation rings can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert.

  • Technical parameters
  • Accessories
  • Alternative products
  • Download
Technical parameters
  • Height 1003 mm
  • Width 720 mm
  • Depth 482 mm
  • Door height 467 mm
  • Door width 624 mm
  • Weight 205 kg
  • Regulated output 3,9-10,1 kW
  • Smoke flue diameter 150-200 mm
  • Flue socket diameter 200 mm
  • External air intake diameter 150 mm
  • Draught 10 Pa
  • Efficiency 85,0 %
  • Average wood consumption 2,2 kg/h
