ESQUINA

ESQUINA

We are sorry, but this model has been sold out and cancelled from our product range.

Please look at following alternative models:

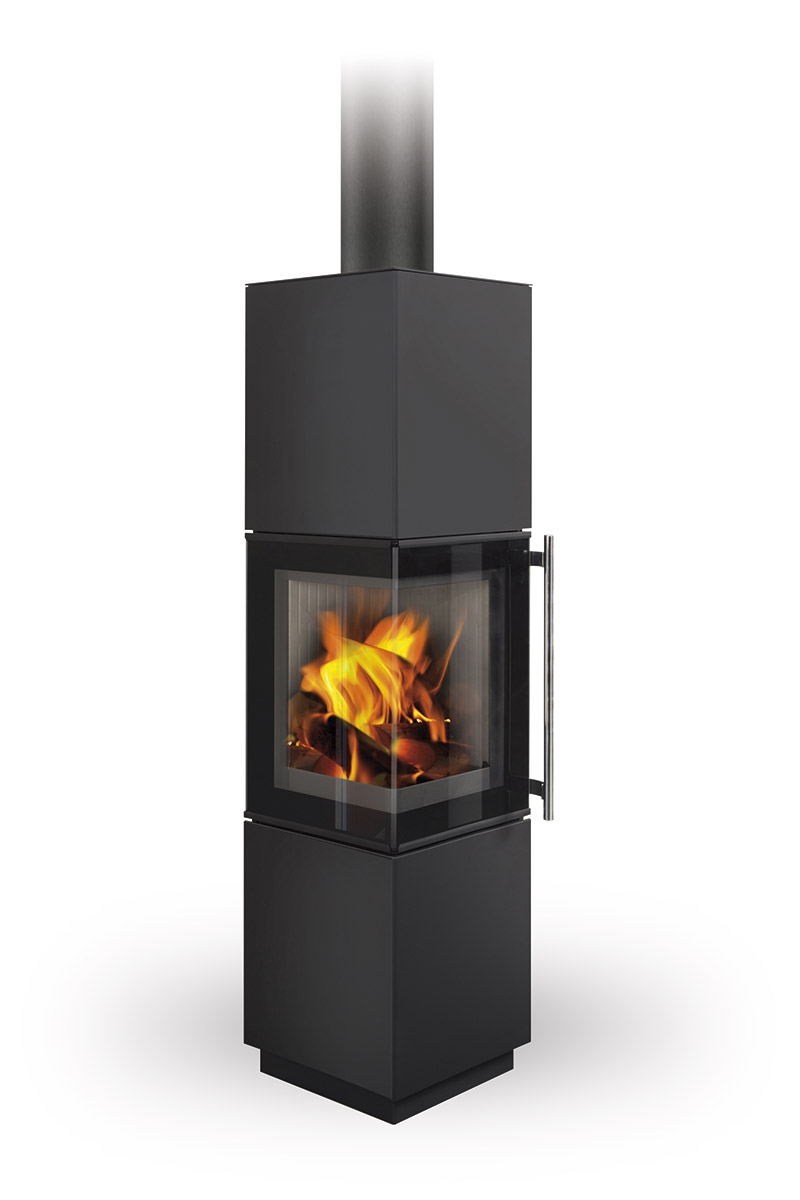

The slim ESQUINA fireplace stove model, with its sharply defined lines, will draw the attention of every visitor to the room. Outstanding corner glass door provides more intense visual contact with the flames from all parts of the room. The elegant black print on glazing creates a contrast to the stainless control elements. The massive vertical handle of the stove can be operated by the user in a natural standing position. Pneumatic closing of the stove door is quiet and reliable.

•  control of primary and secondary air circulation with a single lever
•  white Matrix chamottes with a massive cast-iron grate
•  preheating of primary/secondary air for efficient and ecological combustion
•  suitable for low-energy houses
•  accumulation set for longer heat radiation as option accessory
•  ready for an external connection of the combustion air intake (EAI)
•  top and back flue gas exhaust

  • Technical parameters
  • Accessories
  • Alternative products
  • Download
Technical parameters
  • Height 1514 mm
  • Width 399 mm
  • Depth 399 mm
  • Door height 543 mm
  • Door width 390 mm
  • Door depth 390 mm
  • Weight 184 kg
  • Regulated output 2,3-7,5 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1360 mm
  • Draught 10 Pa
  • Efficiency 82,8 %
  • Average wood consumption 1,3 kg/h
