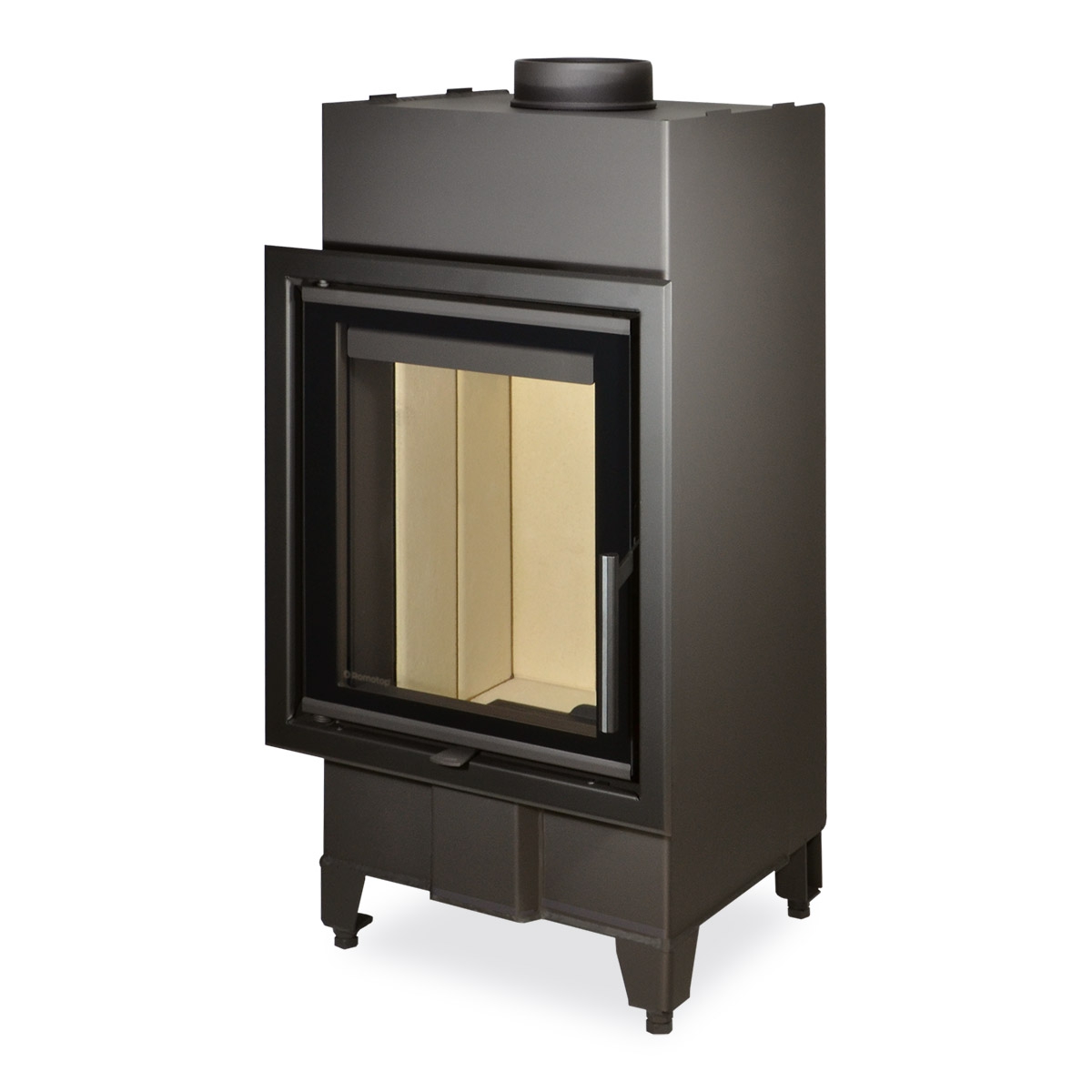

HEAT 2g 42.50.01

HEAT 2g 42.50.01

We are sorry, but this model has been sold out and cancelled from our product range.

The simple lines and sophisticated design of HEAT fireplace inserts with side opening afford a wide range of possible applications. Treat yourself to rare moments spent in the warmth of your family circle and discover the beauty of living flames.

HEAT fireplace inserts are intended for convection as well as accumulation operation with the use of ventilation grates. The door frame is made of a special rigid rolled profile. The glass in the doors includes a design print. An EAI (external air intake) system is included. The combustion chamber is lined with chamotte bricks and a hinged iron grate with an ash tray. Secondary air intake washes over the glass in the door to prevent the cumulation of deposits. Primary and secondary air intake is regulated by a single control element. A MAMMOTH side accumulation set and upper accumulation rings can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert.

  • Technical parameters
  • Accessories
  • Alternative products
  • Download
  • 3D-model
Technical parameters
  • [RS: Výška] 1003 [RS: mm]
  • [RS: Šířka] 419 [RS: mm]
  • [RS: Hloubka] 440 [RS: mm]
  • [RS: Výška dvířek] 467 [RS: mm]
  • [RS: Šířka dvířek] 384 [RS: mm]
  • [RS: Hmotnost] 109 [RS: kg]
  • [RS: Regulovatelný výkon] 2,5-7,0 [RS: kW]
  • [RS: Průměr kouřovodu] 150-200 [RS: mm]
  • [RS: Průměr kouřového hrdla] 150 [RS: mm]
  • [RS: Průměr centr. přív. vzduchu (CPV)] 125 [RS: mm]
  • [RS: Provozní tah] 10 [RS: Pa]
  • [RS: Účinnost] 83,8 %
  • [RS: Průměrná spotřeba dřeva] 1,3 [RS: kg/h]
