HEAT R/L 2g S 50.44.33.13(23)

HEAT R/L 2g S 50.44.33.13(23)

We are sorry, but this model has been sold out and cancelled from our product range.

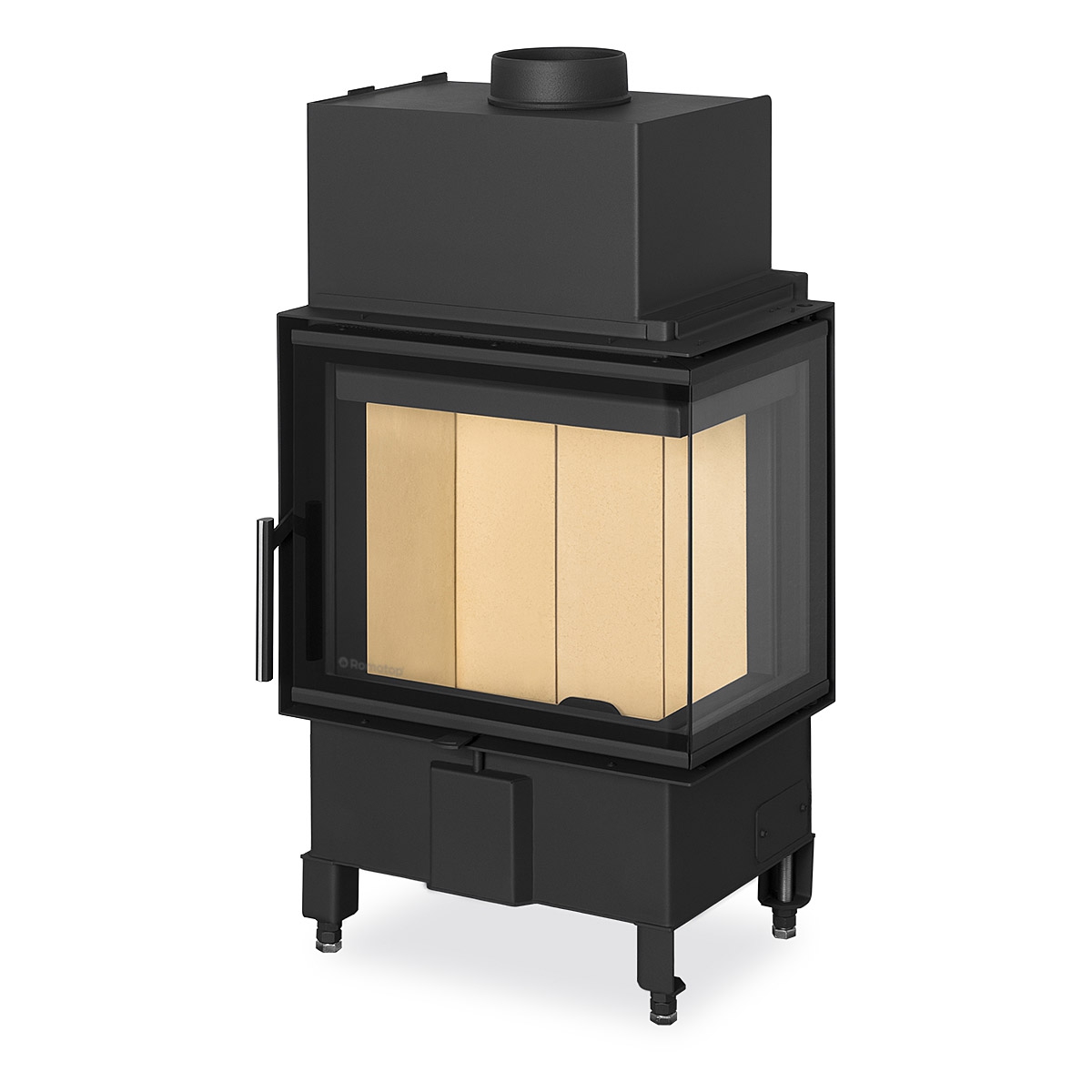

HEAT corner fireplace inserts with side opening are a compelling and modern addition to any interior. Let their pleasant warmth captivate you - making any home cozier, adding a touch of timeless design and a unique atmosphere.

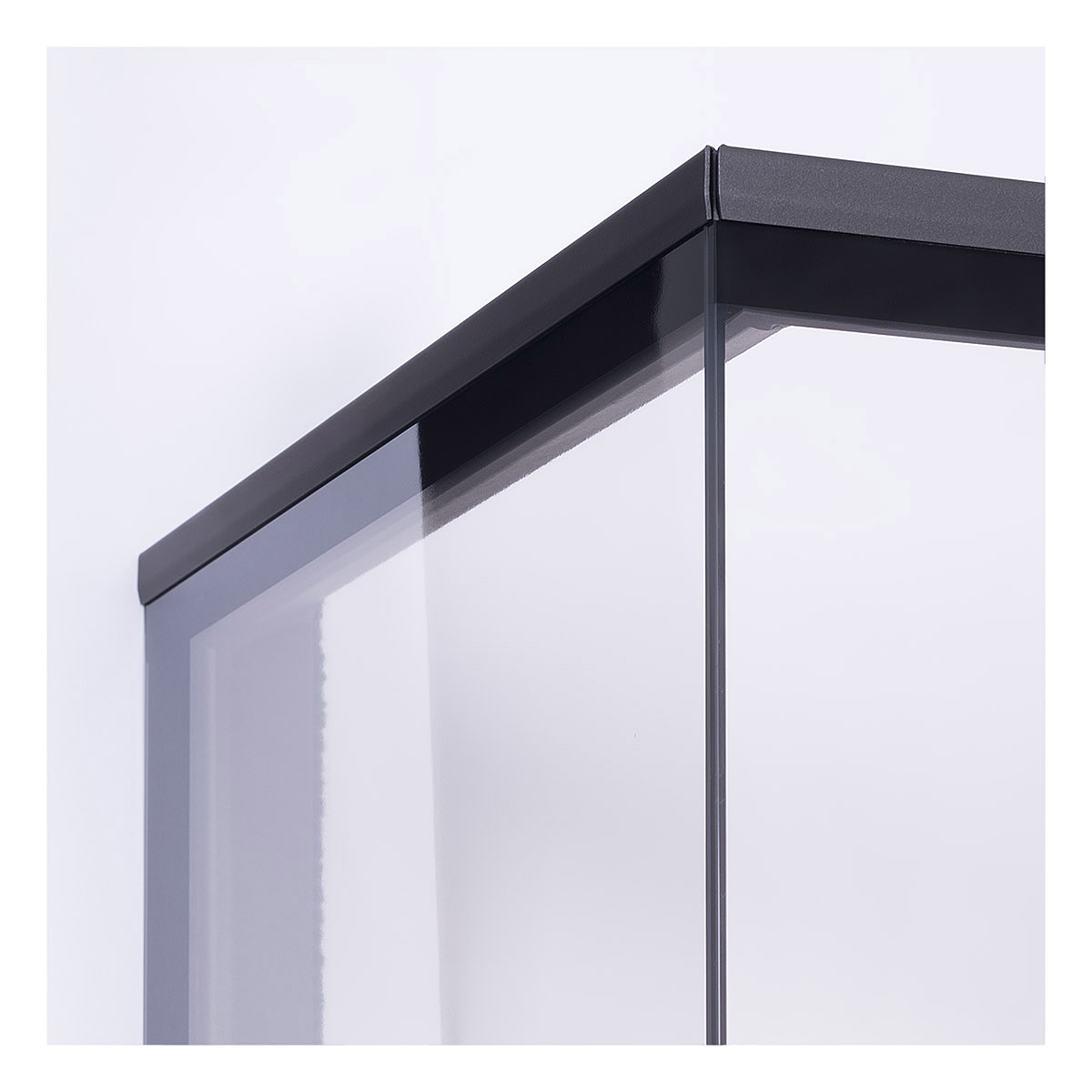

HEAT fireplace inserts are intended for convection as well as accumulation operation with the use of ventilation grates. Corner glazing (left, right) is made of two parts. The door frame is made of a special rigid rolled profile. The glass in the doors includes a design print. An EAI (external air intake) system is included. The combustion chamber is lined with chamotte bricks and a hinged iron grate with an ash tray. Secondary air intake washes over the glass in the door to prevent the cumulation of deposits. Primary and secondary air intake is regulated by a single control element. A MAMMOTH side accumulation set and upper accumulation rings can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert.

  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 983 mm
  • Width 500 mm
  • Depth 375 mm
  • Door height 407 mm
  • Door width 477 mm
  • Door depth 307 mm
  • Weight 98 kg
  • Regulated output 2,3-5,9 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Draught 11 Pa
  • Efficiency 83,5 %
  • Average wood consumption 1,4 kg/h
