We are sorry, but this model has been sold out and cancelled from our product range.

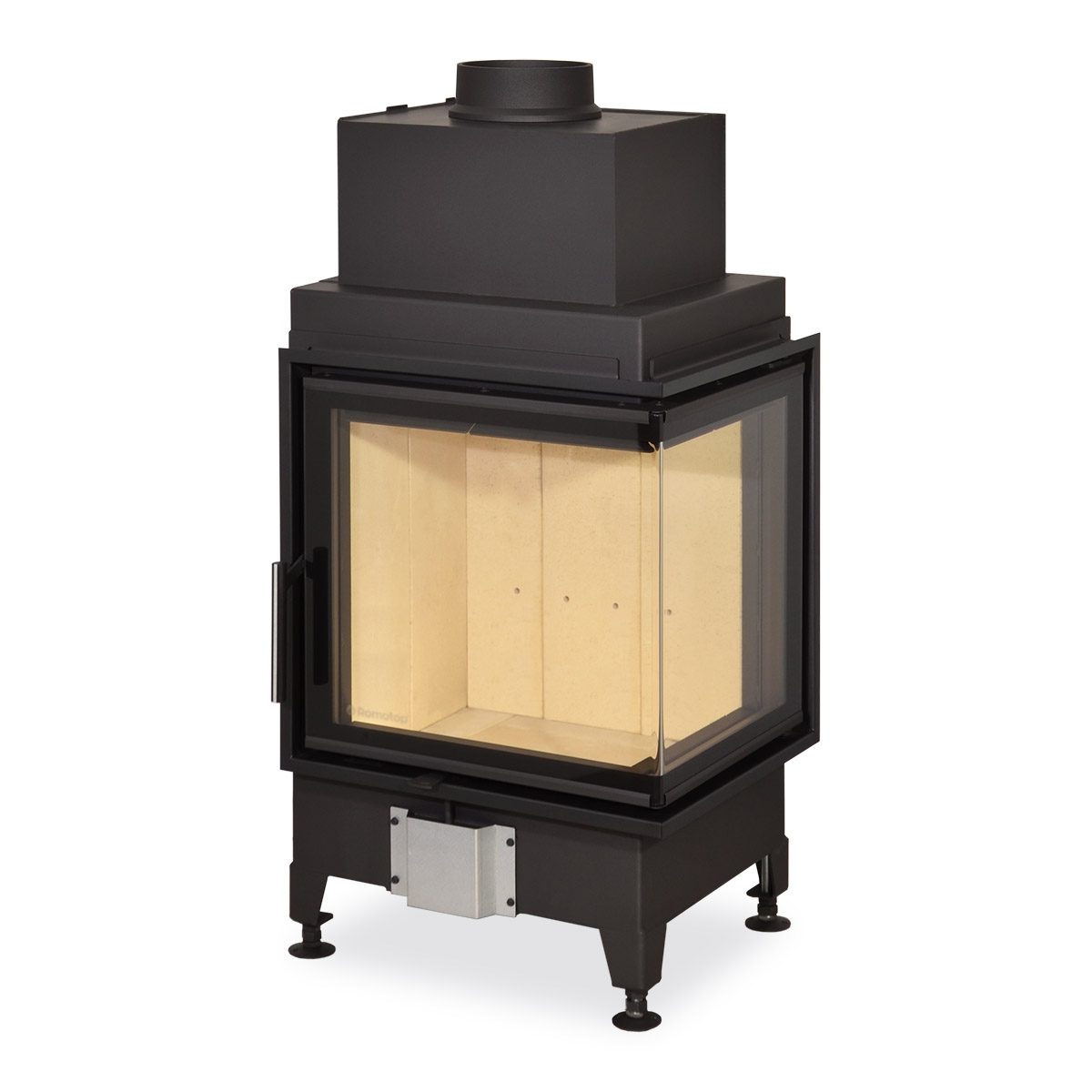

HEAT corner fireplace inserts with side opening are a compelling and modern addition to any interior. Let their pleasant warmth captivate you - making any home cozier, adding a touch of timeless design and a unique atmosphere.

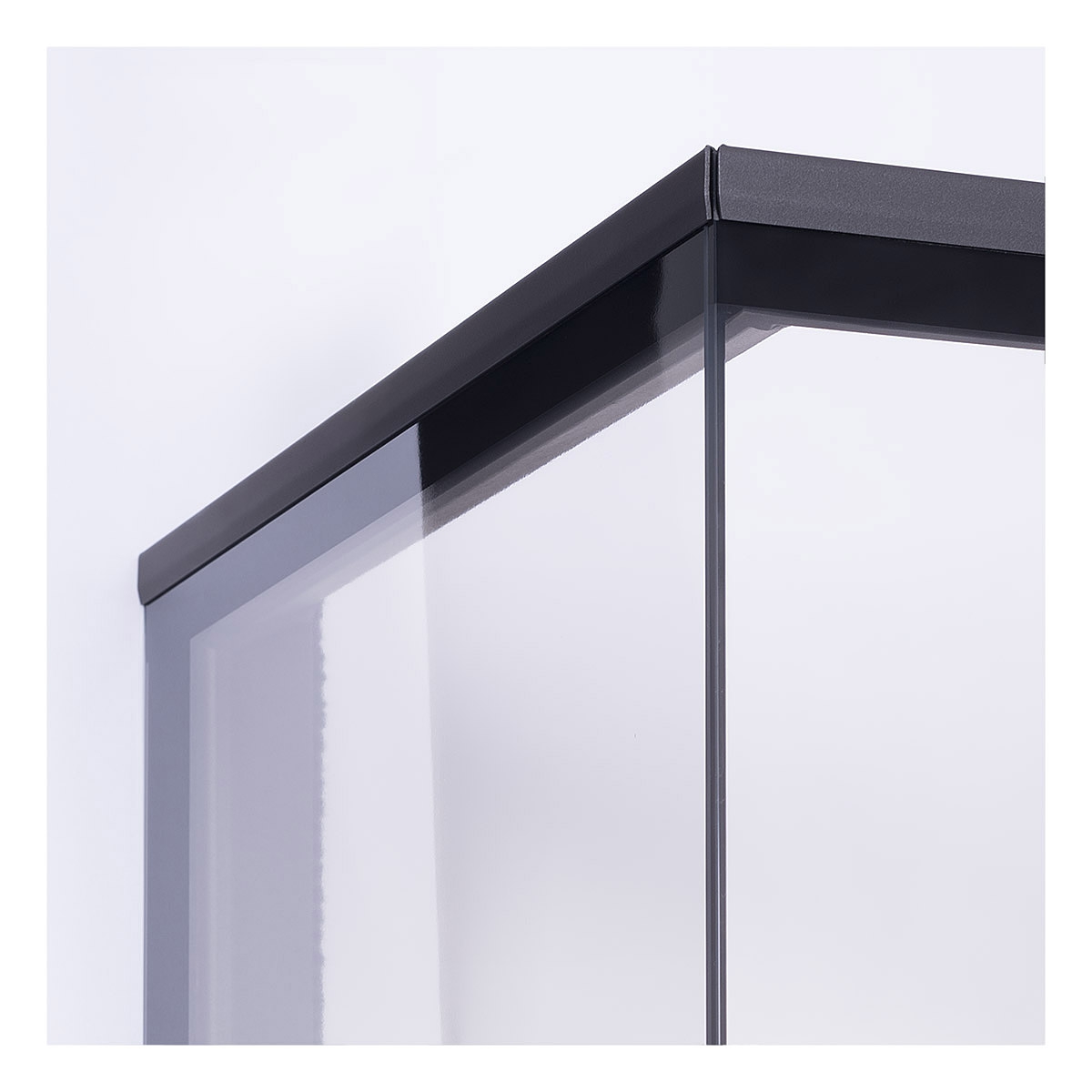

HEAT fireplace inserts are intended for convection as well as accumulation operation with the use of ventilation grates. Corner glazing (left, right) can be curved or made of two parts. The door frame is made of a special rigid rolled profile. The glass in the doors includes a design print. An EAI (external air intake) system is included. The combustion chamber is lined with chamotte bricks and a hinged iron grate with an ash tray. Secondary air intake washes over the glass in the door to prevent the cumulation of deposits. Primary and secondary air intake is regulated by a single control element. A MAMMOTH side accumulation set and upper accumulation rings can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert.

  • Technical parameters
  • Accessories
  • Alternative products
  • Download
Technical parameters
  • Height 1126 mm
  • Width 570 mm
  • Depth 470 mm
  • Door height 470 mm
  • Door width 500 mm
  • Door depth 400 mm
  • Weight 130 kg
  • Regulated output 3,3-8,4 kW
  • Smoke flue diameter 150-180 mm
  • Flue socket diameter 180 mm
  • External air intake diameter 125 mm
  • Draught 10 Pa
  • Efficiency 82,0 %
  • Average wood consumption 1,9 kg/h
