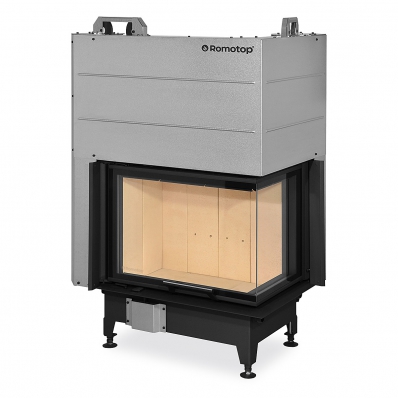

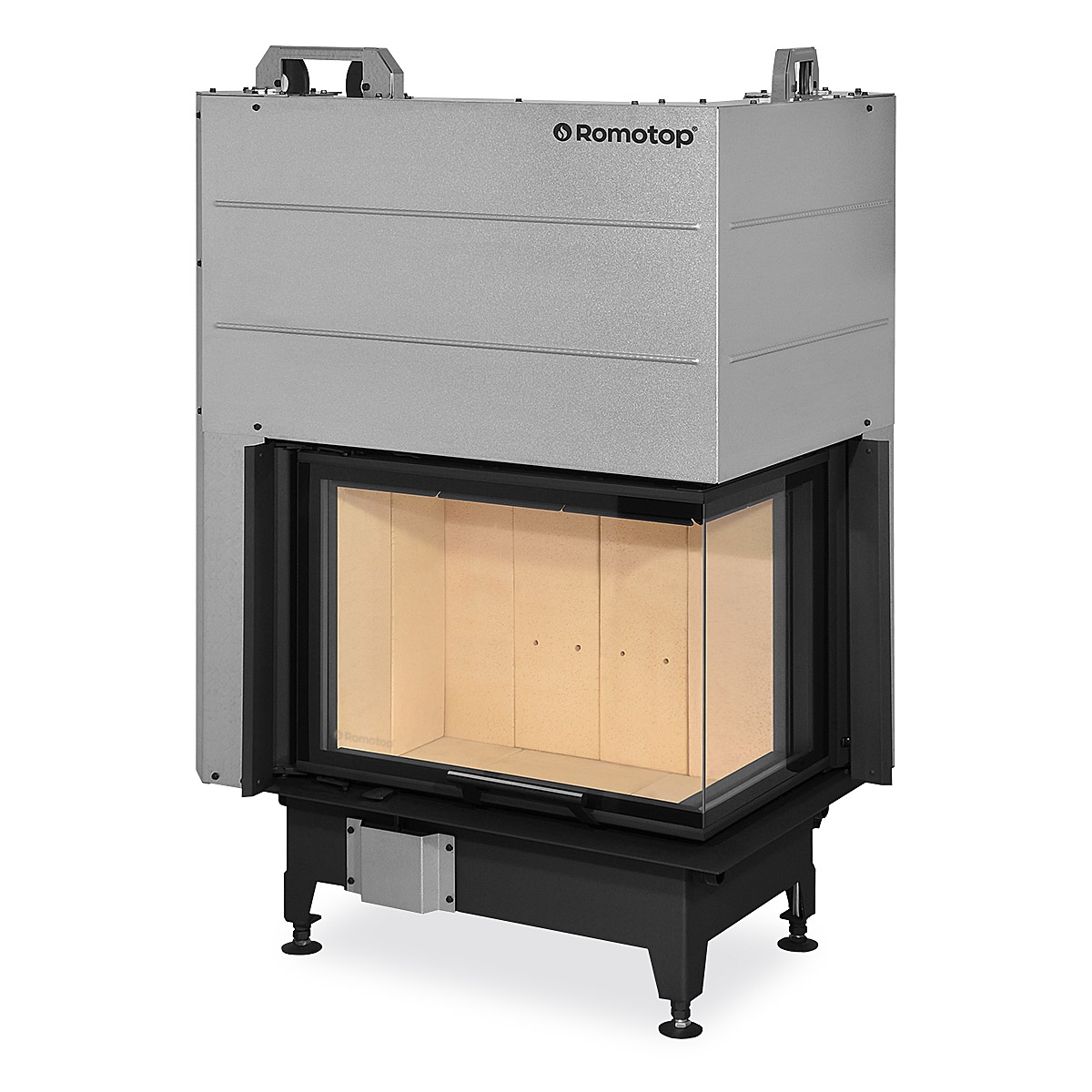

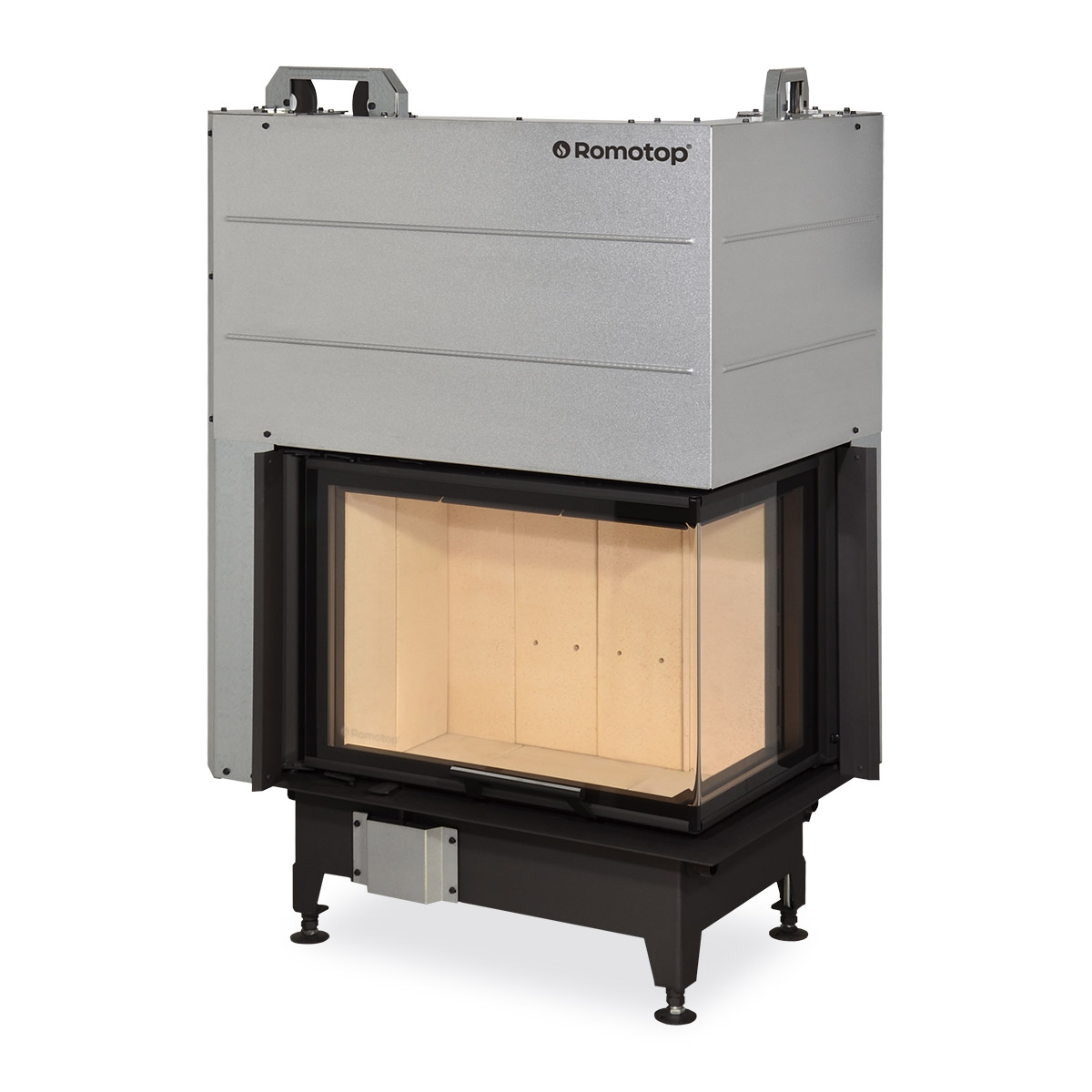

HEAT R/L 3g L 65.51.40.01(21)

HEAT R/L 3g L 65.51.40.01(21)

We are sorry, but this model has been sold out and cancelled from our product range.

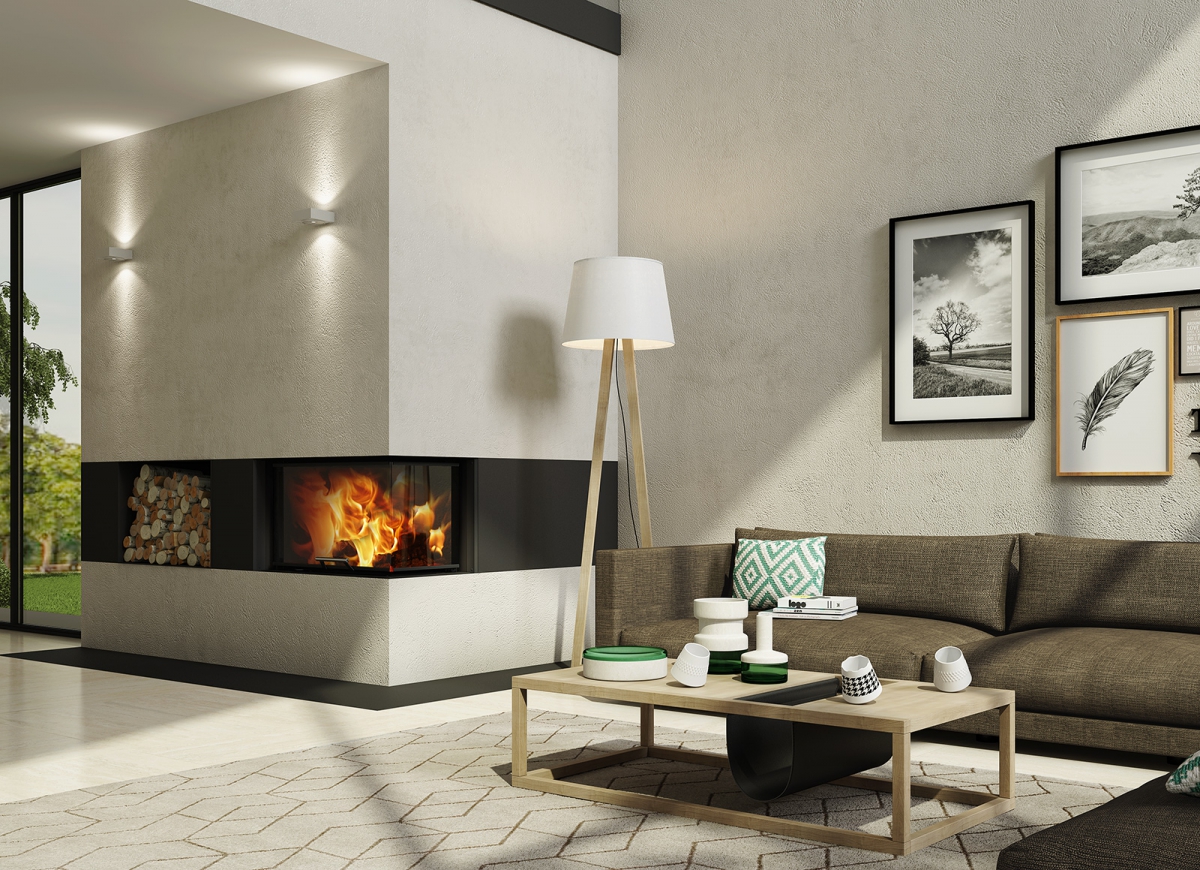

Above-standard large corner glazing makes HEAT fireplace inserts with lifting doors a dominant feature of every room. Clean lines together with the precise curvature of the glass perfectly reflects the requirements of contemporary design.

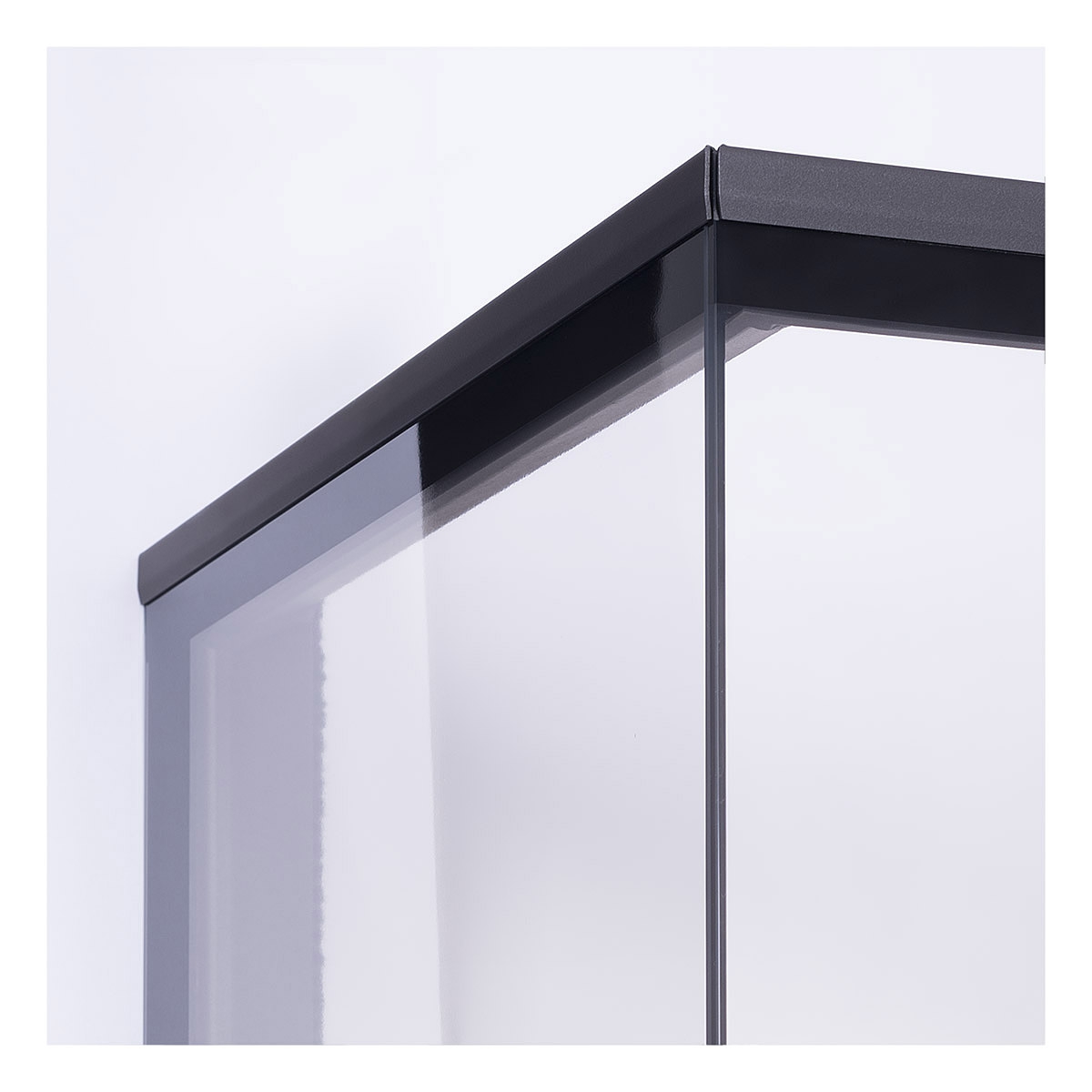

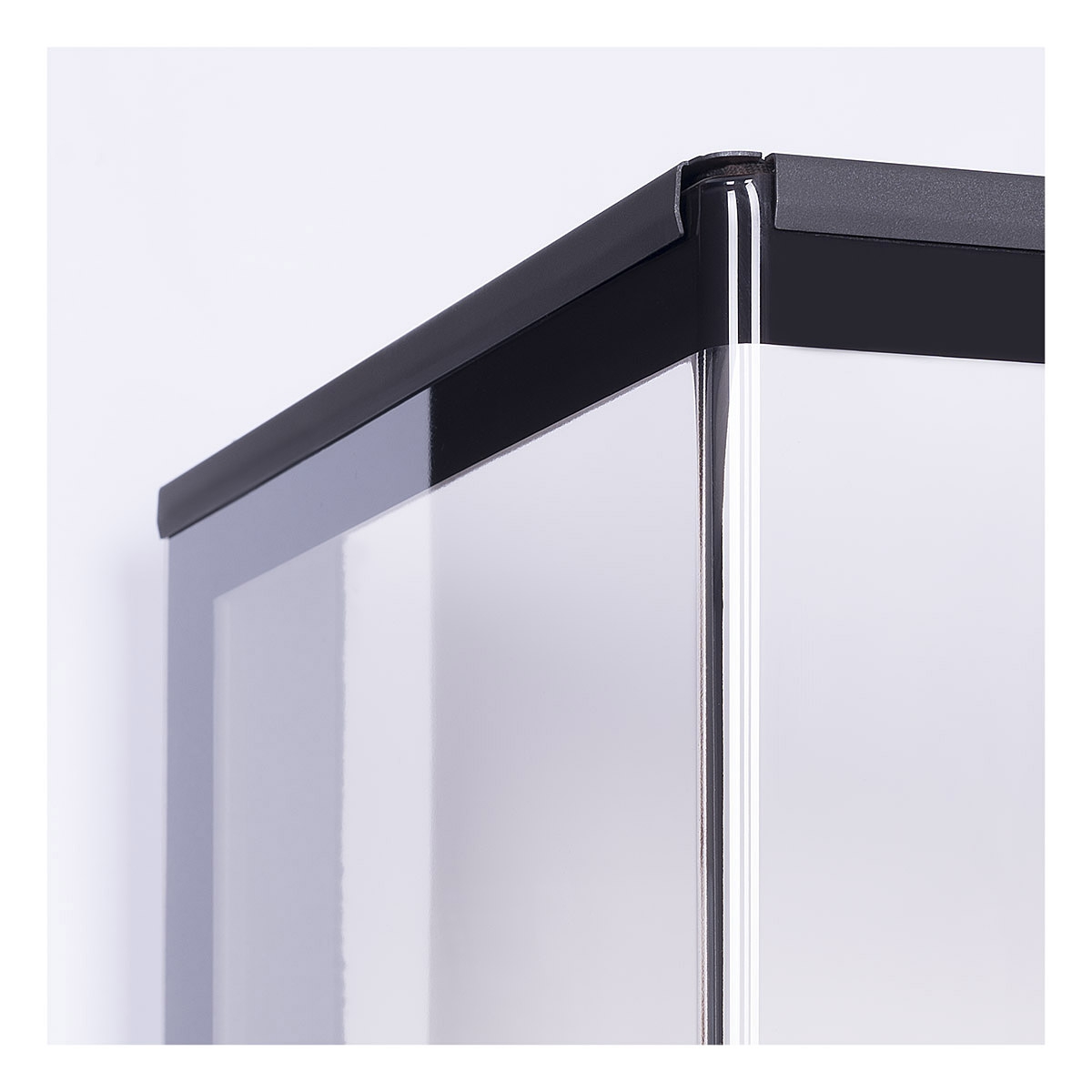

HEAT fireplace inserts have large-format printed corner glazing that allows you to experience the fire in a unique way. The easy, silent and precise operation of the lifting door is guaranteed by the state-of-the-art SILENT LIFT system. The combustion chamber is lined with chamotte bricks and is designed with no furnace grate. However the insert can be fitted with a grate at the customer’s request. HEAT fireplace inserts are intended for convection operation. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert. Secondary air intake washes over the glass in the door to prevent the cumulation of deposits. Primary and secondary air intake is regulated by a single control element. An EAI (external air intake) system is included. Tertiary air is brought into the combustion chamber to maximise combustion efficiency. Side and top MAMMOTH accumulation sets can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours.

  • Technical parameters
  • Accessories
  • Alternative products
  • Download
Technical parameters
  • Height 1357 mm
  • Width 876 mm
  • Depth 626 mm
  • Door height 470 mm
  • Door width 650 mm
  • Door depth 400 mm
  • Weight 230 kg
  • Regulated output 3,5-9,0 kW
  • Smoke flue diameter 180-250 mm
  • Flue socket diameter 200 mm
  • External air intake diameter 150 mm
  • Draught 12 Pa
  • Efficiency 84,8 %
  • Average wood consumption 1,9 kg/h
