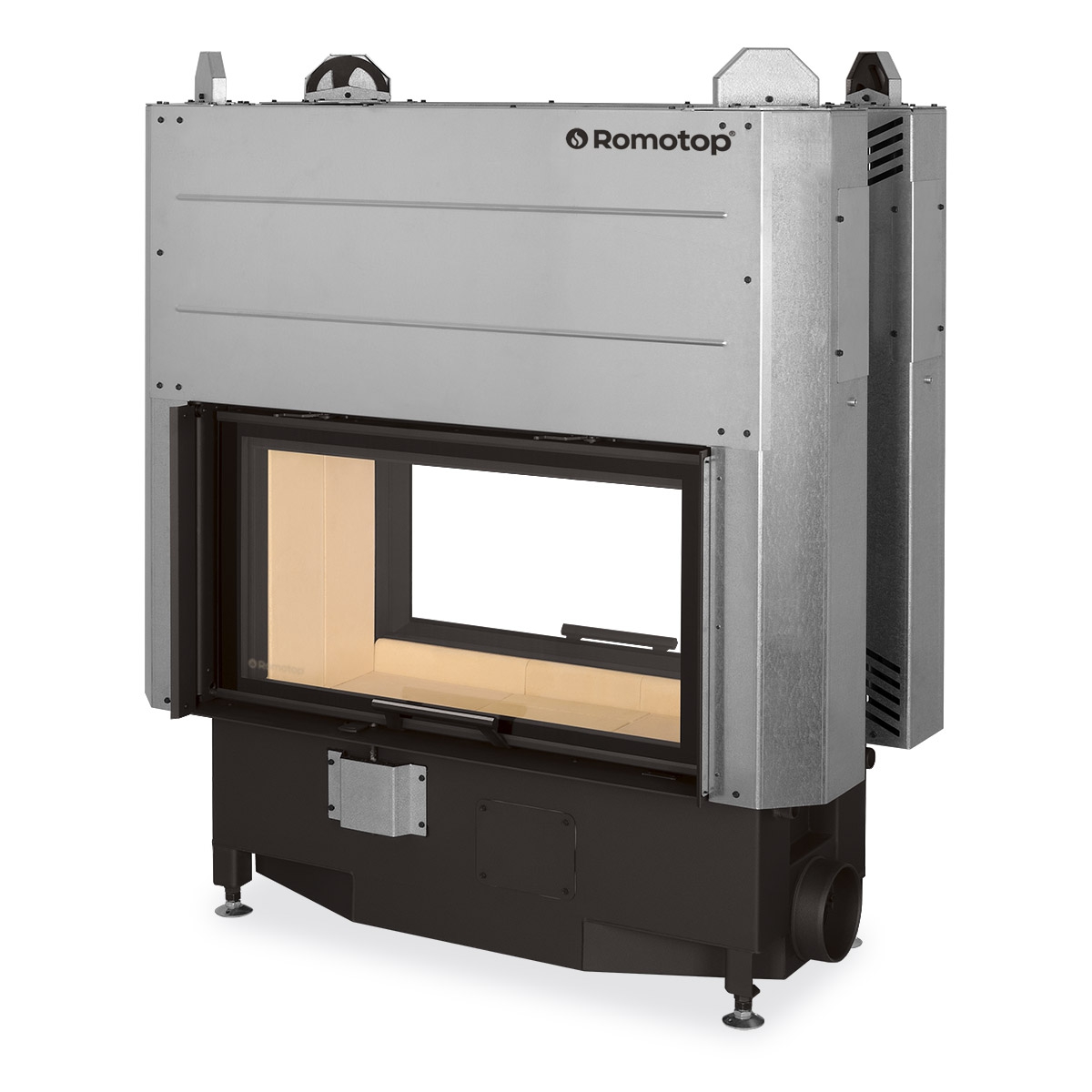

HEAT T 3g L 88.50.01

HEAT T 3g L 88.50.01

We are sorry, but this model has been sold out and cancelled from our product range.

Please look at following alternative models:

Connecting two areas was never so simple and elegant thanks to the HEAT tunnel fireplace inserts. Enjoy living flames that create a perfect atmosphere in different parts of your home.

HEAT fireplace inserts have large-format printed glazing that allows you to experience the fire in a unique way. Thanks to their tunnel design, wood can be added from both sides. The easy, silent and precise operation of the lifting door is guaranteed by the state-of-the-art SILENT LIFT system. The combustion chamber is lined with chamotte bricks and is designed with no furnace grate. However the insert can be fitted with a grate at the customer’s request. HEAT fireplace inserts are intended for convection operation. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert. Secondary air intake washes over the glass in the door to prevent the cumulation of deposits. Primary and secondary air intake is regulated by a single control element. An EAI (external air intake) system is included. Side and top MAMMOTH accumulation sets can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours.

  • Technical parameters
  • Accessories
  • Alternative products
  • Download
Technical parameters
  • Height 1426 mm
  • Width 1186 mm
  • Depth 585 mm
  • Door height 466 mm
  • Door width 851 mm
  • Weight 330 kg
  • Regulated output 5,8-15,1 kW
  • Smoke flue diameter 200 mm
  • Flue socket diameter 200 mm
  • External air intake diameter 150 mm
  • Draught 12 Pa
  • Efficiency 80,5 %
  • Average wood consumption 3,2 kg/h
