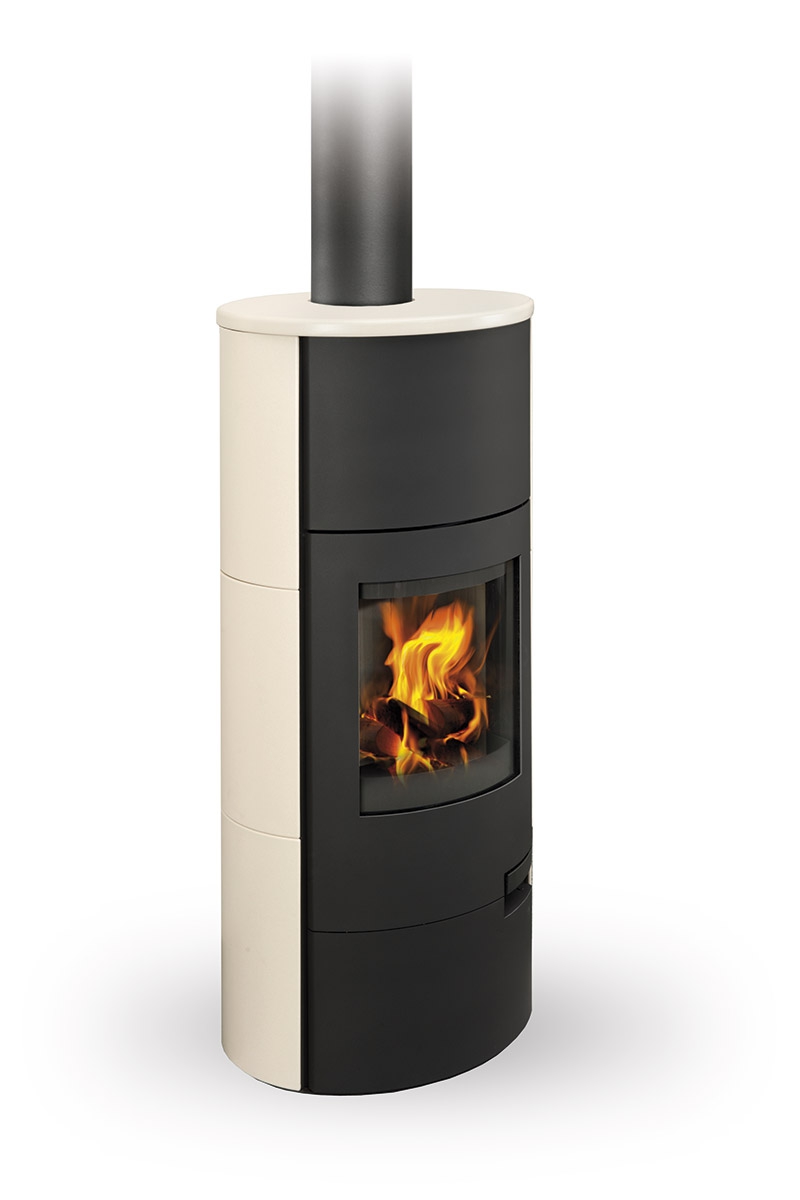

LUGO 01 W

LUGO 01 W

The LUGO W hot-water fireplace stove has all the parameters you expect from modern, high quality stoves. In addition, it comes with a highly efficient hot-water exchanger that can use residual heat to produce hot utility water or heating water.

This fireplace stove is suitable for low-energy homes. The highly efficient hot-water exchanger with a volume of 30 l can transfer 70% of the heat into the water and 30% into the air. An EAI (External Air Intake) system is included. The standard version includes the option to connect an upper or rear flue gas exhaust. Thanks to the secondary air intake, the door glass is air-washed to prevent the cumulation of soot. The combustion chamber is lined with chamotte brick tiles. The primary and secondary air intakes are regulated by a single control element. The lower part of the stove includes a storage area with a door for storing a small amount of wood or tools. The stove is equipped with a cooling loop with a thermal valve.



  • Technical parameters
  • Alternative products
  • Download
Technical parameters
  • Height 1384,5 mm
  • Width 560 mm
  • Depth 470 mm
  • Door height 710 mm
  • Door width 440 mm
  • Door depth 108 mm
  • Weight 325 kg
  • Regulated output 4,0-10,4 kW
  • Regulated output of water exchanger 2,5-6,6 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1243 mm
  • Draught 12 Pa
  • Efficiency 88,0 %
  • Average wood consumption 2,1 kg/h
