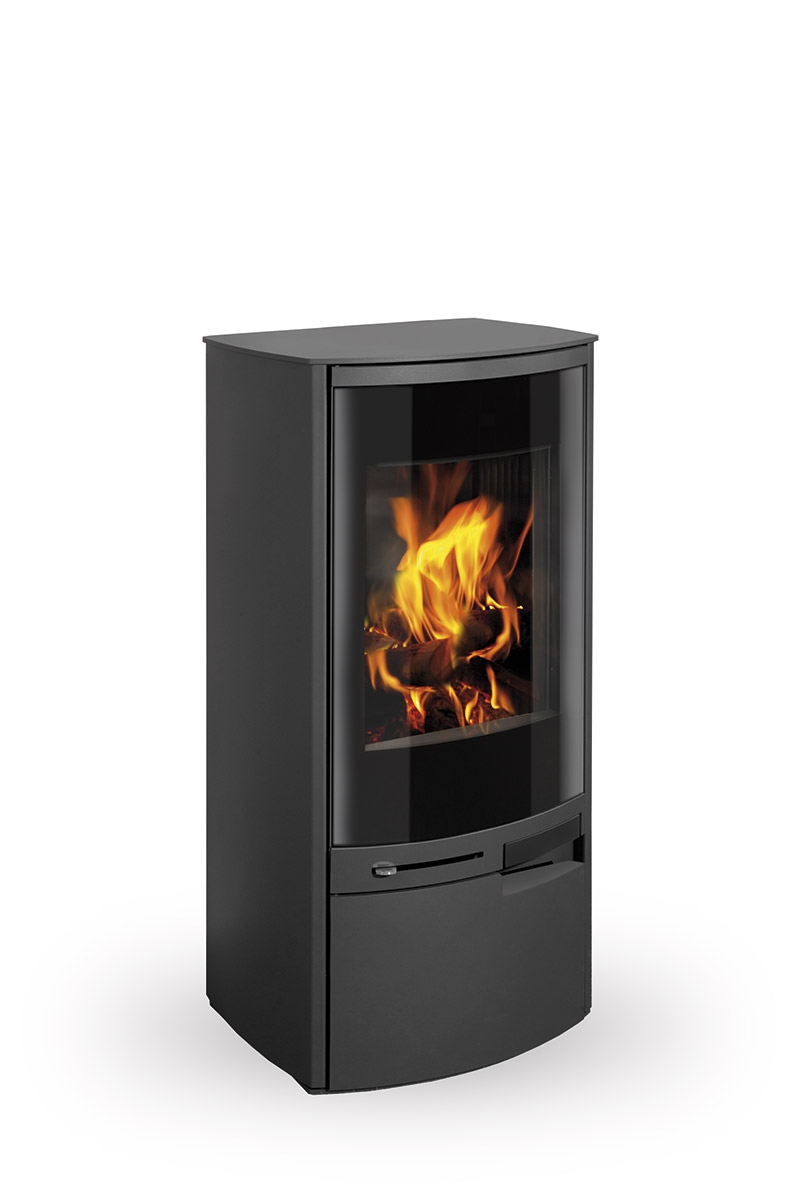

MERU N 03

MERU N 03

A simple and elegant design allows you to place the MERU N in any interior. As with many others, with this model you can also select the colour of the ceramic tiling from the glaze colour pattern book to match it with the existing interior equipment.

  • possibility to connect the top or rear flue gas exhaust
  • ready for an external connection of the combustion air intake (EAI)
  • secondary air intake to keep the glass clean and prevent impurities from settling
  • possibility to place a small supply of wood or ecological briquettes under the elevated furnace
  • Technical parameters
  • Alternative products
  • Download
Technical parameters
  • Height 1049 mm
  • Width 536 mm
  • Depth 448 mm
  • Weight 153 kg
  • Regulated output 3,0-7,7 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 946 mm
  • Draught 12 Pa
  • Efficiency 80,1 %
  • Average wood consumption 1,7 kg/h
