VARIANT F 03

VARIANT F 03

We are sorry, but this model has been sold out and cancelled from our product range.

Please look at following alternative models:

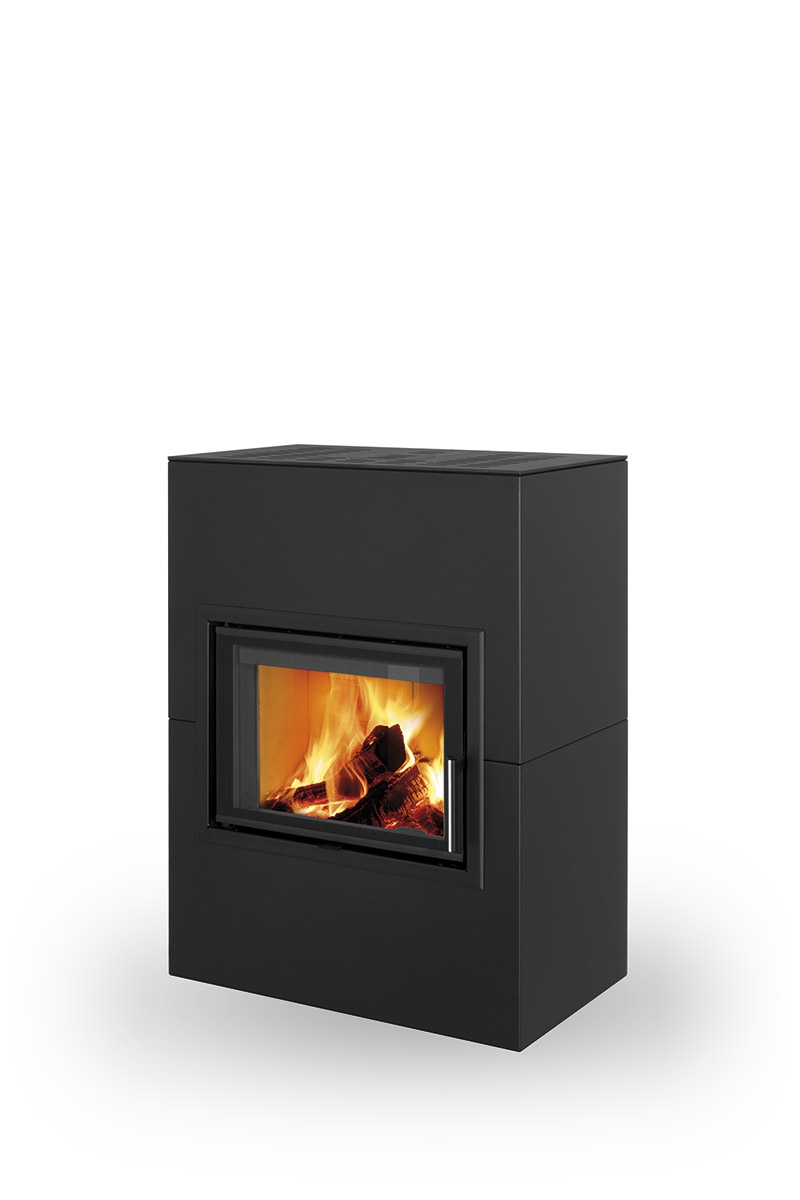

A single fireplace. Yet always unique... you too can design your own fireplace thanks to the modular system used in the Romotop VARIANT F 03. The shape and maximum flexibility of the design follow the latest trends of modern interior architecture.

Indeed, this high quality fireplace is especially suitable for low-energy homes. The modular system allows you to design your own fireplace. An EAI (External Air Intake) system is included. The innovative DOUBLE SPIN flue gas system increases the fireplace’s efficiency. The standard version includes the option to connect an upper or rear flue gas exhaust. Thanks to the secondary air intake, the door glass is air-washed to prevent the accumulation of soot. The combustion chamber is lined with chamotte brick tiles. The primary and secondary air intakes are regulated by a single control element. Additionally, you can purchase extra accumulation elements that radiate heat long after the fireplace has gone out.

  • Technical parameters
  • Accessories
  • Alternative products
  • Download
Technical parameters
  • Height 1092 mm
  • Width 790 mm
  • Depth 470 mm
  • Door height 407 mm
  • Door width 554 mm
  • Weight 182 - 226 kg
  • Regulated output 2,4-7,0 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1179/1369/1559/1749 mm
  • Draught 10 Pa
  • Efficiency 83,6 %
  • Average wood consumption 1,3 kg/h
