VARIANT R/L 03

VARIANT R/L 03

We are sorry, but this model has been sold out and cancelled from our product range.

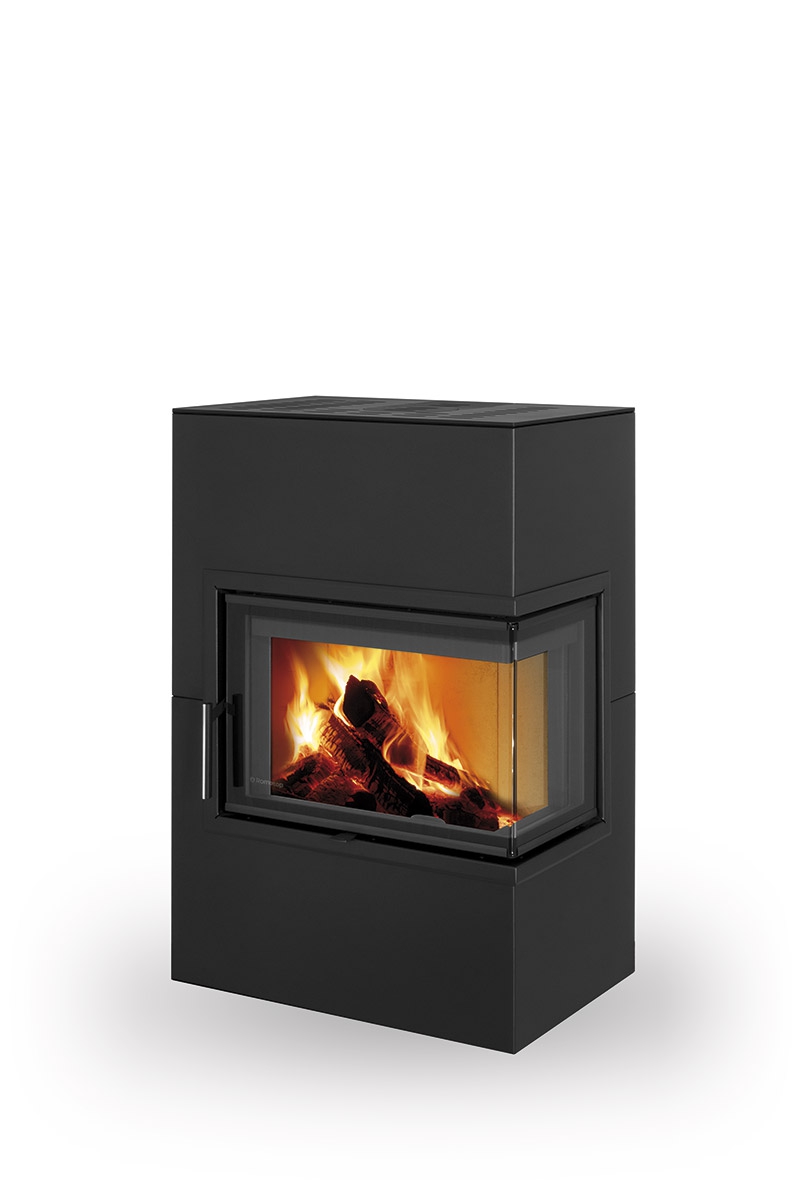

Design your own fireplace thanks to the modular system used in the Romotop VARIANT R 03/L 03 corner fireplace.You can choose the orientation of the fireplace, its height and, for instance, the accumulation mass. Everything is up to you...

Indeed, this high quality fireplace is especially suitable for low-energy homes. The modular system allows you to design your own fireplace. An EAI (External Air Intake) system is included. The innovative DOUBLE SPIN flue gas system increases the fireplace’s efficiency. The standard version includes the option to connect an upper or rear flue gas exhaust. Thanks to the secondary air intake, the door glass is air-washed to prevent the accumulation of soot. The combustion chamber is lined with chamotte brick tiles. The primary and secondary air intakes are regulated by a single control element. Additionally, you can purchase extra accumulation elements that radiate heat long after the fireplace has gone out.

  • Technical parameters
  • Accessories
  • Alternative products
  • Download
Technical parameters
  • Height 1092 mm
  • Width 700 mm
  • Depth 470 mm
  • Door height 407 mm
  • Door width 577 mm
  • Door depth 307 mm
  • Weight 170-211 kg
  • Regulated output 2,9-7,4 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1179/1369/1559/1749 mm
  • Draught 11 Pa
  • Efficiency 85,7 %
  • Average wood consumption 1,6 kg/h
