with double / triple glazing and back stoking

DYNAMIC Fireplace inserts with double / triple glazing and back stoking

DYNAMIC fireplace inserts with double and triple glazing and back stoking meet all the requirements of modern buildings. You can stoke from a different room and thus achieve maximum user comfort.

DYNAMIC fireplace inserts are well suited for low-energy houses thanks to their double and triple glazing. The back stoking door allows you to comfortably add wood to the combustion chamber. The glass in the doors includes a design print. Right-sided opening doors can be switched to left-sided opening. Fireplace inserts are equipped with an EAI (external air intake) system and designed for accumulation as well as convection operation. The combustion chamber is lined with chamotte bricks and a hinged iron grate with an ash tray. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. A MAMMOTH side accumulation set and upper accumulation rings can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert.

DYNAMIC B2G 35.46.01

Steel

DYNAMIC B2G 35.46.01 - Steel
In product comparison: 0 pc
Go to product comparison

double glazing

maximum of 2 side accumulation sets

without DOUBLE SPIN system

Technical parameters
  • Height990 mm
  • Width514 mm
  • Depth492 mm
  • Door height426 mm
  • Door width305 mm
  • Weight145 kg
  • Regulated output2,0-6,0 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter125 mm
  • Draught12 Pa
  • Efficiency80,3 %
  • Average wood consumption1,1 kg/h

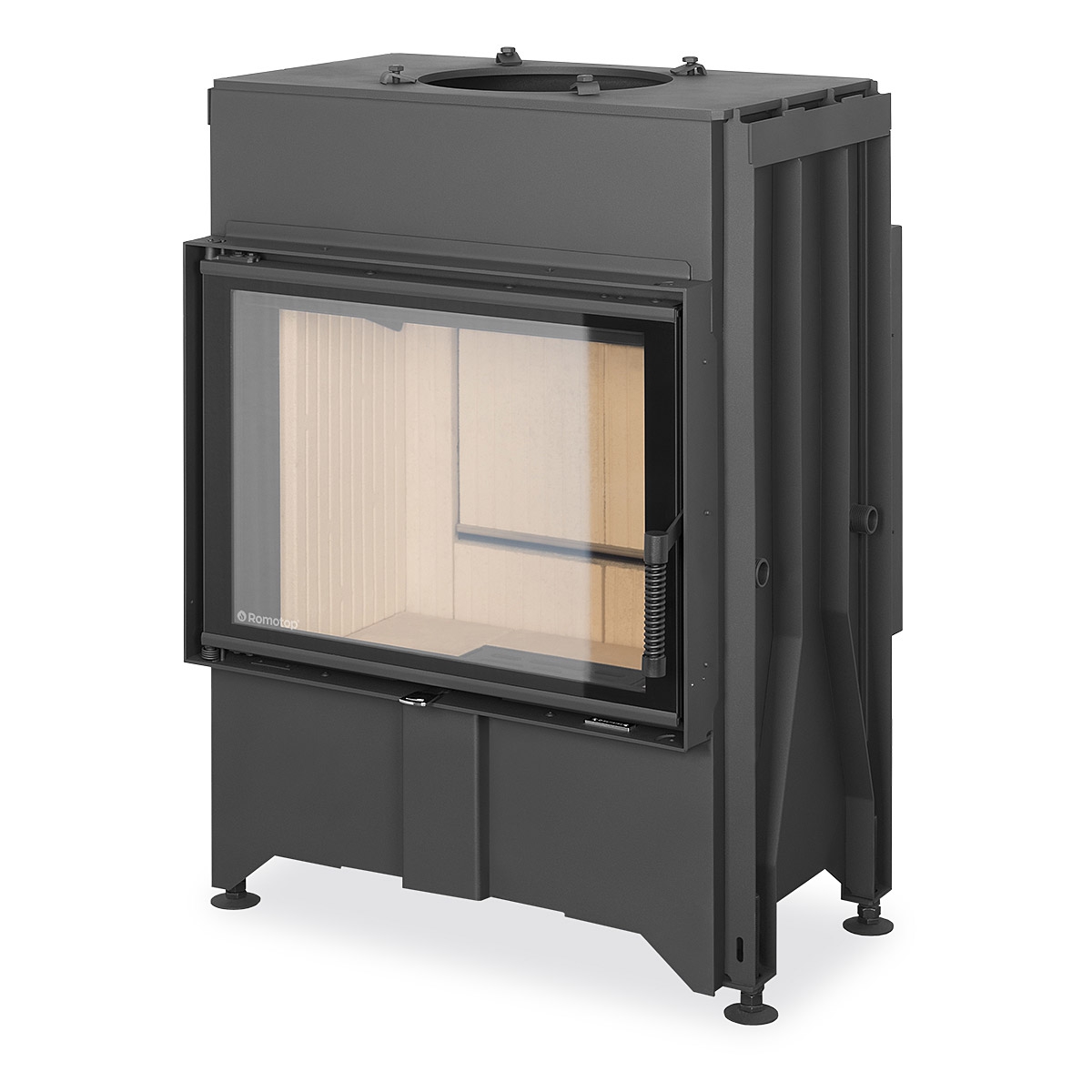

DYNAMIC B2G 66.50.01

Steel

DYNAMIC B2G 66.50.01 - Steel
In product comparison: 0 pc
Go to product comparison

double glazing

maximum of 2 side accumulation sets

Technical parameters
  • Height1003 mm
  • Width720 mm
  • Depth543 mm
  • Door height467 mm
  • Door width624 mm
  • Weight220 kg
  • Regulated output3,9-10,1 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency85,0 %
  • Average wood consumption2,2 kg/h

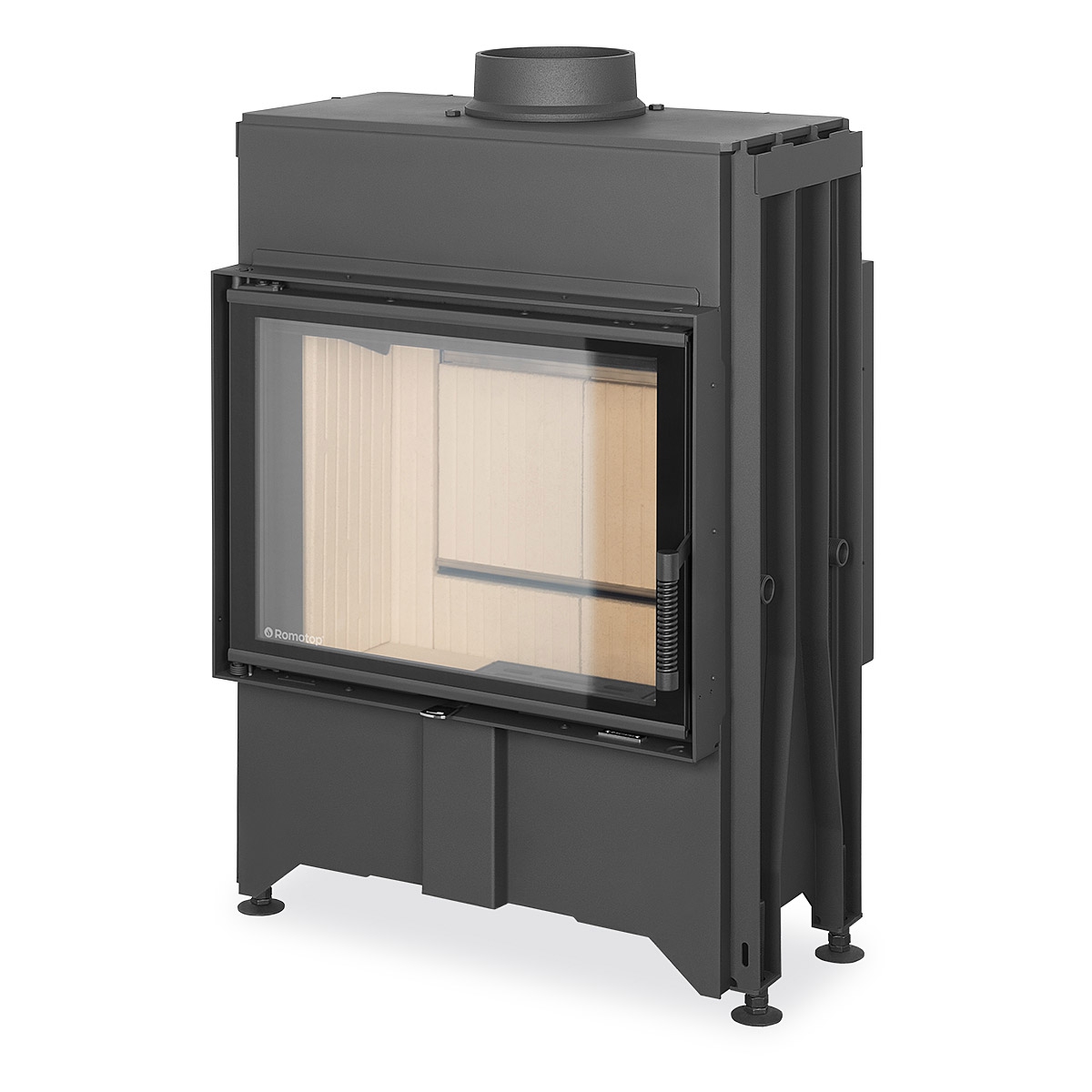

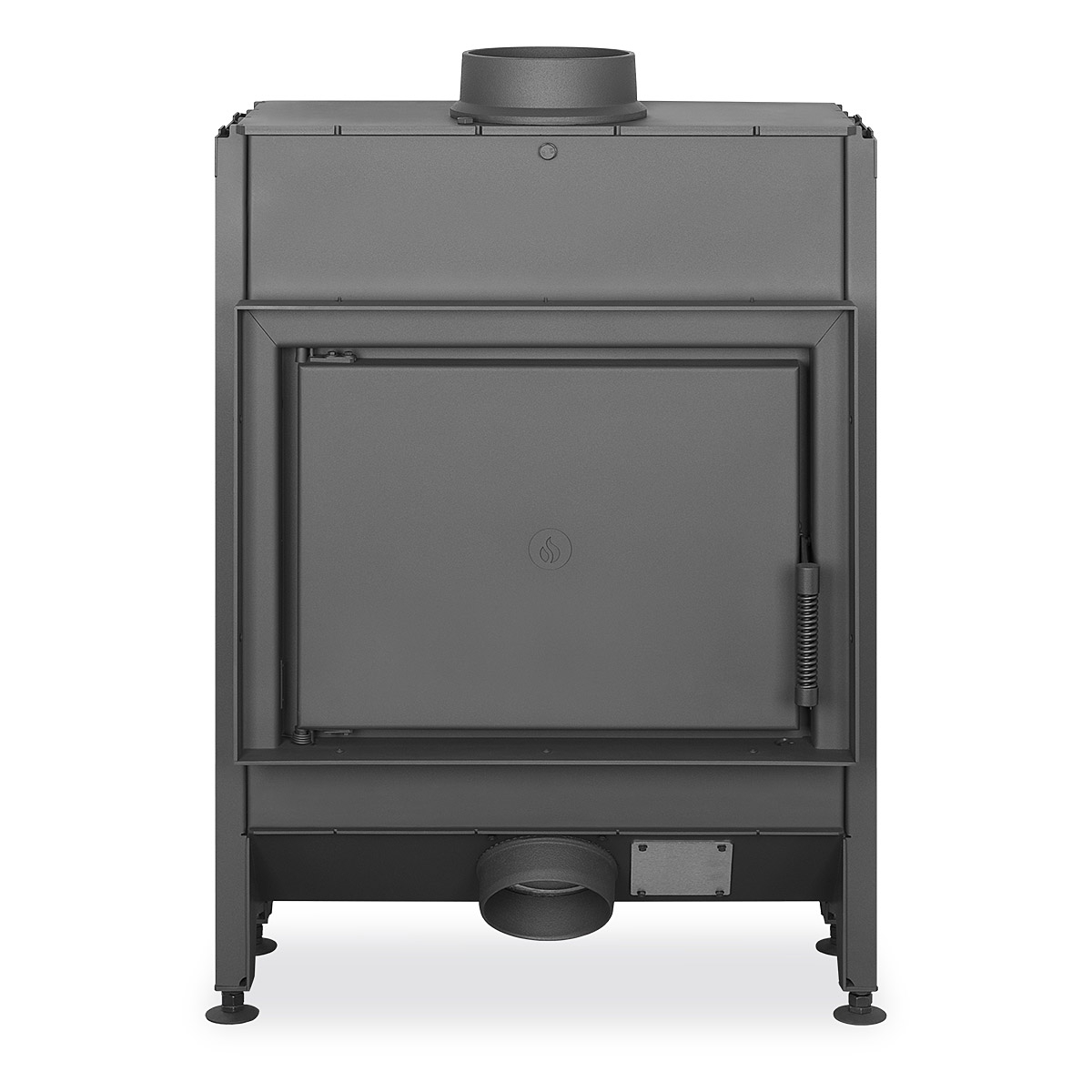

DYNAMIC B2G 66.50.13

Steel

DYNAMIC B2G 66.50.13 - Steel
In product comparison: 0 pc
Go to product comparison

triple glazing

maximum of 2 side accumulation sets

Technical parameters
  • Height1003 mm
  • Width720 mm
  • Depth459 mm
  • Door height467 mm
  • Door width624 mm
  • Weight195 kg
  • Regulated output2,4-6,2 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency84,6 %
  • Average wood consumption1,3 kg/h

DYNAMIC B2G 35.46.01

Steel

DYNAMIC B2G 35.46.01 - Steel
  • order code: DB2K 01

DYNAMIC B2G 66.50.01

Steel

DYNAMIC B2G 66.50.01 - Steel
  • order code: DB2M 01

DYNAMIC B2G 66.50.13

Steel

DYNAMIC B2G 66.50.13 - Steel
  • order code: DB2M 13
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height990 mm
  • Width514 mm
  • Depth492 mm
  • Door height426 mm
  • Door width305 mm
  • Weight145 kg
  • Regulated output2,0-6,0 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter125 mm
  • Draught12 Pa
  • Efficiency80,3 %
  • Average wood consumption1,1 kg/h
Technical parameters
  • Height1003 mm
  • Width720 mm
  • Depth543 mm
  • Door height467 mm
  • Door width624 mm
  • Weight220 kg
  • Regulated output3,9-10,1 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency85,0 %
  • Average wood consumption2,2 kg/h
Technical parameters
  • Height1003 mm
  • Width720 mm
  • Depth459 mm
  • Door height467 mm
  • Door width624 mm
  • Weight195 kg
  • Regulated output2,4-6,2 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency84,6 %
  • Average wood consumption1,3 kg/h
