with lifting door and double straight glazing

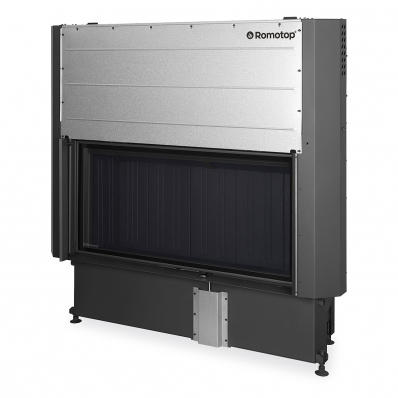

IMPRESSION Fireplace inserts with lifting door and double straight glazing

If you are looking for both beauty and functionality, then the IMPRESSION fireplace insert with lifting door is the right choice for you. Decorate your home with a solitaire feature whose design will be the highlight of every room.

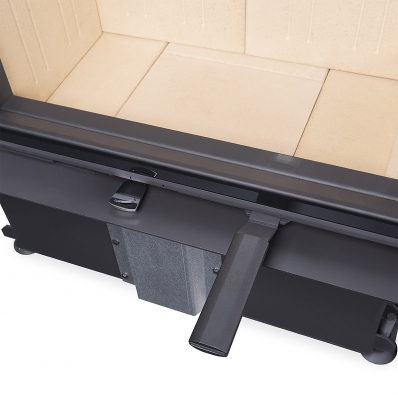

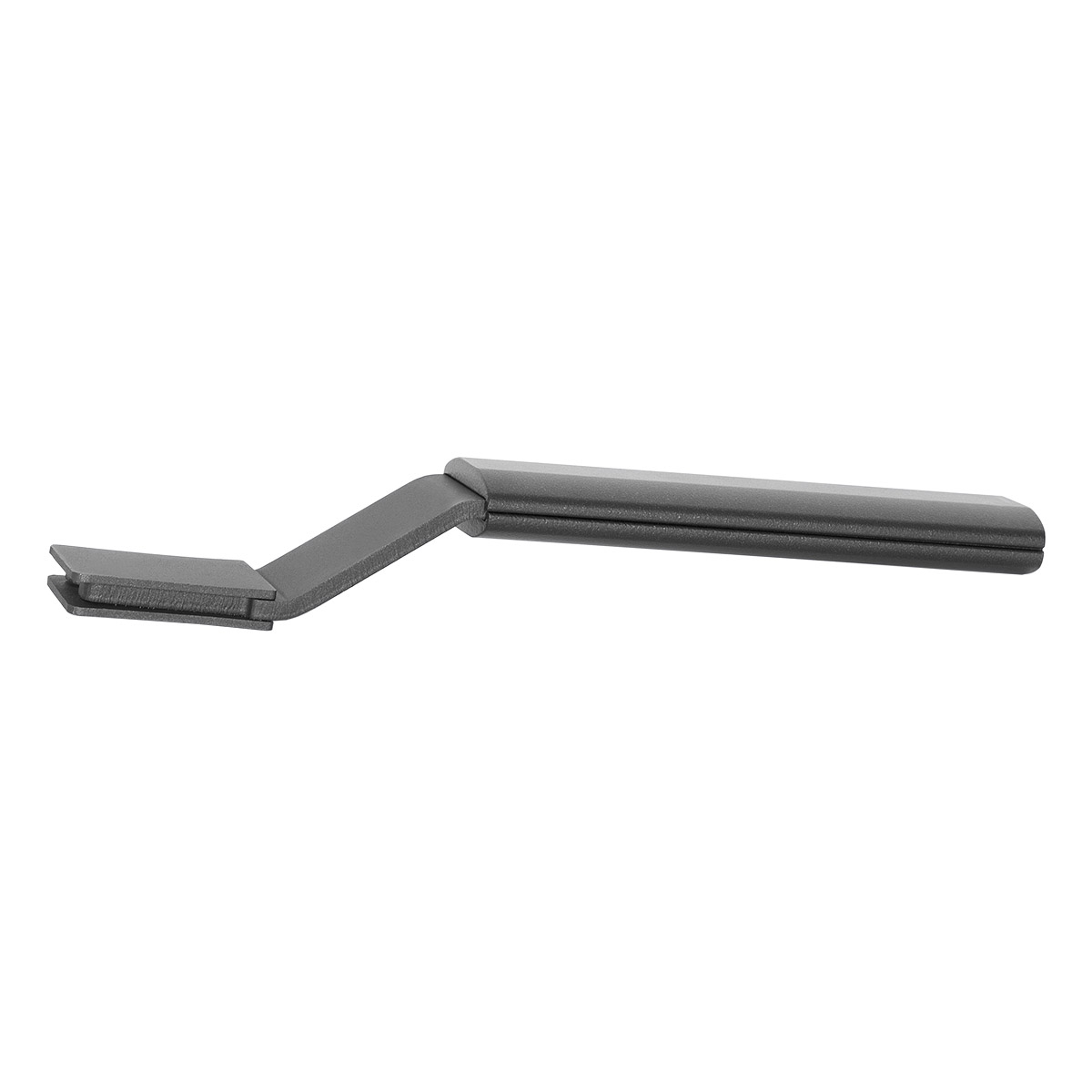

IMPRESSION fireplace inserts have unusually high glass windows, offering a luxurious view of the fire. Double glazing in the specially rigid profile of the door frame allows these fireplace inserts to be used for accumulation and convection operation. The easy, silent and precise operation of the lifting door is guaranteed by the state-of-the-art SILENT LIFT system. The lifting door is operated using a removable handle, which can optionally be replaced by a fixed handle. The combustion chamber is available in black or cream colour with an optional change for the furnace grate. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. Fireplace inserts are equipped with a EAI (external air intake), which can be easily connected using the AIRBOX rotating elbow. The flue gas exhaust can be connected from the side or the top. Side and top MAMMOTH accumulation sets can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours.

IMPRESSION 2g L 67.60.01

Steel

IMPRESSION 2g L 67.60.01 - Steel
In product comparison: 0 pc
Go to product comparison

double glazing on the doors ensures heat comfort in low-energy houses

maximum of 4 side accumulation sets

Technical parameters
  • Height1538 mm
  • Width1005 mm
  • Depth529 mm
  • Door height559 mm
  • Door width655 mm
  • Weight*275/264 kg
  • Regulated output4,8-12,6 kW
  • Smoke flue diameter160-180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1190 mm
  • Draught12 Pa
  • Efficiency80,2 %
  • Average wood consumption2,8 kg/h
  • *weight including black / cream combustion chamber

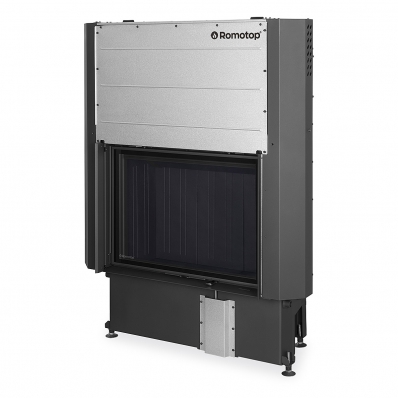

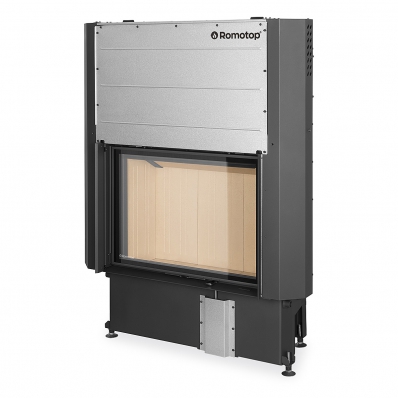

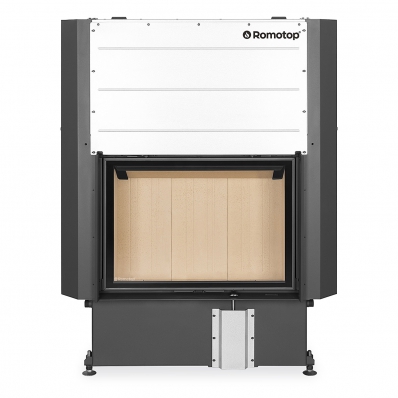

IMPRESSION 2g L 80.60.01

Steel

IMPRESSION 2g L 80.60.01 - Steel
In product comparison: 0 pc
Go to product comparison

maximum of 4 side accumulation sets

Technical parameters
  • Height1538 mm
  • Width1135 mm
  • Depth529 mm
  • Door height559 mm
  • Door width785 mm
  • Weight*307/295 kg
  • Regulated output5,5-14,3 kW
  • Smoke flue diameter160-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1190 mm
  • Draught12 Pa
  • Efficiency80,2 %
  • Average wood consumption3,1 kg/h
  • *weight including black / cream combustion chamber

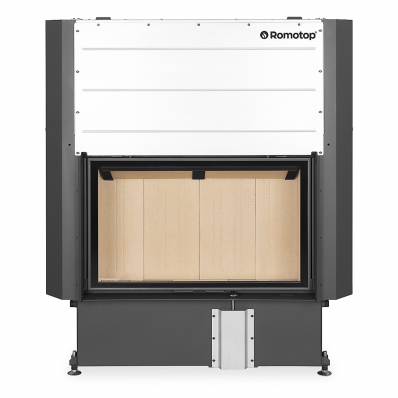

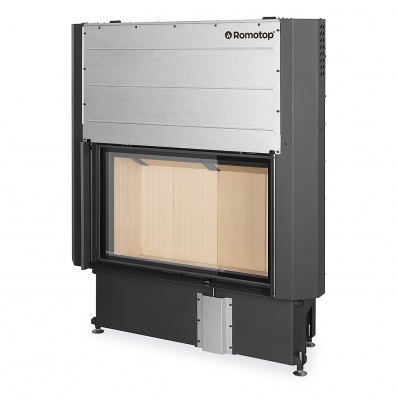

IMPRESSION 2g L 93.60.01

Steel

IMPRESSION 2g L 93.60.01 - Steel
In product comparison: 0 pc
Go to product comparison

maximum of 4 side accumulation sets

Technical parameters
  • Height1538 mm
  • Width1265 mm
  • Depth529 mm
  • Door height559 mm
  • Door width915 mm
  • Weight*339/324 kg
  • Regulated output6,5-16,9 kW
  • Smoke flue diameter180-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1190 mm
  • Draught11 Pa
  • Efficiency80,8 %
  • Average wood consumption3,7 kg/h
  • *weight including black / cream combustion chamber

IMPRESSION 2g L 67.60.01

Steel

IMPRESSION 2g L 67.60.01 - Steel
  • order code: I2LG 01

IMPRESSION 2g L 80.60.01

Steel

IMPRESSION 2g L 80.60.01 - Steel
  • order code: I2LH 01

IMPRESSION 2g L 93.60.01

Steel

IMPRESSION 2g L 93.60.01 - Steel
  • order code: I2LJ 01
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height1538 mm
  • Width1005 mm
  • Depth529 mm
  • Door height559 mm
  • Door width655 mm
  • Weight*275/264 kg
  • Regulated output4,8-12,6 kW
  • Smoke flue diameter160-180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1190 mm
  • Draught12 Pa
  • Efficiency80,2 %
  • Average wood consumption2,8 kg/h
  • *weight including black / cream combustion chamber
Technical parameters
  • Height1538 mm
  • Width1135 mm
  • Depth529 mm
  • Door height559 mm
  • Door width785 mm
  • Weight*307/295 kg
  • Regulated output5,5-14,3 kW
  • Smoke flue diameter160-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1190 mm
  • Draught12 Pa
  • Efficiency80,2 %
  • Average wood consumption3,1 kg/h
  • *weight including black / cream combustion chamber
Technical parameters
  • Height1538 mm
  • Width1265 mm
  • Depth529 mm
  • Door height559 mm
  • Door width915 mm
  • Weight*339/324 kg
  • Regulated output6,5-16,9 kW
  • Smoke flue diameter180-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1190 mm
  • Draught11 Pa
  • Efficiency80,8 %
  • Average wood consumption3,7 kg/h
  • *weight including black / cream combustion chamber
