with lifting door and split corner glazing

IMPRESSION Fireplace inserts with lifting door and split corner glazing

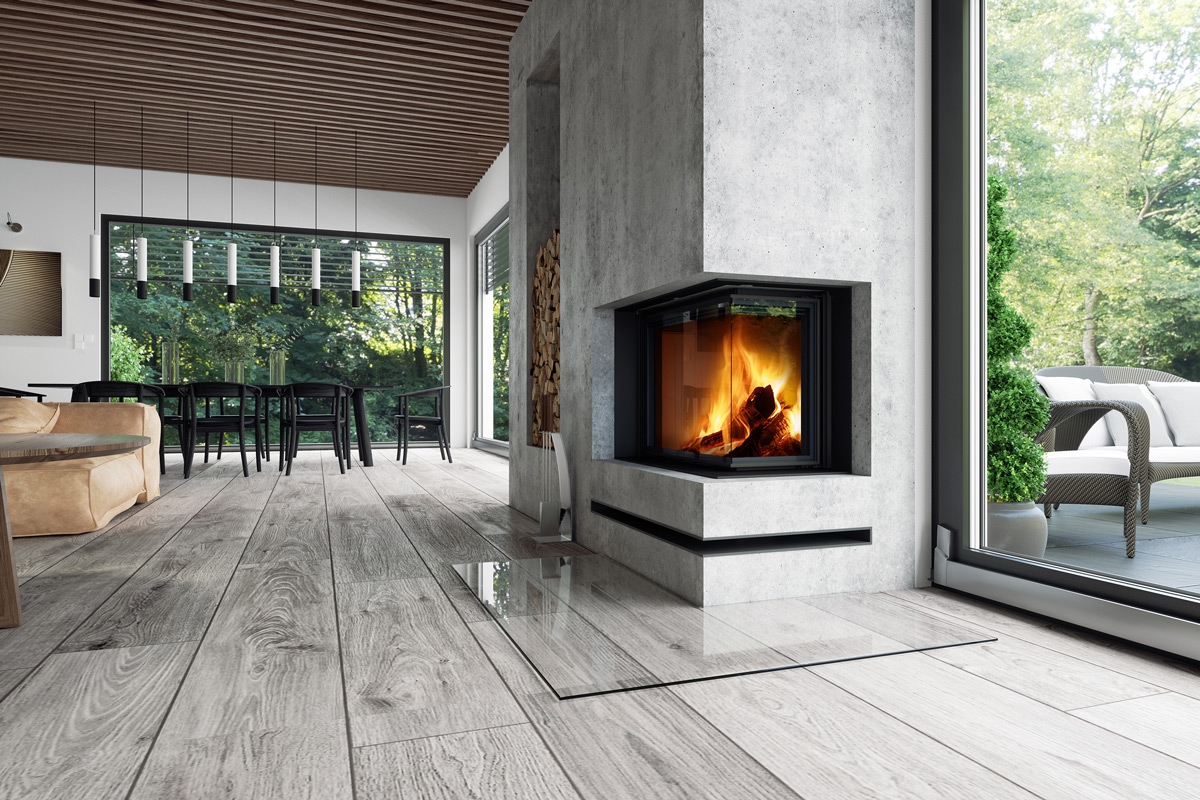

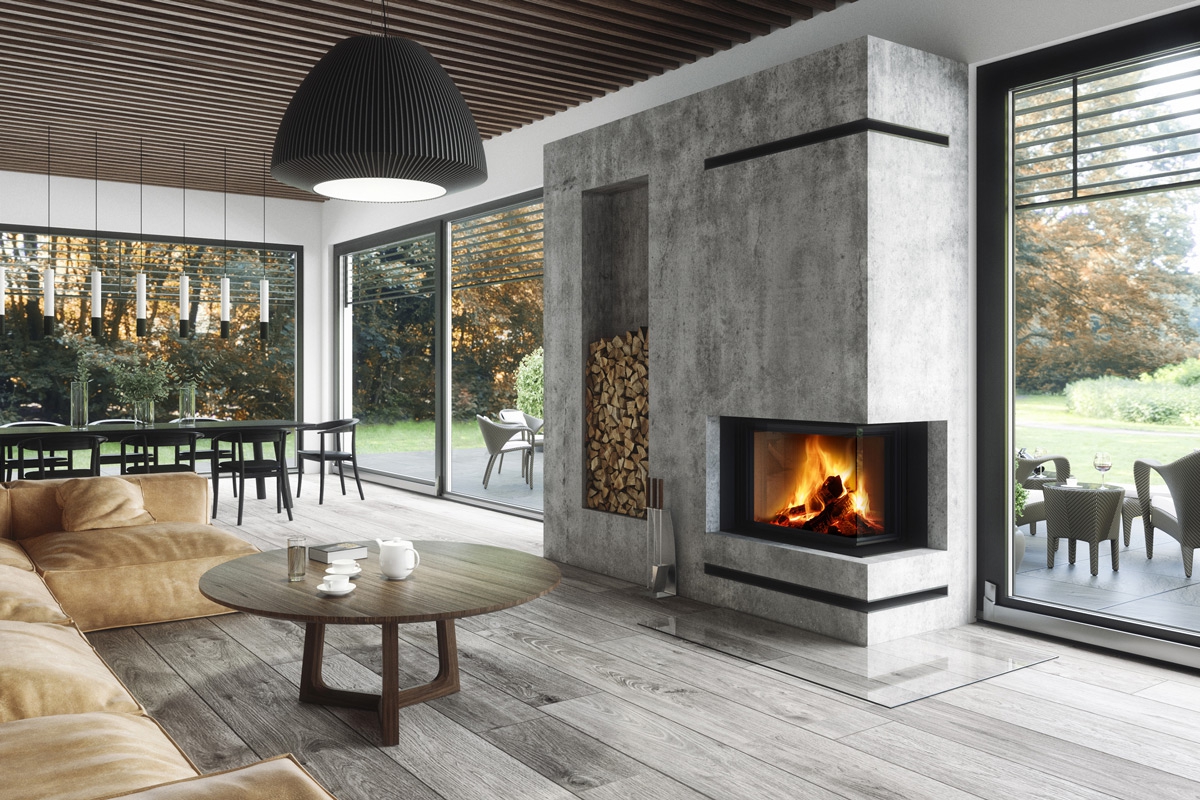

Carefully balanced proportions, clean lines and dominant large corner glazing make the IMPRESSION corner fireplace insert with lifting door the perfect choice. The timeless design makes it the perfect fit for modern interiors.

IMPRESSION fireplace inserts have unusually high glass windows, offering a luxurious view of the fire. Corner glazing (left, right) consists of two parts. The easy, silent and precise operation of the lifting door is guaranteed by the state-of-the-art SILENT LIFT system. The lifting door is operated using a removable handle, which can optionally be replaced by a fixed handle. The combustion chamber is available in black or cream colour with an optional change for the furnace grate. Inserts are designed for both accumulation and convection operation. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. Fireplace inserts are equipped with an EAI (external air intake) system, which can be easily connected using the AIRBOX rotating elbow. The flue gas exhaust can be connected from the side or the top. Side and top MAMMOTH accumulation sets can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours.

IMPRESSION R/L 2g L 58.60.34.21

Steel

IMPRESSION R/L 2g L 58.60.34.21 - Steel
In product comparison: 0 pc
Go to product comparison
  • Split glazing - right variant - order code: IR2LF 21
  • Split glazing - left variant - order code: IL2LF 21

maximum of 2 side accumulation sets

Technical parameters
  • Height1501 mm
  • Width818 mm
  • Depth574 mm
  • Door height556 mm
  • Door width583 mm
  • Door depth339 mm
  • Weight*261/253 kg
  • Regulated output3,7-9,6 kW
  • Smoke flue diameter150-180 mm
  • Flue socket diameter180 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1160 mm
  • Draught11 Pa
  • Efficiency81,6 %
  • Average wood consumption2,1 kg/h
  • *weight including black / cream combustion chamber

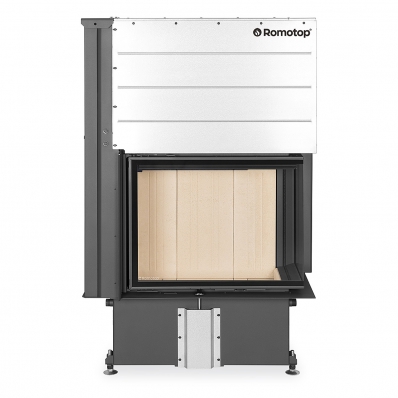

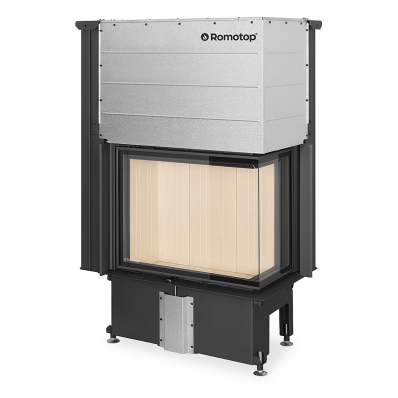

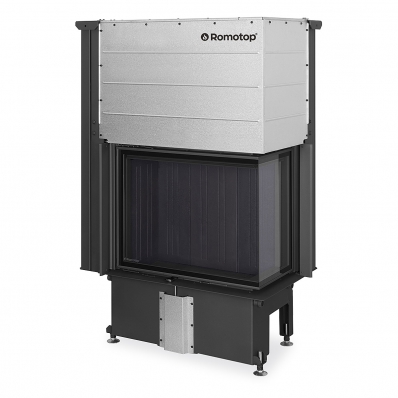

IMPRESSION R/L 2g L 71.60.34.21

Steel

IMPRESSION R/L 2g L 71.60.34.21 - Steel
In product comparison: 0 pc
Go to product comparison
  • Split glazing - right variant - order code: IR2LG 21
  • Split glazing - left variant - order code: IL2LG 21

maximum of 3 side accumulation sets

Technical parameters
  • Height1531 mm
  • Width943 mm
  • Depth574 mm
  • Door height556 mm
  • Door width706 mm
  • Door depth339 mm
  • Weight*293/283 kg
  • Regulated output5,0-13,0 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1190 mm
  • Draught12 Pa
  • Efficiency81,0 %
  • Average wood consumption2,8 kg/h
  • *weight including black / cream combustion chamber

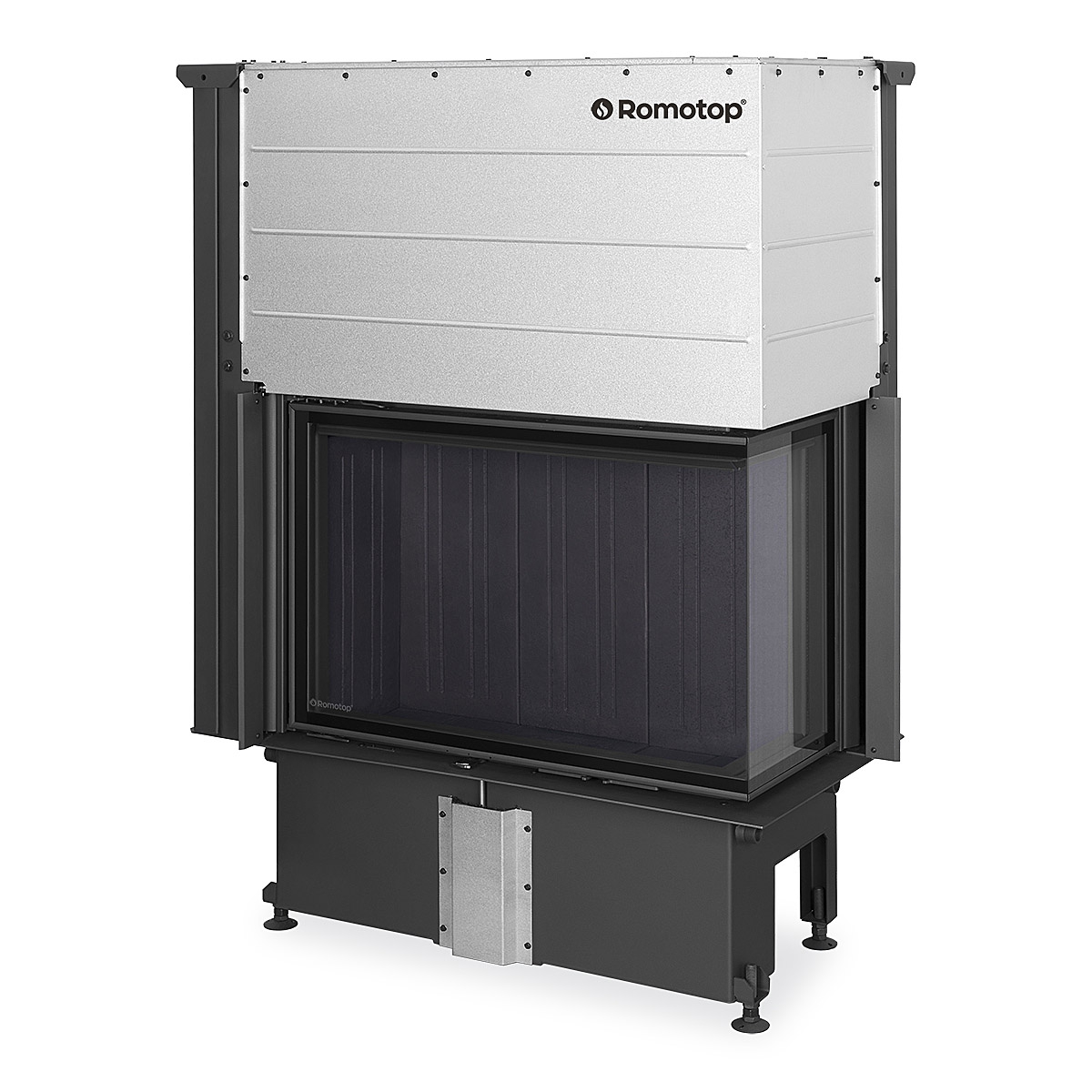

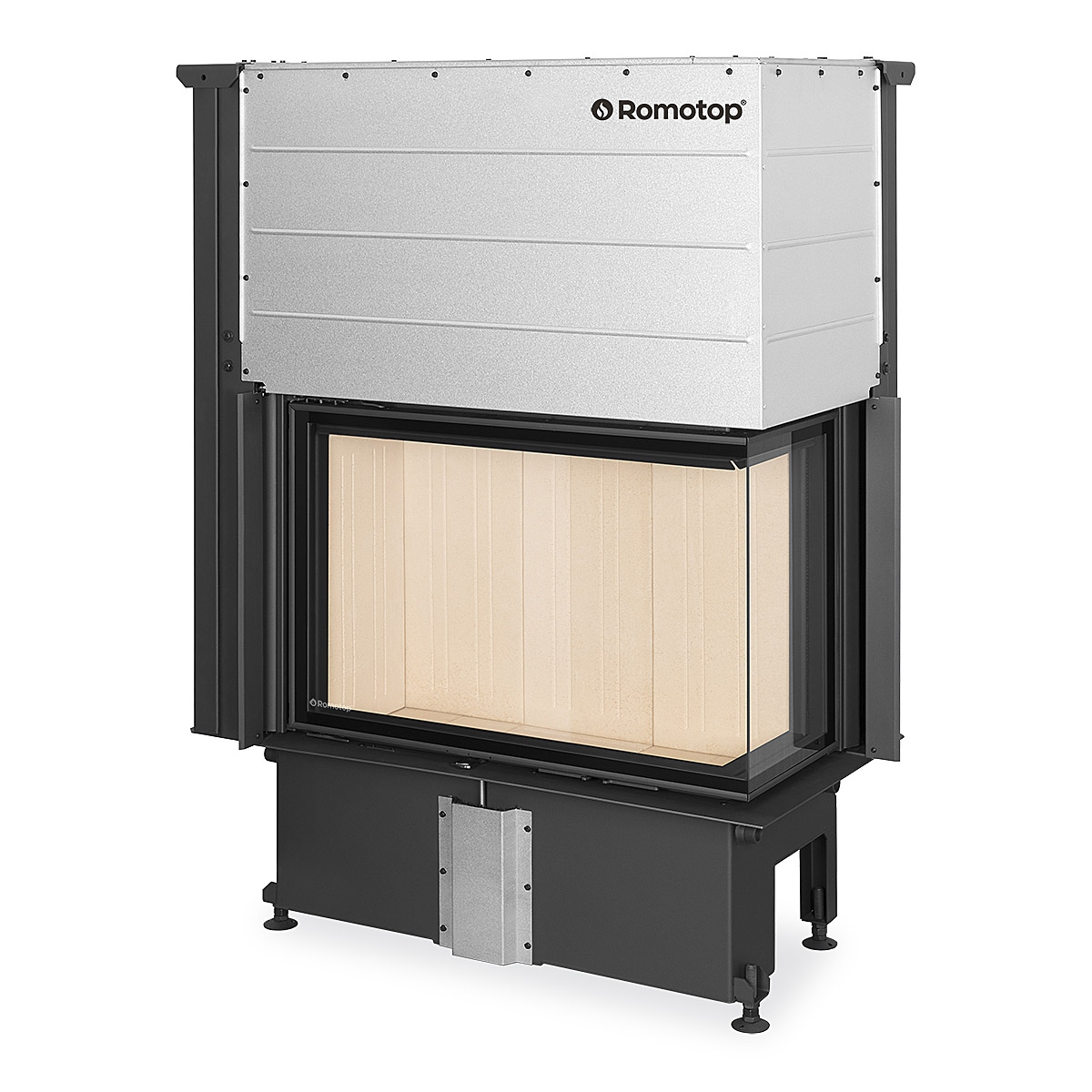

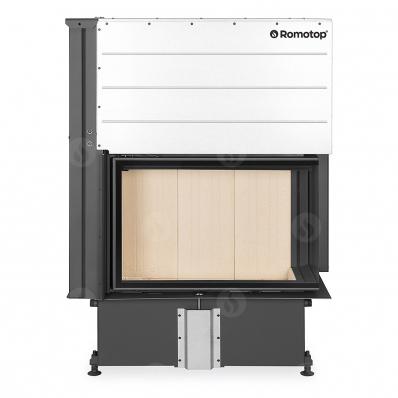

IMPRESSION R/L 2g L 83.60.34.21

Steel

IMPRESSION R/L 2g L 83.60.34.21 - Steel
In product comparison: 0 pc
Go to product comparison
  • Split glazing - right variant - order code: IR2LH 21
  • Split glazing - left variant - order code: IL2LH 21

maximum of 3 side accumulation sets

Technical parameters
  • Height1531 mm
  • Width1068 mm
  • Depth574 mm
  • Door height556 mm
  • Door width833 mm
  • Door depth339 mm
  • Weight*322/310 kg
  • Regulated output6,2-16,1 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1190 mm
  • Draught11 Pa
  • Efficiency81,1 %
  • Average wood consumption3,5 kg/h
  • *weight including black / cream combustion chamber
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height1501 mm
  • Width818 mm
  • Depth574 mm
  • Door height556 mm
  • Door width583 mm
  • Door depth339 mm
  • Weight*261/253 kg
  • Regulated output3,7-9,6 kW
  • Smoke flue diameter150-180 mm
  • Flue socket diameter180 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1160 mm
  • Draught11 Pa
  • Efficiency81,6 %
  • Average wood consumption2,1 kg/h
  • *weight including black / cream combustion chamber
Technical parameters
  • Height1531 mm
  • Width943 mm
  • Depth574 mm
  • Door height556 mm
  • Door width706 mm
  • Door depth339 mm
  • Weight*293/283 kg
  • Regulated output5,0-13,0 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1190 mm
  • Draught12 Pa
  • Efficiency81,0 %
  • Average wood consumption2,8 kg/h
  • *weight including black / cream combustion chamber
Technical parameters
  • Height1531 mm
  • Width1068 mm
  • Depth574 mm
  • Door height556 mm
  • Door width833 mm
  • Door depth339 mm
  • Weight*322/310 kg
  • Regulated output6,2-16,1 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1190 mm
  • Draught11 Pa
  • Efficiency81,1 %
  • Average wood consumption3,5 kg/h
  • *weight including black / cream combustion chamber
