with side opening and double straight glazing

IMPRESSION Fireplace inserts with side opening and double straight glazing

IMPRESSION fireplace inserts with side opening are the perfect choice for all those who love simple and minimalistic design, perfectly combined with top-quality materials.

IMPRESSION fireplace inserts have unusually high glass windows, offering a luxurious view of the fire. Double glazing in the specially rigid profile of the door frame allows these fireplace inserts to be used for accumulation and convection operation. The combustion chamber is available in black or cream colour with an optional change for the furnace grate. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. Fireplace inserts are equipped with a EAI (external air intake) system, which can be easily connected using the AIRBOX rotating elbow. The flue gas exhaust can be connected from the side or the top. Side and top MAMMOTH accumulation sets can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours.

IMPRESSION 2g 42.60.01

Steel

IMPRESSION 2g 42.60.01 - Steel
In product comparison: 0 pc
Go to product comparison

double glazing on the doors ensures heat comfort in low-energy houses

maximum of 3 side accumulation sets

Technical parameters
  • Height1316 mm
  • Width598 mm
  • Depth447 mm
  • Door height556 mm
  • Door width379 mm
  • Weight*157/149 kg
  • Regulated output3,5-9,1 kW
  • Smoke flue diameter150-160 mm
  • Flue socket diameter160 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1161 mm
  • Draught11 Pa
  • Efficiency80,1 %
  • Average wood consumption2,0 kg/h
  • *weight including black / cream combustion chamber

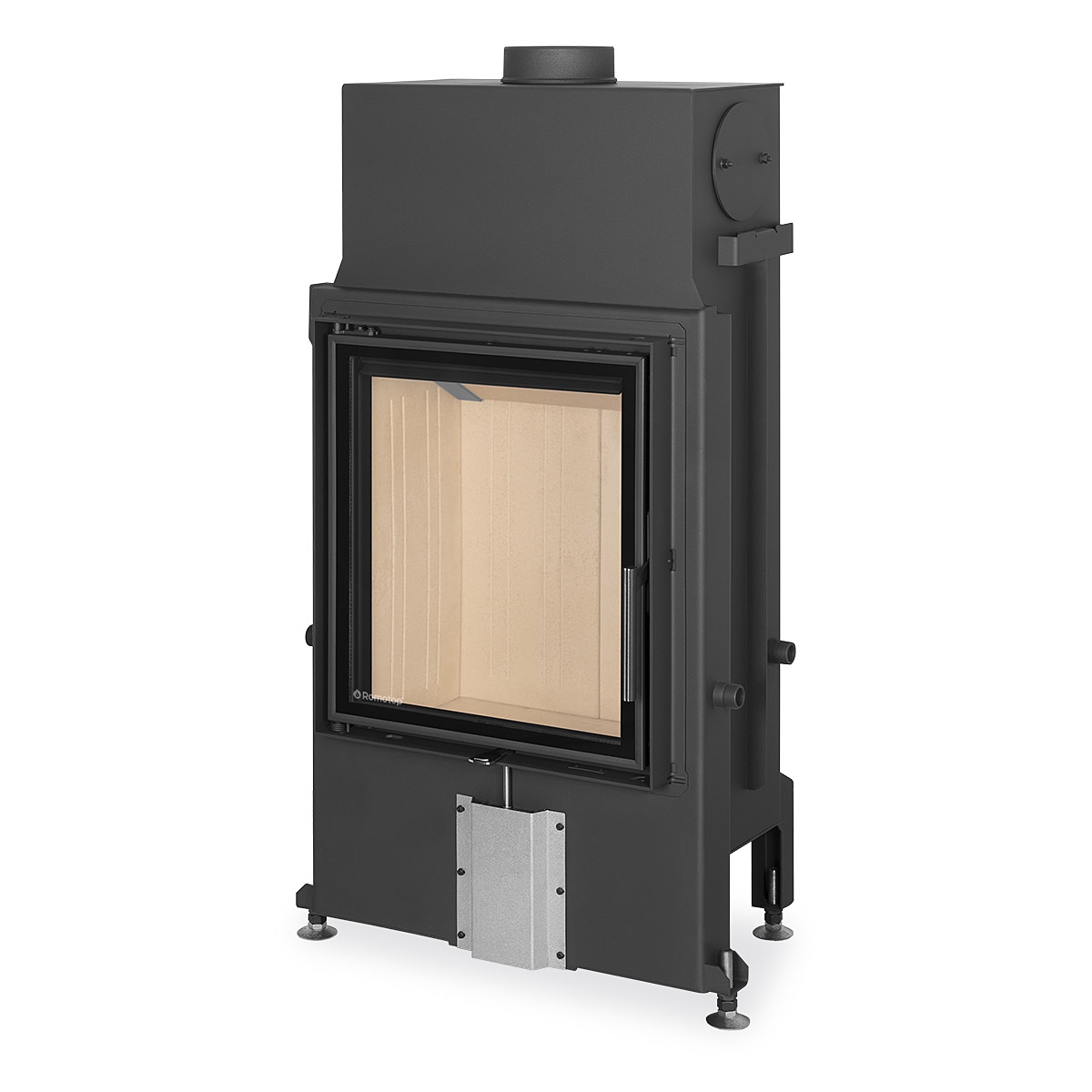

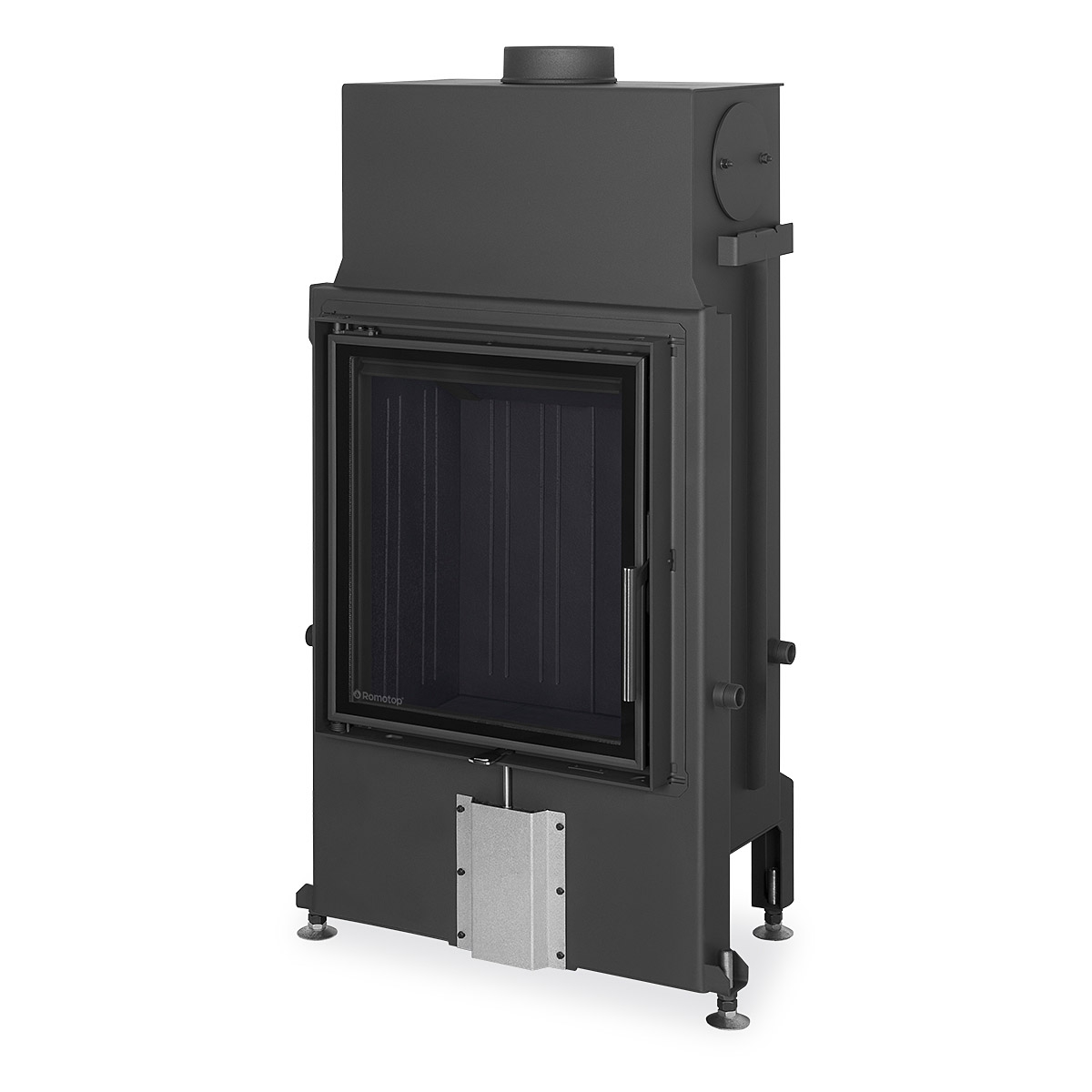

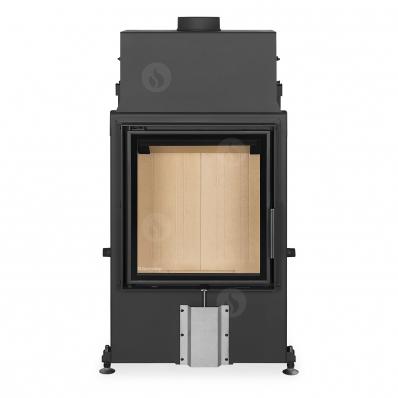

IMPRESSION 2g 55.60.01

Steel

IMPRESSION 2g 55.60.01 - Steel
In product comparison: 0 pc
Go to product comparison

double glazing on the doors ensures heat comfort in low-energy houses

maximum of 4 side accumulation sets

Technical parameters
  • Height1316 mm
  • Width723 mm
  • Depth447 mm
  • Door height556 mm
  • Door width504 mm
  • Weight*182/172 kg
  • Regulated output4,2-10,9 kW
  • Smoke flue diameter150-160 mm
  • Flue socket diameter160 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1161 mm
  • Draught11 Pa
  • Efficiency80,1 %
  • Average wood consumption2,4 kg/h
  • *weight including black / cream combustion chamber

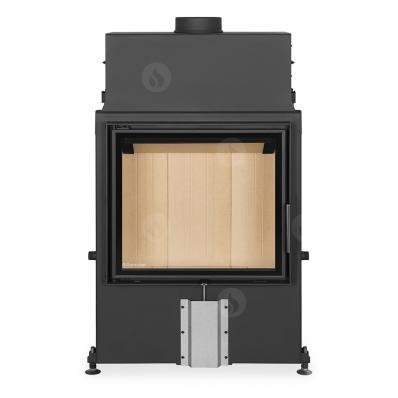

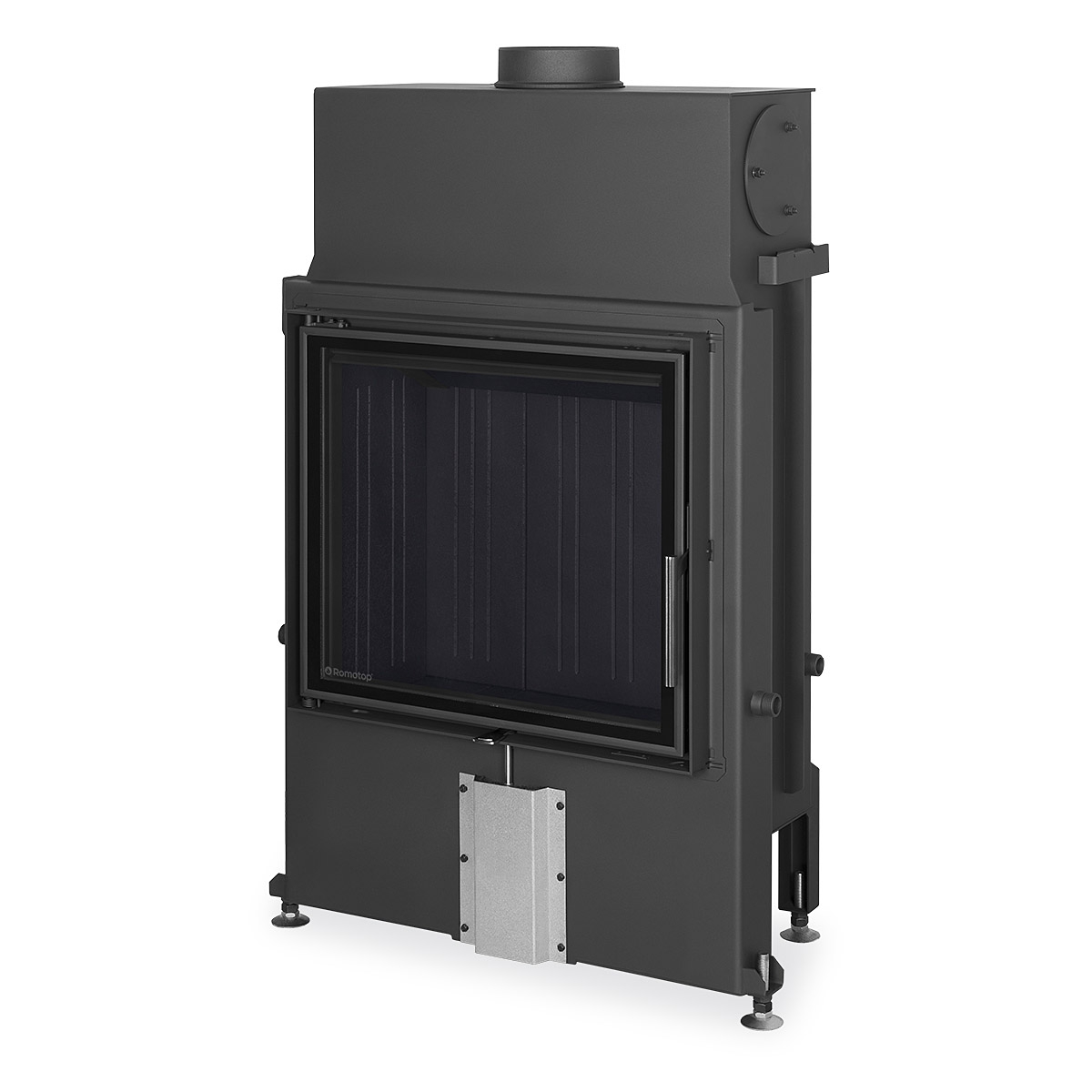

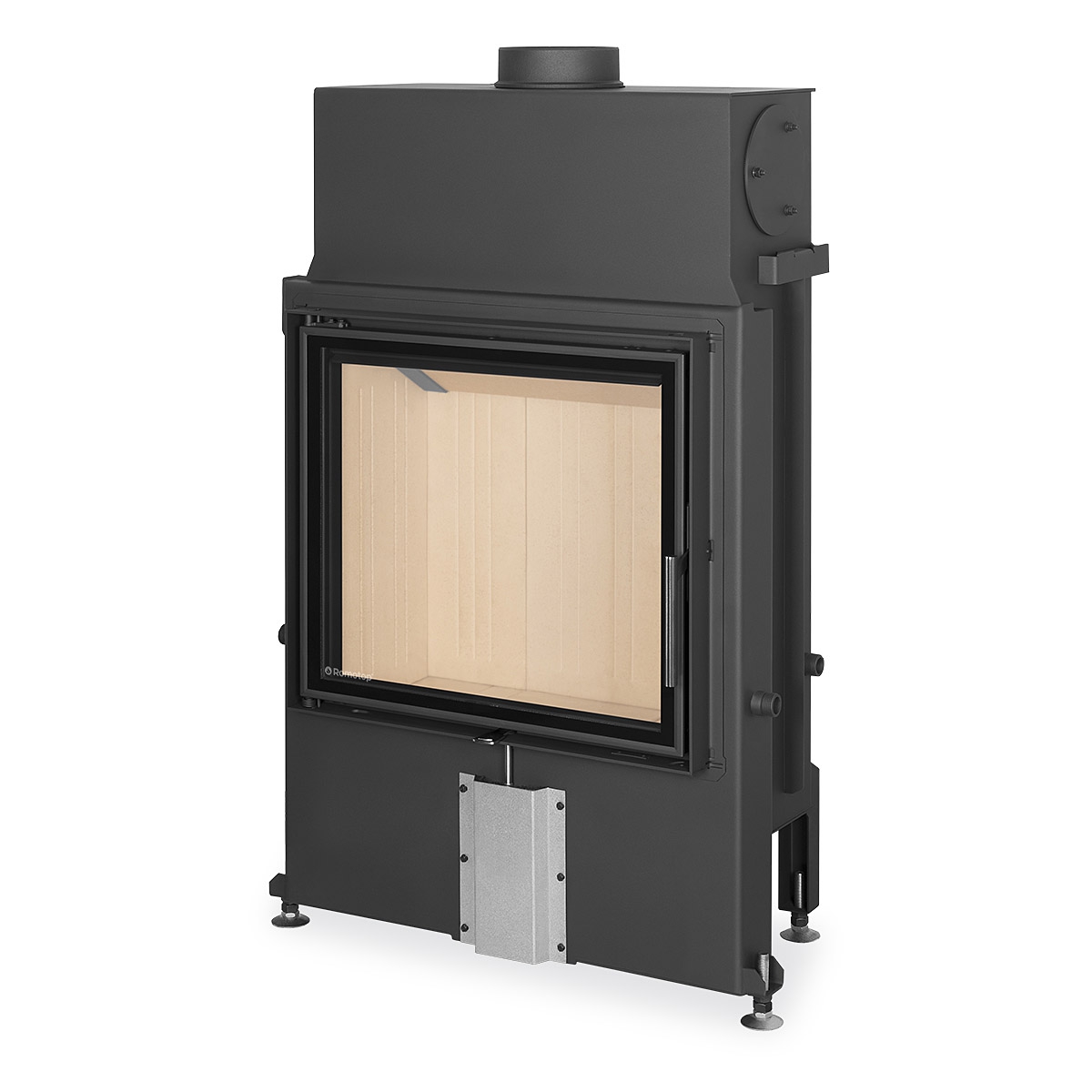

IMPRESSION 2g 67.60.01

Steel

IMPRESSION 2g 67.60.01 - Steel
In product comparison: 0 pc
Go to product comparison

double glazing on the doors ensures heat comfort in low-energy houses

maximum of 4 side accumulation sets

Technical parameters
  • Height1354 mm
  • Width848 mm
  • Depth447 mm
  • Door height556 mm
  • Door width629 mm
  • Weight*213/201 kg
  • Regulated output4,8-12,6 kW
  • Smoke flue diameter160-180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1181 mm
  • Draught12 Pa
  • Efficiency80,2 %
  • Average wood consumption2,8 kg/h
  • *weight including black / cream combustion chamber

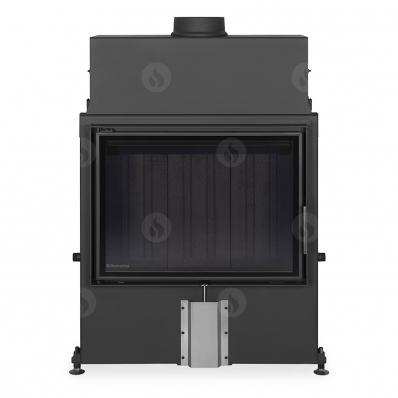

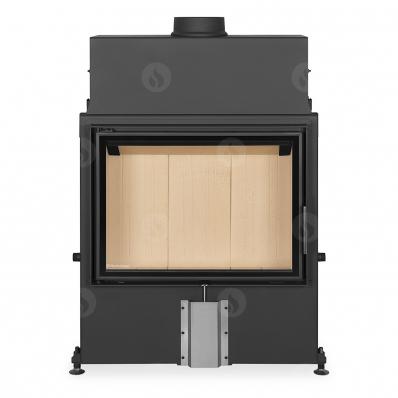

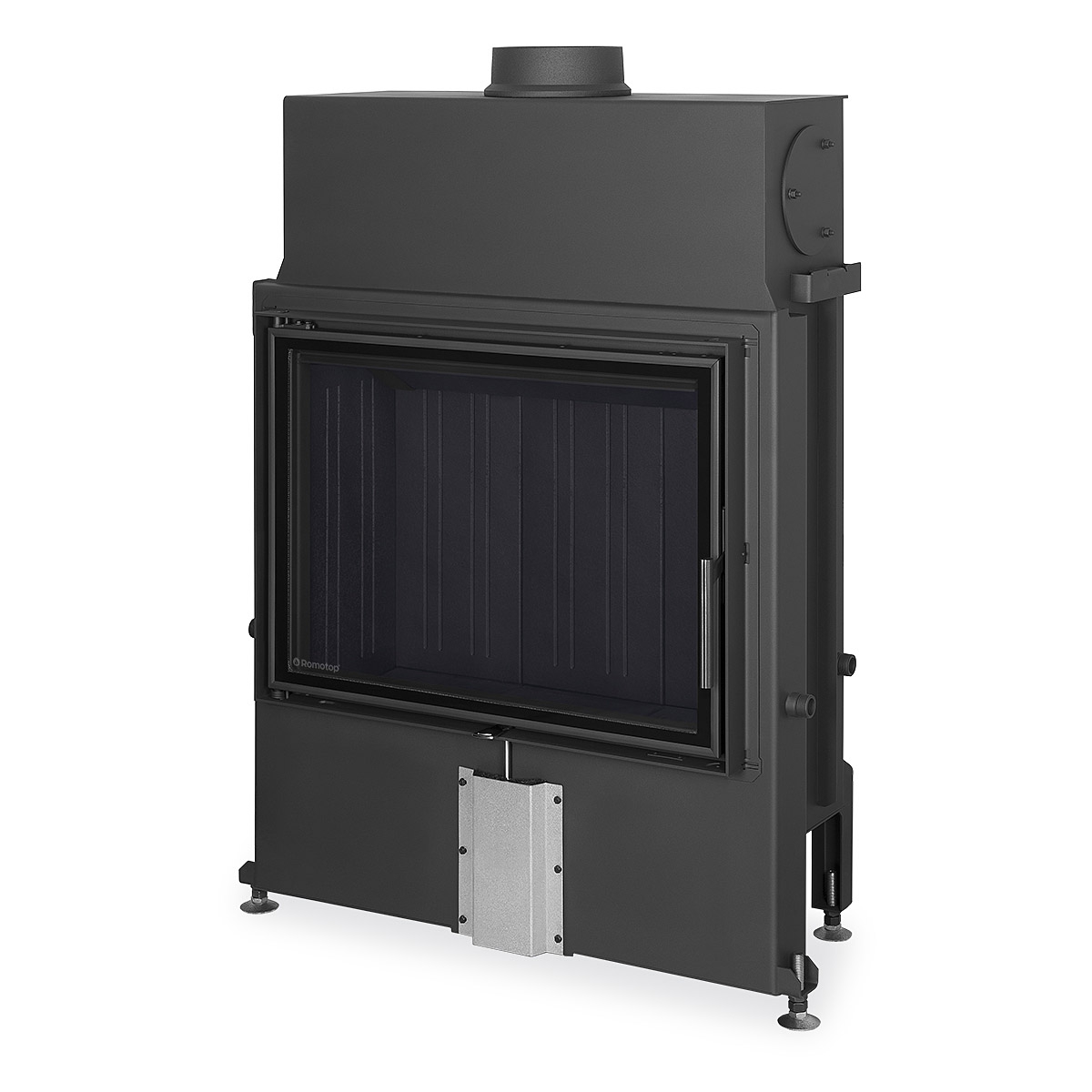

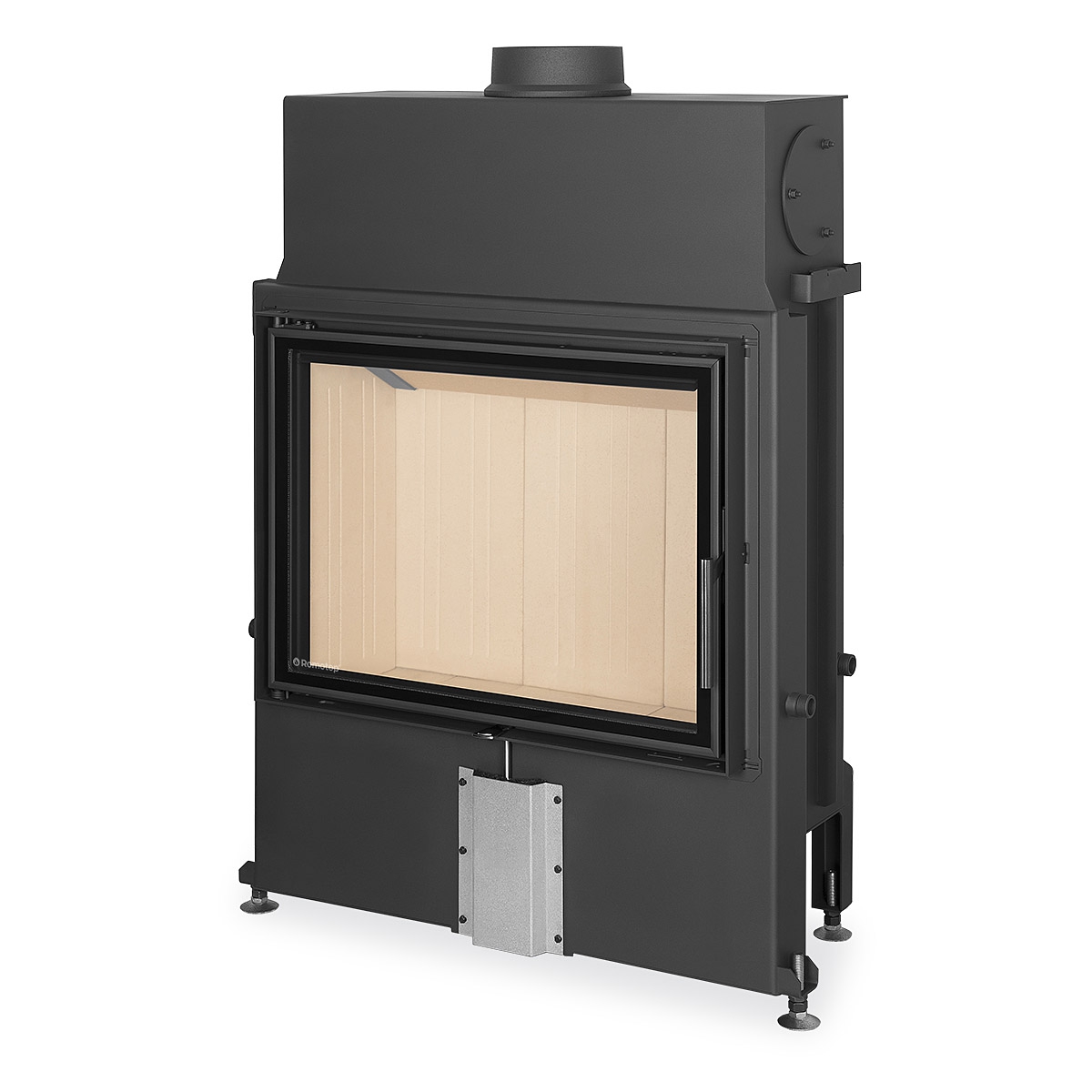

IMPRESSION 2g 80.60.01

Steel

IMPRESSION 2g 80.60.01 - Steel
In product comparison: 0 pc
Go to product comparison

maximum of 4 side accumulation sets

Technical parameters
  • Height1369 mm
  • Width973 mm
  • Depth447 mm
  • Door height556 mm
  • Door width754 mm
  • Weight*238/225 kg
  • Regulated output5,5-14,3 kW
  • Smoke flue diameter160-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1161 mm
  • Draught12 Pa
  • Efficiency80,2 %
  • Average wood consumption3,1 kg/h
  • *weight including black / cream combustion chamber
