with three-sided lifting door and split glazing

IMPRESSION Fireplace inserts with three-sided lifting door and split glazing

Our engineers designed the absolute jewel of the IMPRESSION collection. The fireplace insert with an unusually high three-sided glazing is able to transmit maximum heat to the living space lighting up the whole interior with flashes of fire. Do you like tuning the interior to the smallest detail? Choose the fireclay color - crema or black. The use of innovative design and cutting-edge materials is a matter of course.

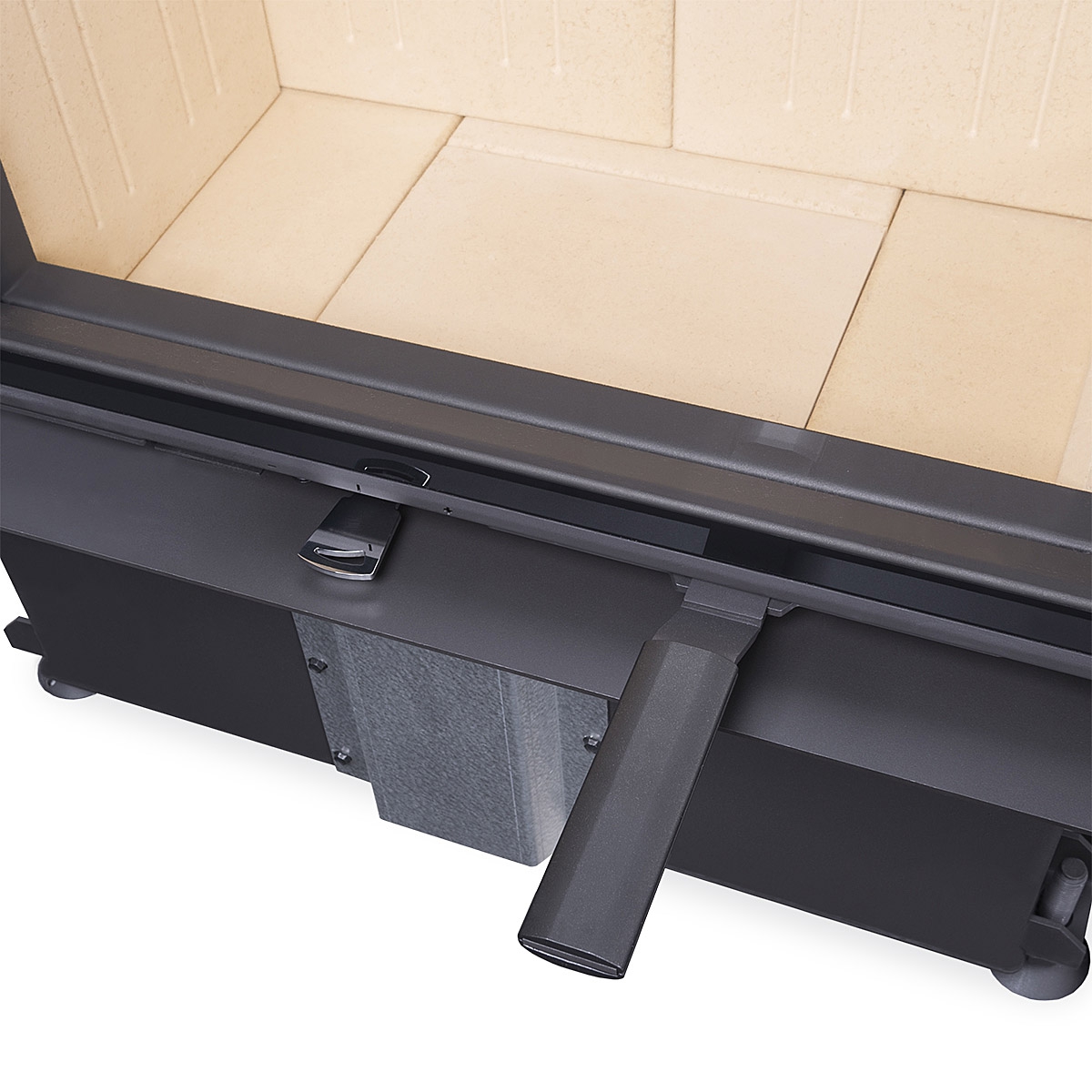

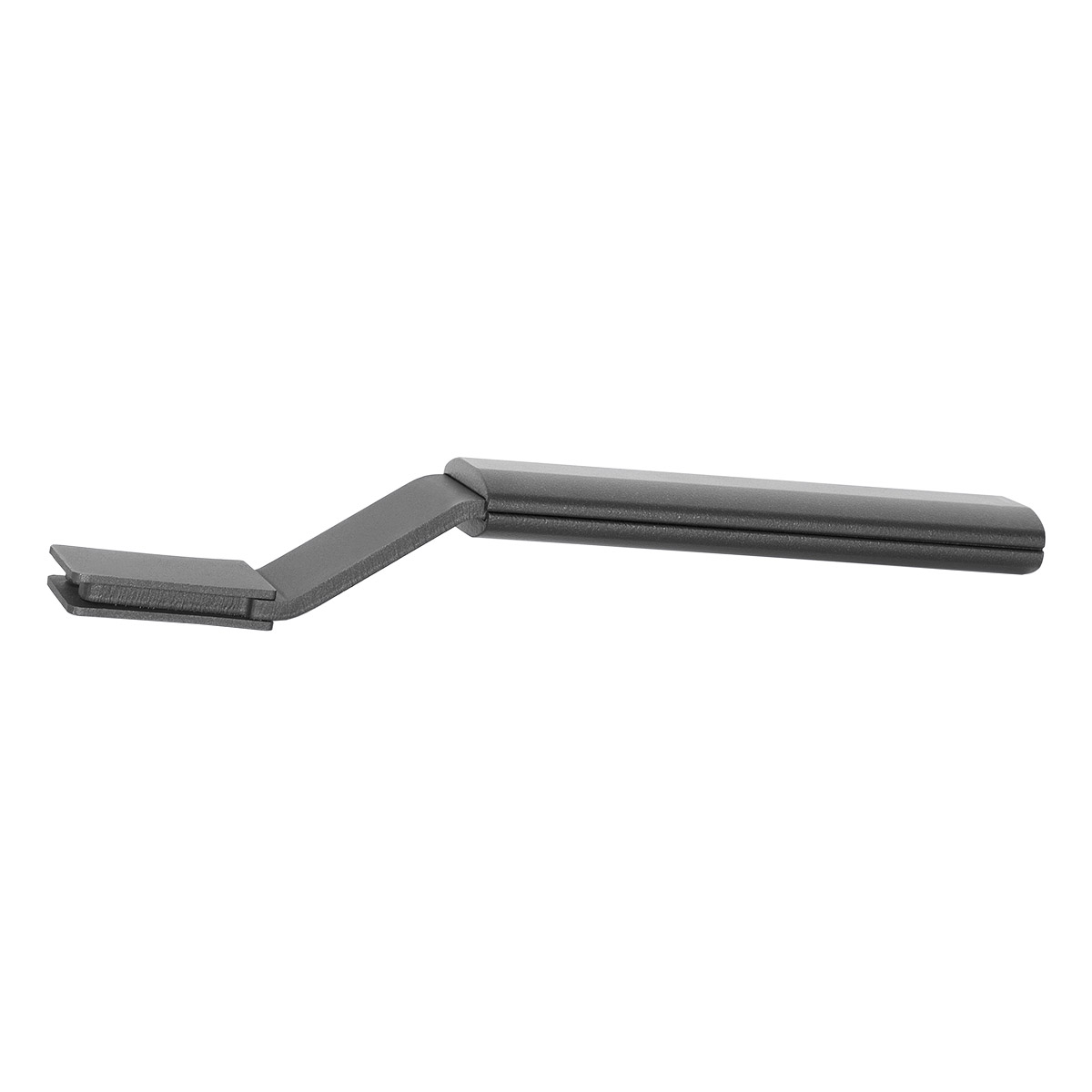

IMPRESSION fireplace inserts have unusually high, printed three-sided glazing that allows you to experience the fire in a unique way. The easy, silent and precise operation of the lifting door is guaranteed by the state-of-the-art SILENT LIFT system. The lifting door is operated using a removable handle, which can optionally be replaced by a fixed handle. The combustion chamber is available in black or cream colour with an optional change for the furnace grate. Inserts are designed for both accumulation and convection operation. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. Fireplace inserts are equipped with a EAI (external air intake), which can be easily connected using the AIRBOX rotating elbow. Side and top MAMMOTH accumulation sets can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours.

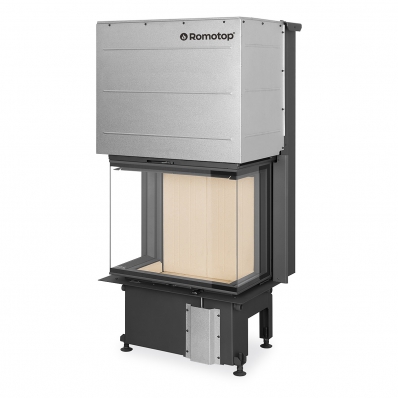

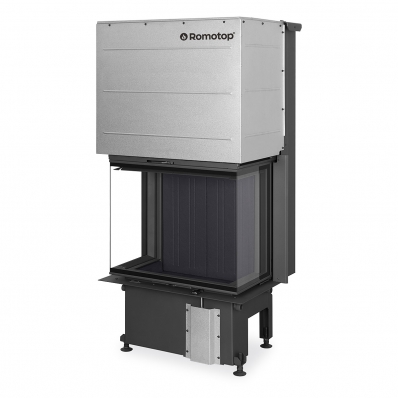

IMPRESSION C 2G L 67.61.34.21

Steel

IMPRESSION C 2G L 67.61.34.21 - Steel
In product comparison: 0 pc
Go to product comparison

maximum of 1 side accumulation set

the combustion chamber must be ordered separately!

Technical parameters
  • Height1625 mm
  • Width786 mm
  • Depth610 mm
  • Door height556 mm
  • Door width675 mm
  • Door depth348 mm
  • Weight*274/271 kg
  • Regulated output5,2-13,4 kW
  • Smoke flue diameter180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1179 mm
  • Draught12 Pa
  • Efficiency82,0 %
  • Average wood consumption2,9 kg/h
  • *weight including black / cream combustion chamber

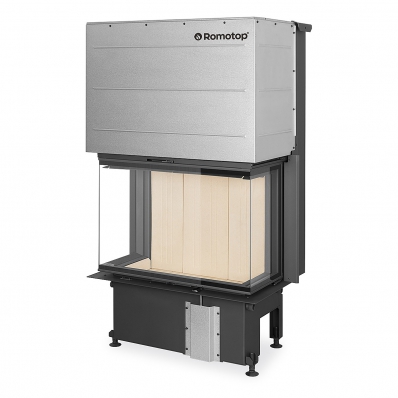

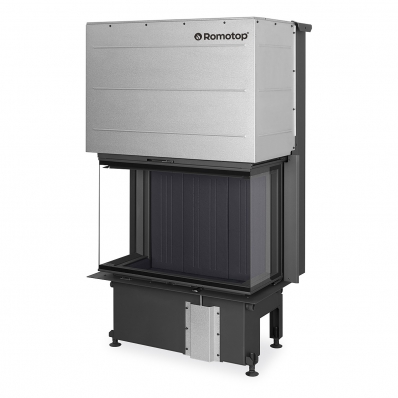

IMPRESSION C 2G L 80.61.34.21

Steel

IMPRESSION C 2G L 80.61.34.21 - Steel
In product comparison: 0 pc
Go to product comparison

maximum of 1 side accumulation set

the combustion chamber must be ordered separately!

Technical parameters
  • Height1625 mm
  • Width916 mm
  • Depth610 mm
  • Door height556 mm
  • Door width800 mm
  • Door depth340 mm
  • Weight*305/299 kg
  • Regulated output6,3-16,4 kW
  • Smoke flue diameter180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1179 mm
  • Draught11 Pa
  • Efficiency84,4 %
  • Average wood consumption3,5 kg/h
  • *weight including black / cream combustion chamber

IMPRESSION C 2G L 67.61.34.21

Steel

IMPRESSION C 2G L 67.61.34.21 - Steel
  • Split glazing - order code: IC2LF 21

IMPRESSION C 2G L 80.61.34.21

Steel

IMPRESSION C 2G L 80.61.34.21 - Steel
  • Split glazing - order code: IC2LG 21
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 1625 mm
  • Width 786 mm
  • Depth 610 mm
  • Door height 556 mm
  • Door width 675 mm
  • Door depth 348 mm
  • Weight* 274/271 kg
  • Regulated output 5,2-13,4 kW
  • Smoke flue diameter 180 mm
  • Flue socket diameter 180 mm
  • External air intake diameter 150 mm
  • Axis height of rear outlet 1179 mm
  • Draught 12 Pa
  • Efficiency 82,0 %
  • Average wood consumption 2,9 kg/h
  • *weight including black / cream combustion chamber
Technical parameters
  • Height 1625 mm
  • Width 916 mm
  • Depth 610 mm
  • Door height 556 mm
  • Door width 800 mm
  • Door depth 340 mm
  • Weight* 305/299 kg
  • Regulated output 6,3-16,4 kW
  • Smoke flue diameter 180 mm
  • Flue socket diameter 180 mm
  • External air intake diameter 150 mm
  • Axis height of rear outlet 1179 mm
  • Draught 11 Pa
  • Efficiency 84,4 %
  • Average wood consumption 3,5 kg/h
  • *weight including black / cream combustion chamber
