OVALIS A

OVALIS A Fireplace stoves

A sensitive fusion of all the major dimensions of the OVALIS A fireplace stove has resulted in a unique design. The rounded and unique dimensions of the glass provide a large area for direct observation of your fire. Accumulation tiles can be placed above the combustion chamber, prolonging heat radiation by several hours.

This fireplace stove is suitable for low-energy homes. The designer stainless steel ventilated handle permits use when the stove is lit. An EAI (External Air Intake) system is included. The standard version includes the option to connect an upper or rear flue gas exhaust. Thanks to the secondary air intake, the door glass is air-washed to prevent accumulation of soot. The combustion chamber is lined with chamotte brick tiles. The primary and secondary air intakes are regulated by a single control element. The bottom part of the stove can be used for storing a small amount of wood. Additionally, you can purchase extra accumulation elements that radiate heat for up to 5.5 hours.

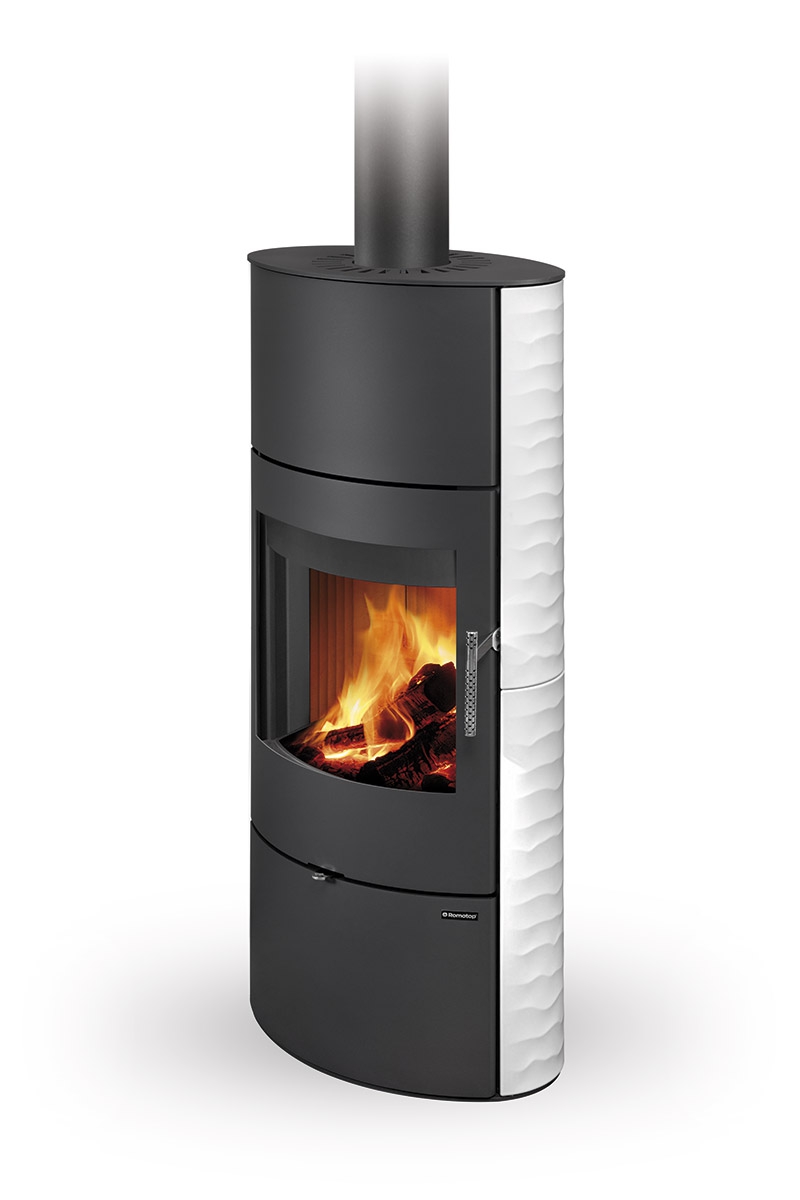

OVALIS 01 A

Ceramic with relief structure

OVALIS 01 A - Ceramic
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1390 mm
  • Width628 mm
  • Depth398 mm
  • Door height678 mm
  • Door width534 mm
  • Door depth114 mm
  • Weight159 kg
  • Regulated output3,0-7,8 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet938/1183 mm
  • Draught11 Pa
  • Efficiency83,5 %
  • Average wood consumption1,6 kg/h

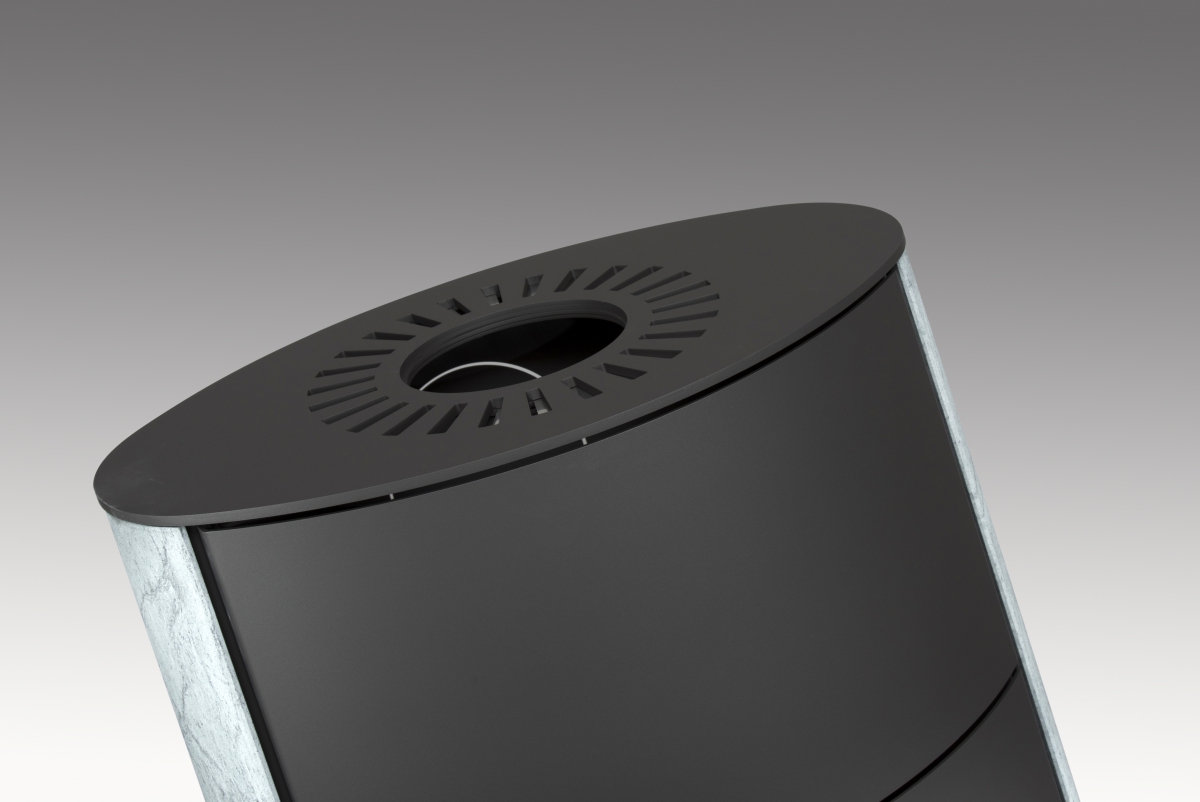

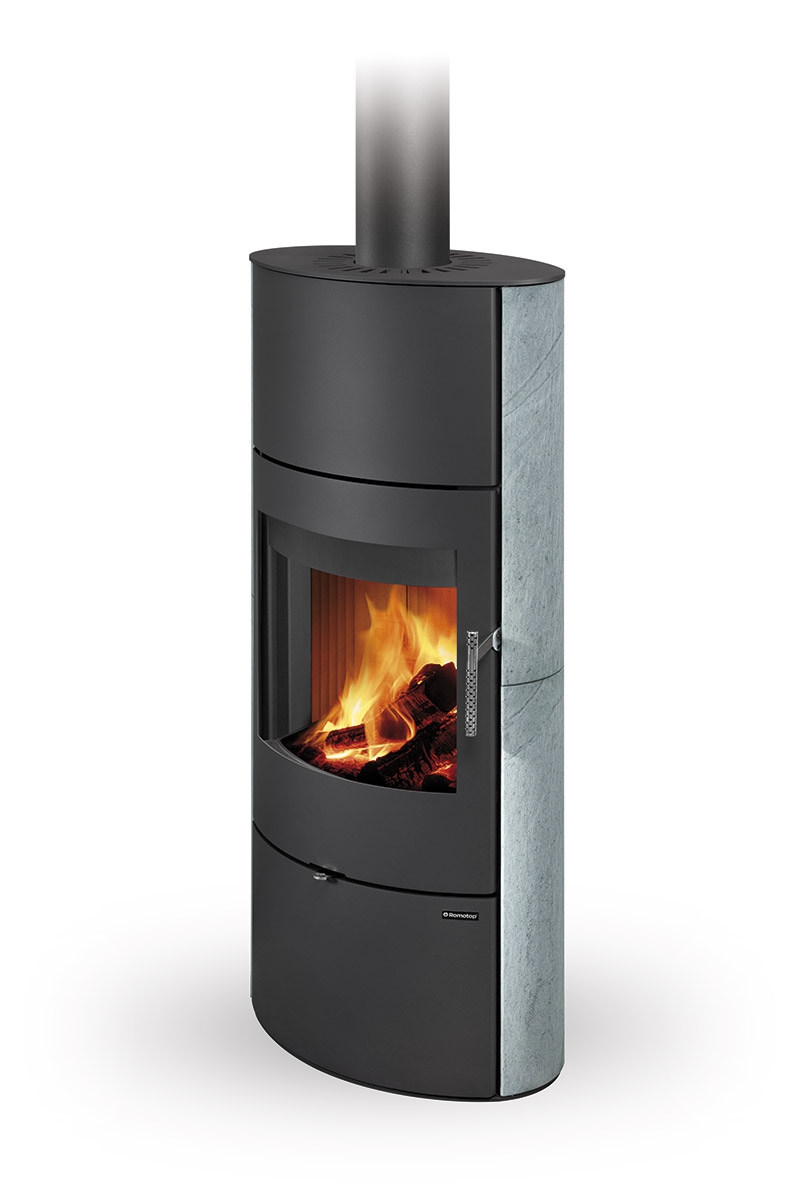

OVALIS 02 A

Serpentine

OVALIS 02 A - Serpentine
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1390 mm
  • Width628 mm
  • Depth398 mm
  • Door height678 mm
  • Door width534 mm
  • Door depth114 mm
  • Weight175 kg
  • Regulated output3,0-7,8 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet938/1183 mm
  • Draught11 Pa
  • Efficiency83,5 %
  • Average wood consumption1,6 kg/h

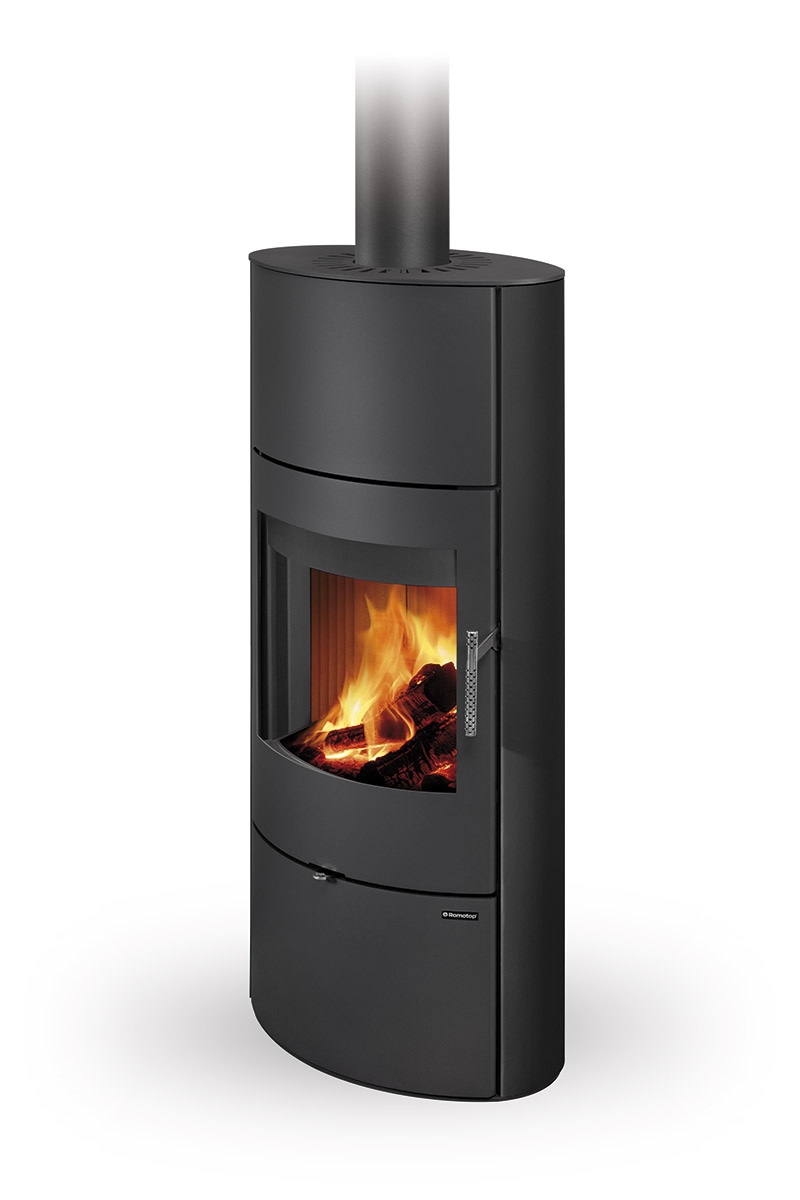

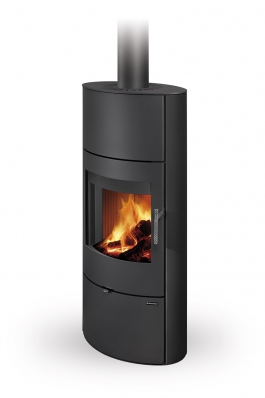

OVALIS 03 A

Steel

OVALIS 03 A - Steel
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1390 mm
  • Width628 mm
  • Depth398 mm
  • Door height678 mm
  • Door width534 mm
  • Door depth114 mm
  • Weight150 kg
  • Regulated output3,0-7,8 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet938/1183 mm
  • Draught11 Pa
  • Efficiency83,5 %
  • Average wood consumption1,6 kg/h

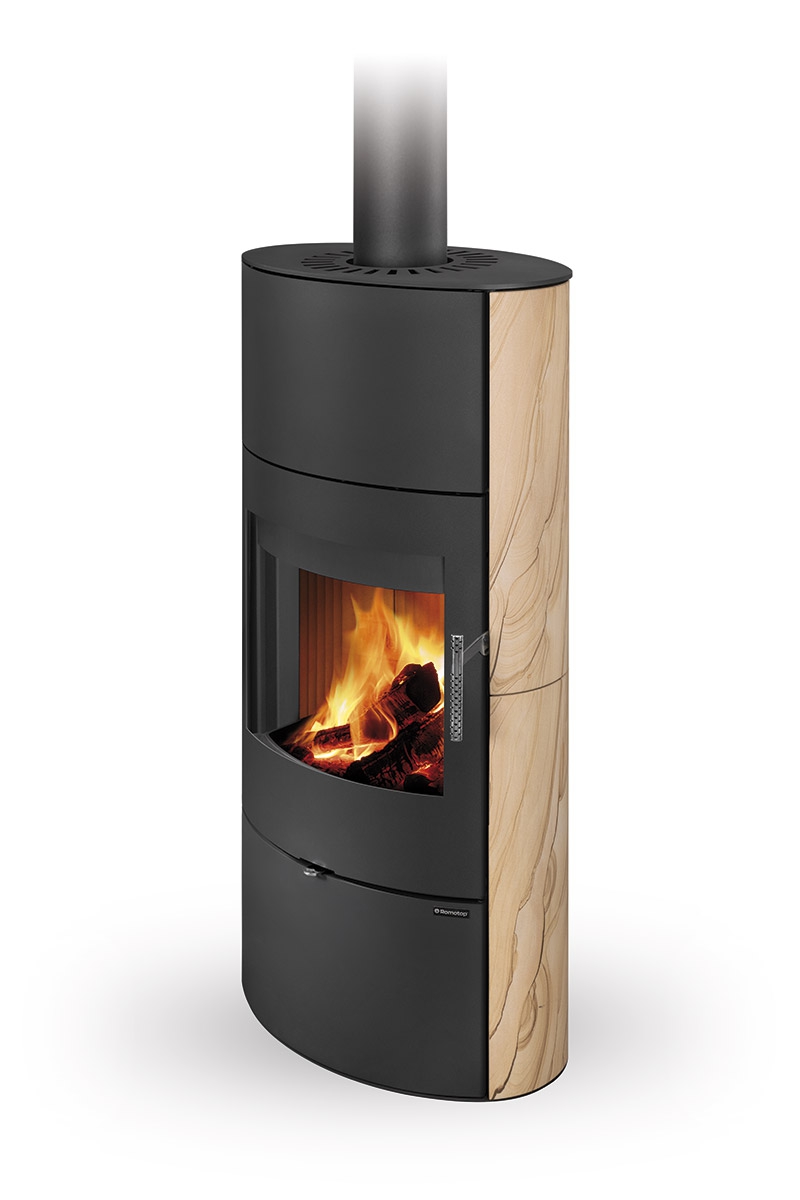

OVALIS 04 A

Sandstone

OVALIS 04 A - Sandstone
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1390 mm
  • Width628 mm
  • Depth398 mm
  • Door height678 mm
  • Door width534 mm
  • Door depth114 mm
  • Weight171 kg
  • Regulated output3,0-7,8 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet938/1183 mm
  • Draught11 Pa
  • Efficiency83,5 %
  • Average wood consumption1,6 kg/h

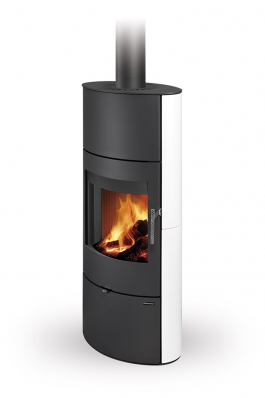

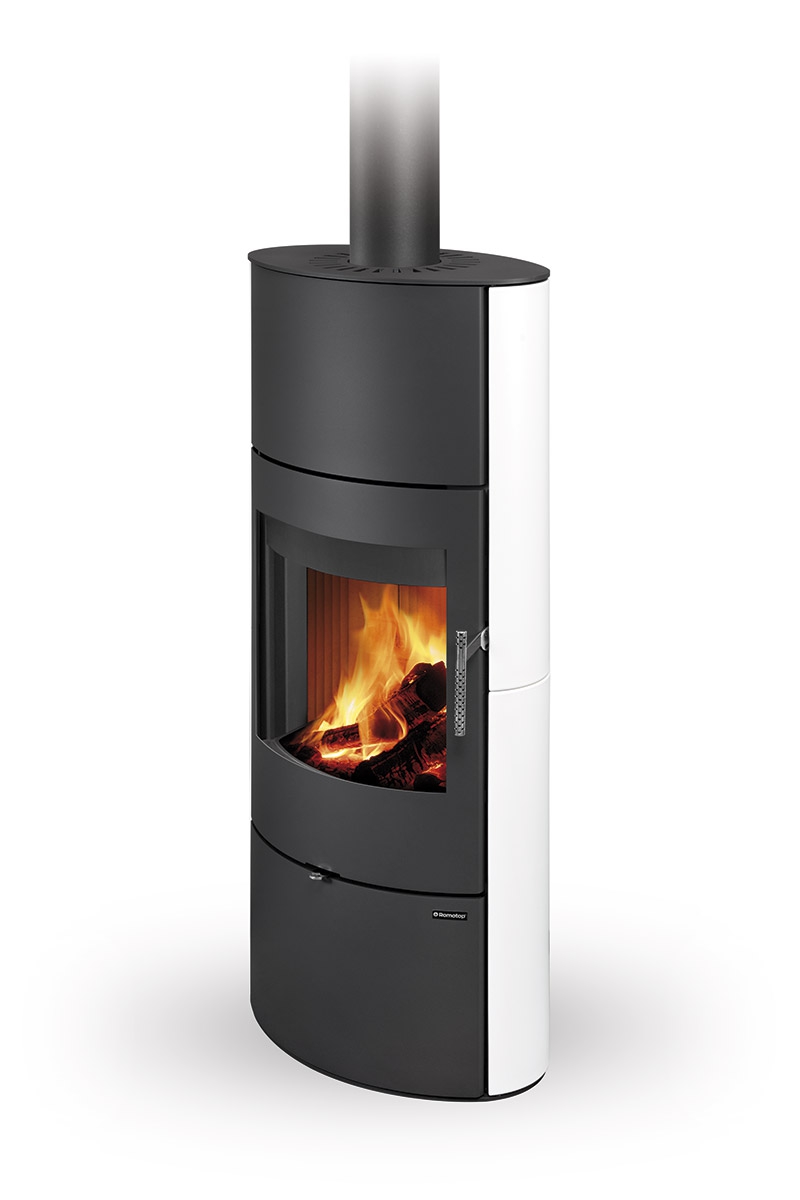

OVALIS 05 A

Ceramic

OVALIS 05 A - Ceramic
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1390 mm
  • Width628 mm
  • Depth398 mm
  • Door height678 mm
  • Door width534 mm
  • Door depth114 mm
  • Weight159 kg
  • Regulated output3,0-7,8 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet938/1183 mm
  • Draught11 Pa
  • Efficiency83,5 %
  • Average wood consumption1,6 kg/h

OVALIS 01 A

Ceramic with relief structure

OVALIS 01 A - Ceramic
  • order code: OVALIS 01 A

OVALIS 02 A

Serpentine

OVALIS 02 A - Serpentine
  • order code: OVALIS 02 A

OVALIS 03 A

Steel

OVALIS 03 A - Steel
  • order code: OVALIS 03 A

OVALIS 04 A

Sandstone

OVALIS 04 A - Sandstone
  • order code: OVALIS 04 A

OVALIS 05 A

Ceramic

OVALIS 05 A - Ceramic
  • order code: OVALIS 05 A
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 1390 mm
  • Width 628 mm
  • Depth 398 mm
  • Door height 678 mm
  • Door width 534 mm
  • Door depth 114 mm
  • Weight 159 kg
  • Regulated output 3,0-7,8 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 938/1183 mm
  • Draught 11 Pa
  • Efficiency 83,5 %
  • Average wood consumption 1,6 kg/h
Technical parameters
  • Height 1390 mm
  • Width 628 mm
  • Depth 398 mm
  • Door height 678 mm
  • Door width 534 mm
  • Door depth 114 mm
  • Weight 175 kg
  • Regulated output 3,0-7,8 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 938/1183 mm
  • Draught 11 Pa
  • Efficiency 83,5 %
  • Average wood consumption 1,6 kg/h
Technical parameters
  • Height 1390 mm
  • Width 628 mm
  • Depth 398 mm
  • Door height 678 mm
  • Door width 534 mm
  • Door depth 114 mm
  • Weight 150 kg
  • Regulated output 3,0-7,8 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 938/1183 mm
  • Draught 11 Pa
  • Efficiency 83,5 %
  • Average wood consumption 1,6 kg/h
Technical parameters
  • Height 1390 mm
  • Width 628 mm
  • Depth 398 mm
  • Door height 678 mm
  • Door width 534 mm
  • Door depth 114 mm
  • Weight 171 kg
  • Regulated output 3,0-7,8 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 938/1183 mm
  • Draught 11 Pa
  • Efficiency 83,5 %
  • Average wood consumption 1,6 kg/h
Technical parameters
  • Height 1390 mm
  • Width 628 mm
  • Depth 398 mm
  • Door height 678 mm
  • Door width 534 mm
  • Door depth 114 mm
  • Weight 159 kg
  • Regulated output 3,0-7,8 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 938/1183 mm
  • Draught 11 Pa
  • Efficiency 83,5 %
  • Average wood consumption 1,6 kg/h
