The oval shape of the LUGANO fireplace stove lends your interior a cosy feeling. The design is accentuated by a fully glazed stove door.
LUGANO

LUGANO Fireplace stoves

Pleasant details such as a sill above the combustion chamber and a door handle give the LUGANO fireplace stove an elegant look.

This fireplace stove is suitable for low-energy homes. The stove door includes a large glazed area with a designer print. The ventilated designer handle permits use when the stove is lit. The door can be locked in the open position. An EAI (External Air Intake) system is included. The standard version includes the option to connect an upper or rear flue gas exhaust. Thanks to the secondary air intake, the door glass is air-washed to prevent accumulation of soot. The combustion chamber is lined with chamotte brick tiles. The primary and secondary air intakes are regulated by a single control element. The lower part of the stove includes a storage area with a door for a small amount of wood or tools.

LUGANO 01

Ceramic

LUGANO 01 - Ceramic
  • order code: LUGANO 01
  • Technical parameters
  • Download
Technical parameters
  • Height 1224 mm
  • Width 550 mm
  • Depth 438 mm
  • Weight 146 kg
  • Regulated output 3,0-7,8 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 922 mm
  • Draught 12 Pa
  • Efficiency 81,9 %
  • Average wood consumption 1,7 kg/h

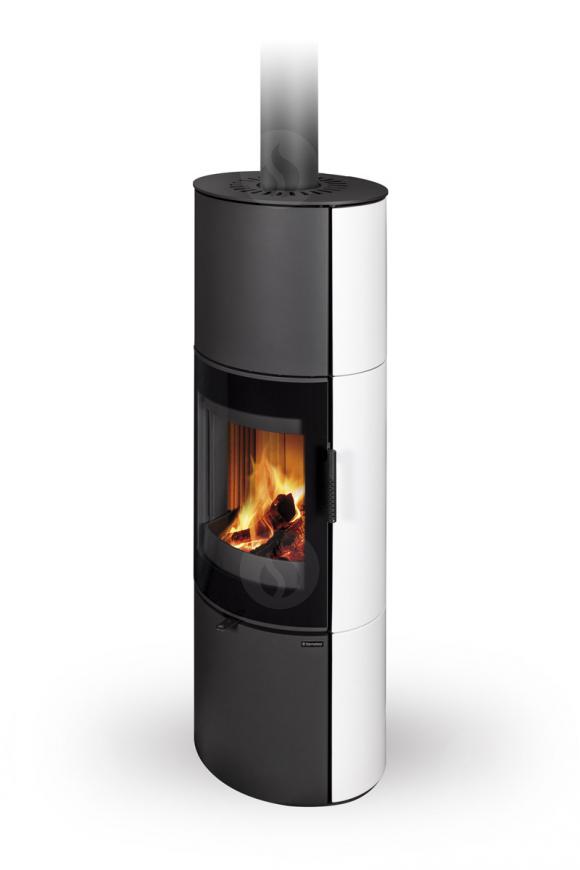

LUGANO A

LUGANO A Fireplace stoves

The LUGANO A fireplace stove can be fitted with special accumulation tiles in the space above the combustion chamber. This “mass” of accumulation elements can extend the heat radiation period of the stove by several hours.

This fireplace stove is suitable for low-energy homes. The stove door includes a large glazed area with a designer print . The ventilated designer handle permits use when the stove is lit. The door can be locked in the open position. An EAI (External Air Intake) system is included. The standard version includes the option to connect an upper or rear flue gas exhaust. Thanks to the secondary air intake, the door glass is air-washed to prevent accumulation of soot. The combustion chamber is lined with chamotte brick tiles. The primary and secondary air intakes are regulated by a single control element. The lower part of the stove includes a storage area with a door for a small amount of wood or tools. Additionally, you can purchase extra accumulation elements that radiate heat for up to 5.5 hours.

LUGANO 01 A

Ceramic

LUGANO 01 A - Ceramic
  • order code: LUGANO 01 A
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 1530 mm
  • Width 550 mm
  • Depth 457 mm
  • Weight 161 kg
  • Regulated output 3,0-7,8 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 988/1289 mm
  • Draught 12 Pa
  • Efficiency 81,9 %
  • Average wood consumption 1,7 kg/h
