CARA Design fireplaces with lifting door

Design accumulation fireplaces Romotop CARA response to the trends and needs of modern interior architecture. Finely balanced proportions, clean lines and dominant three-side glazing creates an impressive complex satisfying even the most demanding customers.

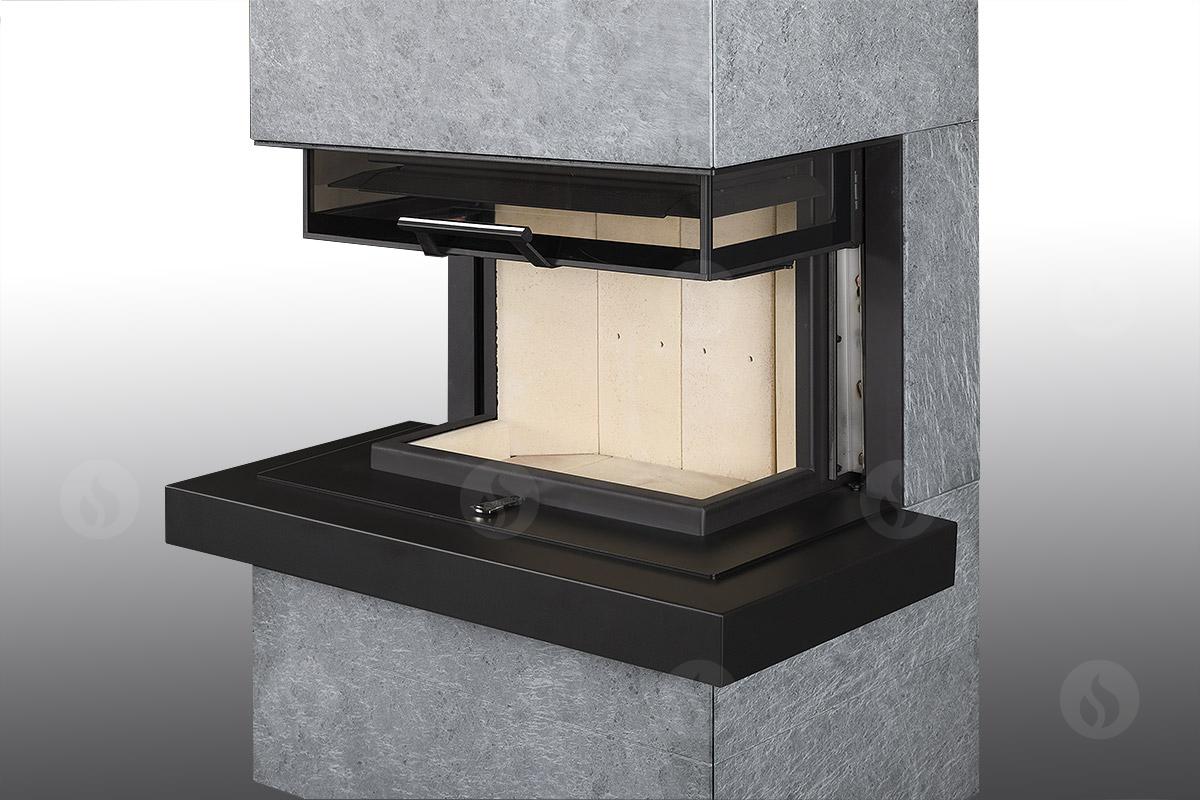

The CARA CS 02 and CARA CS N 03 fireplaces are also suitable for low energy houses. They have sliding doors with precise and easy operation SILENT LIFT. The combustion chamber is cladded with fireclay fittings. Standard combustion chamber model is without grate, but it can be easily modified to a model with grate. In order to optimise the combustion process, tertiary air is led to the upper section of the combustion chamber. Innovative exhaust gas management system DOUBLE SPIN increases overall efficiency of the fireplace. As standard, the exhaust gas is discharged via a smoke outlet in the top or in the back of the unit. Secondary air supply onto the inner side of the door is an efficient solution to avoid dirt deposits, hence, you will not be distracted from viewing into the flames. Primary and secondary air intake is easily controlled by one control element. Sufficient air for an optimum combustion process will be provided by the EAI system (external air intake from the exterior). The fireplace can be improved by installation of accumulation fittings, intended for accumulation of heat and its subsequent radiation back into the room continuing up to several hours after the flame has extinguished. CARA fireplaces are cladded with large natural stone plates or surface finish metal. Thanks to back side shielding, the fireplace can be installed close to the wall.

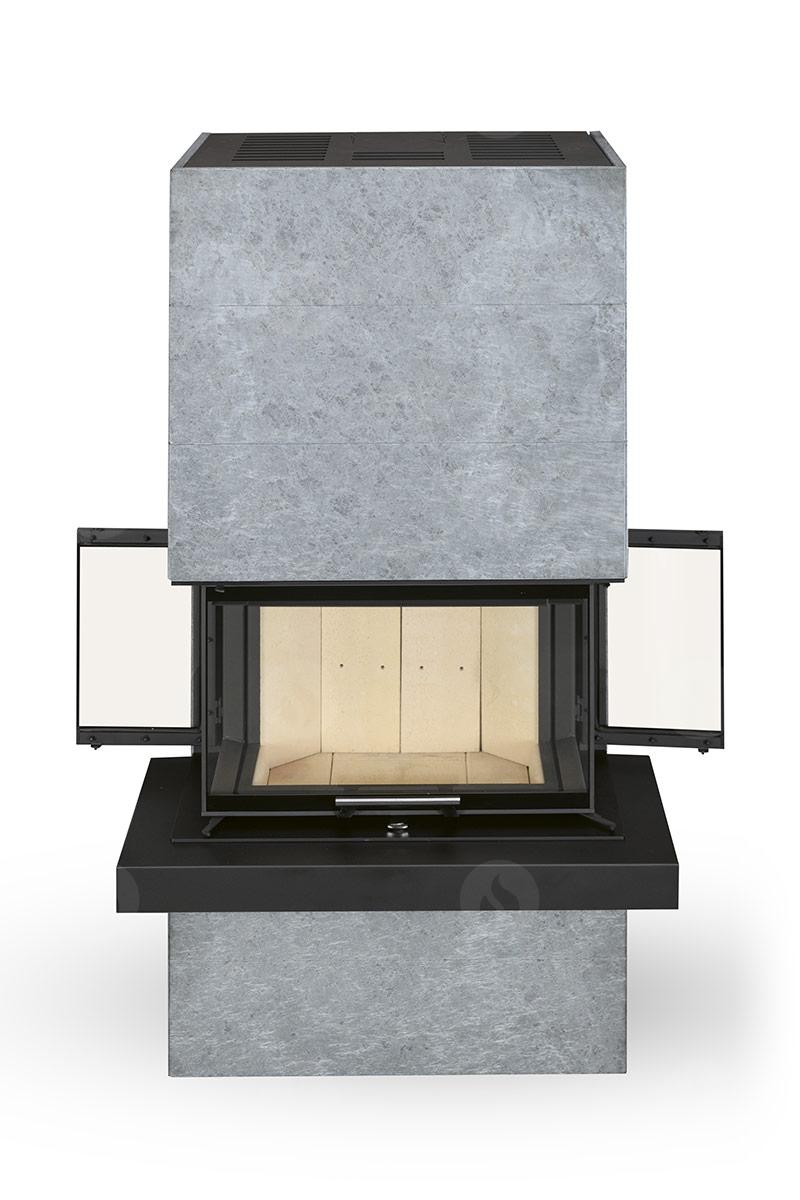

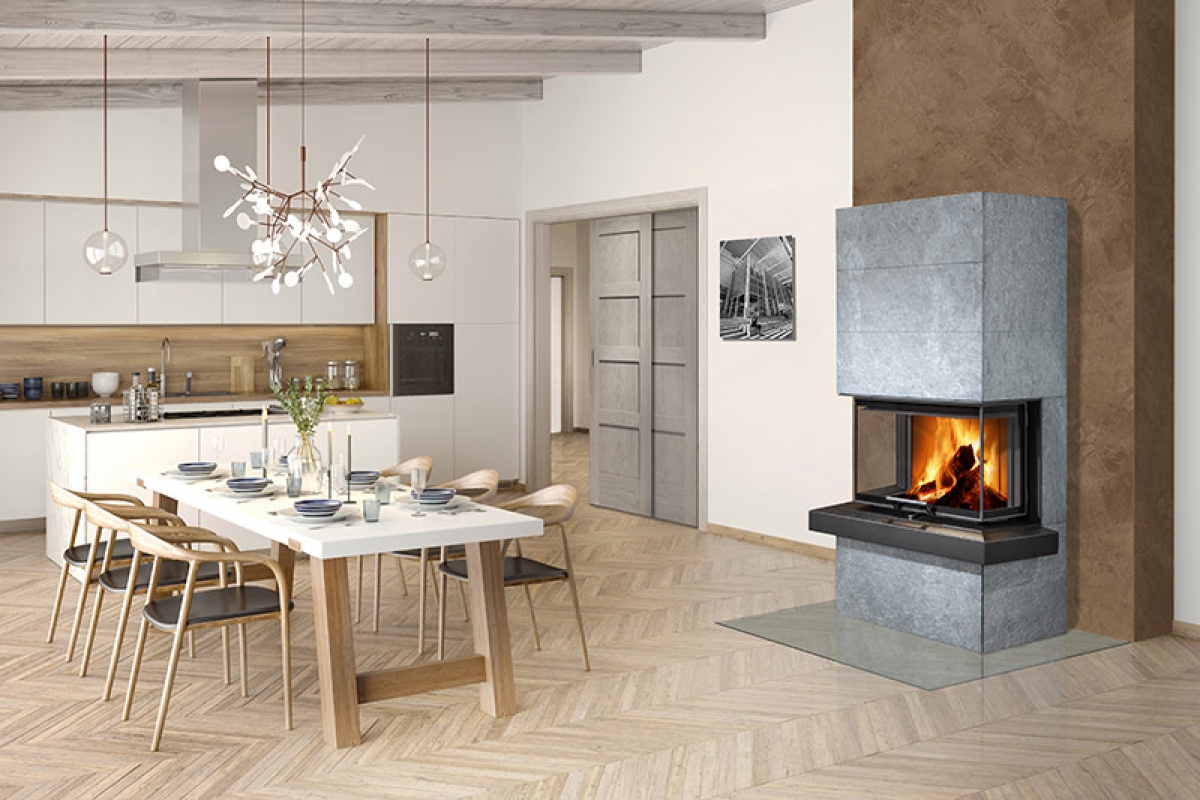

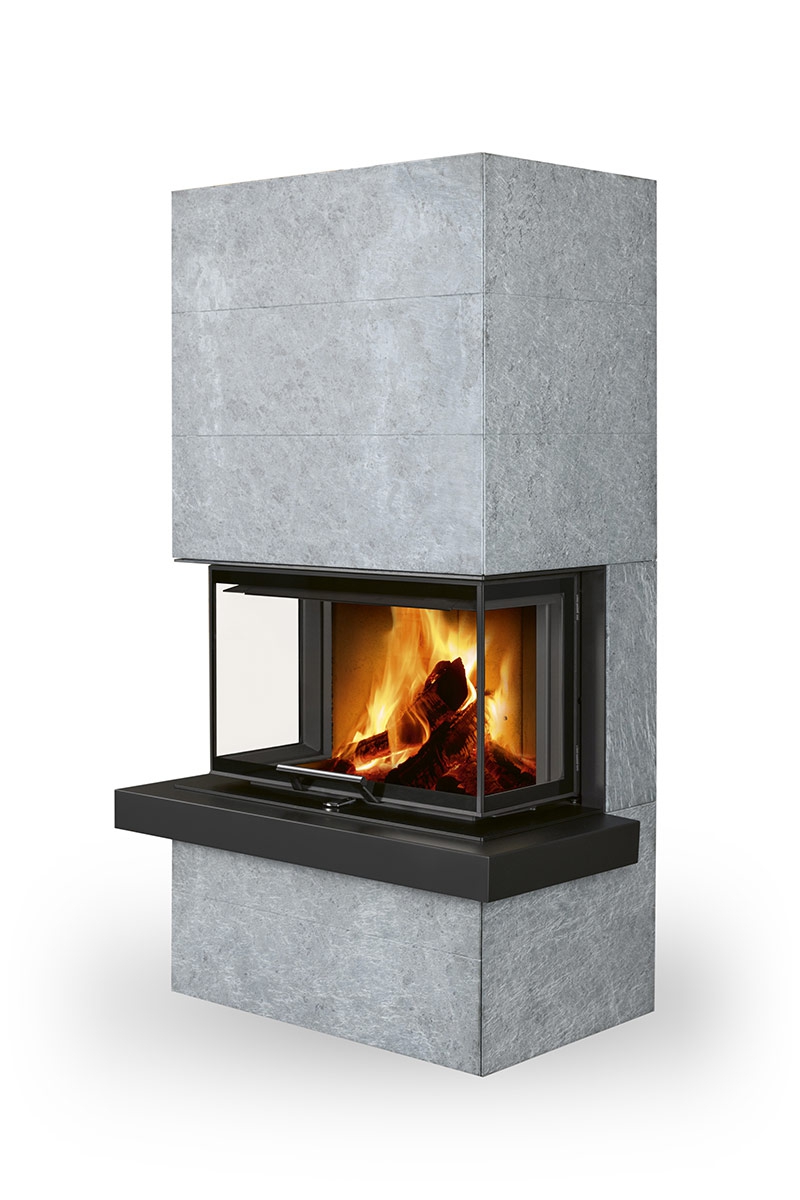

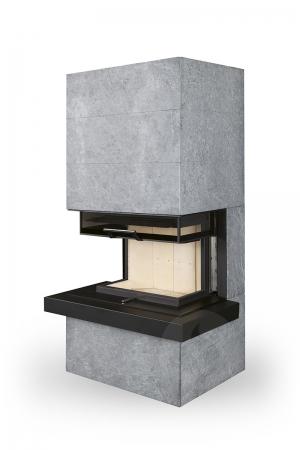

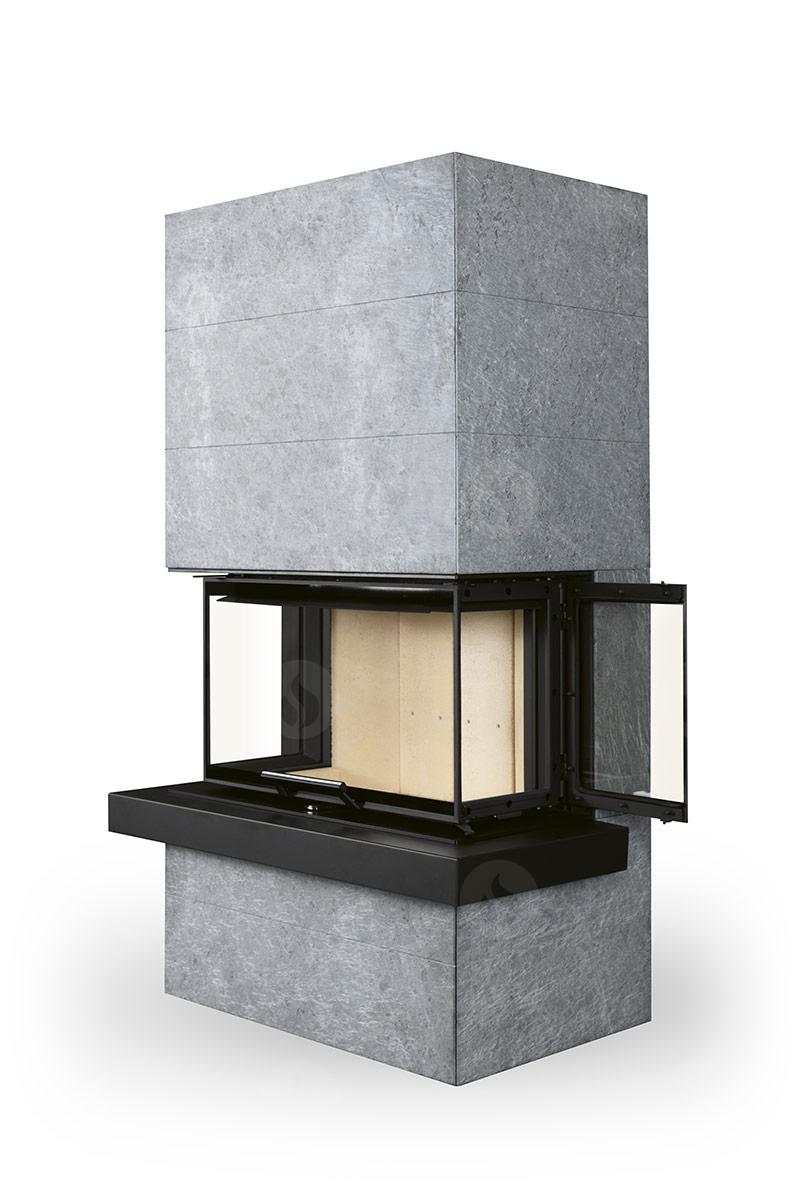

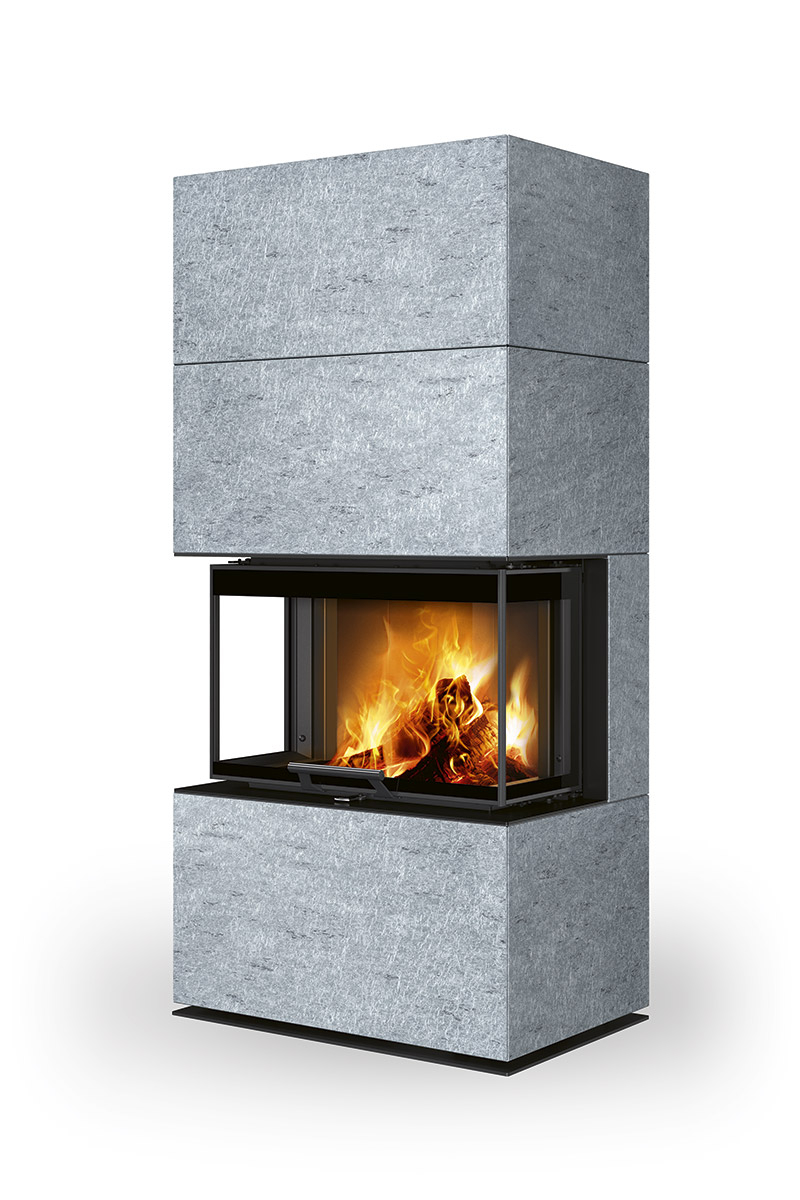

CARA C 02

Serpentine

CARA C 02 - Serpentine
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1648 mm
  • Width924 mm
  • Depth577 mm
  • Door height420 mm
  • Door width670 mm
  • Door depth272 mm
  • Weight343 kg
  • Regulated output3,9-10,1 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1346 mm
  • Draught11 Pa
  • Efficiency82,9 %
  • Average wood consumption2,2 kg/h

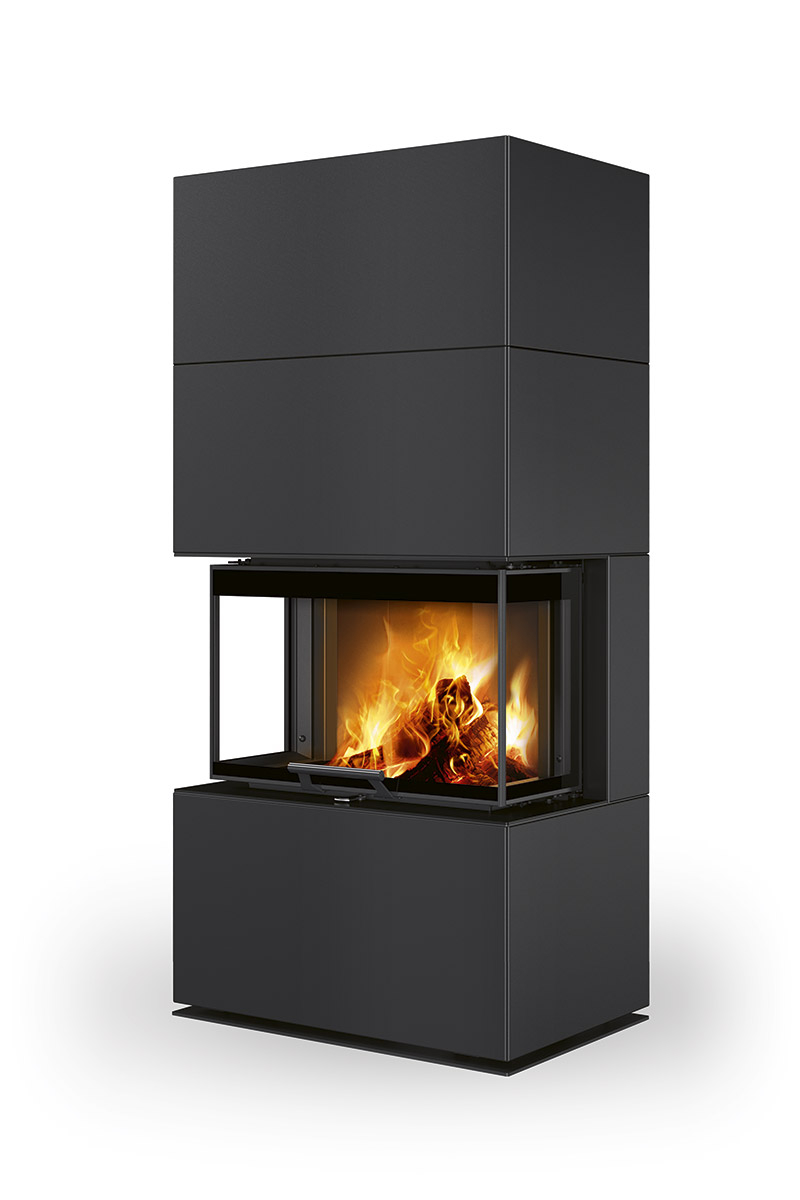

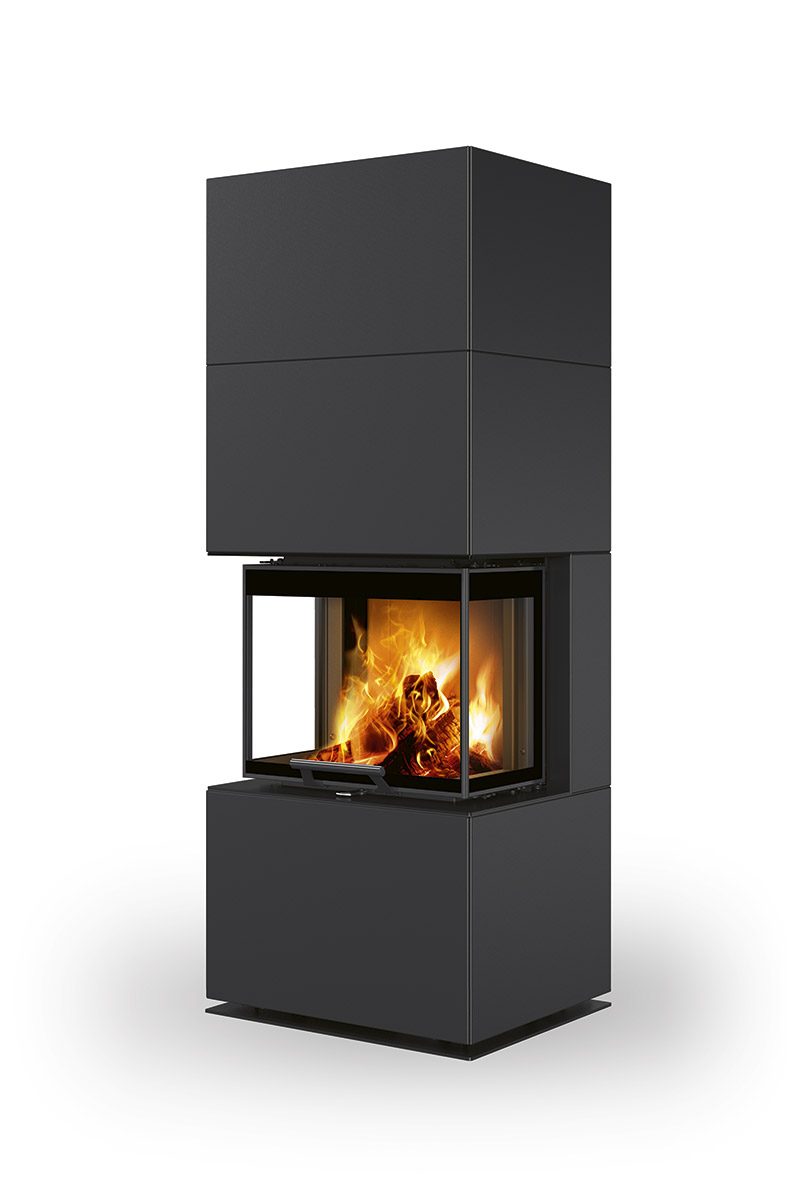

CARA C N 03

Steel

CARA C N 03 - Steel
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1641 mm
  • Width924 mm
  • Depth577 mm
  • Door height420 mm
  • Door width670 mm
  • Door depth272 mm
  • Weight272 kg
  • Regulated output3,9-10,1 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1346 mm
  • Draught11 Pa
  • Efficiency82,9 %
  • Average wood consumption2,2 kg/h

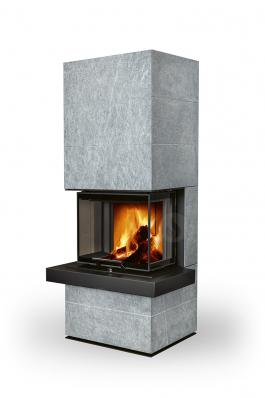

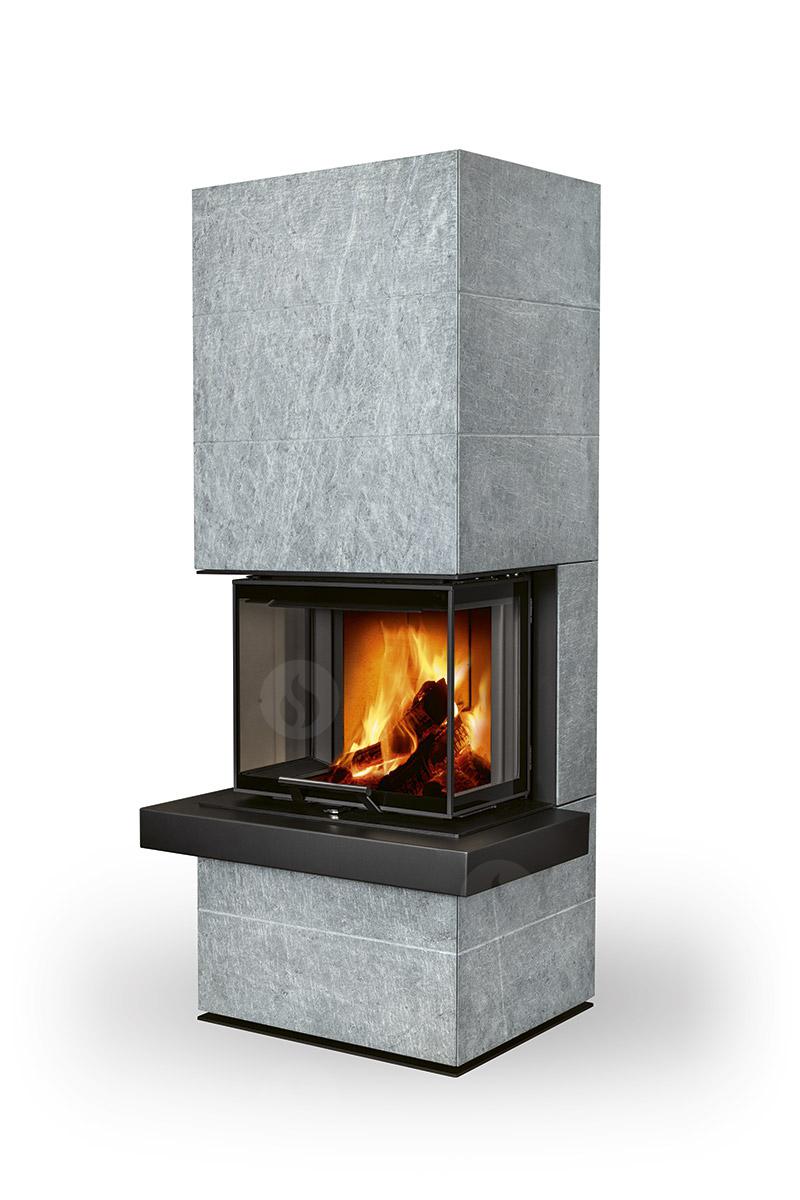

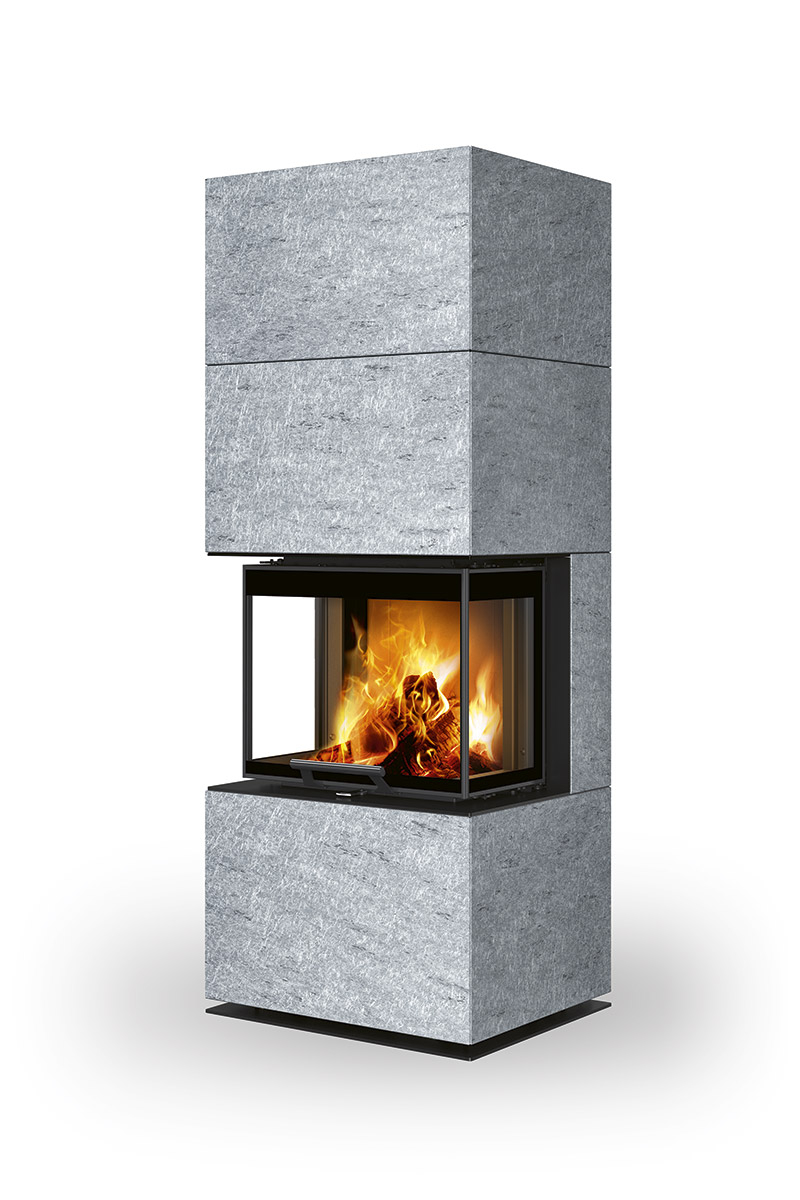

CARA CS 02

Serpentine

CARA CS 02 - Serpentine
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1648 mm
  • Width774 mm
  • Depth577 mm
  • Door height420 mm
  • Door width520 mm
  • Door depth271 mm
  • Weight316 kg
  • Regulated output2,9-7,4 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1346 mm
  • Draught10 Pa
  • Efficiency82,1 %
  • Average wood consumption1,6 kg/h

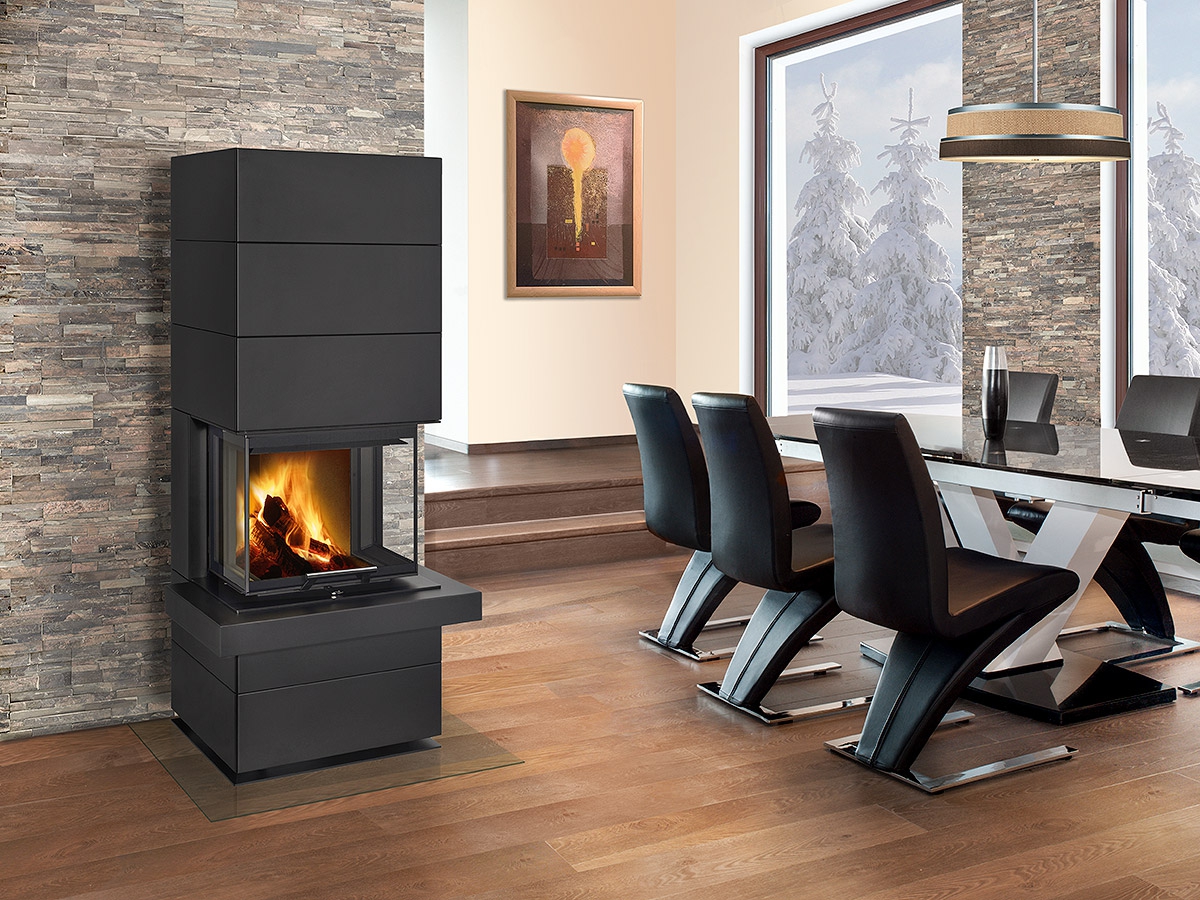

CARA CS N 03

Steel

CARA CS N 03 - Steel
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1643 mm
  • Width774 mm
  • Depth577 mm
  • Door height420 mm
  • Door width520 mm
  • Door depth272 mm
  • Weight238 kg
  • Regulated output2,9-7,4 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1346 mm
  • Draught10 Pa
  • Efficiency82,1 %
  • Average wood consumption1,6 kg/h

CARA C 02

Serpentine

CARA C 02 - Serpentine
  • Split glazing - order code: CARA C 02

CARA C N 03

Steel

CARA C N 03 - Steel
  • Split glazing - order code: CARA C N 03

CARA CS 02

Serpentine

CARA CS 02 - Serpentine
  • Split glazing - order code: CARA CS 02

CARA CS N 03

Steel

CARA CS N 03 - Steel
  • Split glazing - order code: CARA CS N 03
  • Technical parameters
  • Accessories
  • Download
  • 3D-model
Technical parameters
  • Height 1648 mm
  • Width 924 mm
  • Depth 577 mm
  • Door height 420 mm
  • Door width 670 mm
  • Door depth 272 mm
  • Weight 343 kg
  • Regulated output 3,9-10,1 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1346 mm
  • Draught 11 Pa
  • Efficiency 82,9 %
  • Average wood consumption 2,2 kg/h
Technical parameters
  • Height 1641 mm
  • Width 924 mm
  • Depth 577 mm
  • Door height 420 mm
  • Door width 670 mm
  • Door depth 272 mm
  • Weight 272 kg
  • Regulated output 3,9-10,1 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1346 mm
  • Draught 11 Pa
  • Efficiency 82,9 %
  • Average wood consumption 2,2 kg/h
Technical parameters
  • Height 1648 mm
  • Width 774 mm
  • Depth 577 mm
  • Door height 420 mm
  • Door width 520 mm
  • Door depth 271 mm
  • Weight 316 kg
  • Regulated output 2,9-7,4 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1346 mm
  • Draught 10 Pa
  • Efficiency 82,1 %
  • Average wood consumption 1,6 kg/h
Technical parameters
  • Height 1643 mm
  • Width 774 mm
  • Depth 577 mm
  • Door height 420 mm
  • Door width 520 mm
  • Door depth 272 mm
  • Weight 238 kg
  • Regulated output 2,9-7,4 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1346 mm
  • Draught 10 Pa
  • Efficiency 82,1 %
  • Average wood consumption 1,6 kg/h
