HARMONY

HARMONY Tiled accumulation fireplaces

Tiled accumulation fireplaces HARMONY are compact and elegant heating units, completely cladded with ceramic tiles, which are ideal for efficient accumulation and radiation of heat. The design reflects combined type of heating, i.e. pleasant heat energy radiation and heat convection, that is heating by airflow. Both heating modes operate at the same time: In each phase of heating, one of them prevails.

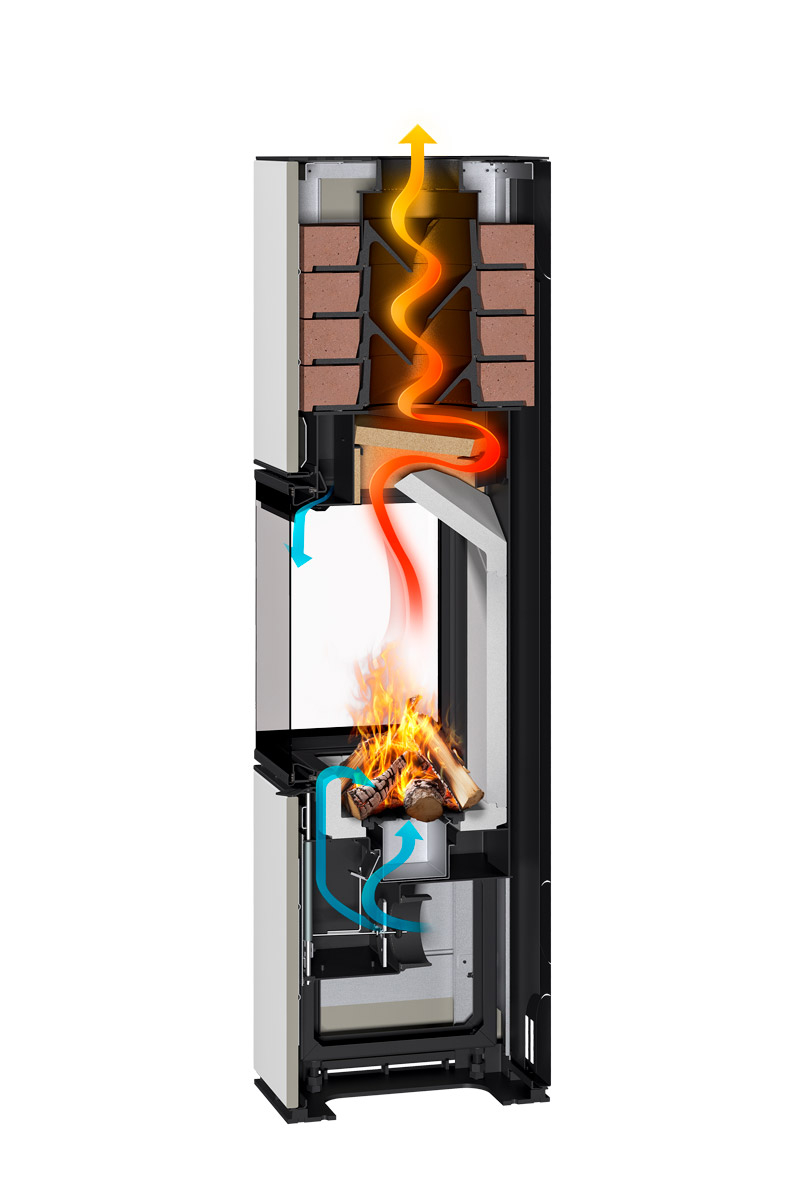

Besides, model HARMONY A has accumulation exchanger, through which flue gas goes prior to enter into the chimney. Heat energy accumulated in this exchanger will then be returned back into the interior for several hours. HARMONY fireplaces are available with plane or corner hearth. Type HARMONY FN differs from other units of the F range in using structured tiles on the front side. The combustion chamber is cladded with fireclay fittings.  Standard model is without grate, but it can be easily modified to a model with the grate. Innovative exhaust gas management system DOUBLE SPIN (in HARMONY F and FN) improves overall heat efficiency of the unit.  Standard flue gas outlet is on the top or in the back. Secondary air supply onto the inner side of the door is an efficient solution to avoid dirt deposits; you will not be distracted from viewing into the flames. Primary and secondary air intake is easily controlled by a one control element. Sufficient air for an optimum combustion process will be provided by the EAI system (external air intake from the exterior). For connection of the EAI system from below (‟from the floor‟), optional AIRBOX 01 element must be used for „Z“ models (HAR F Z, HAR F A Z, HAR FN Z, HAR FN A Z, HAR L Z, HAR L A Z, HAR R Z, HAR R A Z). With the HARMONY F and HARMONY FN tiled fireplaces, the direction of the door opening can be changed.

HARMONY F

Tile

HARMONY F - Tile
In product comparison: 0 pc
Go to product comparison
  • Prices on request at your seller
  • order code: HAR F
  • with rear flue gas exhaust - order code: HAR F Z
  • with accumulation exchanger - order code: HAR F A
  • with accumulation exchanger, rear flue gas exhaust - order code: HAR F A Z
Technical parameters
  • Height1703 mm
  • Width460 mm
  • Depth460 mm
  • Weight234 kg
  • Regulated output2,4-6,2 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1436 mm
  • Draught11 Pa
  • Efficiency84,3 %
  • Average wood consumption1,2 kg/h

HARMONY FN

Tile with relief structure

HARMONY FN - Tile
In product comparison: 0 pc
Go to product comparison
  • Prices on request at your seller
  • order code: HAR FN
  • with rear flue gas exhaust - order code: HAR FN Z
  • with accumulation exchanger - order code: HAR FN A
  • with accumulation exchanger, rear flue gas exhaust - order code: HAR FN A Z
Technical parameters
  • Height1703 mm
  • Width460 mm
  • Depth460 mm
  • Weight234 kg
  • Regulated output2,4-6,2 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1436 mm
  • Draught11 Pa
  • Efficiency84,3 %
  • Average wood consumption1,2 kg/h

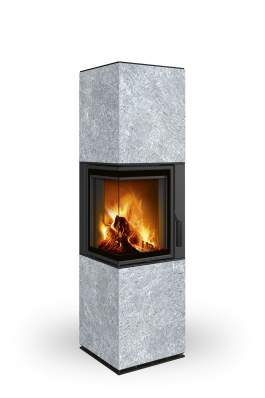

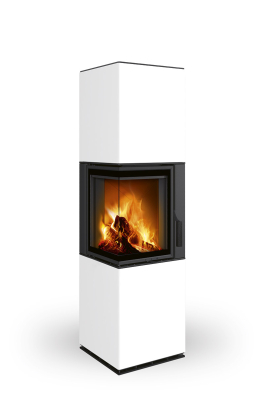

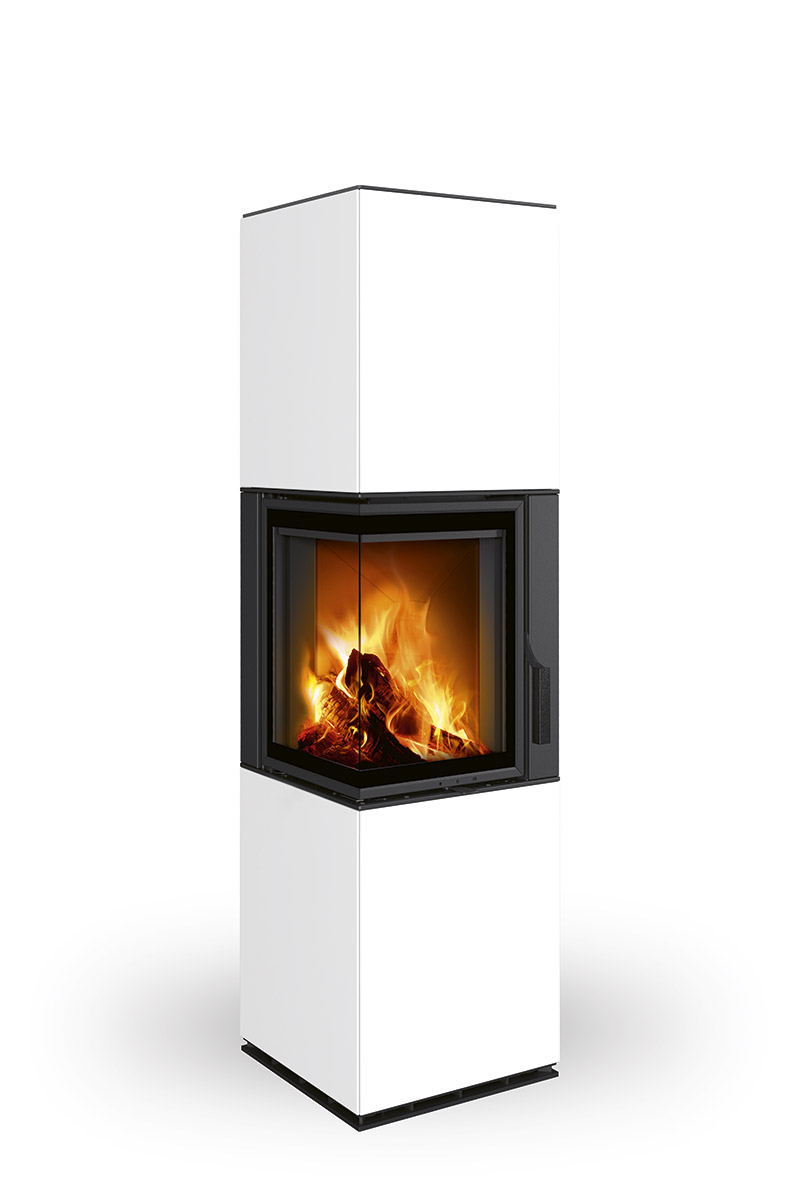

HARMONY L

Tile

HARMONY L - Tile
In product comparison: 0 pc
Go to product comparison
  • Prices on request at your seller
  • order code: HAR L
  • with rear flue gas exhaust - order code: HAR L Z
  • with accumulation exchanger - order code: HAR L A
  • with accumulation exchanger, rear flue gas exhaust - order code: HAR L A Z
Technical parameters
  • Height1703 mm
  • Width460 mm
  • Depth460 mm
  • Weight226 kg
  • Regulated output2,9-7,4 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1436 mm
  • Draught10 Pa
  • Efficiency81,4 %
  • Average wood consumption1,5 kg/h

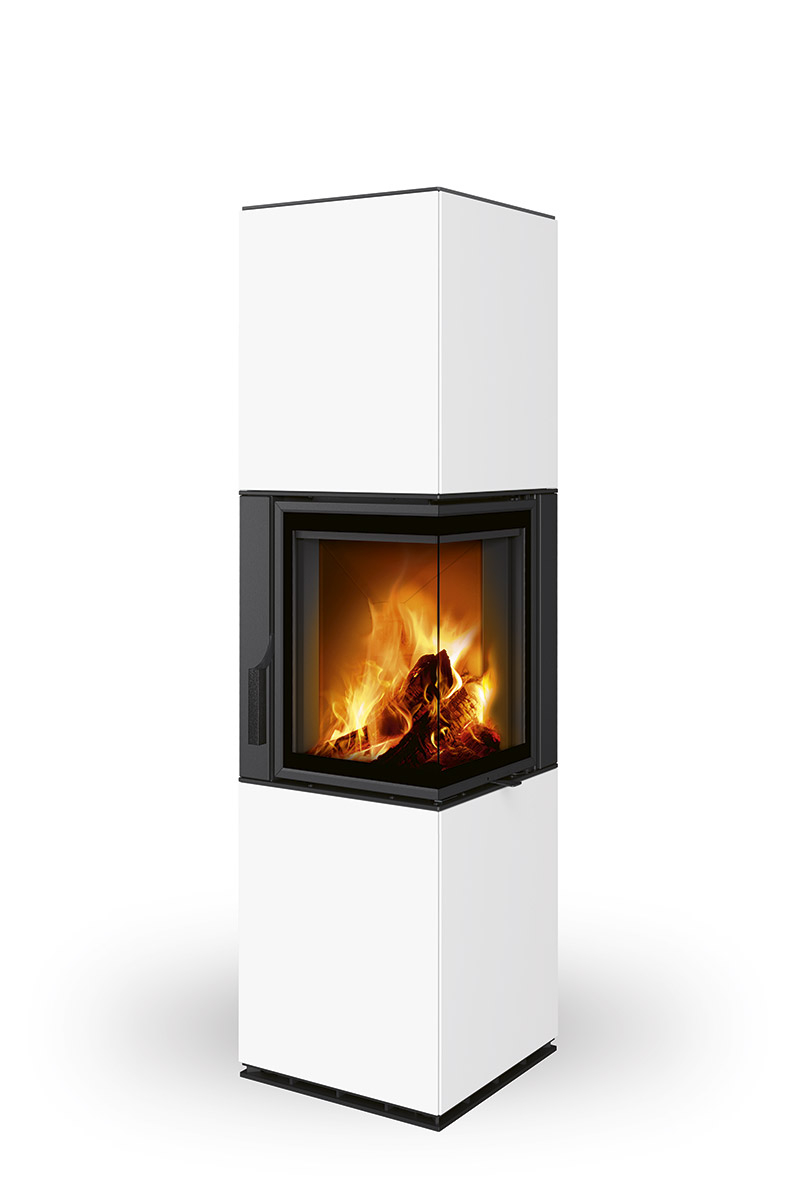

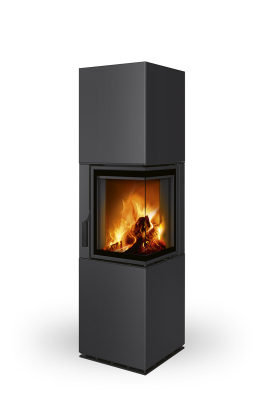

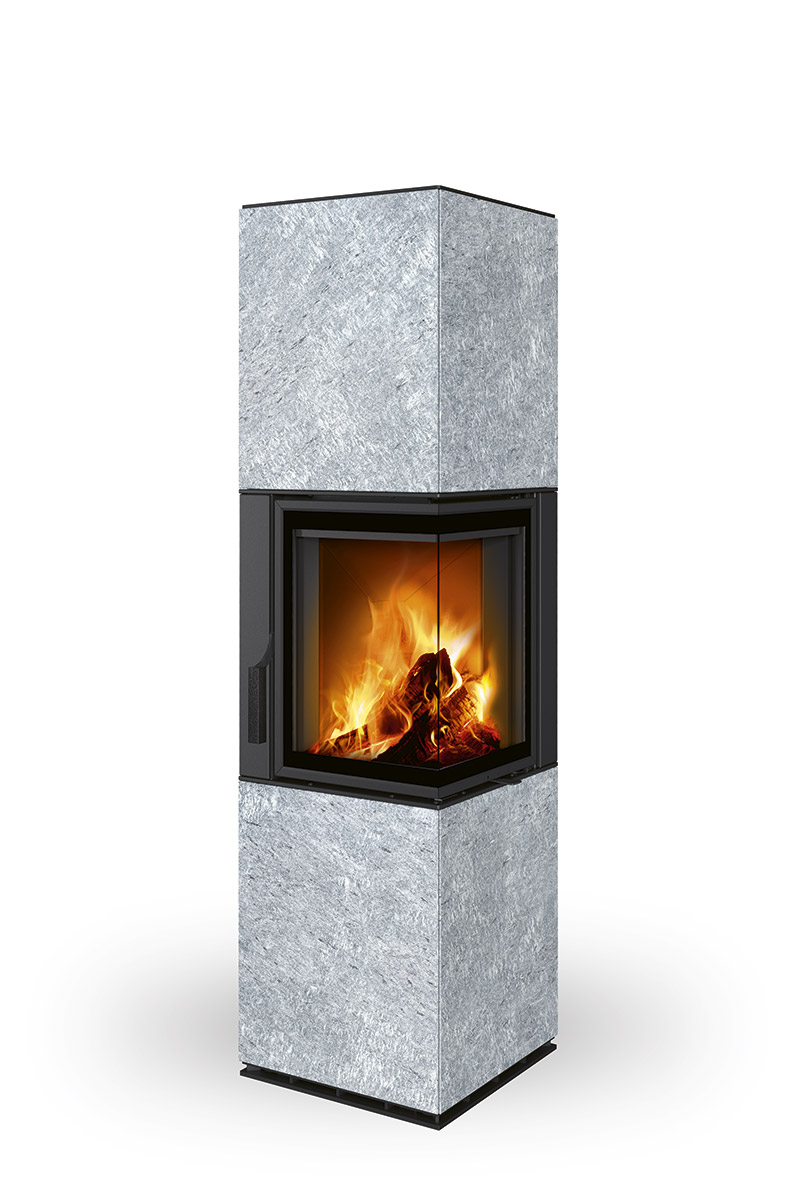

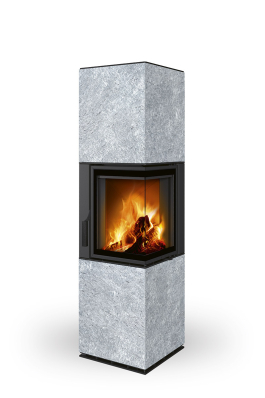

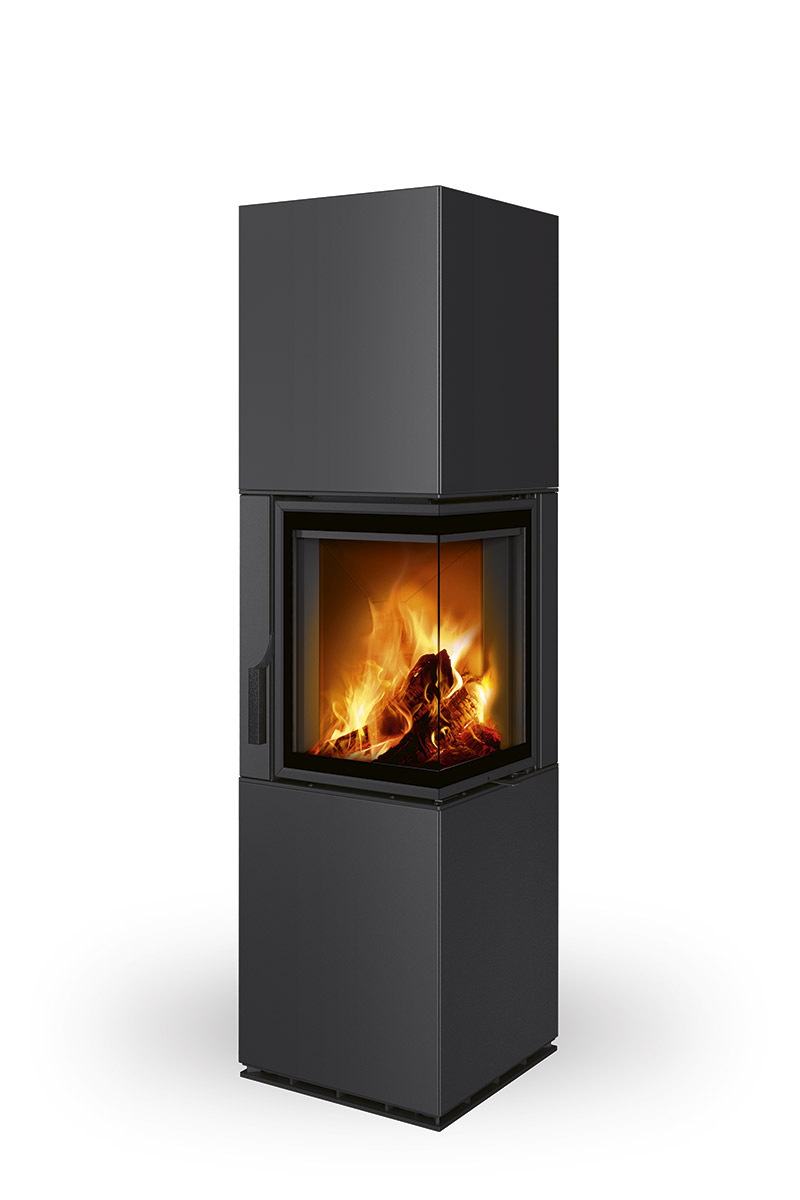

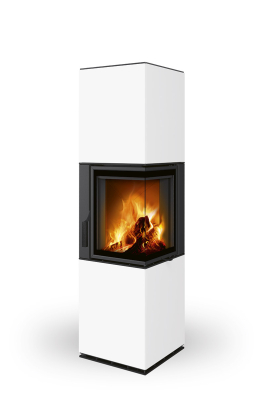

HARMONY R

Tile

HARMONY R - Tile
In product comparison: 0 pc
Go to product comparison
  • Prices on request at your seller
  • order code: HAR R
  • with rear flue gas exhaust - order code: HAR R Z
  • with accumulation exchanger - order code: HAR R A
  • with accumulation exchanger, rear flue gas exhaust - order code: HAR R A Z
Technical parameters
  • Height1703 mm
  • Width460 mm
  • Depth460 mm
  • Weight226 kg
  • Regulated output2,9-7,4 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1436 mm
  • Draught10 Pa
  • Efficiency81,4 %
  • Average wood consumption1,5 kg/h

HARMONY F

Tile

HARMONY F - Tile
  • order code: HAR F
  • with rear flue gas exhaust - order code: HAR F Z
  • with accumulation exchanger - order code: HAR F A
  • with accumulation exchanger, rear flue gas exhaust - order code: HAR F A Z

HARMONY FN

Tile with relief structure

HARMONY FN - Tile
  • order code: HAR FN
  • with rear flue gas exhaust - order code: HAR FN Z
  • with accumulation exchanger - order code: HAR FN A
  • with accumulation exchanger, rear flue gas exhaust - order code: HAR FN A Z

HARMONY L

Tile

HARMONY L - Tile
  • order code: HAR L
  • with rear flue gas exhaust - order code: HAR L Z
  • with accumulation exchanger - order code: HAR L A
  • with accumulation exchanger, rear flue gas exhaust - order code: HAR L A Z

HARMONY R

Tile

HARMONY R - Tile
  • order code: HAR R
  • with rear flue gas exhaust - order code: HAR R Z
  • with accumulation exchanger - order code: HAR R A
  • with accumulation exchanger, rear flue gas exhaust - order code: HAR R A Z
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 1703 mm
  • Width 460 mm
  • Depth 460 mm
  • Weight 234 kg
  • Regulated output 2,4-6,2 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1436 mm
  • Draught 11 Pa
  • Efficiency 84,3 %
  • Average wood consumption 1,2 kg/h
Technical parameters
  • Height 1703 mm
  • Width 460 mm
  • Depth 460 mm
  • Weight 234 kg
  • Regulated output 2,4-6,2 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1436 mm
  • Draught 11 Pa
  • Efficiency 84,3 %
  • Average wood consumption 1,2 kg/h
Technical parameters
  • Height 1703 mm
  • Width 460 mm
  • Depth 460 mm
  • Weight 226 kg
  • Regulated output 2,9-7,4 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1436 mm
  • Draught 10 Pa
  • Efficiency 81,4 %
  • Average wood consumption 1,5 kg/h
Technical parameters
  • Height 1703 mm
  • Width 460 mm
  • Depth 460 mm
  • Weight 226 kg
  • Regulated output 2,9-7,4 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1436 mm
  • Draught 10 Pa
  • Efficiency 81,4 %
  • Average wood consumption 1,5 kg/h
