HELIA

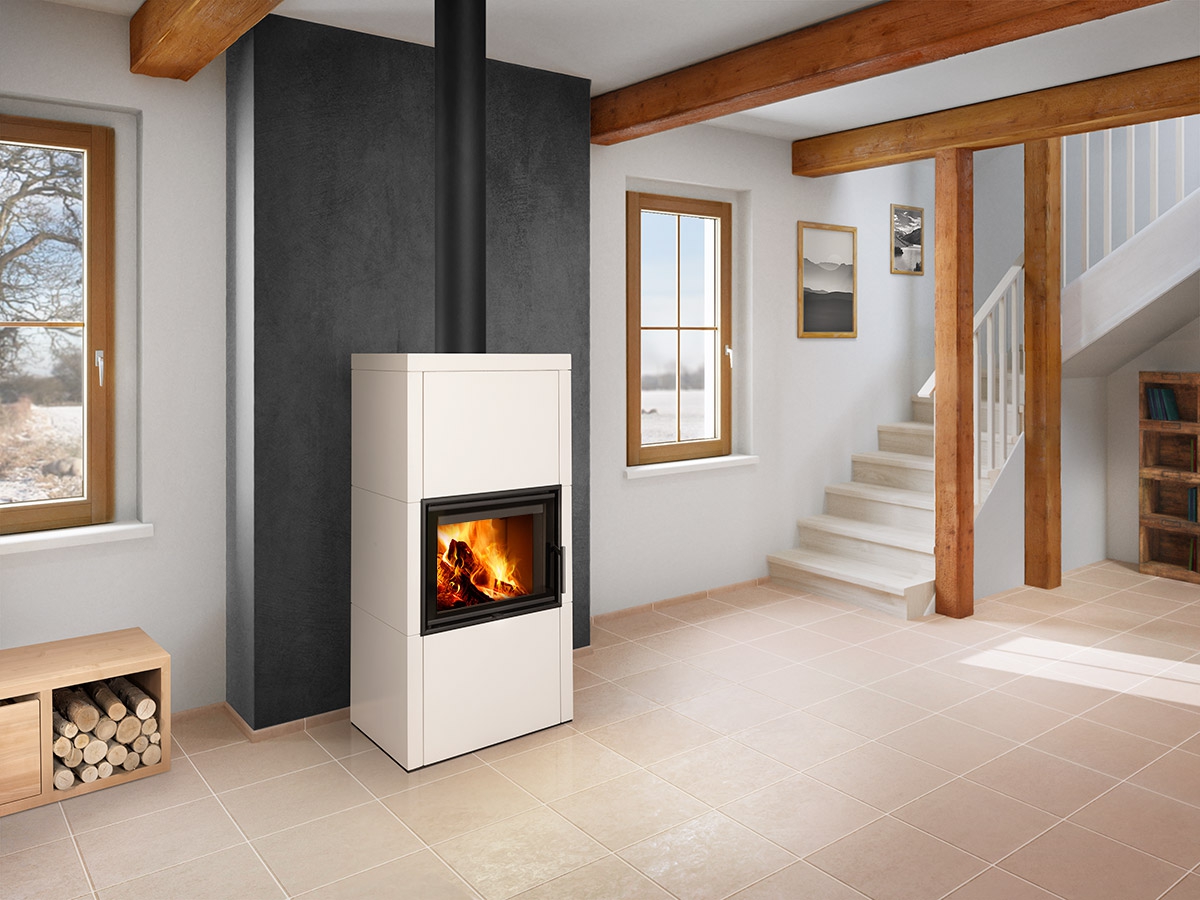

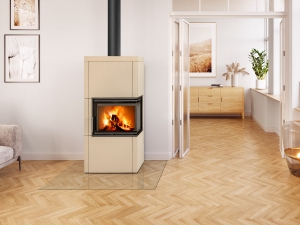

HELIA Tiled fireplaces

Fascination of the fire in equilibrium with proportions and technology. Tiled fireplace HELIA is a sub-model of the SOLID range. HELIA is the right choice for small rooms, offering literally ‟wide-angle‟ view of the fire, thanks to several door glasses (in corner models, viewing also from the side). HELIA fireplaces are cladded with hand-made ceramic tiles.

Ceramic cladding of the fireplace is made on three sides. HELIA tiled fireplaces are available with plane or corner hearth, right or left side design. They are also suitable for low energy houses. The combustion chamber is fitted with fireclay fittings. Standard design is with the grate, but it can be changed to a model without the grate. Innovative exhaust gas management system DOUBLE SPIN increases overall efficiency of the unit. Standard flue gas outlet is on the top or in the back. Secondary air supply onto the inner side of the door is an efficient solution to avoid dirt deposits, hence, you will not be distracted from viewing into the flames. Primary and secondary air control is made using one control element. Sufficient air for an optimum combustion process will be provided by the EAI system (external air intake from the exterior).

HELIA F

Tile

HELIA F - Tile
  • order code: HEL F

HELIA L

Tile

HELIA L - Tile
  • order code: HEL L

HELIA R

Tile

HELIA R - Tile
  • order code: HEL R
  • Technical parameters
  • Download
Technical parameters
  • Height 1412 mm
  • Width 722 mm
  • Depth 461 mm
  • Weight 244 kg
  • Regulated output 2,4-7,0 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1253 mm
  • Draught 10 Pa
  • Efficiency 83,6 %
  • Average wood consumption 1,3 kg/h
Technical parameters
  • Height 1412 mm
  • Width 722 mm
  • Depth 461 mm
  • Weight 237 kg
  • Regulated output 2,9-7,4 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet -
  • Draught 11 Pa
  • Efficiency 85,7 %
  • Average wood consumption 1,6 kg/h
Technical parameters
  • Height 1412 mm
  • Width 722 mm
  • Depth 461 mm
  • Weight 237 kg
  • Regulated output 2,9-7,4 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet -
  • Draught 11 Pa
  • Efficiency 85,7 %
  • Average wood consumption 1,6 kg/h
