SOLID Tiled accumulation fireplaces

Radiation heating well balanced with warm air flow: It was the goal of SOLID fireplaces´ designers that has been reached in its entirety. This product feature pure lines, precise workmanship and large-format hand-made ceramic tiles.

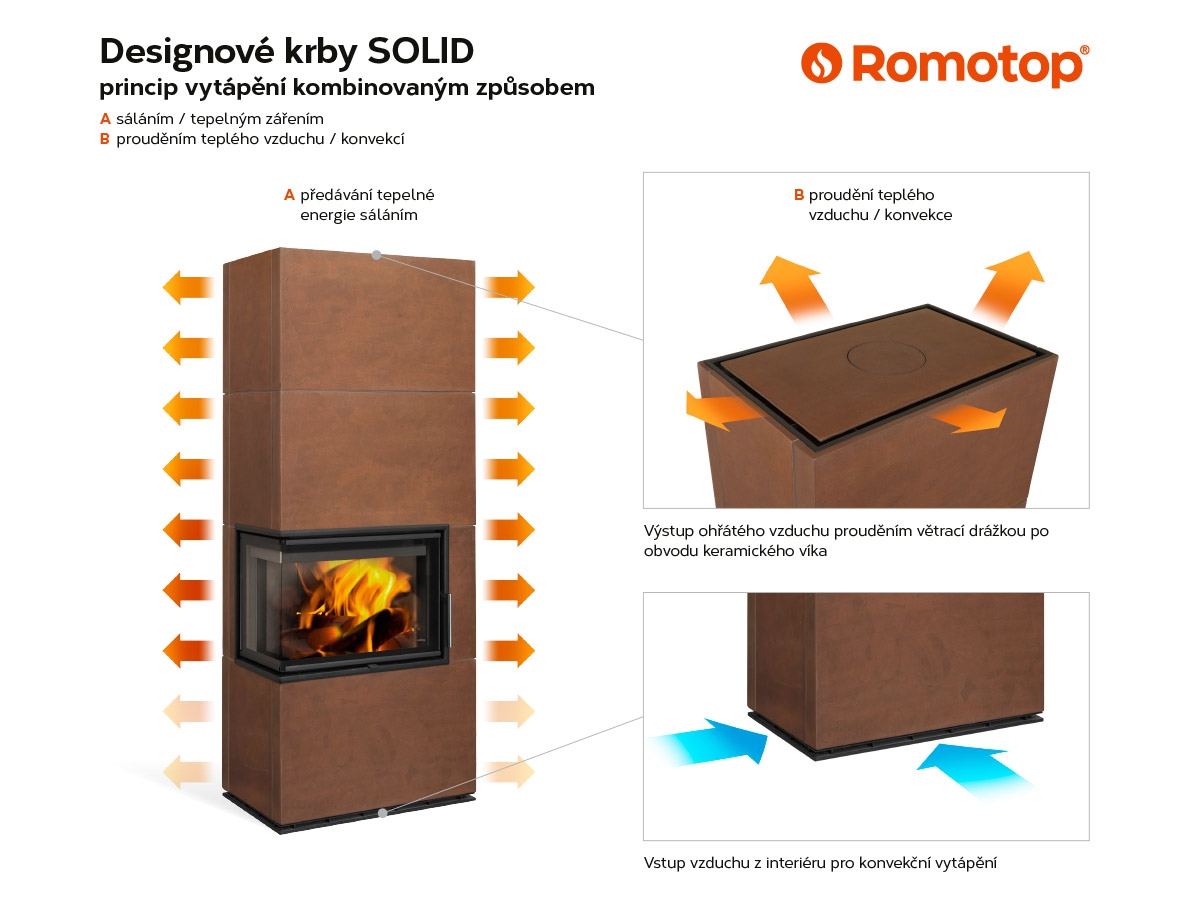

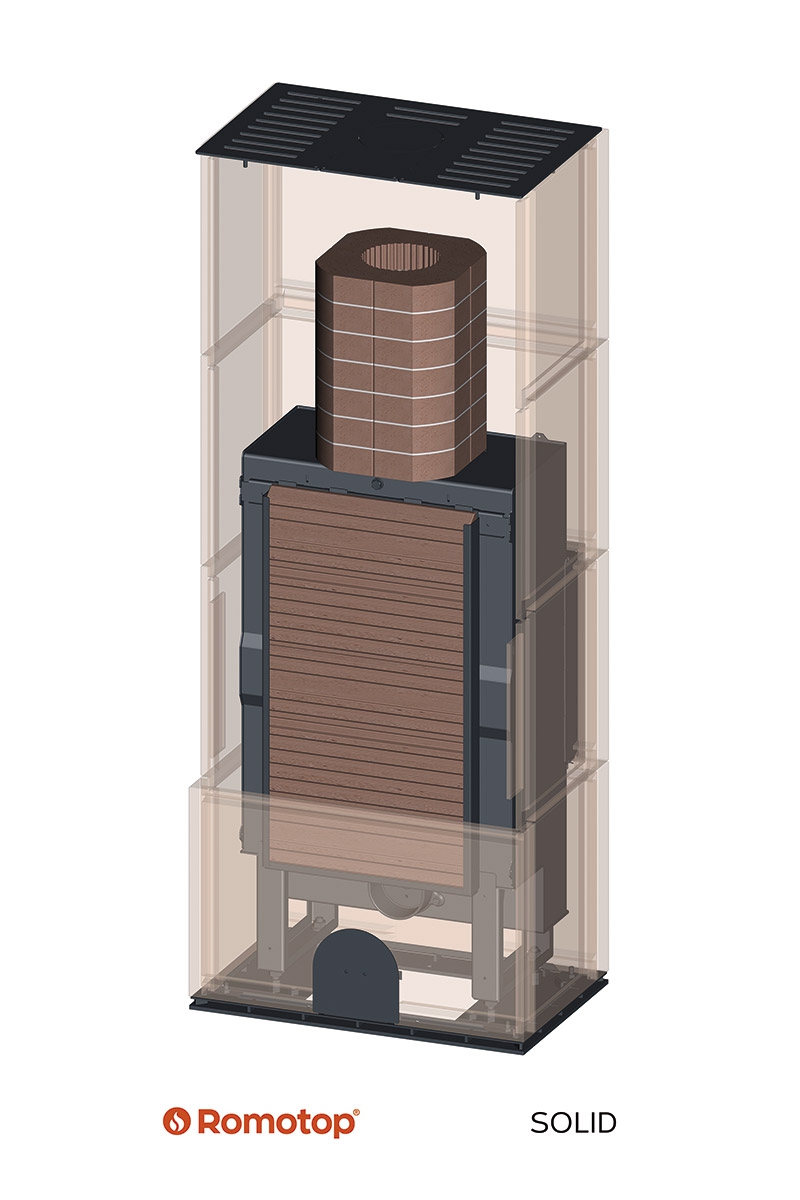

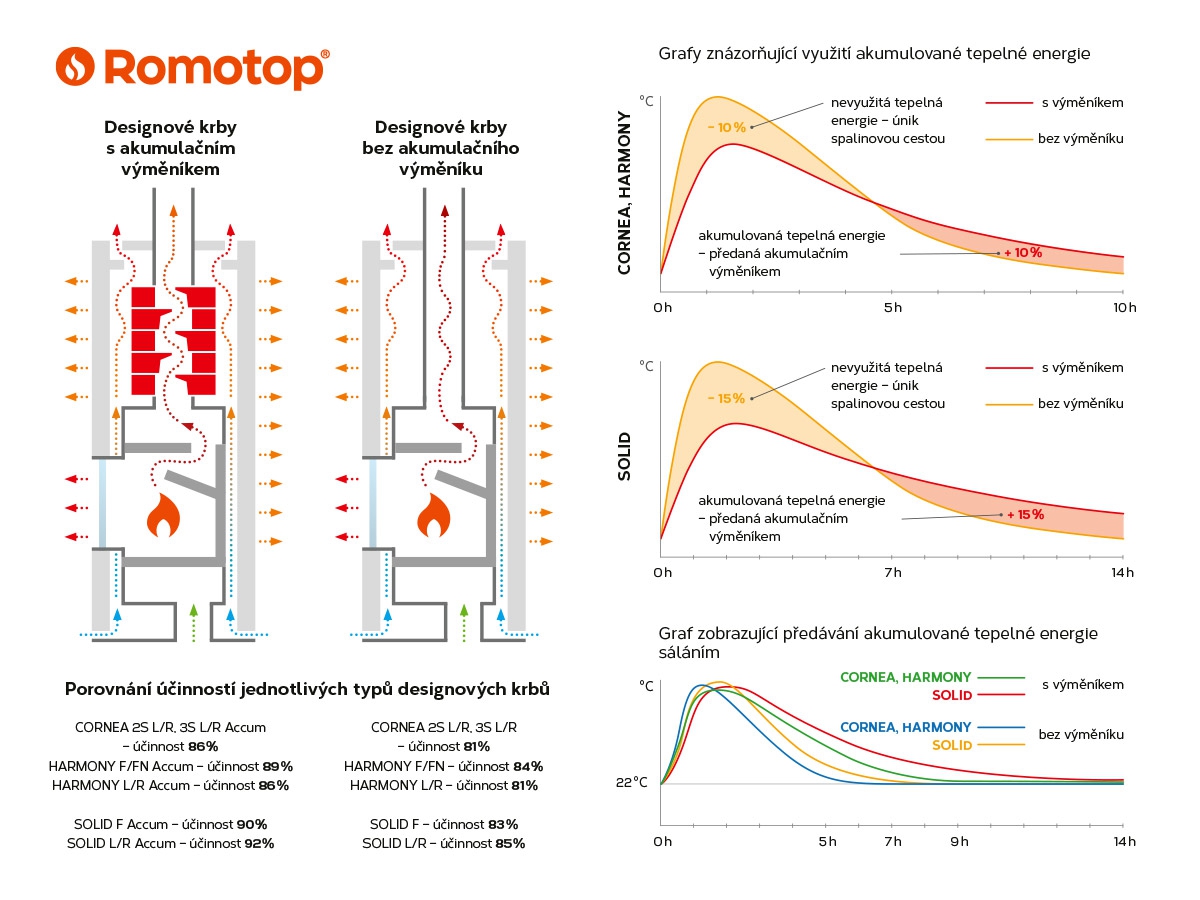

The heating process of SOLID tiled fireplaces is based on heat radiation and warm air flowing, both modes work simultaneously. In the lower part of the unit, cold air enters into the fireplace, flows through the unit to its upper section, from where warm air gradually flows into the room. The system has been designed, primarily, for heating by radiation, warm air flowing (or convection) being a pleasant complement. Both heating modes operate automatically. All types of tiled fireplaces can be improved by installation of the accumulation heat exchanger, increasing overall efficiency of the unit by accumulation of more energy for its subsequent radiation. Moreover, SOLID A tiled fireplaces are fitted with accumulation heat exchanger to retain heat for its subsequent radiation into the room. Ceramic tiling on all three sides. Three tiled fireplace types are available: with flat hearth or hearth in the right/left corner. SOLID FN differs from other units of the F range by using structured tiles on its sides. The combustion chamber is cladded with fireclay fittings. Standard model is without grate, but it can be easily modified to a model with the grate. Innovative exhaust gas management system DOUBLE SPIN increases overall stove efficiency. Standard flue gas outlet is on the top or in the back. Secondary air supply onto the inner side of the door is an efficient solution to avoid dirt deposits, hence, you will not be distracted from viewing into the flames. Primary and secondary air intake is easily controlled by one control element. Sufficient air for an optimum combustion process will be provided by the EAI system (external air intake from the exterior). In „Z“ models (SOL F Z, SOL F A Z, SOL FN Z, SOL FN A Z, SOL L Z, SOL L A Z, SOL R Z, SOL R A Z), the EAI system can be connected from below (‟from the floor‟) using optional AIRBOX 01 system element.

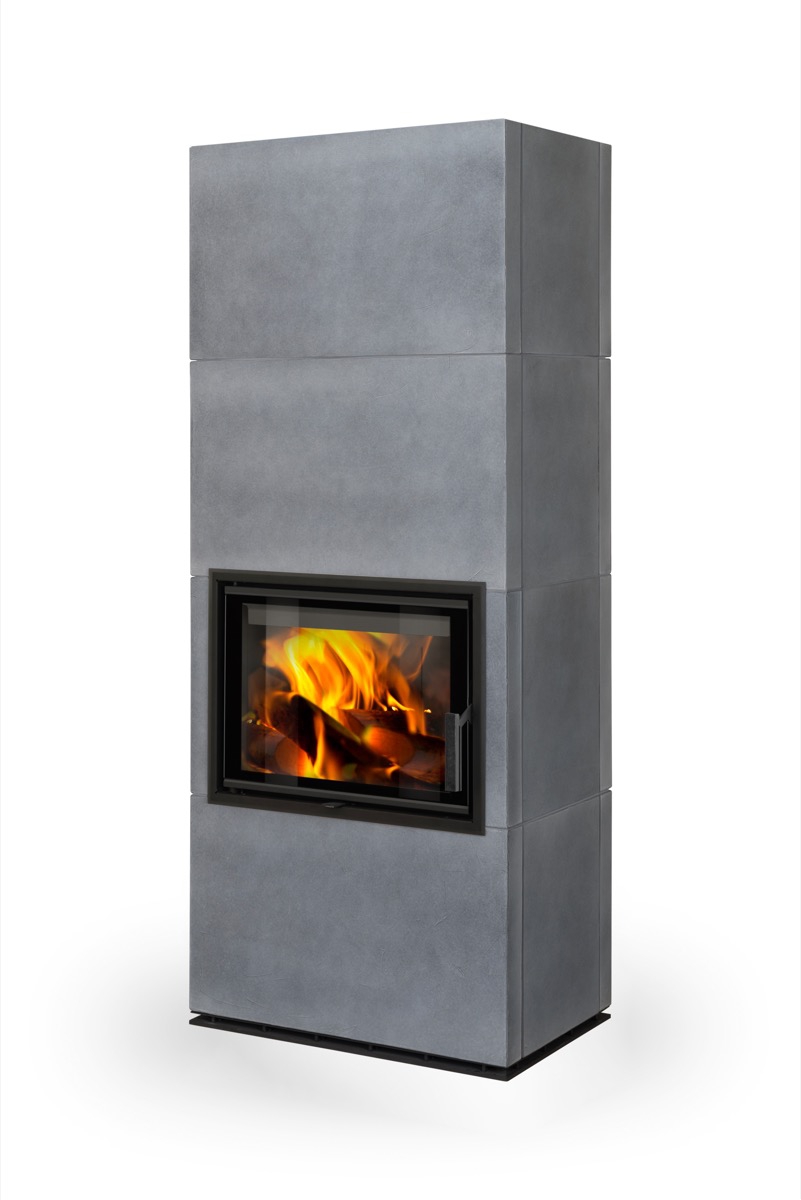

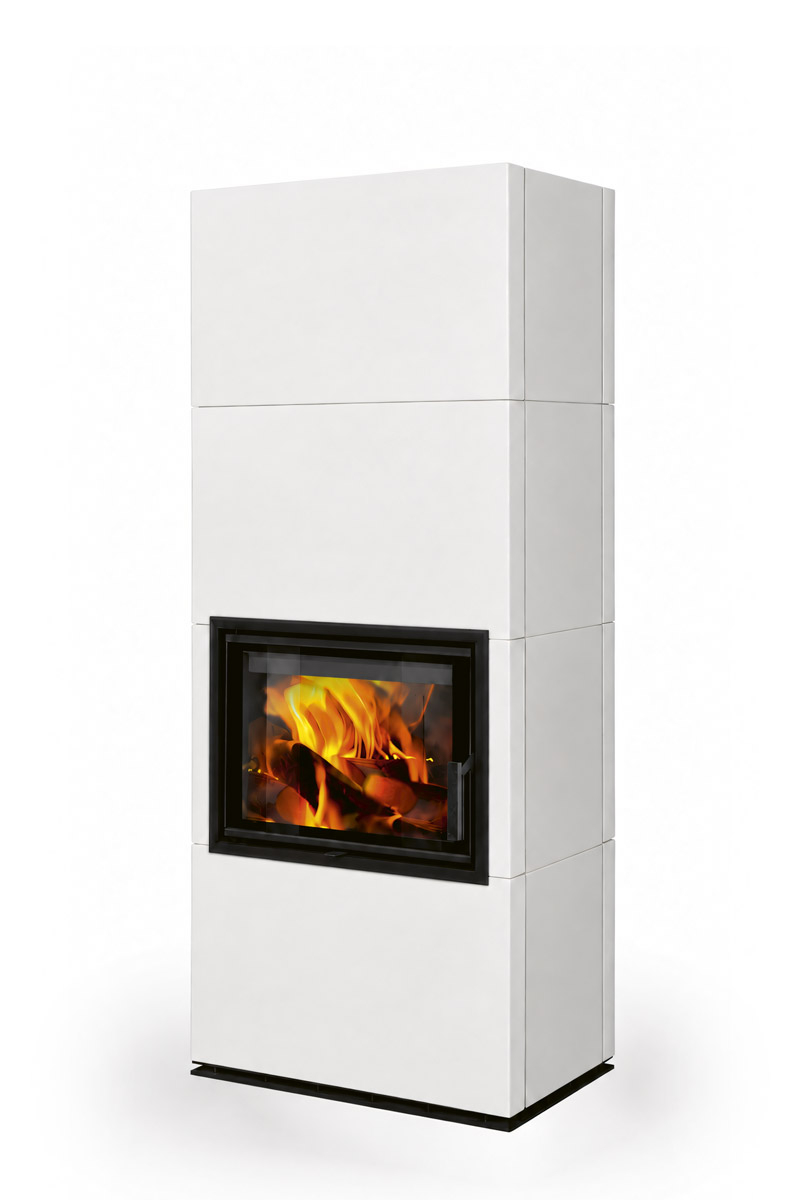

SOLID F

Tile

SOLID F - Tile
In product comparison: 0 pc
Go to product comparison
  • Prices on request at your seller
  • order code: SOL F
  • with rear flue gas exhaust - order code: SOL F Z
  • with accumulation exchanger - order code: SOL F A
  • with accumulation exchanger, rear flue gas exhaust - order code: SOL F A Z
Technical parameters
  • Height1825 mm
  • Width722 mm
  • Depth456 mm
  • Door height407 mm
  • Door width554 mm
  • Weight311 kg
  • Regulated output2,4-7,0 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1450 mm
  • Draught10 Pa
  • Efficiency83,6 %
  • Average wood consumption1,3 kg/h

SOLID FN

Tile with relief structure

SOLID FN - Tile
In product comparison: 0 pc
Go to product comparison
  • Prices on request at your seller
  • order code: SOL FN
  • with rear flue gas exhaust - order code: SOL FN Z
  • with accumulation exchanger - order code: SOL FN A
  • with accumulation exchanger, rear flue gas exhaust - order code: SOL FN A Z
Technical parameters
  • Height1824 mm
  • Width722 mm
  • Depth456 mm
  • Door height407 mm
  • Door width554 mm
  • Weight310 kg
  • Regulated output2,4-7,0 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1451 mm
  • Draught10 Pa
  • Efficiency83,6 %
  • Average wood consumption1,3 kg/h

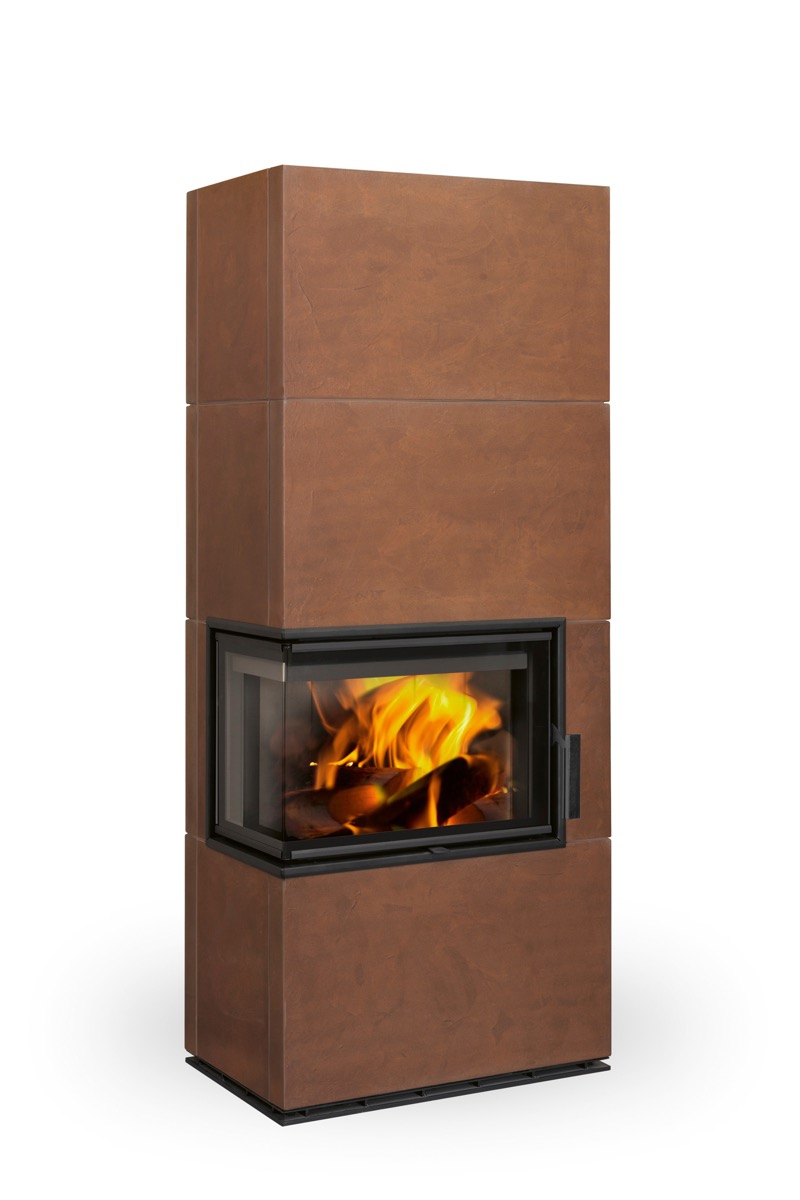

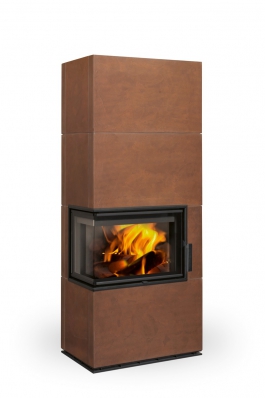

SOLID L

Tile

SOLID L - Tile
In product comparison: 0 pc
Go to product comparison
  • Prices on request at your seller
  • order code: SOL L
  • with rear flue gas exhaust - order code: SOL L Z
  • with accumulation exchanger - order code: SOL L A
  • with accumulation exchanger, rear flue gas exhaust - order code: SOL L A Z
Technical parameters
  • Height1826 mm
  • Width722 mm
  • Depth456 mm
  • Door height407 mm
  • Door width578 mm
  • Door depth307 mm
  • Weight303 kg
  • Regulated output2,9-7,4 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1519 mm
  • Draught11 Pa
  • Efficiency85,7 %
  • Average wood consumption1,6 kg/h

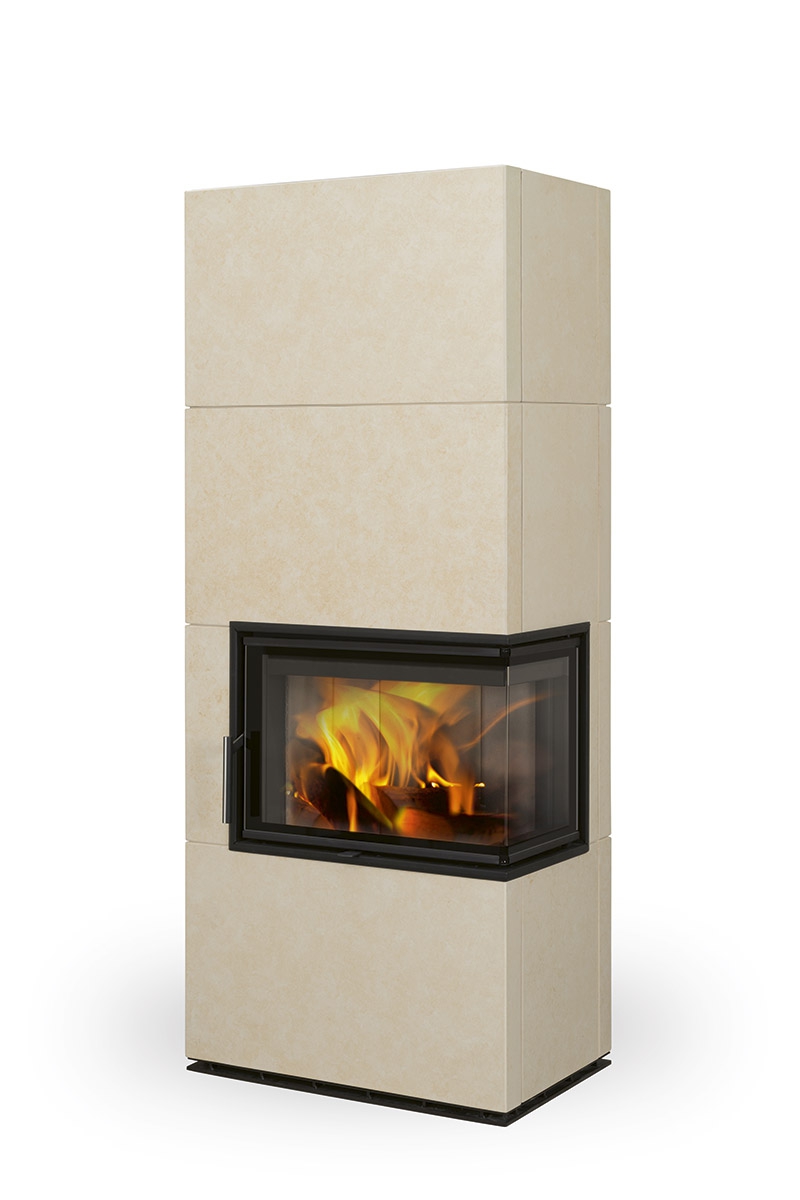

SOLID R

Tile

SOLID R - Tile
In product comparison: 0 pc
Go to product comparison
  • Prices on request at your seller
  • order code: SOL R
  • with rear flue gas exhaust - order code: SOL R Z
  • with accumulation exchanger - order code: SOL R A
  • with accumulation exchanger, rear flue gas exhaust - order code: SOL R A Z
Technical parameters
  • Height1826 mm
  • Width722 mm
  • Depth456 mm
  • Door height407 mm
  • Door width578 mm
  • Door depth307 mm
  • Weight303 kg
  • Regulated output2,9-7,4 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1519 mm
  • Draught11 Pa
  • Efficiency85,7 %
  • Average wood consumption1,6 kg/h

SOLID F

Tile

SOLID F - Tile
  • order code: SOL F
  • with rear flue gas exhaust - order code: SOL F Z
  • with accumulation exchanger - order code: SOL F A
  • with accumulation exchanger, rear flue gas exhaust - order code: SOL F A Z

SOLID FN

Tile with relief structure

SOLID FN - Tile
  • order code: SOL FN
  • with rear flue gas exhaust - order code: SOL FN Z
  • with accumulation exchanger - order code: SOL FN A
  • with accumulation exchanger, rear flue gas exhaust - order code: SOL FN A Z

SOLID L

Tile

SOLID L - Tile
  • order code: SOL L
  • with rear flue gas exhaust - order code: SOL L Z
  • with accumulation exchanger - order code: SOL L A
  • with accumulation exchanger, rear flue gas exhaust - order code: SOL L A Z

SOLID R

Tile

SOLID R - Tile
  • order code: SOL R
  • with rear flue gas exhaust - order code: SOL R Z
  • with accumulation exchanger - order code: SOL R A
  • with accumulation exchanger, rear flue gas exhaust - order code: SOL R A Z
  • Technical parameters
  • Download
Technical parameters
  • Height 1825 mm
  • Width 722 mm
  • Depth 456 mm
  • Door height 407 mm
  • Door width 554 mm
  • Weight 311 kg
  • Regulated output 2,4-7,0 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1450 mm
  • Draught 10 Pa
  • Efficiency 83,6 %
  • Average wood consumption 1,3 kg/h
  • Door depth -
Technical parameters
  • Height 1824 mm
  • Width 722 mm
  • Depth 456 mm
  • Door height 407 mm
  • Door width 554 mm
  • Weight 310 kg
  • Regulated output 2,4-7,0 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1451 mm
  • Draught 10 Pa
  • Efficiency 83,6 %
  • Average wood consumption 1,3 kg/h
  • Door depth -
Technical parameters
  • Height 1826 mm
  • Width 722 mm
  • Depth 456 mm
  • Door height 407 mm
  • Door width 578 mm
  • Weight 303 kg
  • Regulated output 2,9-7,4 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1519 mm
  • Draught 11 Pa
  • Efficiency 85,7 %
  • Average wood consumption 1,6 kg/h
  • Door depth 307 mm
Technical parameters
  • Height 1826 mm
  • Width 722 mm
  • Depth 456 mm
  • Door height 407 mm
  • Door width 578 mm
  • Weight 303 kg
  • Regulated output 2,9-7,4 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1519 mm
  • Draught 11 Pa
  • Efficiency 85,7 %
  • Average wood consumption 1,6 kg/h
  • Door depth 307 mm
