CARA R/L 03

CARA R/L 03

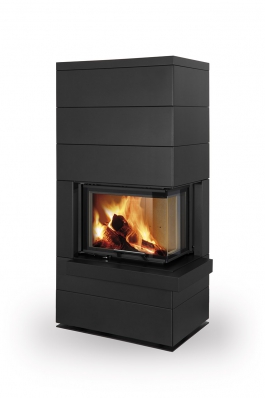

The CARA R/L is a high quality fireplace which combines metal sheeting and glass, while the whole geometry of the combustion chamber is based on the letter “L”. The above-standard size of the glass in this corner stove offers a perfect view of the flames from multiple angles.

The precise and light movement of the door, made possible through the SILENT LIFT system, complements it all. The rear shielding allows you to place the fireplace right next to a wall. An EAI (External Air Intake) system is included. The innovative DOUBLE SPIN flue gas system increases the fireplace’s efficiency. The standard version includes the option to connect an upper or rear flue gas exhaust. Thanks to the secondary air intake, the door glass is air-washed to prevent the accumulation of soot. The combustion chamber is lined with chamotte bricks. It does not include a grate as standard, but this can be added on demand. The fireplace is connected to a tertiary air intake. The primary and secondary air intakes are regulated by a single control element. Additionally, you can purchase extra accumulation elements that radiate heat long after the fireplace has gone out.

  • Technical parameters
  • Accessories
  • Alternative products
  • Download
  • 3D-model
Technical parameters
  • Height 1648 mm
  • Width 883 mm
  • Depth 601 mm
  • Door height 420 mm
  • Door width 583 mm
  • Door depth 311 mm
  • Weight 310 kg
  • Regulated output 3,9-10,1 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1346 mm
  • Draught 11 Pa
  • Efficiency 82,9 %
  • Average wood consumption 2,2 kg/h
3D-model
