with hot-water exchanger

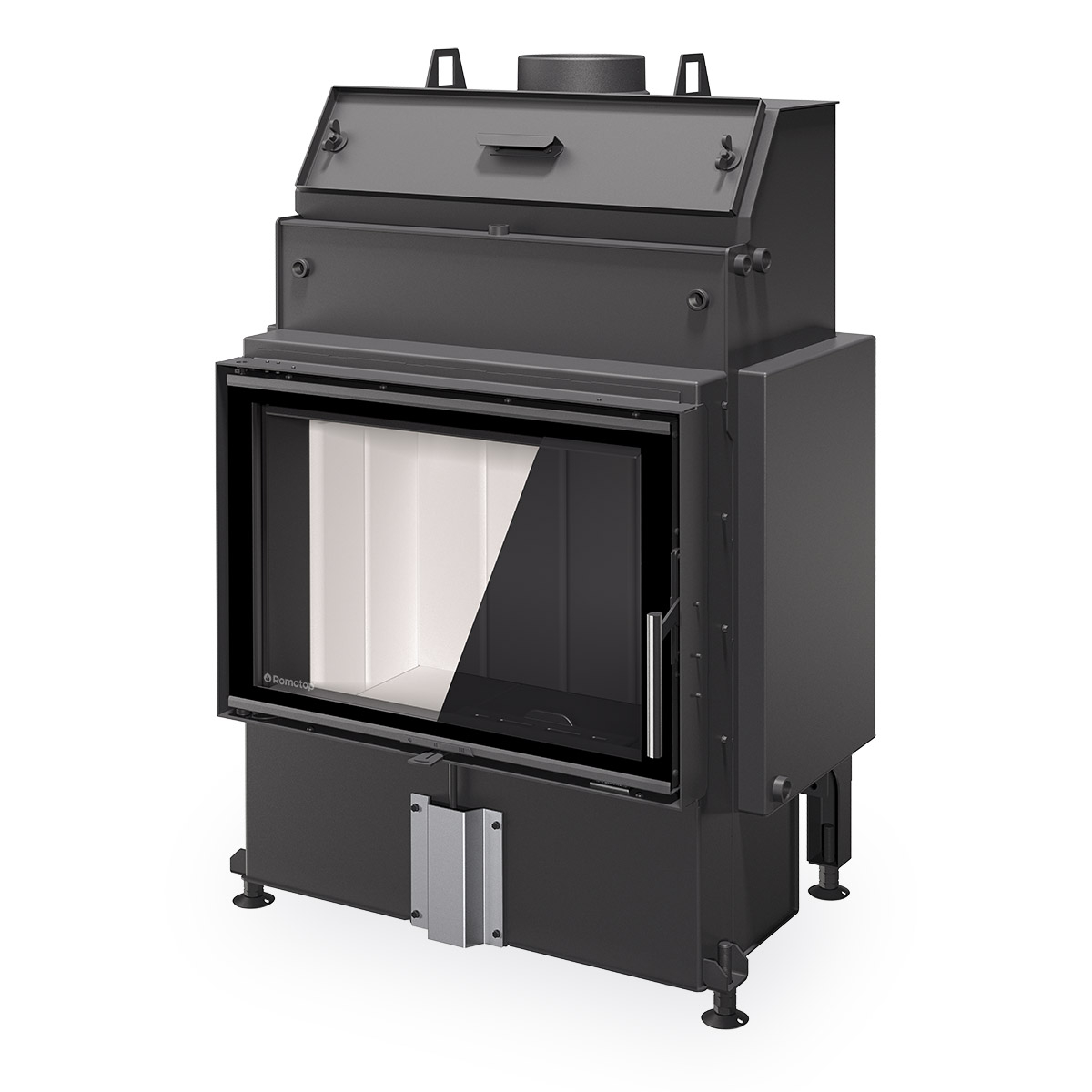

HEAT Fireplace inserts with hot-water exchanger

HEAT fireplace inserts with a hot-water exchanger are a hot trend in central heating. The powerful and efficient hot-water exchanger will find applications in various types of buildings and offers long-lasting pleasant warmth.

HEAT fireplace inserts with a hot-water exchanger come with TRIPLE PASS, a special patented design hot-water exchanger that will increase fireplace insert efficiency by up to 10%. The door frame is made of a special rigid rolled profile. Right-sided opening doors can be switched to left-sided opening. Fireplace inserts are equipped with an EAI (external air intake) system and designed for convection operation. The combustion chamber is lined with chamotte bricks and a hinged iron grate with an ash tray. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. Safety is ensured by an integrated cooling loop and the package also includes air-escape valve. A cleaning opening to easily clean the hot-water exchanger further adds to user comfort.

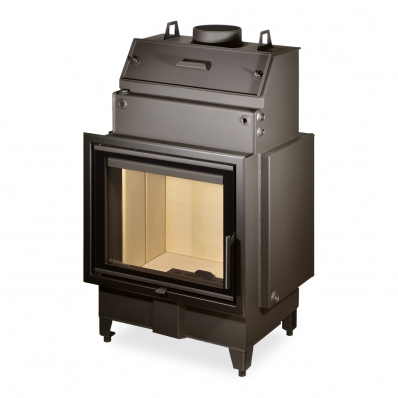

HEAT W 2g 59.50.01

Steel

HEAT W 2g 59.50.01 - Steel
In product comparison: 0 pc
Go to product comparison
  • order code: HW2N 01

exchanger volume of 51 l

Technical parameters
  • Height1171 mm
  • Width690 mm
  • Depth502 mm
  • Door height467 mm
  • Door width554 mm
  • Weight205 kg
  • Regulated output6,5-16,9 kW
  • Regulated output of water exchanger4,7-12,1 kW
  • Smoke flue diameter180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency86,7 %
  • Average wood consumption3,5 kg/h

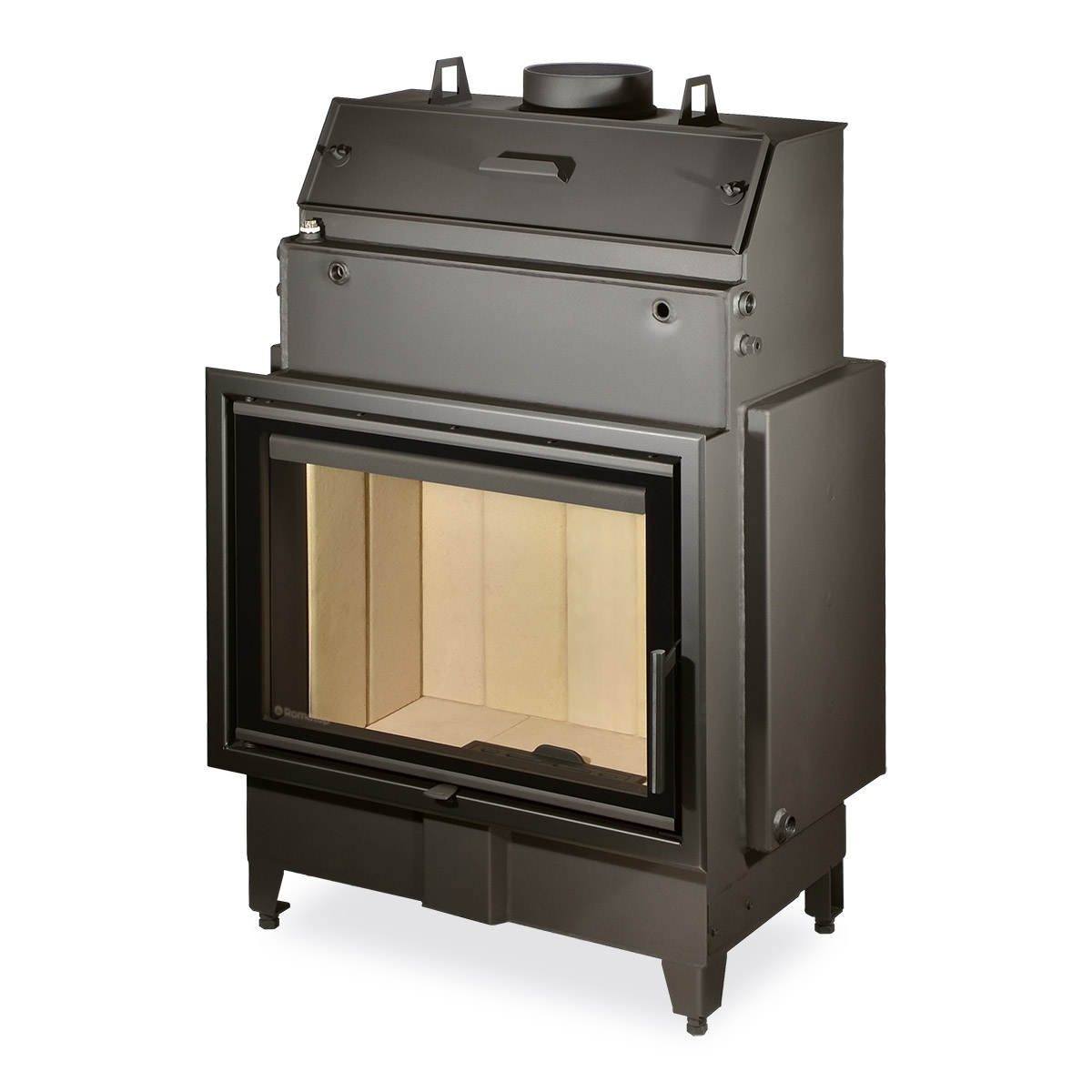

HEAT W 2g 70.50.01

Steel

HEAT W 2g 70.50.01 - Steel
In product comparison: 0 pc
Go to product comparison
  • order code: HW2Z 01

exchanger volume of 61 l

Technical parameters
  • Height1208 mm
  • Width800 mm
  • Depth502 mm
  • Door height467 mm
  • Door width664 mm
  • Weight245 kg
  • Regulated output7,3-18,9 kW
  • Regulated output of water exchanger5,2-13,4 kW
  • Smoke flue diameter180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Draught11 Pa
  • Efficiency89,1 %
  • Average wood consumption4,0 kg/h
  • Technical parameters
  • Accessories
  • Download
  • 3D-model
Technical parameters
  • Height1171 mm
  • Width690 mm
  • Depth502 mm
  • Door height467 mm
  • Door width554 mm
  • Weight205 kg
  • Regulated output6,5-16,9 kW
  • Regulated output of water exchanger4,7-12,1 kW
  • Smoke flue diameter180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency86,7 %
  • Average wood consumption3,5 kg/h
Technical parameters
  • Height1208 mm
  • Width800 mm
  • Depth502 mm
  • Door height467 mm
  • Door width664 mm
  • Weight245 kg
  • Regulated output7,3-18,9 kW
  • Regulated output of water exchanger5,2-13,4 kW
  • Smoke flue diameter180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Draught11 Pa
  • Efficiency89,1 %
  • Average wood consumption4,0 kg/h
3D-model
3D-model
