with lifting straight door

HEAT Fireplace inserts with lifting straight door

HEAT fireplace inserts with lifting door are characterised by a simple, yet timeless design that will entice even the most discerning customers. The clean and minimalistic lines respond to the requirements of today’s residential architecture.

HEAT fireplace inserts have large-format printed glazing that allows you to experience the fire in a unique way. The easy, silent and precise operation of the lifting door is guaranteed by the state-of-the-art SILENT LIFT system. The combustion chamber is lined with chamotte bricks and is designed with no furnace grate. However the insert can be fitted with a grate at the customer’s request. HEAT fireplace inserts are intended for convection operation. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. An EAI (external air intake) system is included. Tertiary air is brought into the combustion chamber to maximize combustion efficiency. Side and top MAMMOTH accumulation sets can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours.

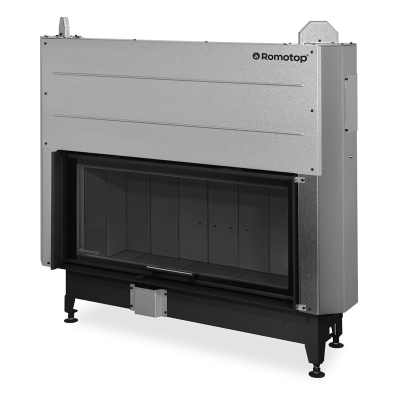

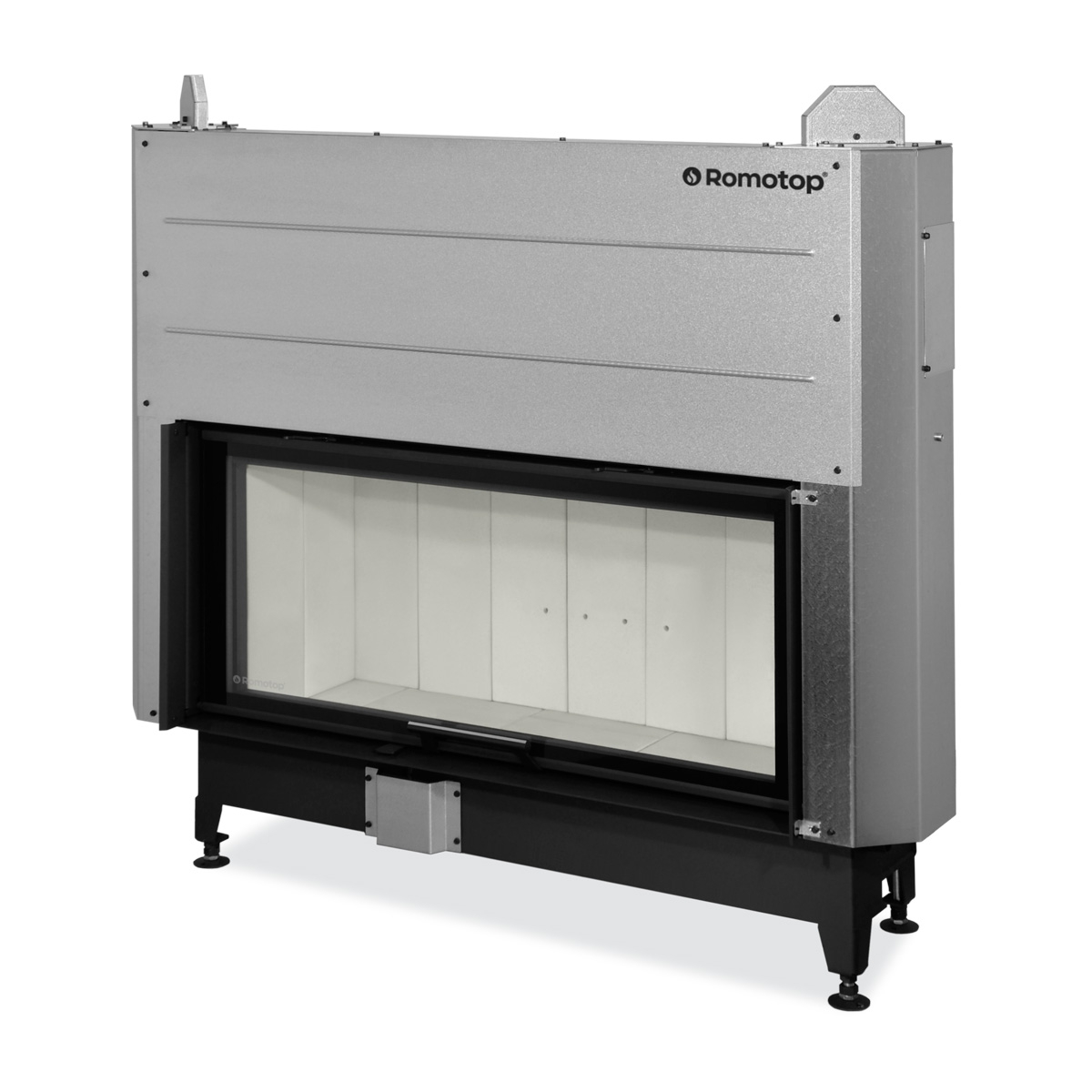

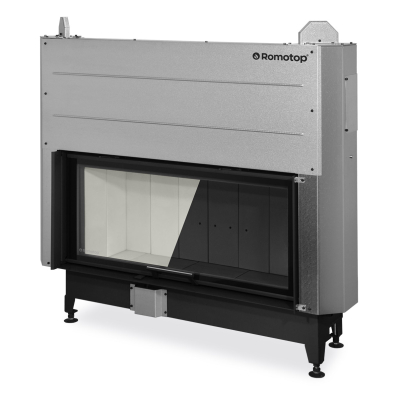

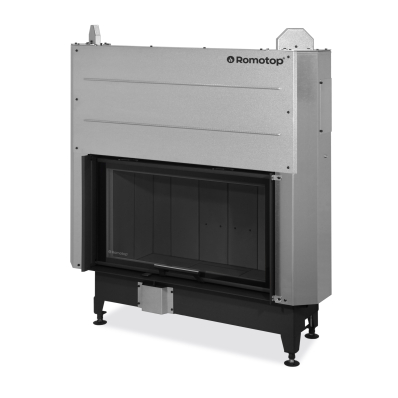

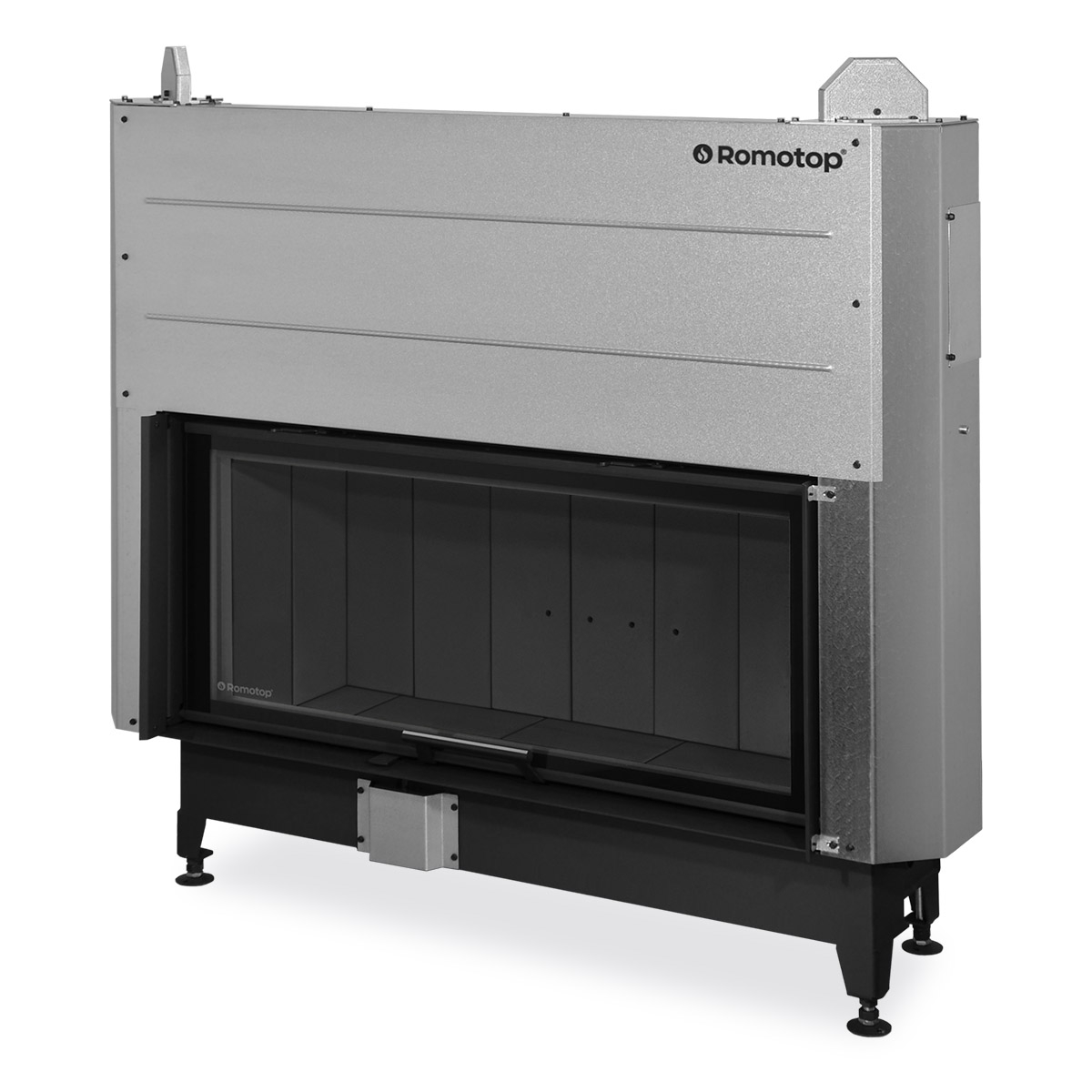

HEAT 3g L 110.50.01

Steel

HEAT 3g L 110.50.01 - Steel
In product comparison: 0 pc
Go to product comparison

maximum of 3 side accumulation sets

Technical parameters
  • Height1336 mm
  • Width1404 mm
  • Depth548 mm
  • Door height466 mm
  • Door width1071 mm
  • Weight315 kg
  • Regulated output6,0-15,6 kW
  • Smoke flue diameter200-250 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency82,7 %
  • Average wood consumption3,4 kg/h

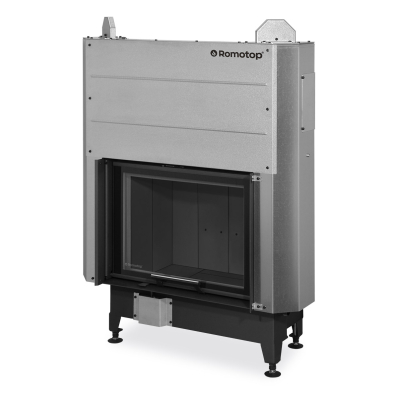

HEAT 3g L 66.50.01

Steel

HEAT 3g L 66.50.01 - Steel
In product comparison: 0 pc
Go to product comparison

maximum of 2 side accumulation sets

Technical parameters
  • Height1336 mm
  • Width964 mm
  • Depth548 mm
  • Door height466 mm
  • Door width631 mm
  • Weight230 kg
  • Regulated output3,9-10,1 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency85,0 %
  • Average wood consumption2,2 kg/h

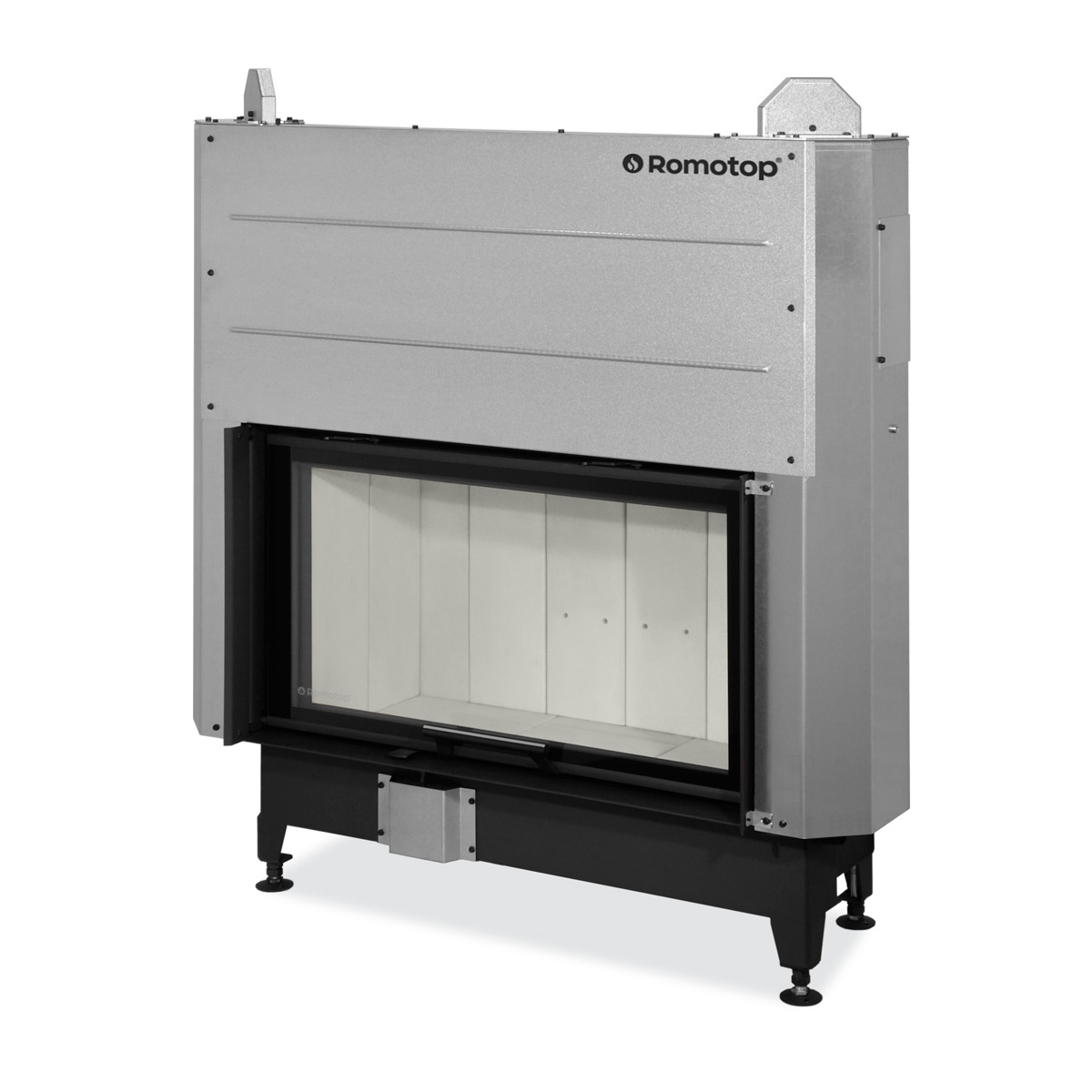

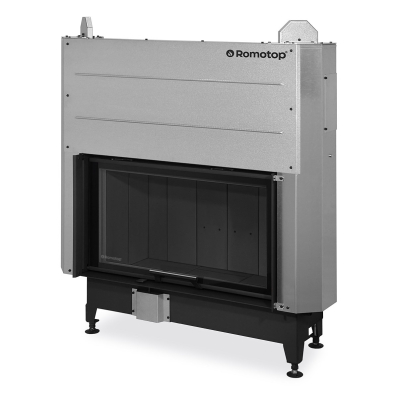

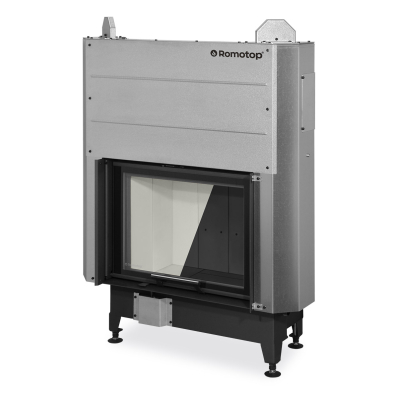

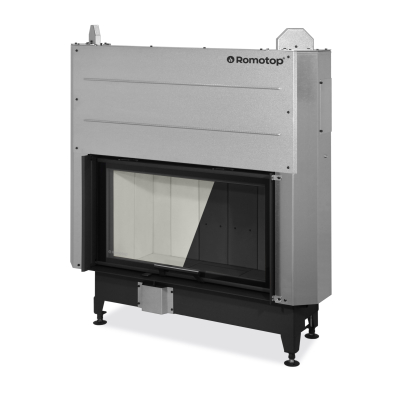

HEAT 3g L 88.50.01

Steel

HEAT 3g L 88.50.01 - Steel
In product comparison: 0 pc
Go to product comparison

maximum of 2 side accumulation sets

Technical parameters
  • Height1336 mm
  • Width1184 mm
  • Depth548 mm
  • Door height466 mm
  • Door width851 mm
  • Weight270 kg
  • Regulated output4,5-11,7 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency81,4 %
  • Average wood consumption2,7 kg/h

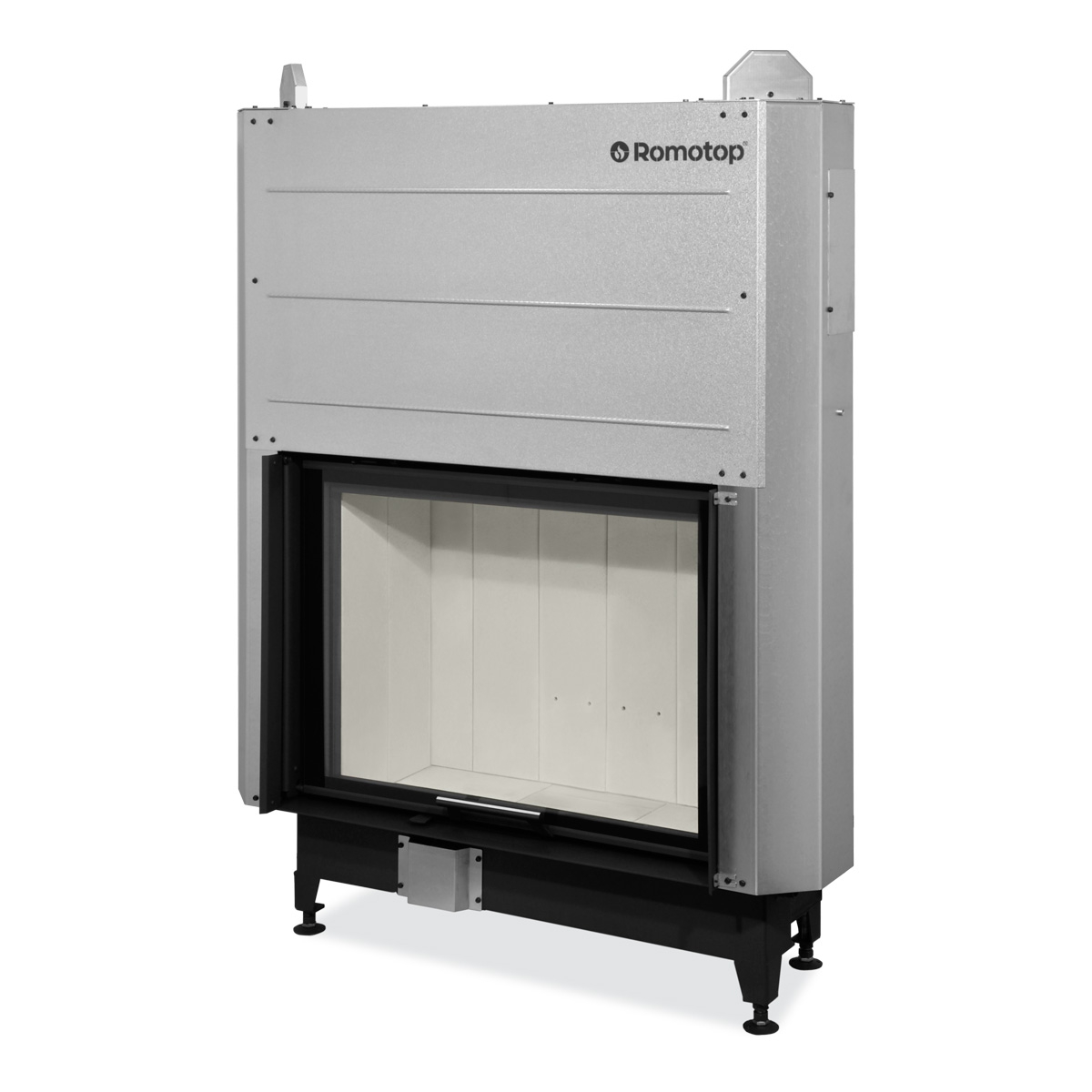

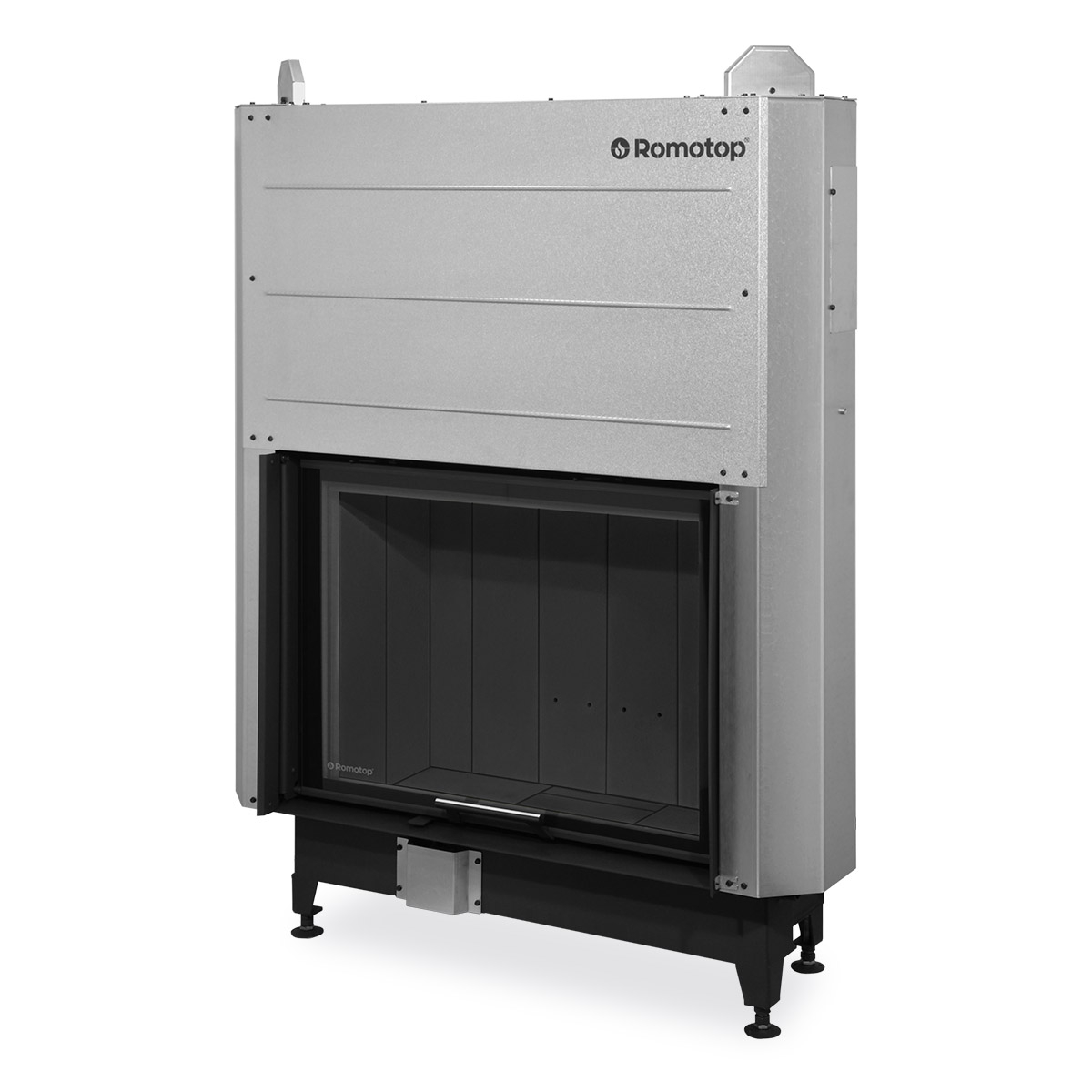

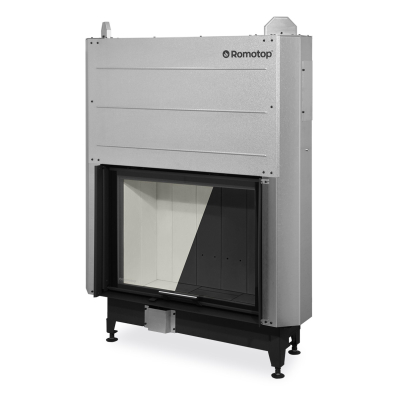

HEAT 3g L 88.66.01

Steel

HEAT 3g L 88.66.01 - Steel
In product comparison: 0 pc
Go to product comparison

maximum of 2 side accumulation sets

Technical parameters
  • Height1653 mm
  • Width1184 mm
  • Depth558 mm
  • Door height626 mm
  • Door width851 mm
  • Weight315 kg
  • Regulated output5,5-14,2 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency81,2 %
  • Average wood consumption3,0 kg/h

HEAT 3g L 110.50.01

Steel

HEAT 3g L 110.50.01 - Steel
  • order code: H3LG 01

HEAT 3g L 66.50.01

Steel

HEAT 3g L 66.50.01 - Steel
  • order code: H3LE 01

HEAT 3g L 88.50.01

Steel

HEAT 3g L 88.50.01 - Steel
  • order code: H3LF 01

HEAT 3g L 88.66.01

Steel

HEAT 3g L 88.66.01 - Steel
  • order code: H3LJ 01
  • Technical parameters
  • Accessories
  • Download
  • 3D-model
Technical parameters
  • Height1336 mm
  • Width1404 mm
  • Depth548 mm
  • Door height466 mm
  • Door width1071 mm
  • Weight315 kg
  • Regulated output6,0-15,6 kW
  • Smoke flue diameter200-250 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency82,7 %
  • Average wood consumption3,4 kg/h
Technical parameters
  • Height1336 mm
  • Width964 mm
  • Depth548 mm
  • Door height466 mm
  • Door width631 mm
  • Weight230 kg
  • Regulated output3,9-10,1 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency85,0 %
  • Average wood consumption2,2 kg/h
Technical parameters
  • Height1336 mm
  • Width1184 mm
  • Depth548 mm
  • Door height466 mm
  • Door width851 mm
  • Weight270 kg
  • Regulated output4,5-11,7 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency81,4 %
  • Average wood consumption2,7 kg/h
Technical parameters
  • Height1653 mm
  • Width1184 mm
  • Depth558 mm
  • Door height626 mm
  • Door width851 mm
  • Weight315 kg
  • Regulated output5,5-14,2 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught12 Pa
  • Efficiency81,2 %
  • Average wood consumption3,0 kg/h
