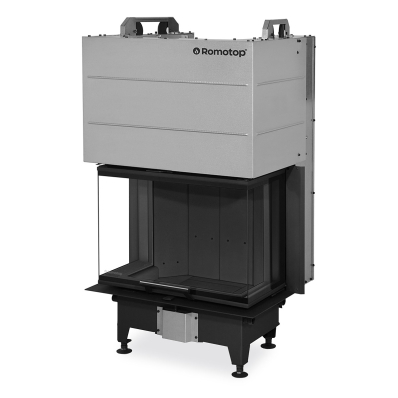

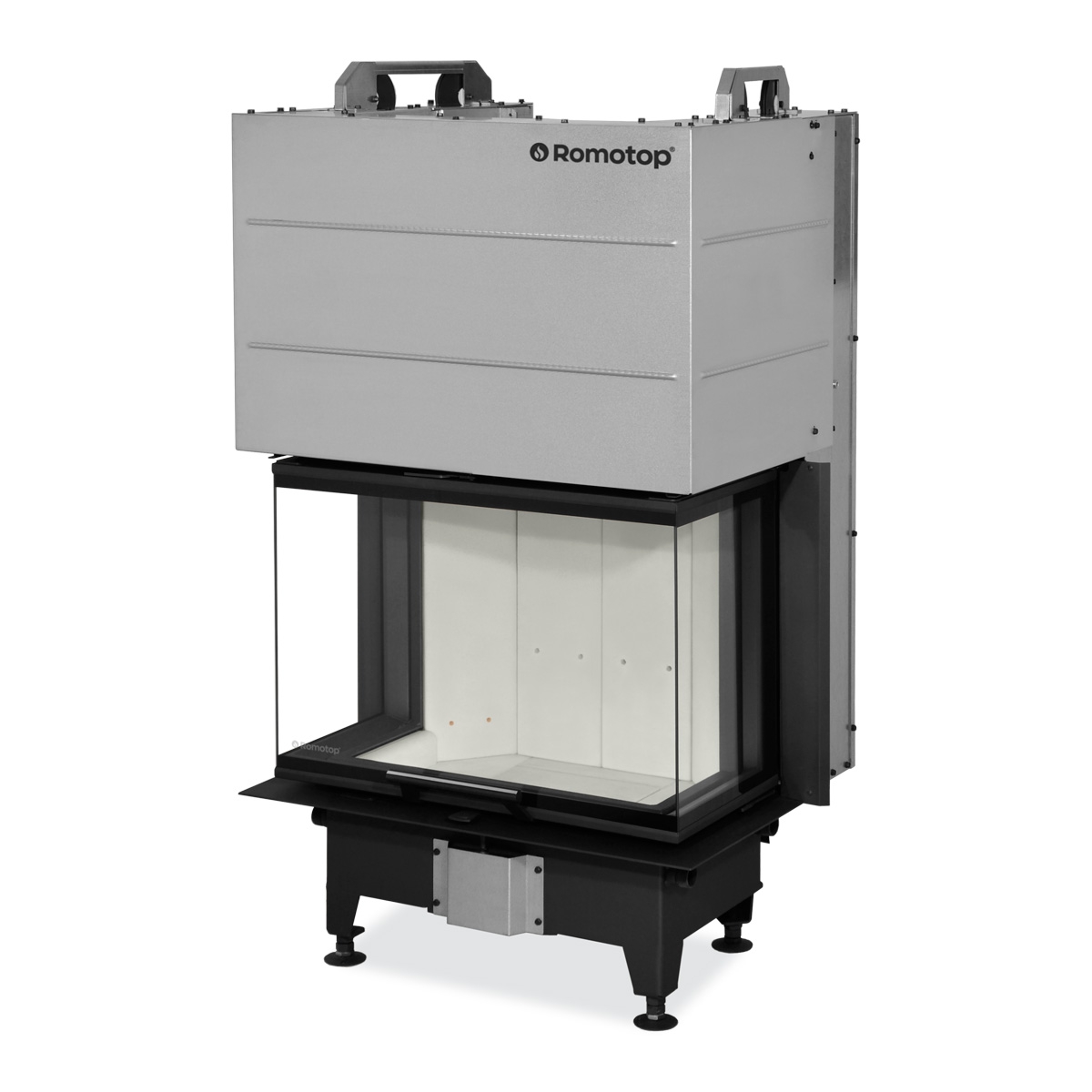

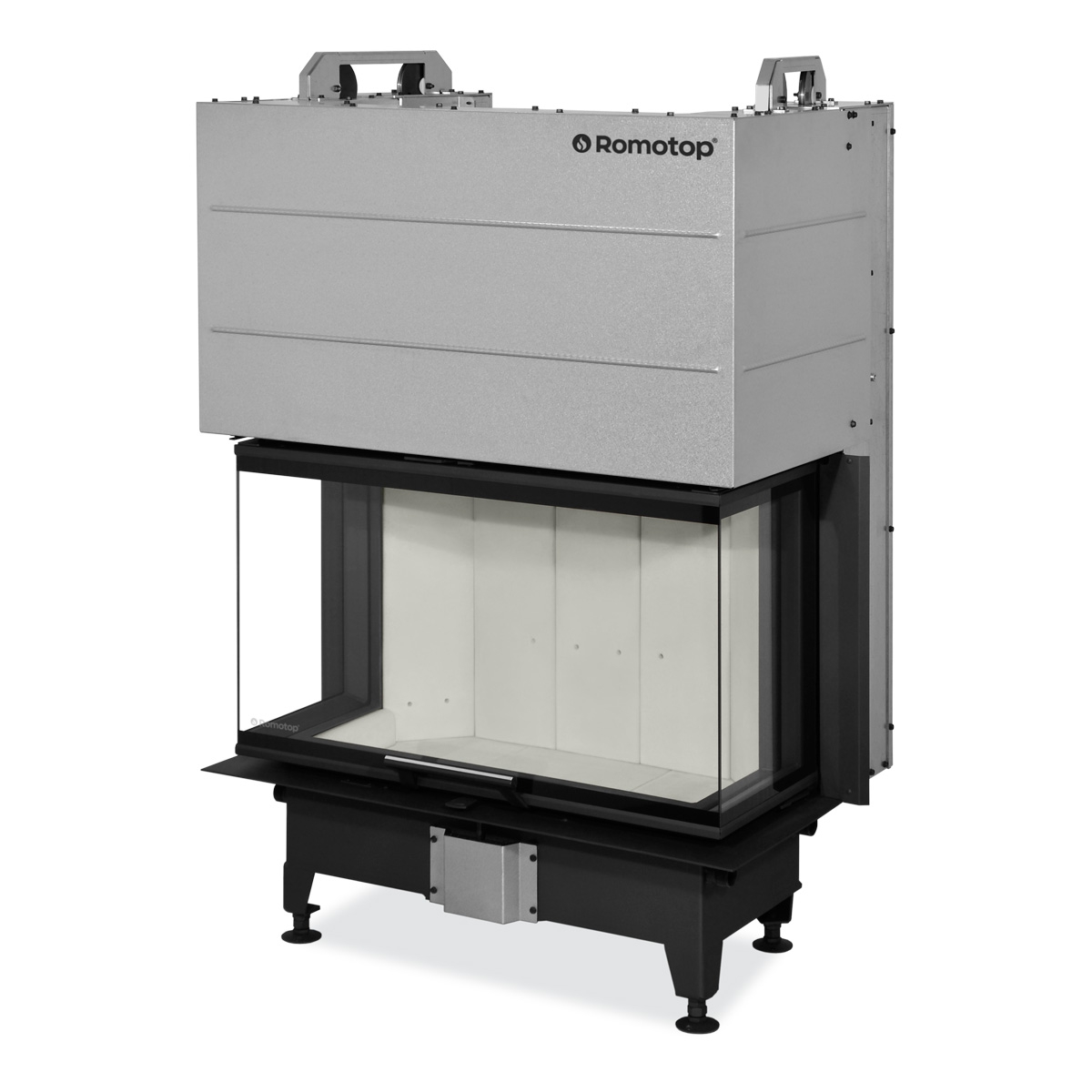

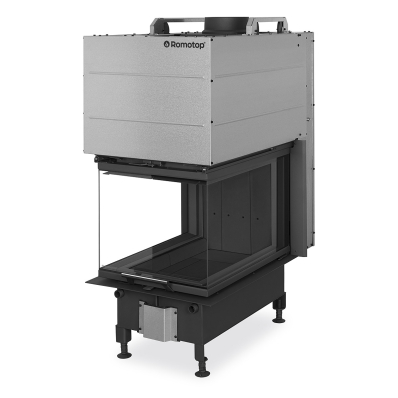

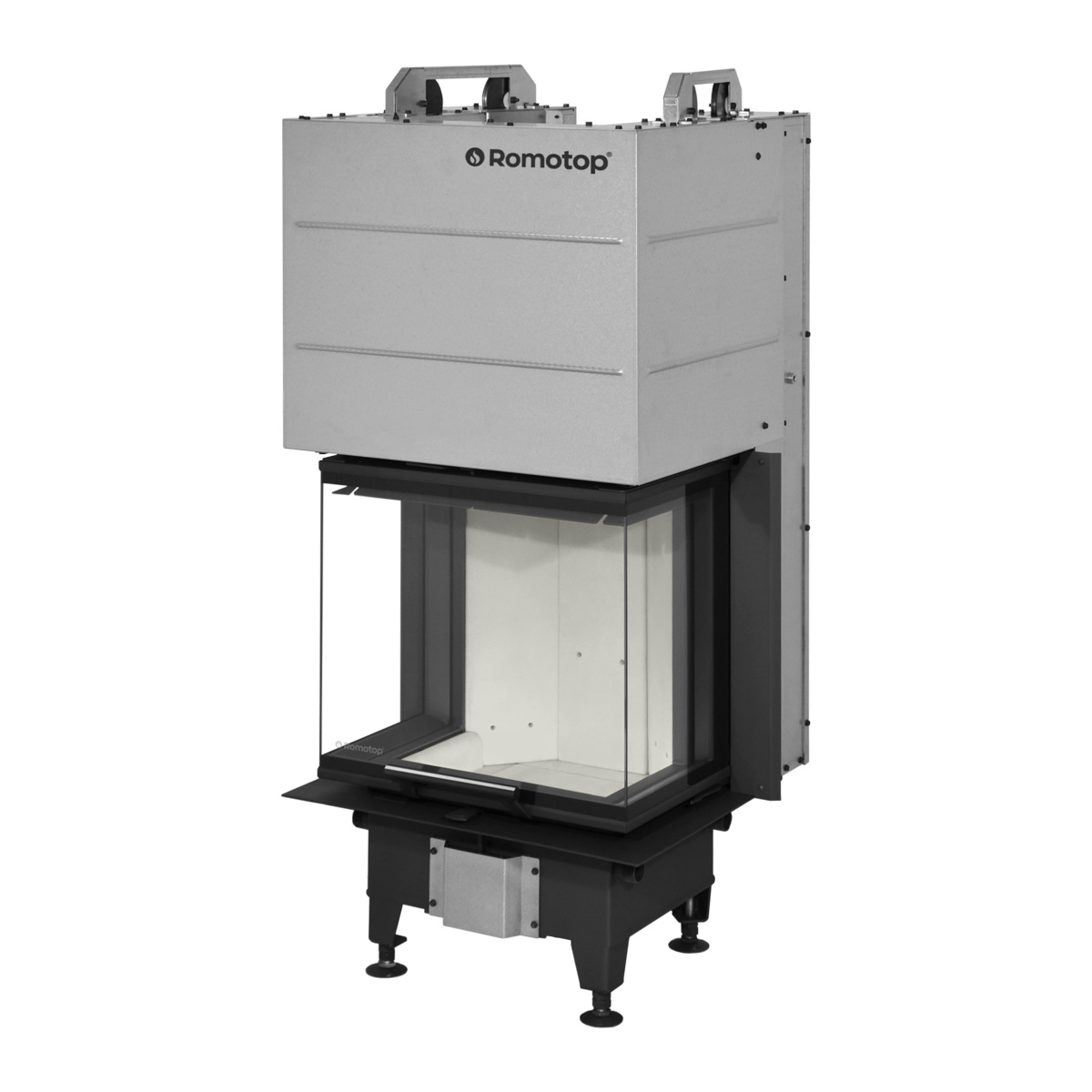

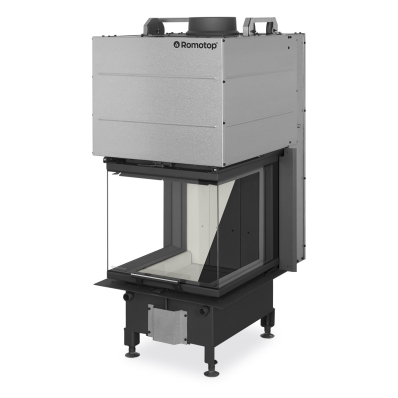

HEAT C 3G L 50.52.31.24
- Prices on request at your seller
-
Split glazing - order code: HC3LE 24

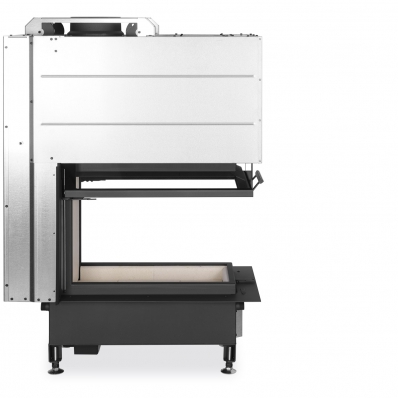

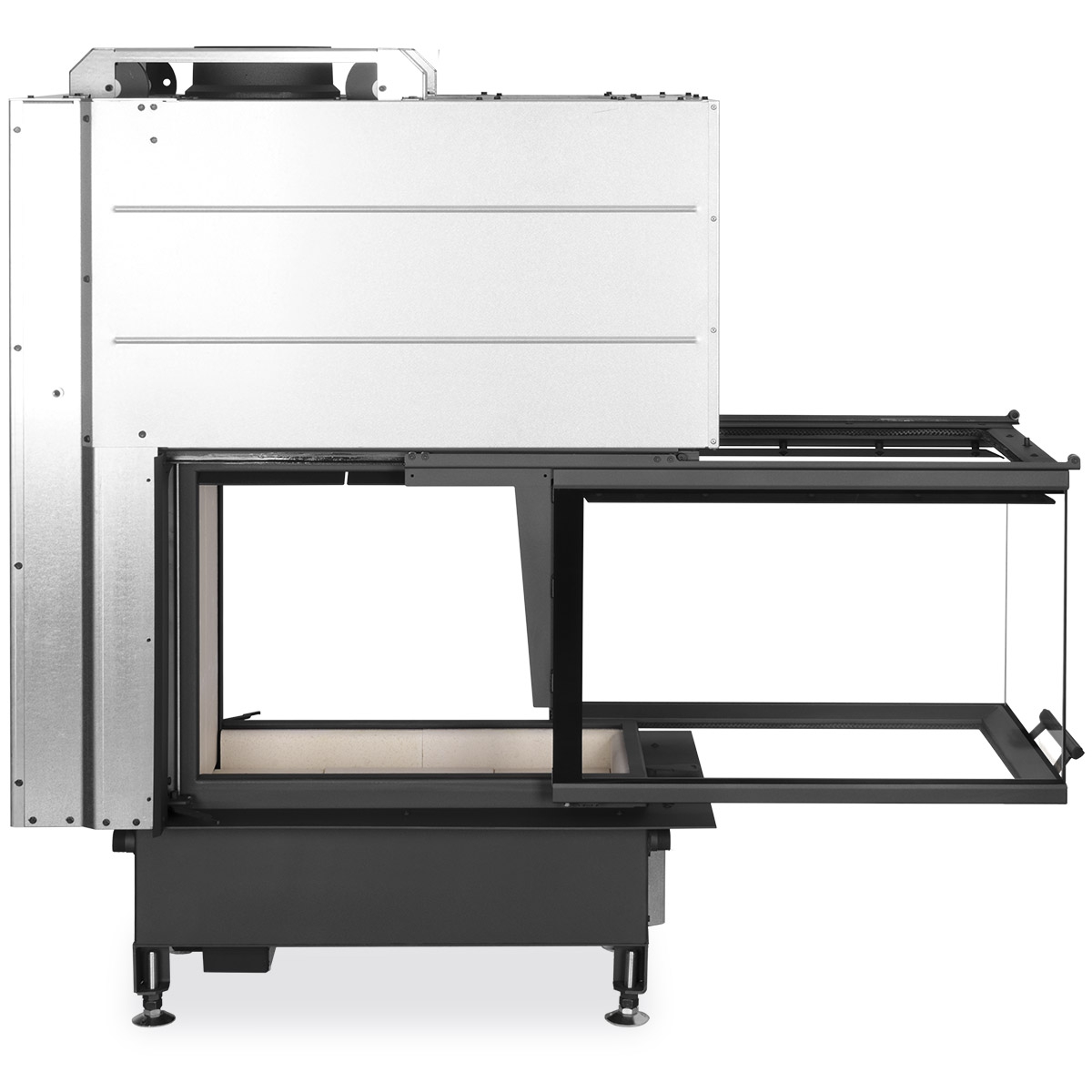

DOUBLE SPIN system
maximum of 1 side accumulation set
HEAT C 3G L 50.52.31.24 K1 is version that includes supporting construction (K1 mark). Order code: HC3LE 24 K1. Supporting construction cannot be ordered separately!
Technical parameters
- Height1342 mm
- Width657 mm
- Depth560 mm
- Door height468 mm
- Door width504 mm
- Door depth305 mm
- Weight176 kg
- Regulated output2,9-7,4 kW
- Smoke flue diameter150 mm
- Flue socket diameter150 mm
- External air intake diameter125 mm
- Draught12 Pa
- Efficiency82,1 %
- Average wood consumption1,6 kg/h
