ALEDO

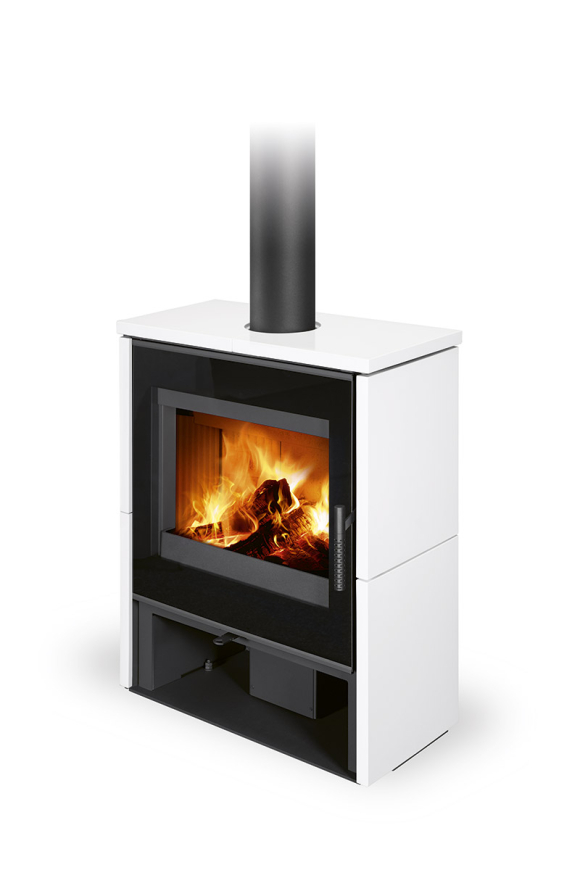

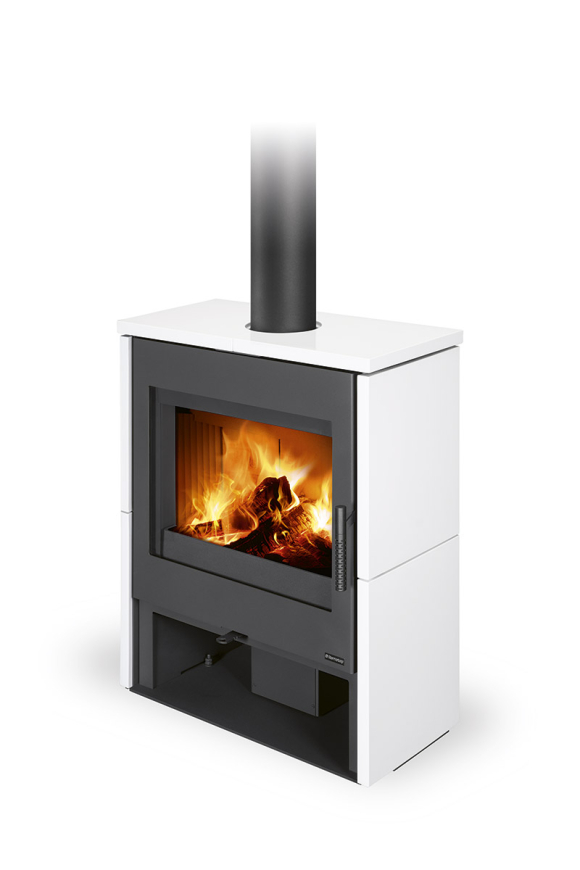

ALEDO Fireplace stoves

ALEDO fireplace stoves are characterized by an elegant design, sophisticated external air intake and a fully glazed door that provides an uninterrupted view of the flames.

This fireplace stove is suitable for low-energy homes. The stove door includes a large glazed area with a designer print. The stove includes an EAI (External Air Intake) system. The standard version includes the option to connect an upper or rear flue gas exhaust. Thanks to the secondary air intake, the door glass is air-washed to prevent the accumulation of soot. The combustion chamber is lined with chamotte brick tiles. The primary and secondary air intakes are regulated by a single control element. The bottom part of the stove can be used for storing a small amount of wood.

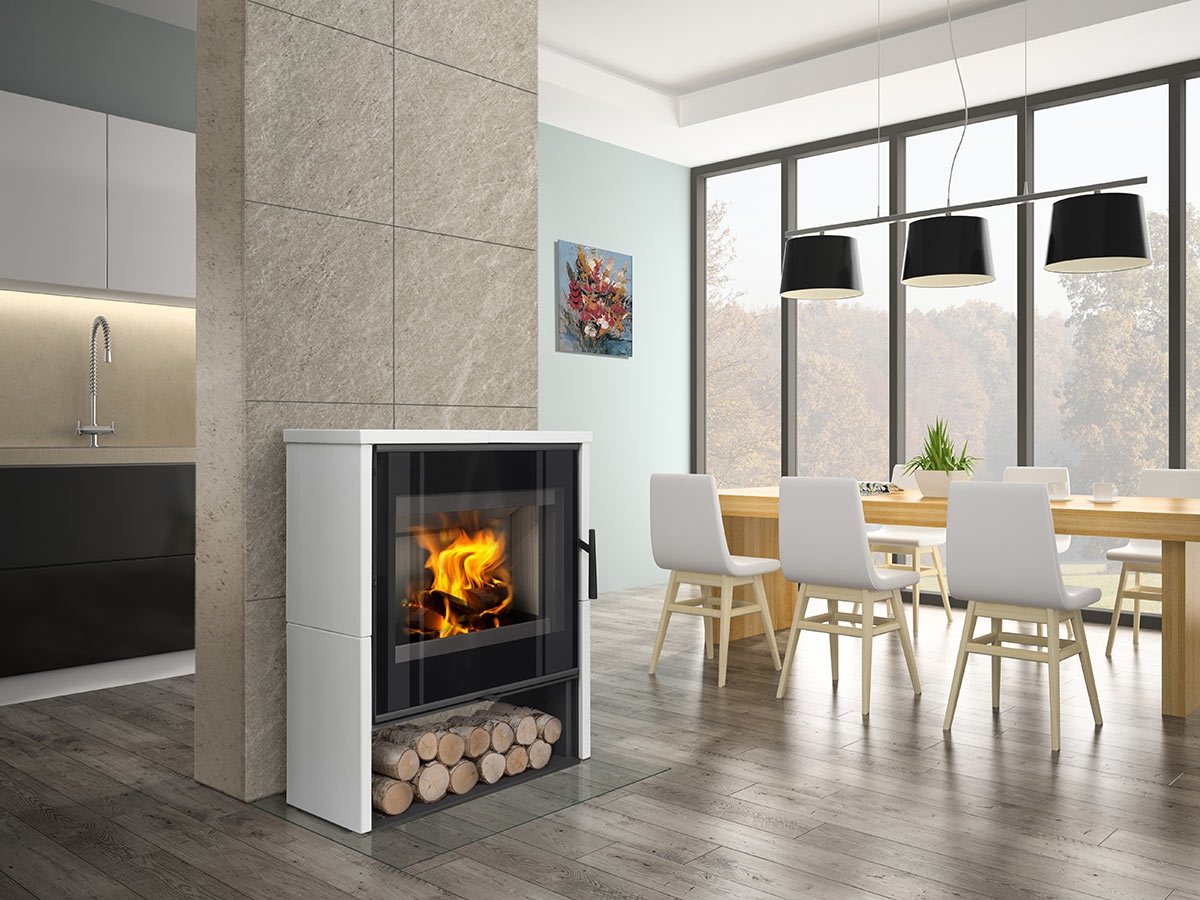

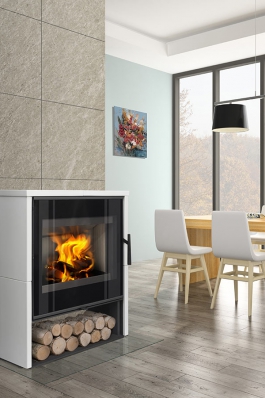

ALEDO 01

Ceramic

ALEDO 01 - Ceramic
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height862 mm
  • Width740 mm
  • Depth321 mm
  • Door height589 mm
  • Door width644 mm
  • Weight150 kg
  • Regulated output3,0-7,8 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet729 mm
  • Draught11 Pa
  • Efficiency83,5 %
  • Average wood consumption1,6 kg/h

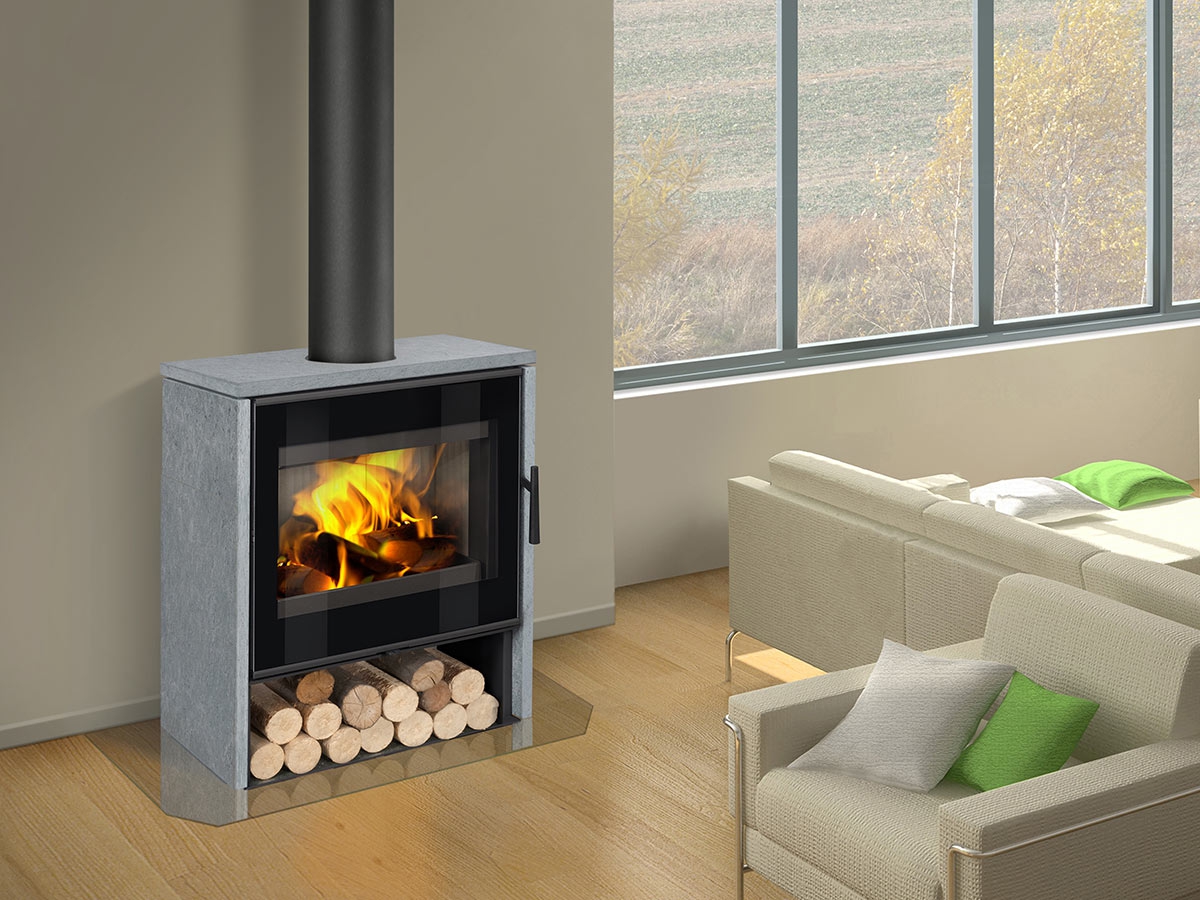

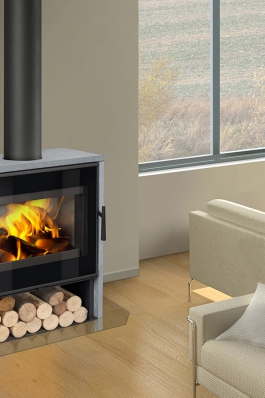

ALEDO 02

Serpentine

ALEDO 02 - Serpentine
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height862 mm
  • Width740 mm
  • Depth322 mm
  • Door height589 mm
  • Door width644 mm
  • Weight176 kg
  • Regulated output3,0-7,8 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet729 mm
  • Draught11 Pa
  • Efficiency83,5 %
  • Average wood consumption1,6 kg/h

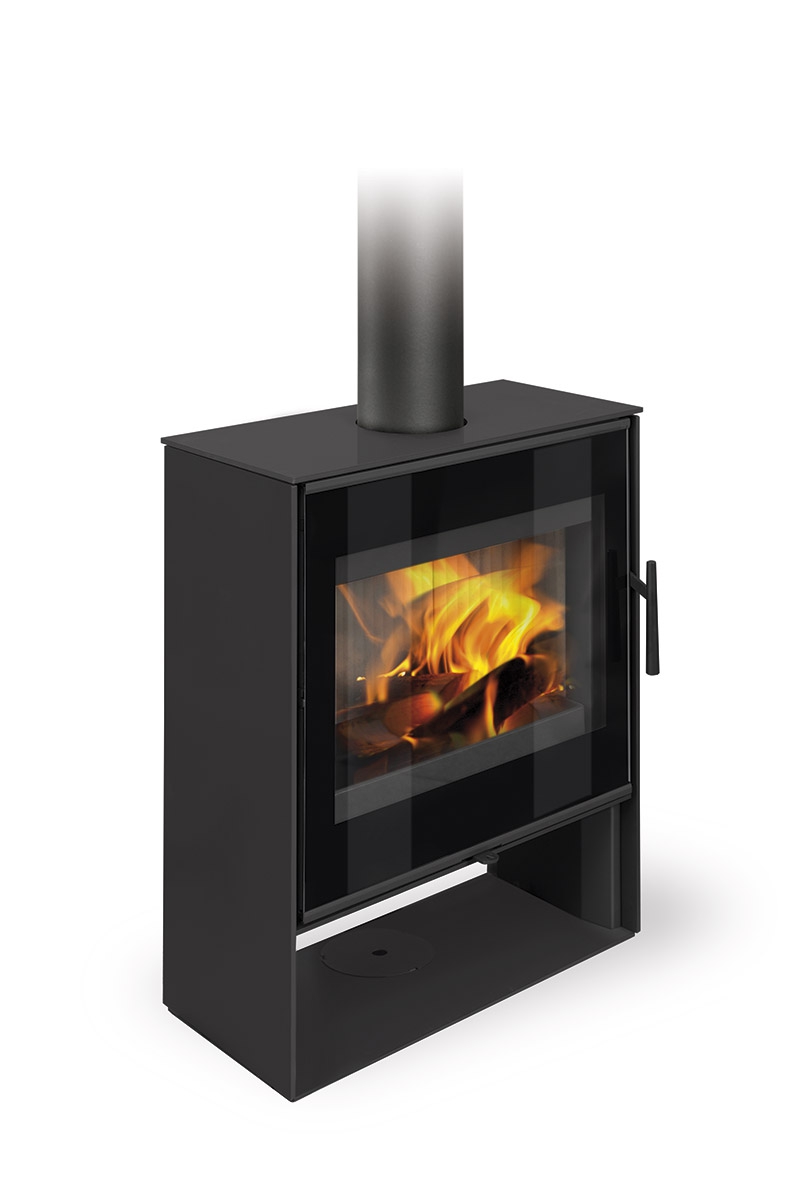

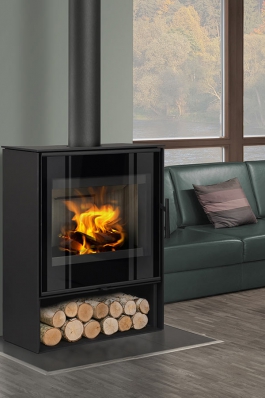

ALEDO 03

Steel

ALEDO 03 - Steel
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height840 mm
  • Width696 mm
  • Depth322 mm
  • Door height589 mm
  • Door width644 mm
  • Weight162 kg
  • Regulated output3,0-7,8 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet729 mm
  • Draught11 Pa
  • Efficiency83,5 %
  • Average wood consumption1,6 kg/h

ALEDO 01

Ceramic

ALEDO 01 - Ceramic
  • order code: ALEDO 01

ALEDO 02

Serpentine

ALEDO 02 - Serpentine
  • order code: ALEDO 02

ALEDO 03

Steel

ALEDO 03 - Steel
  • order code: ALEDO 03
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 862 mm
  • Width 740 mm
  • Depth 321 mm
  • Door height 589 mm
  • Door width 644 mm
  • Weight 150 kg
  • Regulated output 3,0-7,8 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 729 mm
  • Draught 11 Pa
  • Efficiency 83,5 %
  • Average wood consumption 1,6 kg/h
Technical parameters
  • Height 862 mm
  • Width 740 mm
  • Depth 322 mm
  • Door height 589 mm
  • Door width 644 mm
  • Weight 176 kg
  • Regulated output 3,0-7,8 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 729 mm
  • Draught 11 Pa
  • Efficiency 83,5 %
  • Average wood consumption 1,6 kg/h
Technical parameters
  • Height 840 mm
  • Width 696 mm
  • Depth 322 mm
  • Door height 589 mm
  • Door width 644 mm
  • Weight 162 kg
  • Regulated output 3,0-7,8 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 729 mm
  • Draught 11 Pa
  • Efficiency 83,5 %
  • Average wood consumption 1,6 kg/h
