ESPERA fireplace stoves with water exchanger and double glazing

ESPERA Fireplace stoves with water exchanger and double glazing

The innovative hot-water exchanger solution together with a double-glazed door significantly increases the overall efficiency and value of the ESPERA fireplace stove.

This hot-water fireplace stove is suitable for low-energy homes thanks to its double-glazed door. The highly efficient hot-water exchanger with a volume of 28l can transfer 70% of the heat into the water and 30% into the air. The innovative DOUBLE SPIN flue gas system increases the stove’s efficiency. The stove includes an EAI (External Air Intake) system. The standard version includes an upper flue gas exhaust. Thanks to the secondary air intake, the door glass is air-washed to prevent the cumulation of soot. The combustion chamber is lined with chamotte brick tiles. The primary and secondary air intakes are regulated by a single control element. The lower part of the stove includes a storage area with a door for storing a small amount of wood or tools. The stove is equipped with a cooling loop for protection against the exchanger overheating.

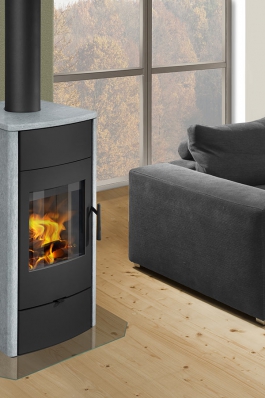

ESPERA 01

Ceramic

ESPERA fireplace stoves with water exchanger and double glazing | ESPERA 01 - Ceramic
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1080 mm
  • Width540 mm
  • Depth518 mm
  • Weight218 kg
  • Regulated output5,0-13,0 kW
  • Regulated output of water exchanger3,5-9,1 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Draught12 Pa
  • Efficiency80,1 %
  • Average wood consumption2,9 kg/h

ESPERA 02

Serpentine

ESPERA fireplace stoves with water exchanger and double glazing | ESPERA 02 - Serpentine
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1080 mm
  • Width540 mm
  • Depth518 mm
  • Weight243 kg
  • Regulated output5,0-13,0 kW
  • Regulated output of water exchanger3,5-9,1 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Draught12 Pa
  • Efficiency80,1 %
  • Average wood consumption2,9 kg/h

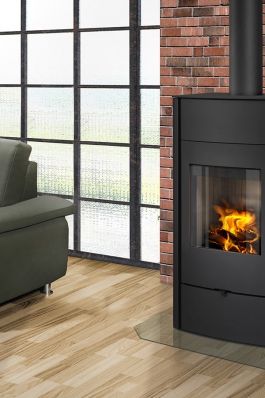

ESPERA 03

Steel

ESPERA fireplace stoves with water exchanger and double glazing | ESPERA 03 - Steel
In product comparison: 0 pc
Go to product comparison
Technical parameters
  • Height1056 mm
  • Width540 mm
  • Depth518 mm
  • Weight212 kg
  • Regulated output5,0-13,0 kW
  • Regulated output of water exchanger3,5-9,1 kW
  • Smoke flue diameter150 mm
  • Flue socket diameter150 mm
  • External air intake diameter125 mm
  • Draught12 Pa
  • Efficiency80,1 %
  • Average wood consumption2,9 kg/h

ESPERA 01

Ceramic

ESPERA 01 - Ceramic
  • order code: ESPERA 01

ESPERA 02

Serpentine

ESPERA 02 - Serpentine
  • order code: ESPERA 02

ESPERA 03

Steel

ESPERA 03 - Steel
  • order code: ESPERA 03
  • Technical parameters
  • Download
Technical parameters
  • Height 1080 mm
  • Width 540 mm
  • Depth 518 mm
  • Weight 218 kg
  • Regulated output 5,0-13,0 kW
  • Regulated output of water exchanger 3,5-9,1 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Draught 12 Pa
  • Efficiency 80,1 %
  • Average wood consumption 2,9 kg/h
Technical parameters
  • Height 1080 mm
  • Width 540 mm
  • Depth 518 mm
  • Weight 243 kg
  • Regulated output 5,0-13,0 kW
  • Regulated output of water exchanger 3,5-9,1 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Draught 12 Pa
  • Efficiency 80,1 %
  • Average wood consumption 2,9 kg/h
Technical parameters
  • Height 1056 mm
  • Width 540 mm
  • Depth 518 mm
  • Weight 212 kg
  • Regulated output 5,0-13,0 kW
  • Regulated output of water exchanger 3,5-9,1 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Draught 12 Pa
  • Efficiency 80,1 %
  • Average wood consumption 2,9 kg/h
