for long-lasting accumulation heating with double glazing

DYNAMIC Fireplace inserts for long-lasting accumulation heating with double glazing

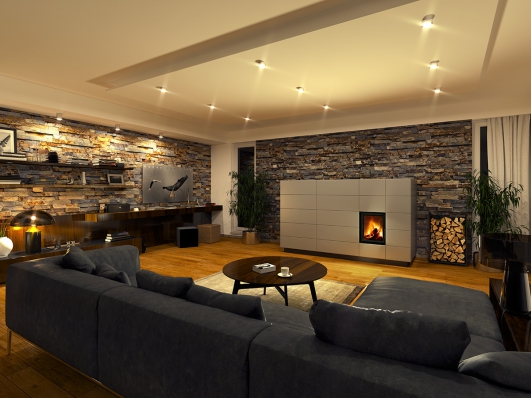

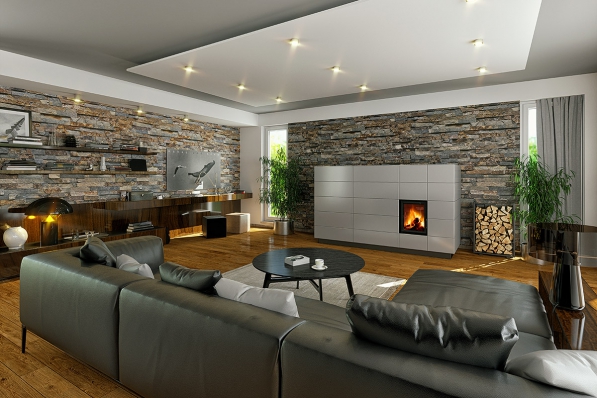

DYNAMIC fireplace inserts are the ideal choice for installations using accumulation elements. When assembled, these radiant accumulation stoves are the result of cooperation between the stove builder and the user. The output, size of the combustion chamber and the amount of accumulation are scaled to the specific building and the customer’s requirements. Thanks to the ability to store and radiate heat, accumulation stoves are among the best and healthiest means of heating. Fire-place inserts should be purchased with MAMMOTH accumulation rings or the accumulation modular system (available from January 2021), which represents the ultimate in heat storage.

DYNAMIC fireplace inserts have a design print on the double glazed door (suitable for low-energy houses when installed with accumulation casing). They have an external air intake (EAI) system, and are designed for closed, built-in accumulation. The combustion chamber is lined with 5 cm thick chamotte bricks and thanks to the secondary air intake, the glass on the door is constantly “washed” to prevent the build-up of deposits. The primary and secondary (tertiary) air intake can be regulated by a single control element. DYNAMIC fireplace inserts are not supplied with smoke extraction components (spigot). The customer must buy these separately as accessories according to the intended use. The fireplace insert cannot be connected directly to the chimney.

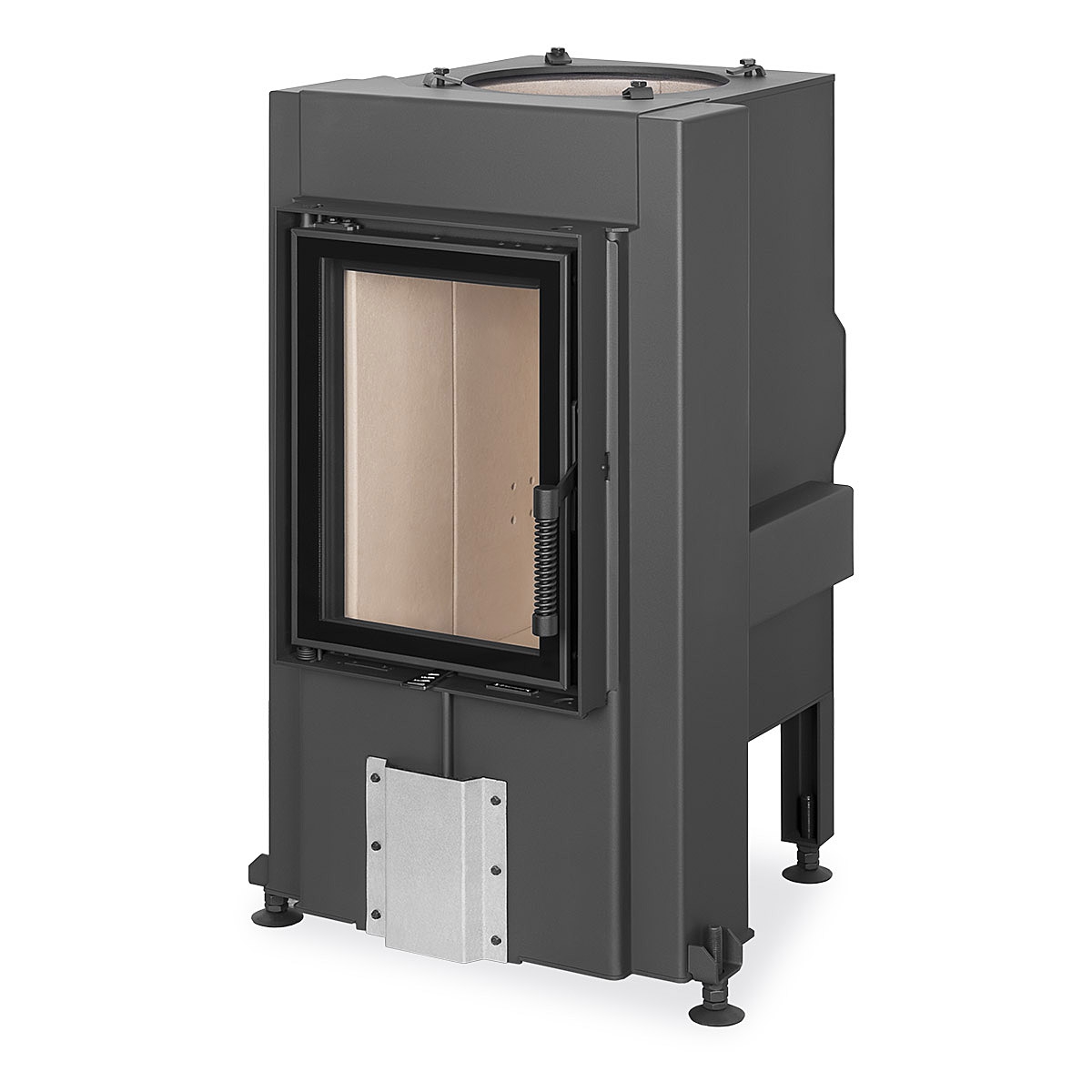

DYNAMIC 3G 38.50.01

Steel

DYNAMIC 3G 38.50.01 - Steel
In product comparison: 0 pc
Go to product comparison
  • order code: D3F 01

optional shifting of hinges

Technical parameters
  • Height957 mm
  • Width606 mm
  • Depth576 mm
  • Door height455 mm
  • Door width339 mm
  • Weight174 kg
  • Regulated output5,1-13,1 kW
  • Smoke flue diameter180 / 200 mm
  • Flue socket diameter180 / 200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency86,9 %
  • Average wood consumption2,7 kg/h

DYNAMIC 3G 44.55.01

Steel

DYNAMIC 3G 44.55.01 - Steel
In product comparison: 0 pc
Go to product comparison
  • order code: D3G 01

optional shifting of hinges

Technical parameters
  • Height1005 mm
  • Width664 mm
  • Depth576 mm
  • Door height503 mm
  • Door width397 mm
  • Weight193 kg
  • Regulated output5,8-15,1 kW
  • Smoke flue diameter180 / 200 mm
  • Flue socket diameter180 / 200 mm
  • External air intake diameter150 mm
  • Draught13 Pa
  • Efficiency88,7 %
  • Average wood consumption3,1 kg/h

DYNAMIC 3G 66.44.01

Steel

DYNAMIC 3G 66.44.01 - Steel
In product comparison: 0 pc
Go to product comparison
  • order code: D3H 01

optional shifting of hinges

Technical parameters
  • Height895 mm
  • Width884 mm
  • Depth570 mm
  • Door height393 mm
  • Door width617 mm
  • Weight226 kg
  • Regulated output6,2-16,0 kW
  • Smoke flue diameter180 / 200 mm
  • Flue socket diameter180 / 200 mm
  • External air intake diameter150 mm
  • Draught11 Pa
  • Efficiency88,6 %
  • Average wood consumption3,3 kg/h

DYNAMIC R/L 3G S 55.44.42.21

Steel

DYNAMIC R/L 3G S 55.44.42.21 - Steel
In product comparison: 0 pc
Go to product comparison
  • Split glazing - right variant - order code: DR3SG 21
  • Split glazing - left variant - order code: DL3SG 21
Technical parameters
  • Height894 mm
  • Width698 mm
  • Depth605 mm
  • Door height394 mm
  • Door width554 mm
  • Door depth424 mm
  • Weight190 kg
  • Regulated output5,0-13,0 kW
  • Smoke flue diameter180 / 200 mm
  • Flue socket diameter180 / 200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency82,7 %
  • Average wood consumption2,8 kg/h

DYNAMIC R/L 3G S 72.44.42.21

Steel

DYNAMIC R/L 3G S 72.44.42.21 - Steel
In product comparison: 0 pc
Go to product comparison
  • Split glazing - right variant - order code: DR3SH 21
  • Split glazing - left variant - order code: DL3SH 21
Technical parameters
  • Height894 mm
  • Width868 mm
  • Depth605 mm
  • Door height394 mm
  • Door width724 mm
  • Door depth424 mm
  • Weight222 kg
  • Regulated output6,9-17,8 kW
  • Smoke flue diameter180 / 200 mm
  • Flue socket diameter180 / 200 mm
  • External air intake diameter150 mm
  • Draught10 Pa
  • Efficiency81,9 %
  • Average wood consumption4,0 kg/h

DYNAMIC T 3G 44.55.01

Steel

DYNAMIC T 3G 44.55.01 - Steel
In product comparison: 0 pc
Go to product comparison
  • order code: DT3G 01

optional shifting of hinges for both doors

with back stoking

Technical parameters
  • Height1005 mm
  • Width664 mm
  • Depth577 mm
  • Door height503 mm
  • Door width397 mm
  • Weight195 kg
  • Regulated output5,5-14,2 kW
  • Smoke flue diameter180 / 200 mm
  • Flue socket diameter180 / 200 mm
  • External air intake diameter150 mm
  • Draught13 Pa
  • Efficiency83,8 %
  • Average wood consumption3,0 kg/h

DYNAMIC T 3G 66.44.01

Steel

DYNAMIC T 3G 66.44.01 - Steel
In product comparison: 0 pc
Go to product comparison
  • order code: DT3H 01

optional shifting of hinges for both doors

with back stoking

Technical parameters
  • Height895 mm
  • Width884 mm
  • Depth577 mm
  • Door height393 mm
  • Door width617 mm
  • Weight220 kg
  • Regulated output7,3-19,0 kW
  • Smoke flue diameter180 / 200 mm
  • Flue socket diameter180 / 200 mm
  • External air intake diameter150 mm
  • Draught11 Pa
  • Efficiency81,2 %
  • Average wood consumption4,3 kg/h

DYNAMIC 3G 38.50.01

Steel

DYNAMIC 3G 38.50.01 - Steel
  • order code: D3F 01

DYNAMIC 3G 44.55.01

Steel

DYNAMIC 3G 44.55.01 - Steel
  • order code: D3G 01

DYNAMIC 3G 66.44.01

Steel

DYNAMIC 3G 66.44.01 - Steel
  • order code: D3H 01

DYNAMIC R/L 3G S 55.44.42.21

Steel

DYNAMIC R/L 3G S 55.44.42.21 - Steel
  • Split glazing - right variant - order code: DR3SG 21
  • Split glazing - left variant - order code: DL3SG 21

DYNAMIC R/L 3G S 72.44.42.21

Steel

DYNAMIC R/L 3G S 72.44.42.21 - Steel
  • Split glazing - right variant - order code: DR3SH 21
  • Split glazing - left variant - order code: DL3SH 21

DYNAMIC T 3G 44.55.01

Steel

DYNAMIC T 3G 44.55.01 - Steel
  • order code: DT3G 01

DYNAMIC T 3G 66.44.01

Steel

DYNAMIC T 3G 66.44.01 - Steel
  • order code: DT3H 01
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 957 mm
  • Width 606 mm
  • Depth 576 mm
  • Door height 455 mm
  • Door width 339 mm
  • Weight 174 kg
  • Regulated output 5,1-13,1 kW
  • Smoke flue diameter 180 / 200 mm
  • Flue socket diameter 180 / 200 mm
  • External air intake diameter 150 mm
  • Draught 10 Pa
  • Efficiency 86,9 %
  • Average wood consumption 2,7 kg/h
  • Door depth -
Technical parameters
  • Height 1005 mm
  • Width 664 mm
  • Depth 576 mm
  • Door height 503 mm
  • Door width 397 mm
  • Weight 193 kg
  • Regulated output 5,8-15,1 kW
  • Smoke flue diameter 180 / 200 mm
  • Flue socket diameter 180 / 200 mm
  • External air intake diameter 150 mm
  • Draught 13 Pa
  • Efficiency 88,7 %
  • Average wood consumption 3,1 kg/h
  • Door depth -
Technical parameters
  • Height 895 mm
  • Width 884 mm
  • Depth 570 mm
  • Door height 393 mm
  • Door width 617 mm
  • Weight 226 kg
  • Regulated output 6,2-16,0 kW
  • Smoke flue diameter 180 / 200 mm
  • Flue socket diameter 180 / 200 mm
  • External air intake diameter 150 mm
  • Draught 11 Pa
  • Efficiency 88,6 %
  • Average wood consumption 3,3 kg/h
  • Door depth -
Technical parameters
  • Height 894 mm
  • Width 698 mm
  • Depth 605 mm
  • Door height 394 mm
  • Door width 554 mm
  • Weight 190 kg
  • Regulated output 5,0-13,0 kW
  • Smoke flue diameter 180 / 200 mm
  • Flue socket diameter 180 / 200 mm
  • External air intake diameter 150 mm
  • Draught 10 Pa
  • Efficiency 82,7 %
  • Average wood consumption 2,8 kg/h
  • Door depth 424 mm
Technical parameters
  • Height 894 mm
  • Width 868 mm
  • Depth 605 mm
  • Door height 394 mm
  • Door width 724 mm
  • Weight 222 kg
  • Regulated output 6,9-17,8 kW
  • Smoke flue diameter 180 / 200 mm
  • Flue socket diameter 180 / 200 mm
  • External air intake diameter 150 mm
  • Draught 10 Pa
  • Efficiency 81,9 %
  • Average wood consumption 4,0 kg/h
  • Door depth 424 mm
Technical parameters
  • Height 1005 mm
  • Width 664 mm
  • Depth 577 mm
  • Door height 503 mm
  • Door width 397 mm
  • Weight 195 kg
  • Regulated output 5,5-14,2 kW
  • Smoke flue diameter 180 / 200 mm
  • Flue socket diameter 180 / 200 mm
  • External air intake diameter 150 mm
  • Draught 13 Pa
  • Efficiency 83,8 %
  • Average wood consumption 3,0 kg/h
  • Door depth -
Technical parameters
  • Height 895 mm
  • Width 884 mm
  • Depth 577 mm
  • Door height 393 mm
  • Door width 617 mm
  • Weight 220 kg
  • Regulated output 7,3-19,0 kW
  • Smoke flue diameter 180 / 200 mm
  • Flue socket diameter 180 / 200 mm
  • External air intake diameter 150 mm
  • Draught 11 Pa
  • Efficiency 81,2 %
  • Average wood consumption 4,3 kg/h
  • Door depth -
