with double / triple glazing and a hot-water exchanger

DYNAMIC Fireplace inserts with double / triple glazing and a hot-water exchanger

DYNAMIC hot-water fireplace inserts with double / triple glazing will become a fully-fledged, central source of heating. Get added value in the form of heat and hot water for your home.

DYNAMIC fireplace inserts are well suited for low-energy houses thanks to their double and triple glazing. The door frame is made of a special rigid rolled profile. Right-sided opening doors can be switched to left-sided opening. The special patented design of the TRIPLE PASS hot-water exchanger will increase fireplace insert efficiency by up to 10 %. The volume of the hot-water exchanger is 71 l. Fireplace inserts are equipped with an EAI (external air intake) system and designed for accumulation as well as convection operation. The combustion chamber is lined with chamotte bricks, the bottom is supported by insulation boards and a hinged iron grate with an ash tray. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. The insert also includes preparation for a door switch and reinforced insulation of the hot-water exchanger casing. Safety is ensured by an integrated cooling loop and the package also includes a cooling and air-escape valve.

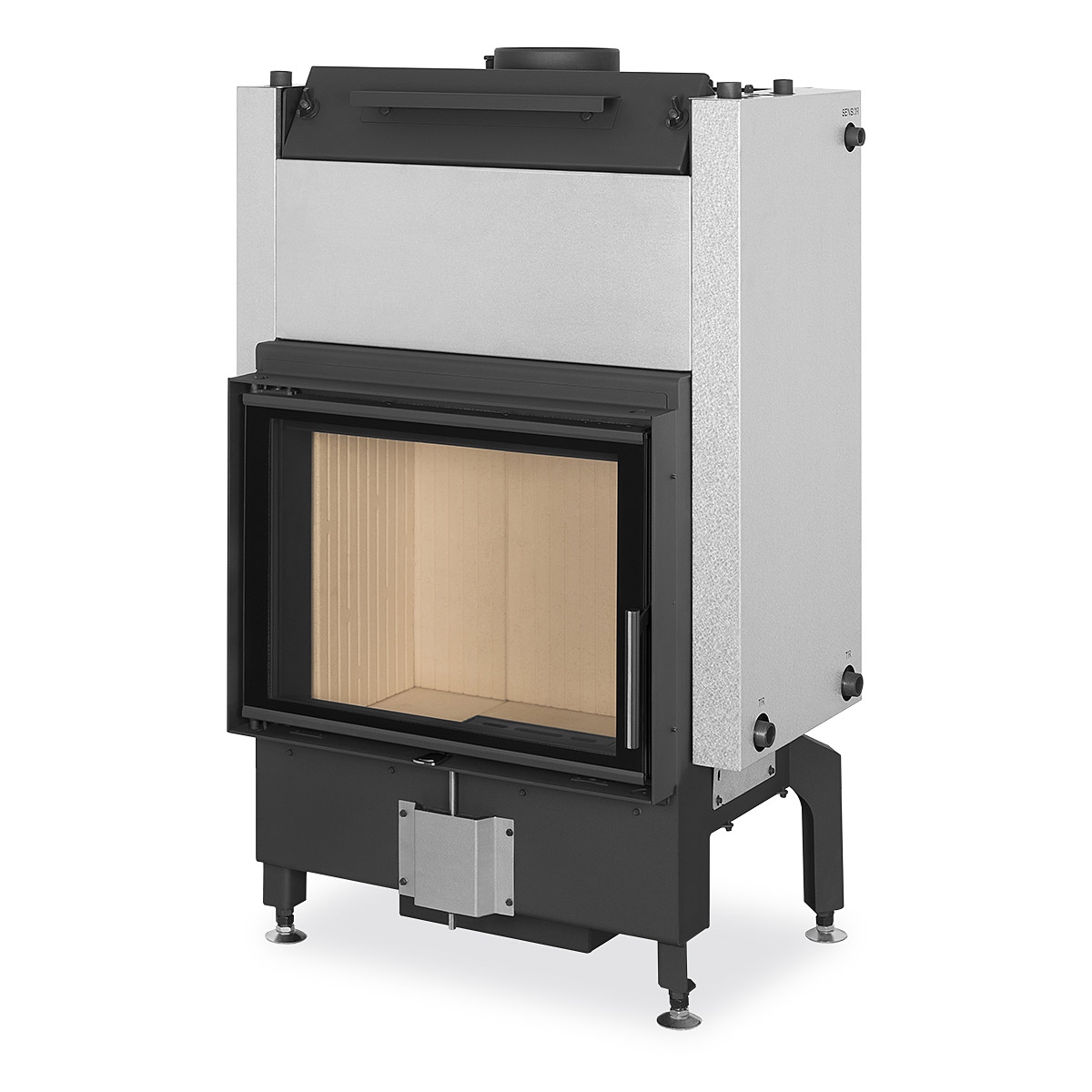

DYNAMIC W 2g 66.50.01

Steel

DYNAMIC W 2g 66.50.01 - Steel
In product comparison: 0 pc
Go to product comparison

double glazing

Technical parameters
  • Height1279 mm
  • Width824 mm
  • Depth494 mm
  • Door height456 mm
  • Door width619 mm
  • Weight300 kg
  • Regulated output5,9-15,2 kW
  • Regulated output of water exchanger4,1-10,7 kW
  • Smoke flue diameter180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Draught11 Pa
  • Efficiency89,0 %
  • Average wood consumption3,1 kg/h

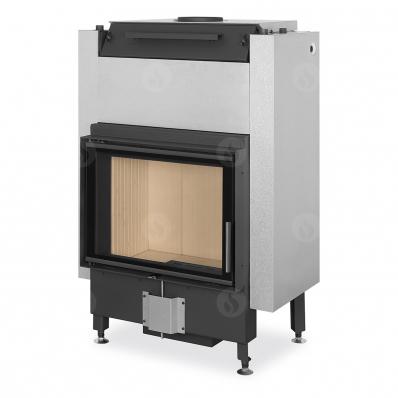

DYNAMIC W 2g 66.50.01P

Steel

DYNAMIC W 2g 66.50.01P - Steel
In product comparison: 0 pc
Go to product comparison

triple glazing

Technical parameters
  • Height1279 mm
  • Width840 mm
  • Depth519 mm
  • Door height456 mm
  • Door width619 mm
  • Weight310 kg
  • Regulated output5,8-15,1 kW
  • Regulated output of water exchanger4,3-11,3 kW
  • Smoke flue diameter180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Draught11 Pa
  • Efficiency88,0 %
  • Average wood consumption3,1 kg/h

DYNAMIC W 2g 66.50.01

Steel

DYNAMIC W 2g 66.50.01 - Steel
  • order code: DW2M 01

DYNAMIC W 2g 66.50.01P

Steel

DYNAMIC W 2g 66.50.01P - Steel
  • order code: DW2M 01P
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 1279 mm
  • Width 824 mm
  • Depth 494 mm
  • Door height 456 mm
  • Door width 619 mm
  • Weight 300 kg
  • Regulated output 5,9-15,2 kW
  • Regulated output of water exchanger 4,1-10,7 kW
  • Smoke flue diameter 180 mm
  • Flue socket diameter 180 mm
  • External air intake diameter 150 mm
  • Draught 11 Pa
  • Efficiency 89,0 %
  • Average wood consumption 3,1 kg/h
Technical parameters
  • Height 1279 mm
  • Width 840 mm
  • Depth 519 mm
  • Door height 456 mm
  • Door width 619 mm
  • Weight 310 kg
  • Regulated output 5,8-15,1 kW
  • Regulated output of water exchanger 4,3-11,3 kW
  • Smoke flue diameter 180 mm
  • Flue socket diameter 180 mm
  • External air intake diameter 150 mm
  • Draught 11 Pa
  • Efficiency 88,0 %
  • Average wood consumption 3,1 kg/h
