with double / triple glazing, hot-water exchanger and back stoking

DYNAMIC Fireplace inserts with double / triple glazing, hot-water exchanger and back stoking

DYNAMIC hot-water fireplace inserts with double / triple glazing and back stoking will become a fully-fledged, central source of heating. Discover a new dimension of heating and get a perfect heating source that meets all your expectations.

DYNAMIC fireplace inserts are well suited for low-energy houses thanks to their double and triple glazing. The back stoking door allows you to comfortably add wood to the combustion chamber. The door frame is made of a special rigid rolled profile. Right-sided opening doors can be switched to left-sided opening. The special patented design of the TRIPLE PASS hot-water exchanger will increase fireplace insert efficiency by up to 10%. The volume of the hot-water exchanger is 50 l. Fireplace inserts are equipped with an EAI (external air intake) system and designed for accumulation as well as convection operation. The combustion chamber is lined with chamotte bricks, the bottom is supported by insulation boards and a hinged iron grate with an ash tray. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. The insert also includes preparation for a door switch and reinforced insulation of the hot-water exchanger casing. Safety is ensured by an integrated cooling loop and the package also includes a cooling and air-escape valve.

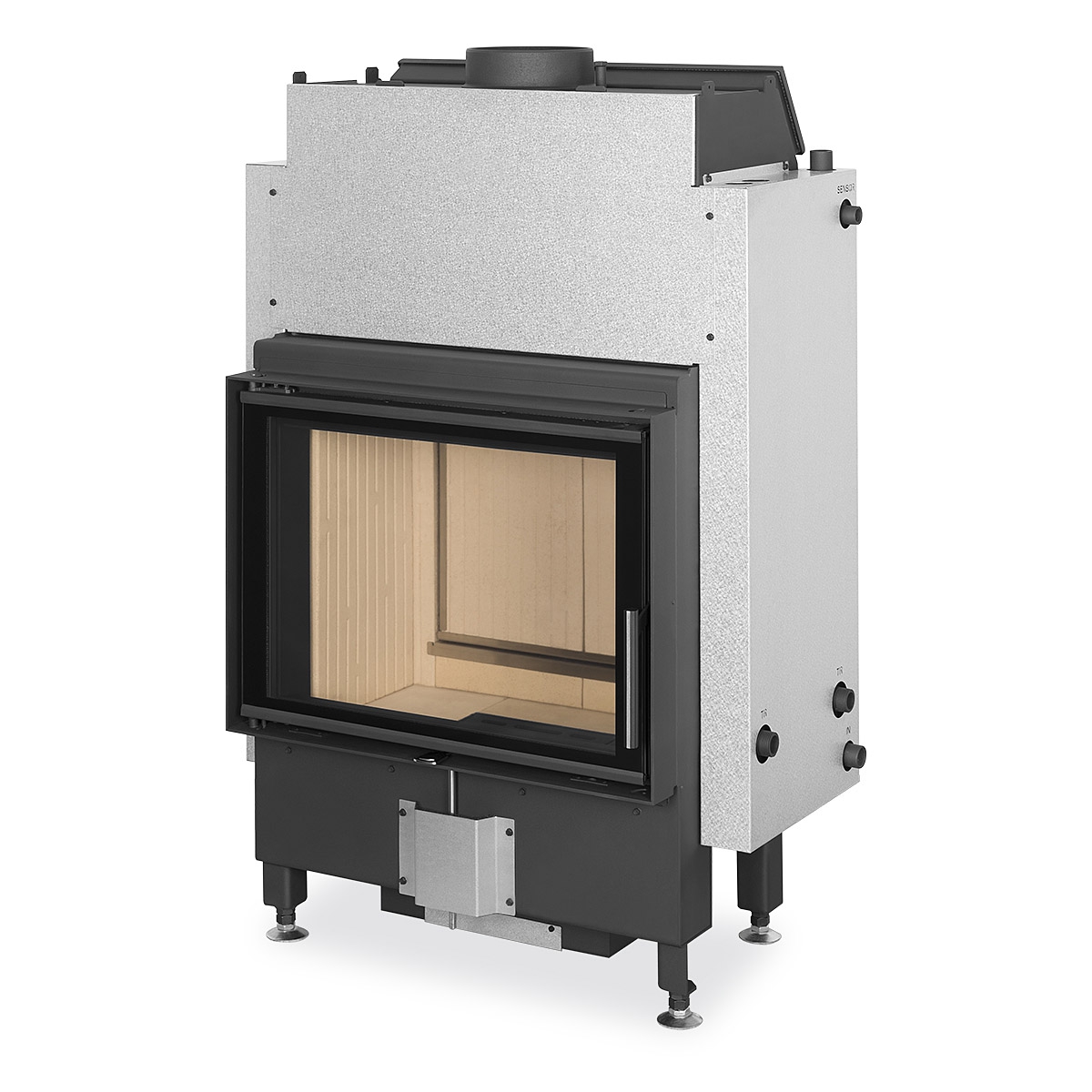

DYNAMIC WB 2g 66.50.01

Steel

DYNAMIC WB 2g 66.50.01 - Steel
In product comparison: 0 pc
Go to product comparison

double glazing

Technical parameters
  • Height1279 mm
  • Width833 mm
  • Depth538 mm
  • Door height456 mm
  • Door width619 mm
  • Weight300 kg
  • Regulated output5,9-15,3 kW
  • Regulated output of water exchanger3,8-9,9 kW
  • Smoke flue diameter180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Draught11 Pa
  • Efficiency86,8 %
  • Average wood consumption3,1 kg/h

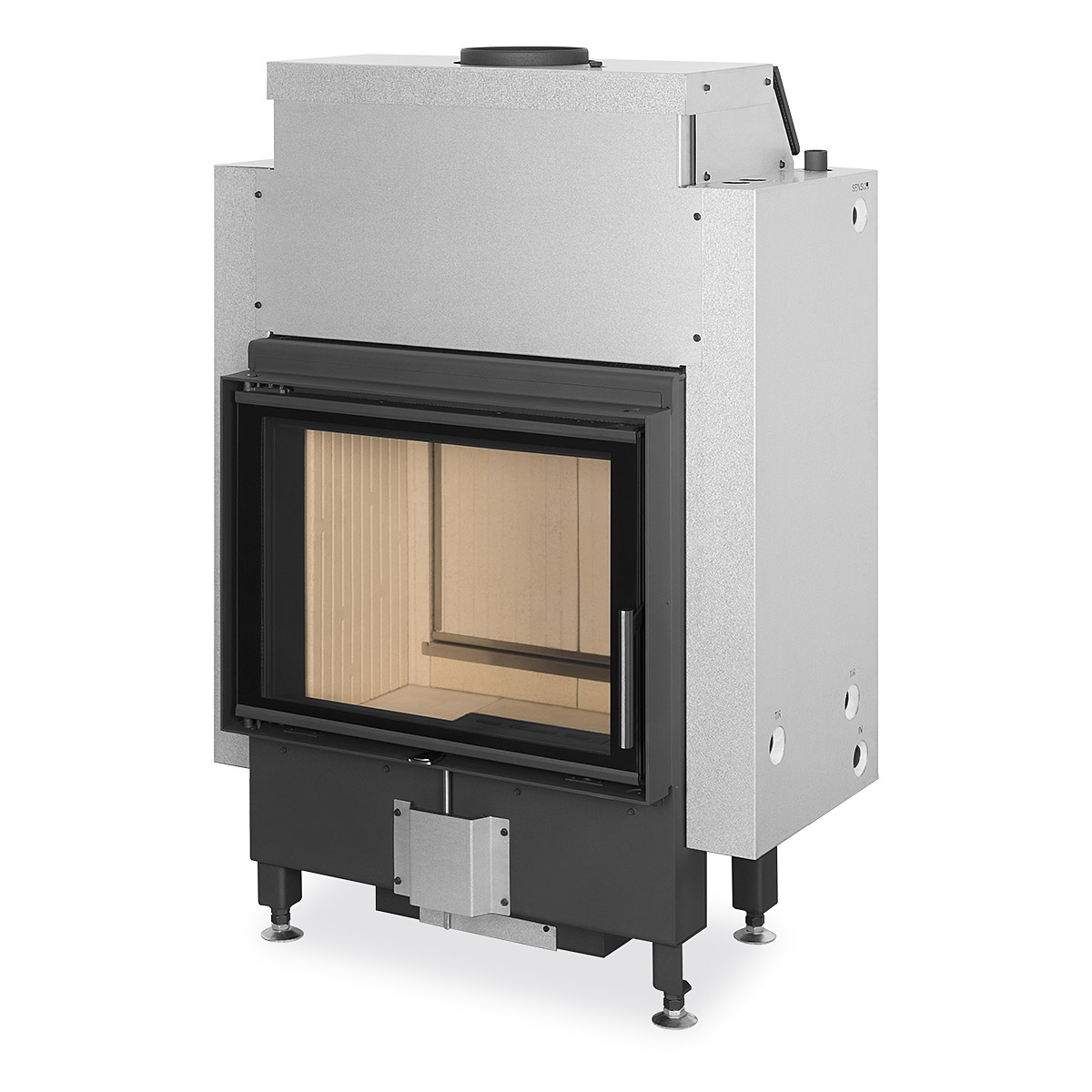

DYNAMIC WB 2g 66.50.01P

Steel

DYNAMIC WB 2g 66.50.01P - Steel
In product comparison: 0 pc
Go to product comparison

triple glazing

Technical parameters
  • Height1279 mm
  • Width848 mm
  • Depth538 mm
  • Door height456 mm
  • Door width619 mm
  • Weight310 kg
  • Regulated output6,0-15,6 kW
  • Regulated output of water exchanger4,1-10,5 kW
  • Smoke flue diameter180 mm
  • Flue socket diameter180 mm
  • External air intake diameter150 mm
  • Draught11 Pa
  • Efficiency86,2 %
  • Average wood consumption3,2 kg/h

DYNAMIC WB 2g 66.50.01

Steel

DYNAMIC WB 2g 66.50.01 - Steel
  • order code: DWB2M 01

DYNAMIC WB 2g 66.50.01P

Steel

DYNAMIC WB 2g 66.50.01P - Steel
  • order code: DWB2M 01P
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 1279 mm
  • Width 833 mm
  • Depth 538 mm
  • Door height 456 mm
  • Door width 619 mm
  • Weight 300 kg
  • Regulated output 5,9-15,3 kW
  • Regulated output of water exchanger 3,8-9,9 kW
  • Smoke flue diameter 180 mm
  • Flue socket diameter 180 mm
  • External air intake diameter 150 mm
  • Draught 11 Pa
  • Efficiency 86,8 %
  • Average wood consumption 3,1 kg/h
Technical parameters
  • Height 1279 mm
  • Width 848 mm
  • Depth 538 mm
  • Door height 456 mm
  • Door width 619 mm
  • Weight 310 kg
  • Regulated output 6,0-15,6 kW
  • Regulated output of water exchanger 4,1-10,5 kW
  • Smoke flue diameter 180 mm
  • Flue socket diameter 180 mm
  • External air intake diameter 150 mm
  • Draught 11 Pa
  • Efficiency 86,2 %
  • Average wood consumption 3,2 kg/h
