HEAT Fireplace inserts tunnel

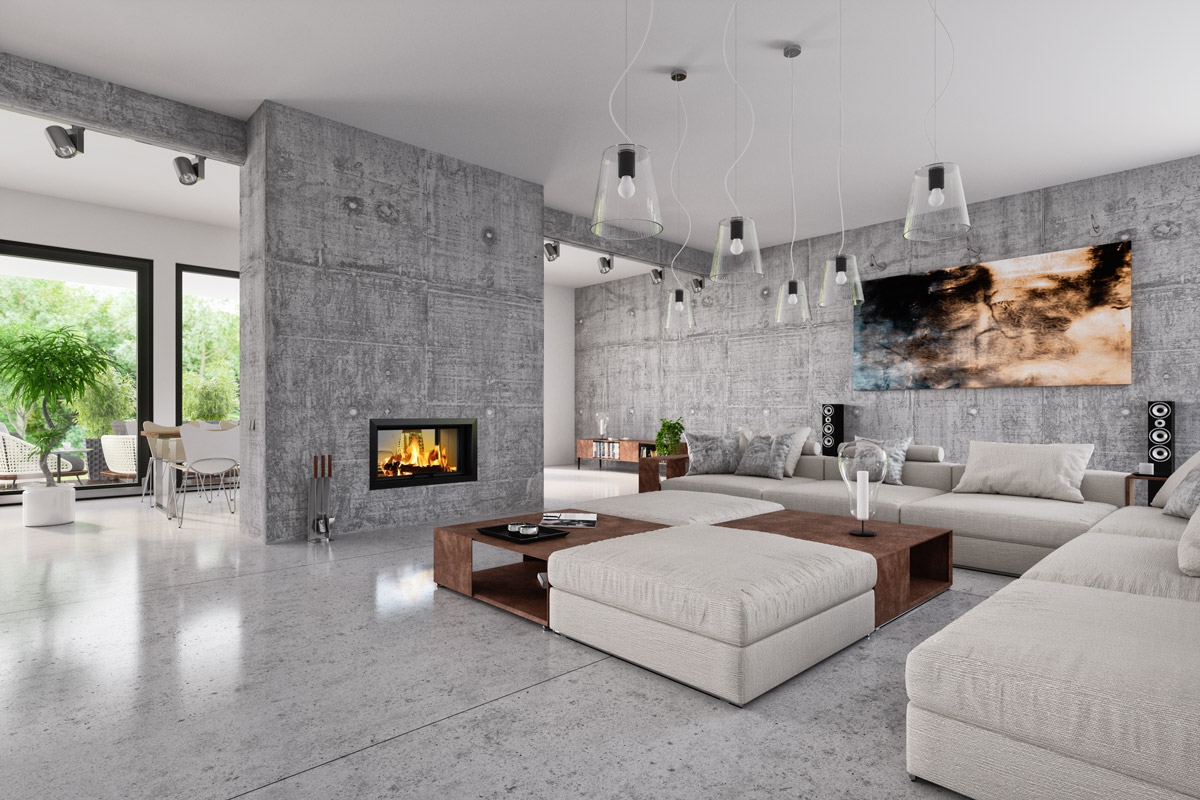

Connecting two areas was never so simple and elegant thanks to the HEAT tunnel fireplace inserts. Enjoy living flames that create a perfect atmosphere in different parts of your home.

HEAT fireplace inserts have large-format printed glazing that allows you to experience the fire in a unique way. Thanks to their tunnel design, wood can be added from both sides. The easy, silent and precise operation of the lifting door is guaranteed by the state-of-the-art SILENT LIFT system. The combustion chamber is lined with chamotte bricks and is designed with no furnace grate. However the insert can be fitted with a grate at the customer’s request. HEAT fireplace inserts are intended for convection operation. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. An EAI (external air intake) system is included. Side and top MAMMOTH accumulation sets can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours.

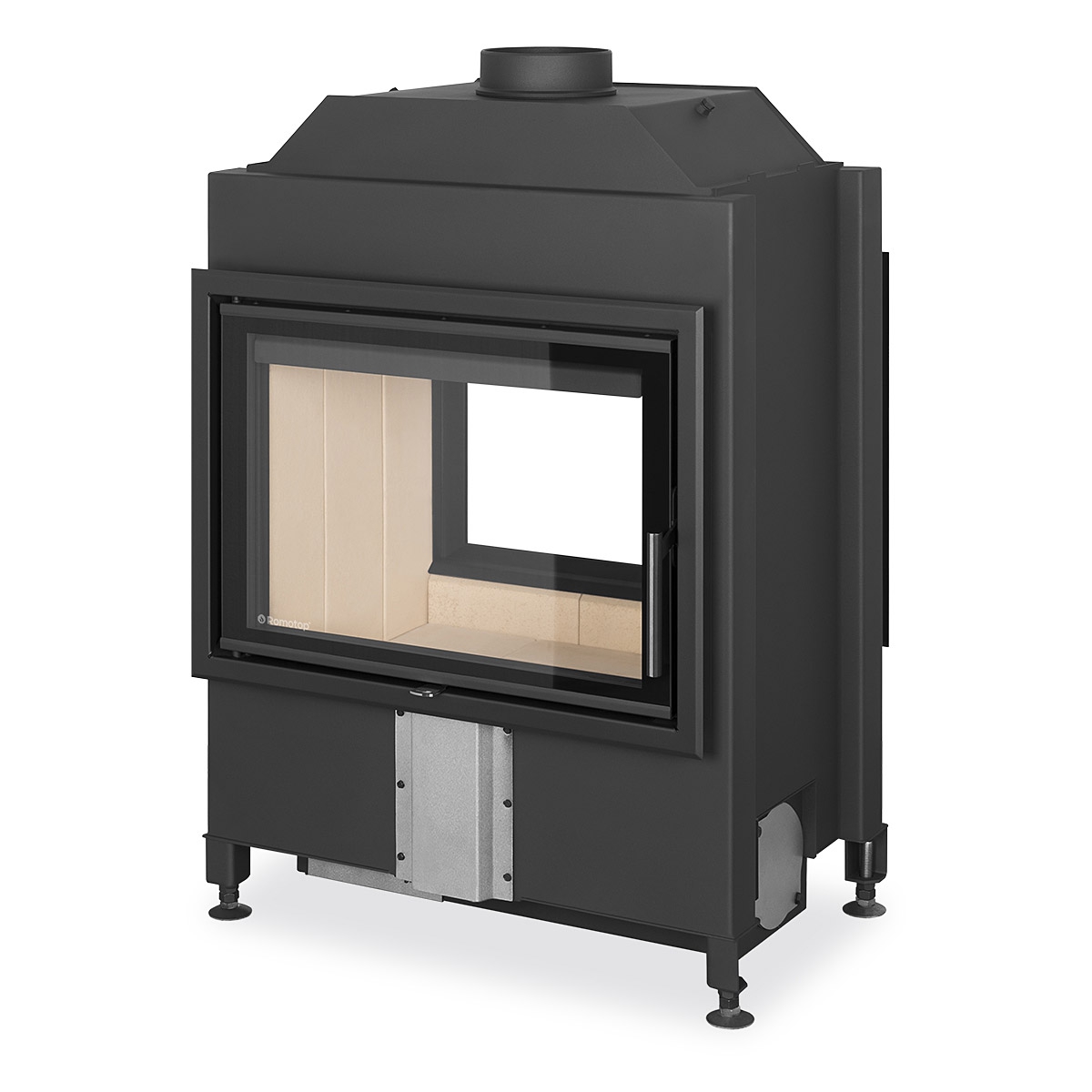

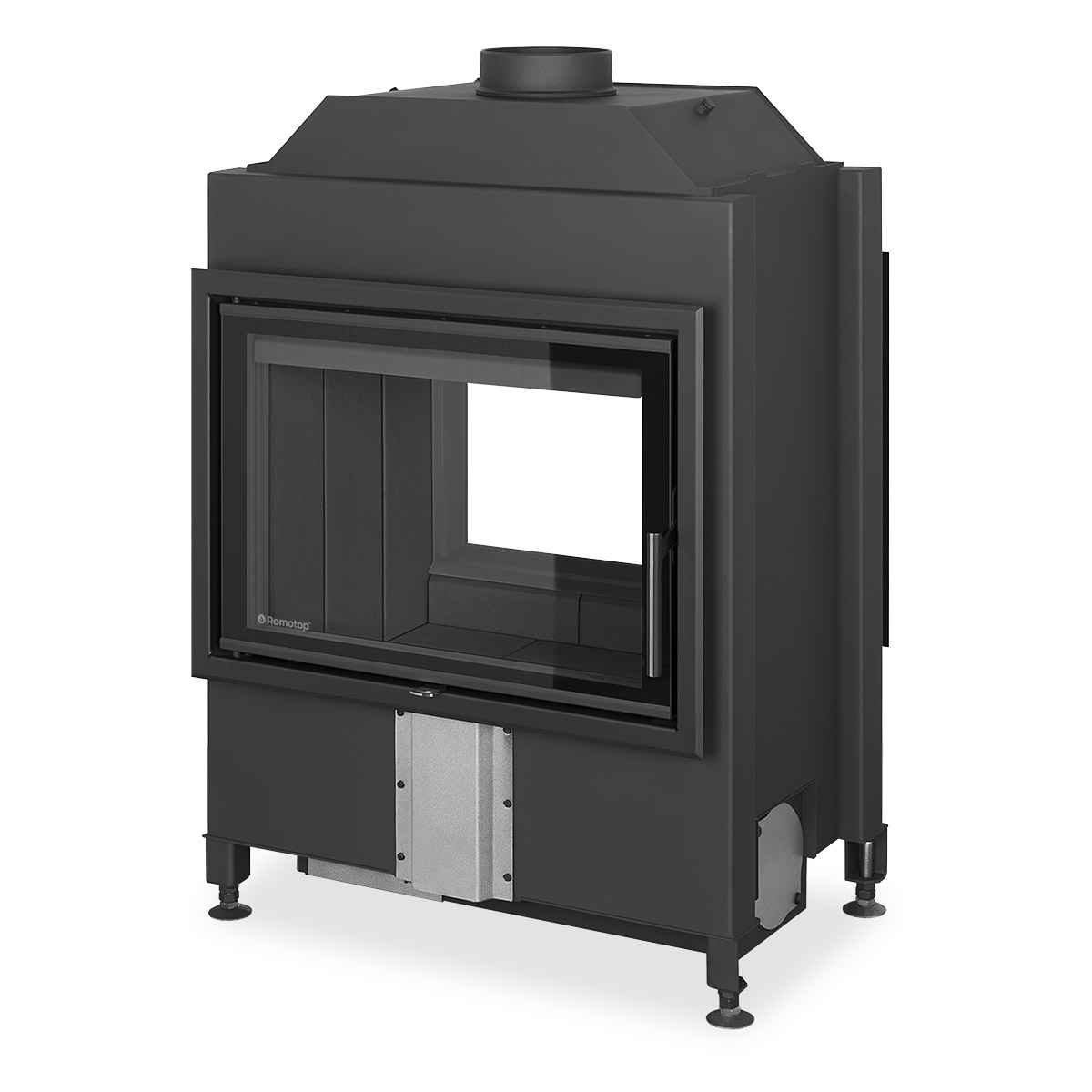

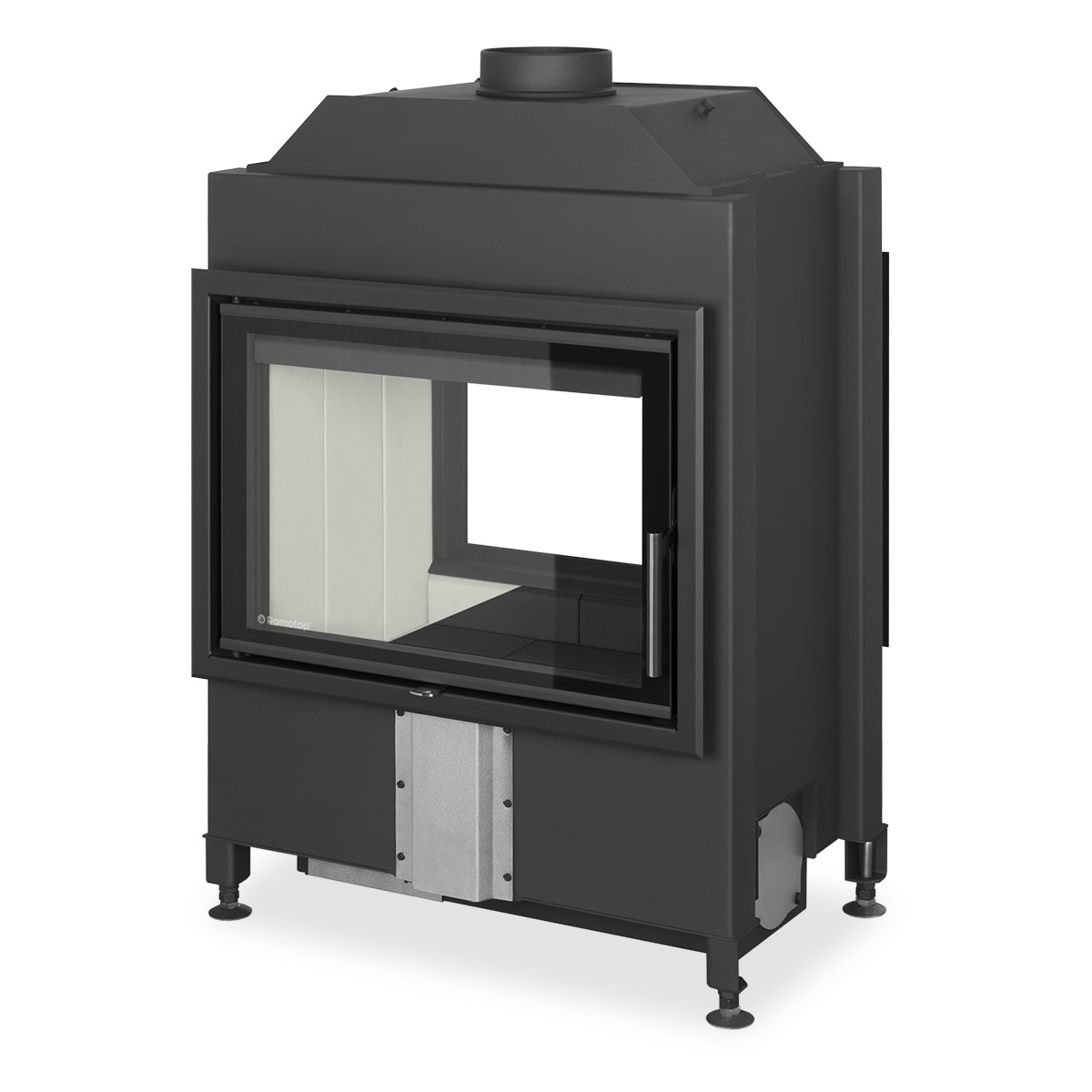

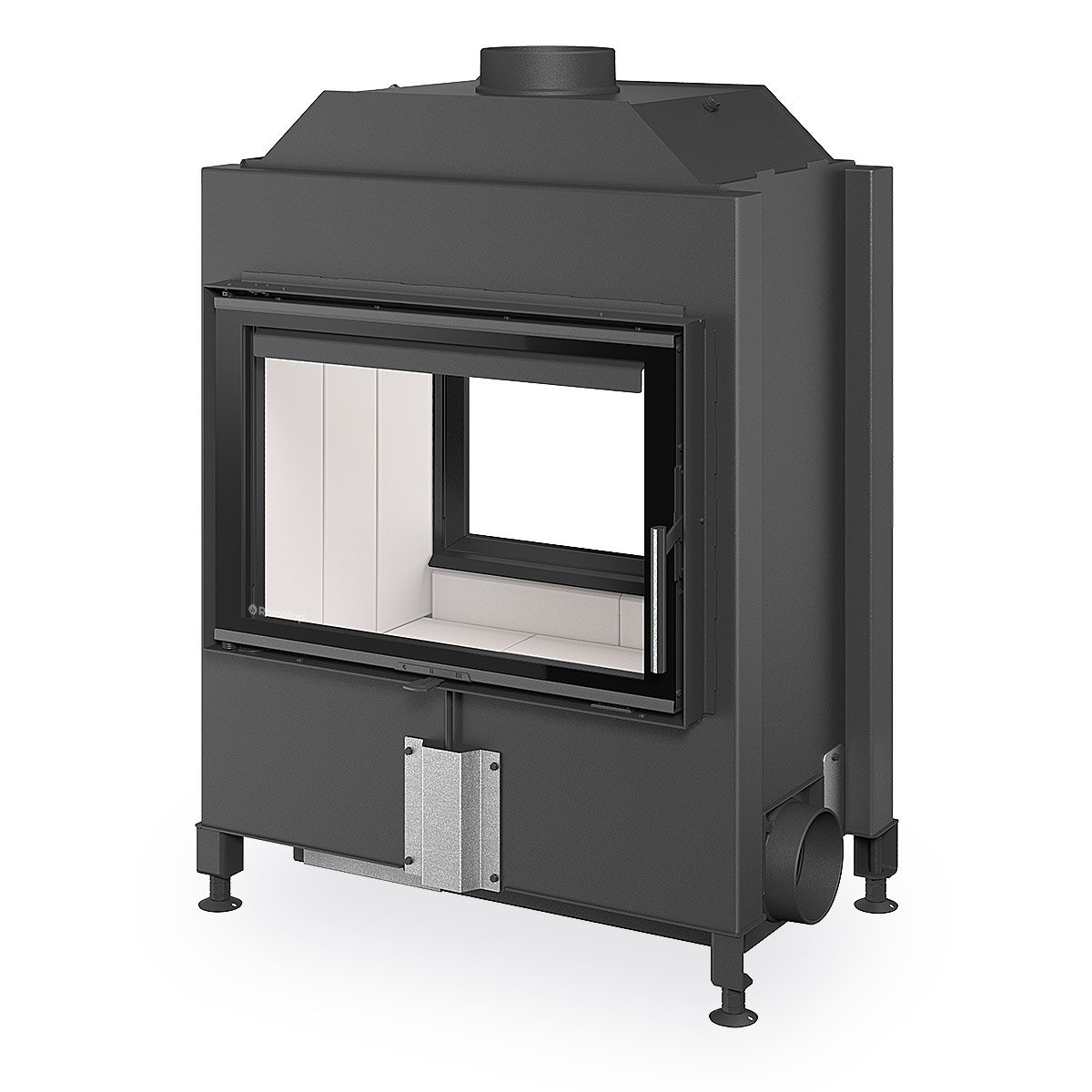

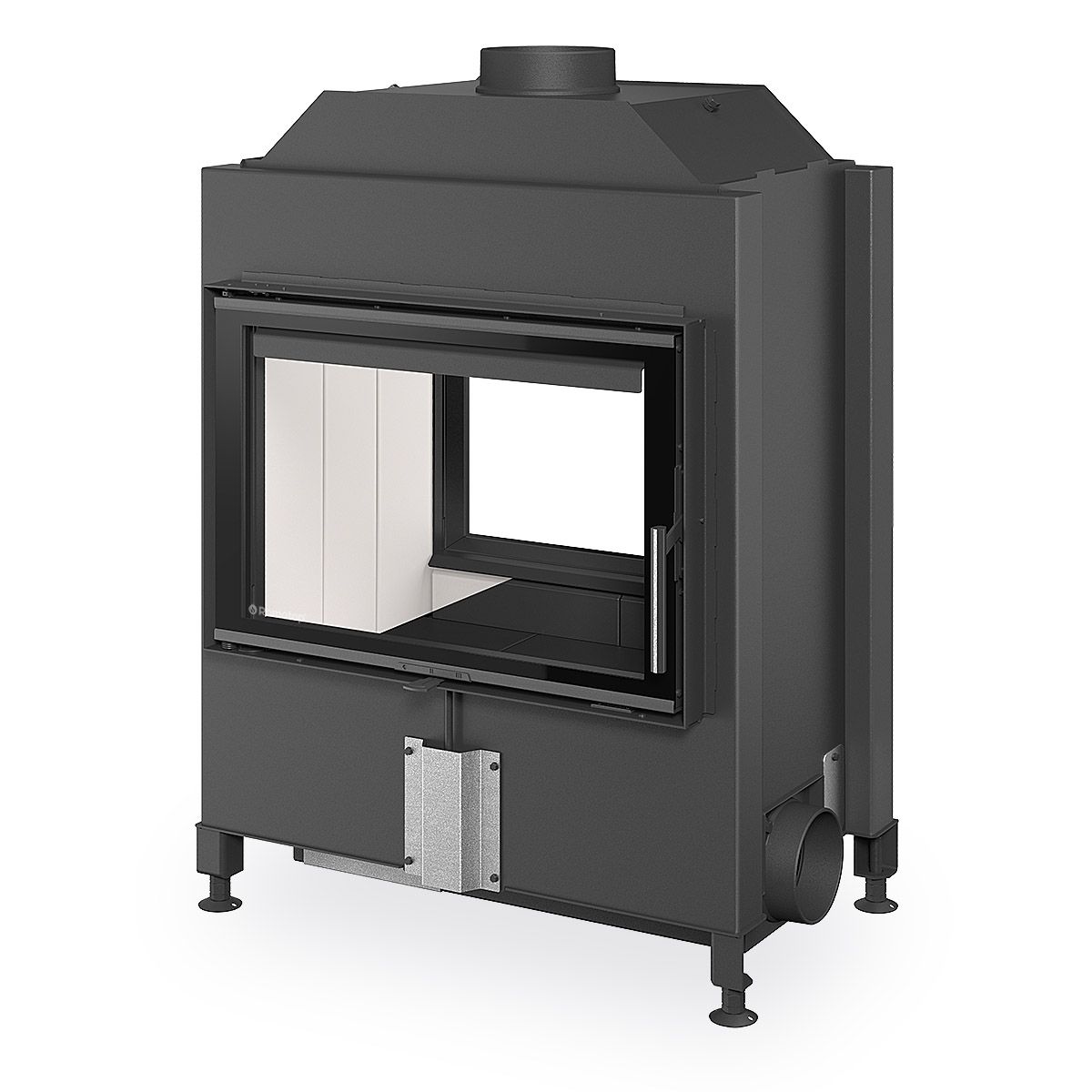

HEAT T 3g 70.50.01

Steel

HEAT T 3g 70.50.01 - Steel
In product comparison: 0 pc
Go to product comparison
  • order code: HT3Z 01

with side opening

designed for convection and accumulation operation

maximum of 2 side accumulation sets

Technical parameters
  • Height1192 mm
  • Width808 mm
  • Depth570 mm
  • Door height467 mm
  • Door width664 mm
  • Weight190 kg
  • Regulated output4,0-10,3 kW
  • Smoke flue diameter150-180 mm
  • Flue socket diameter150 mm
  • External air intake diameter150 mm
  • Draught11 Pa
  • Efficiency82,3 %
  • Average wood consumption2,2 kg/h

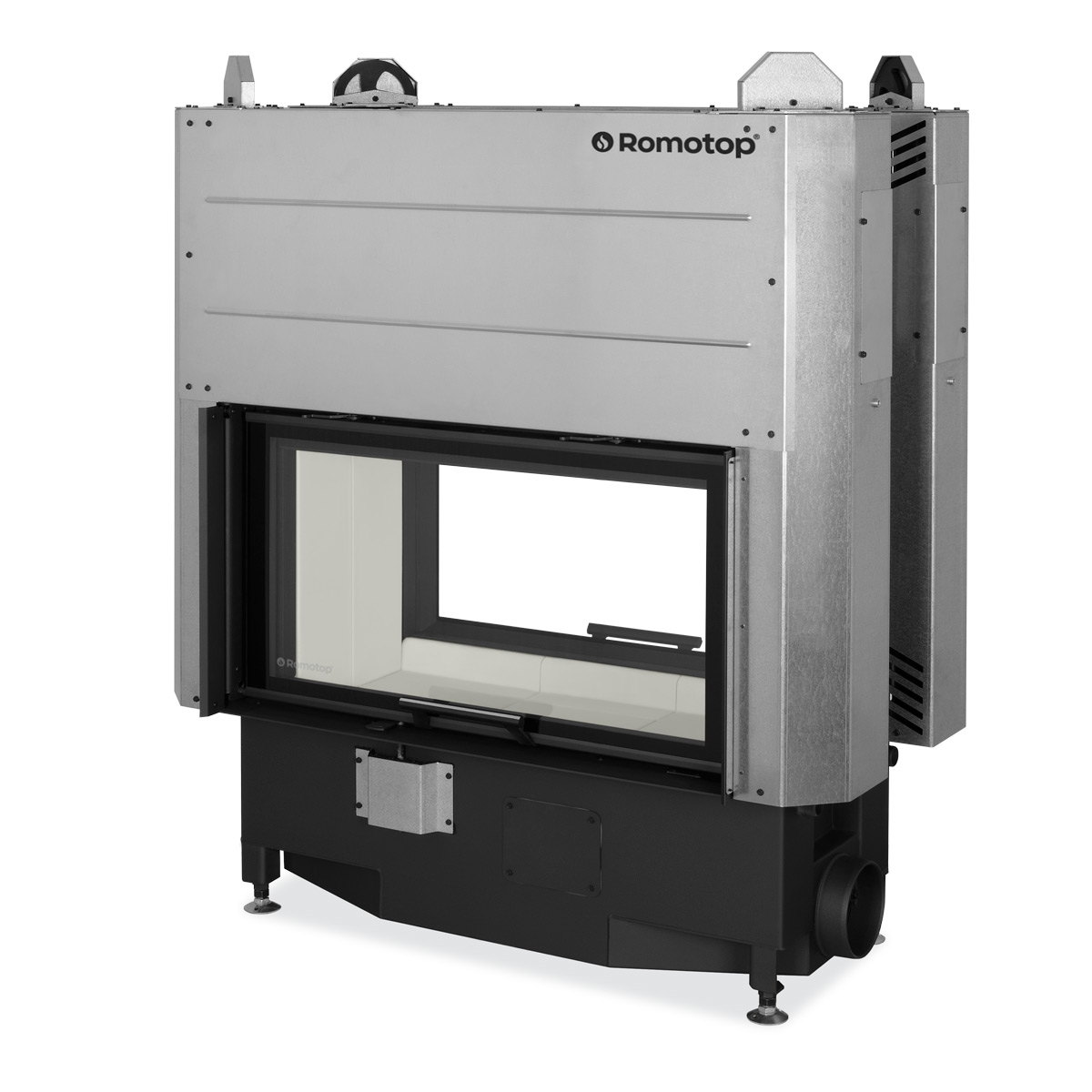

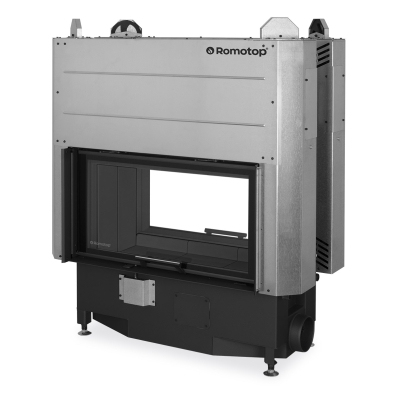

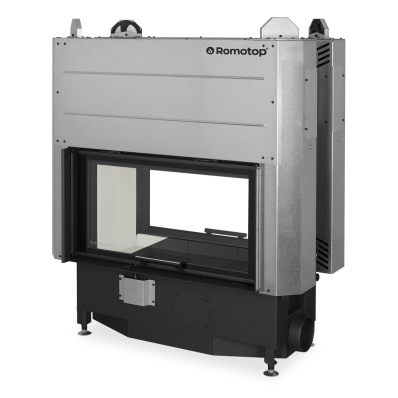

HEAT T 3g L 88.50.01

Steel

HEAT T 3g L 88.50.01 - Steel
In product comparison: 0 pc
Go to product comparison
  • order code: HT3LF 01

with lifting door

SILENT LIFT system

Technical parameters
  • Height1426 mm
  • Width1186 mm
  • Depth585 mm
  • Door height466 mm
  • Door width851 mm
  • Weight335 kg
  • Regulated output5,8-15,1 kW
  • Smoke flue diameter200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught11 Pa
  • Efficiency80,5 %
  • Average wood consumption3,2 kg/h
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height1192 mm
  • Width808 mm
  • Depth570 mm
  • Door height467 mm
  • Door width664 mm
  • Weight190 kg
  • Regulated output4,0-10,3 kW
  • Smoke flue diameter150-180 mm
  • Flue socket diameter150 mm
  • External air intake diameter150 mm
  • Draught11 Pa
  • Efficiency82,3 %
  • Average wood consumption2,2 kg/h
Technical parameters
  • Height1426 mm
  • Width1186 mm
  • Depth585 mm
  • Door height466 mm
  • Door width851 mm
  • Weight335 kg
  • Regulated output5,8-15,1 kW
  • Smoke flue diameter200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Draught11 Pa
  • Efficiency80,5 %
  • Average wood consumption3,2 kg/h
