with side opening and split corner glazing

IMPRESSION Fireplace inserts with side opening and split corner glazing

IMPRESSION corner fireplace inserts are specially designed to the smallest detail to make everyday heating an enjoyable experience. The corner glazing design features small but elaborate details that lend the IMPRESSION series a unique charm and exclusivity.

IMPRESSION fireplace inserts with side opening and split corner glazing have unusually high glass windows, offering a luxurious view of the fire. Corner glazing (left, right) consists of two parts. The combustion chamber is available in black or cream colour with an optional change for the furnace grate. Inserts are designed for accumulation and convection operation. The innovative DOUBLE SPIN flue gas system increases efficiency and reduces the environmental impact of the fireplace insert. Secondary air intake washes over the glass in the door to prevent the accumulation of deposits. Primary and secondary air intake is regulated by a single control element. Fireplace inserts are equipped with an EAI (external air intake) system, which can be easily connected using the AIRBOX rotating elbow. The flue gas exhaust can be connected from the side or the top. Side and top MAMMOTH accumulation sets can be purchased separately for fireplace inserts, which can extend the period of heat radiation by more than 12 hours.

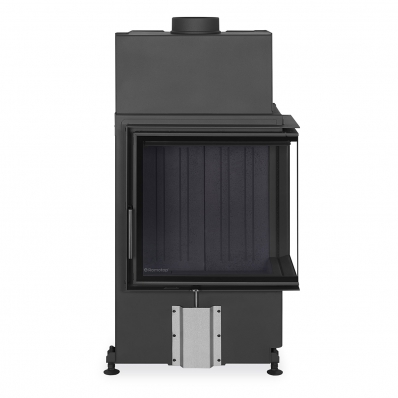

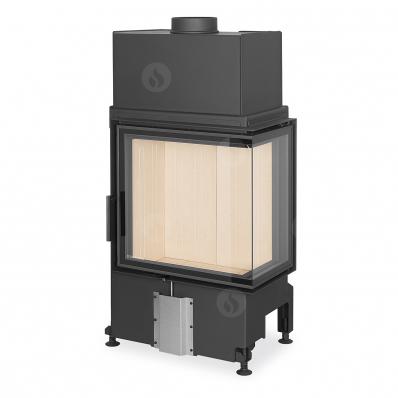

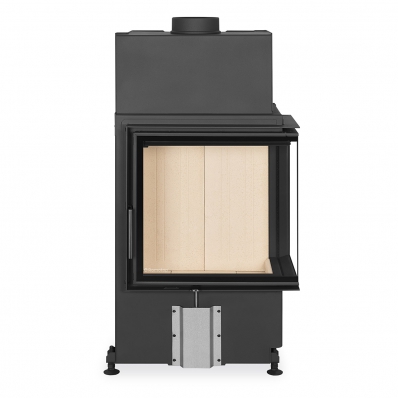

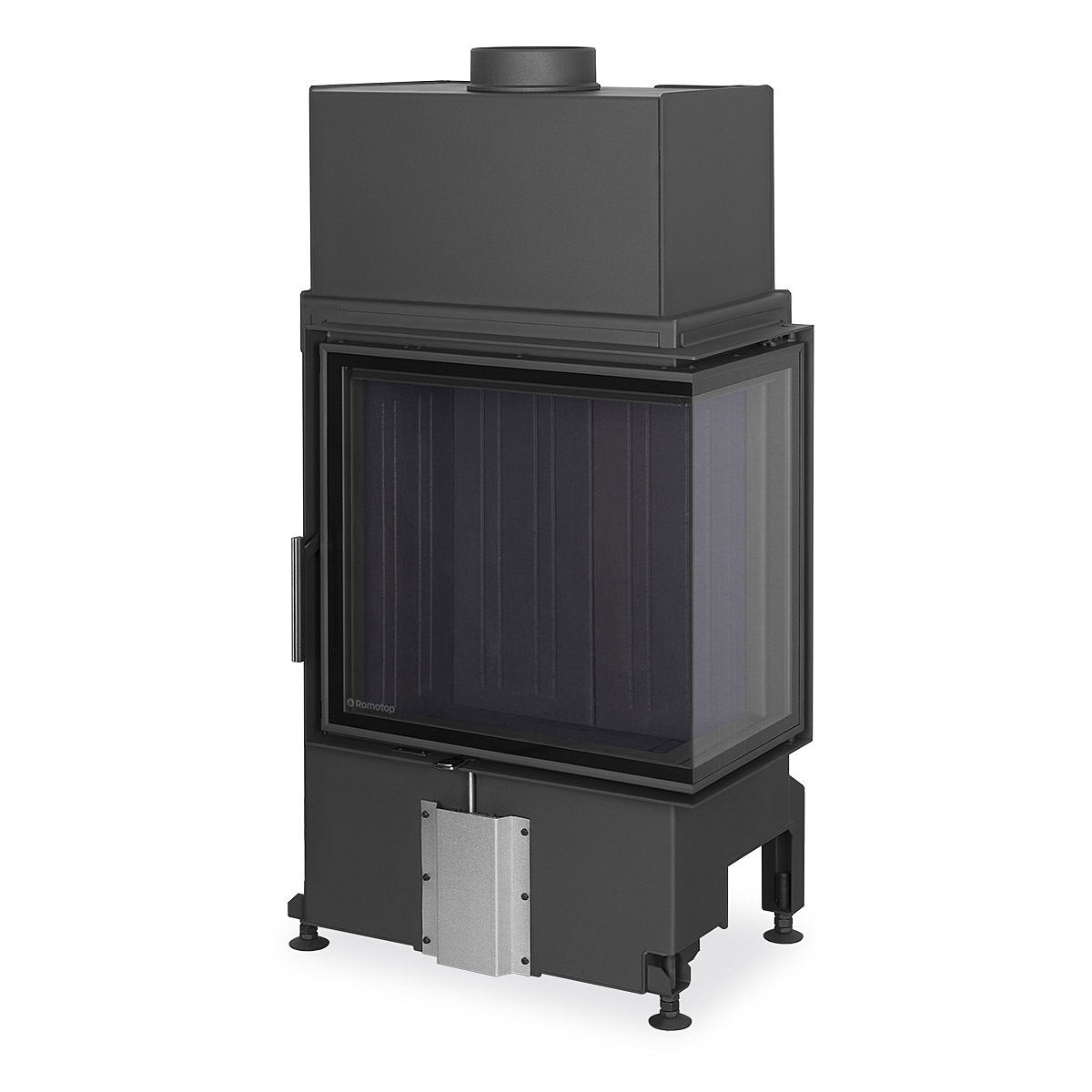

IMPRESSION R/L 2g S 58.60.34.21

Steel

IMPRESSION R/L 2g S 58.60.34.21 - Steel
In product comparison: 0 pc
Go to product comparison

maximum of 2 side accumulation sets

Technical parameters
  • Height1324 mm
  • Width703 mm
  • Depth487 mm
  • Door height556 mm
  • Door width583 mm
  • Door depth339 mm
  • Weight*174/166 kg
  • Regulated output3,7-9,6 kW
  • Smoke flue diameter150-180 mm
  • Flue socket diameter180 mm
  • External air intake diameter125 mm
  • Axis height of rear outlet1160 mm
  • Draught11 Pa
  • Efficiency81,6 %
  • Average wood consumption2,1 kg/h
  • *weight including black / cream combustion chamber

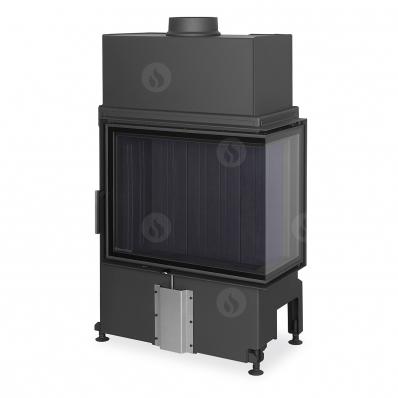

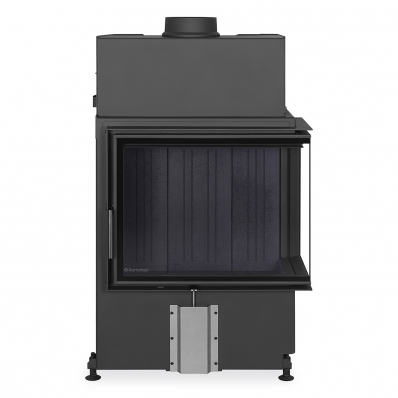

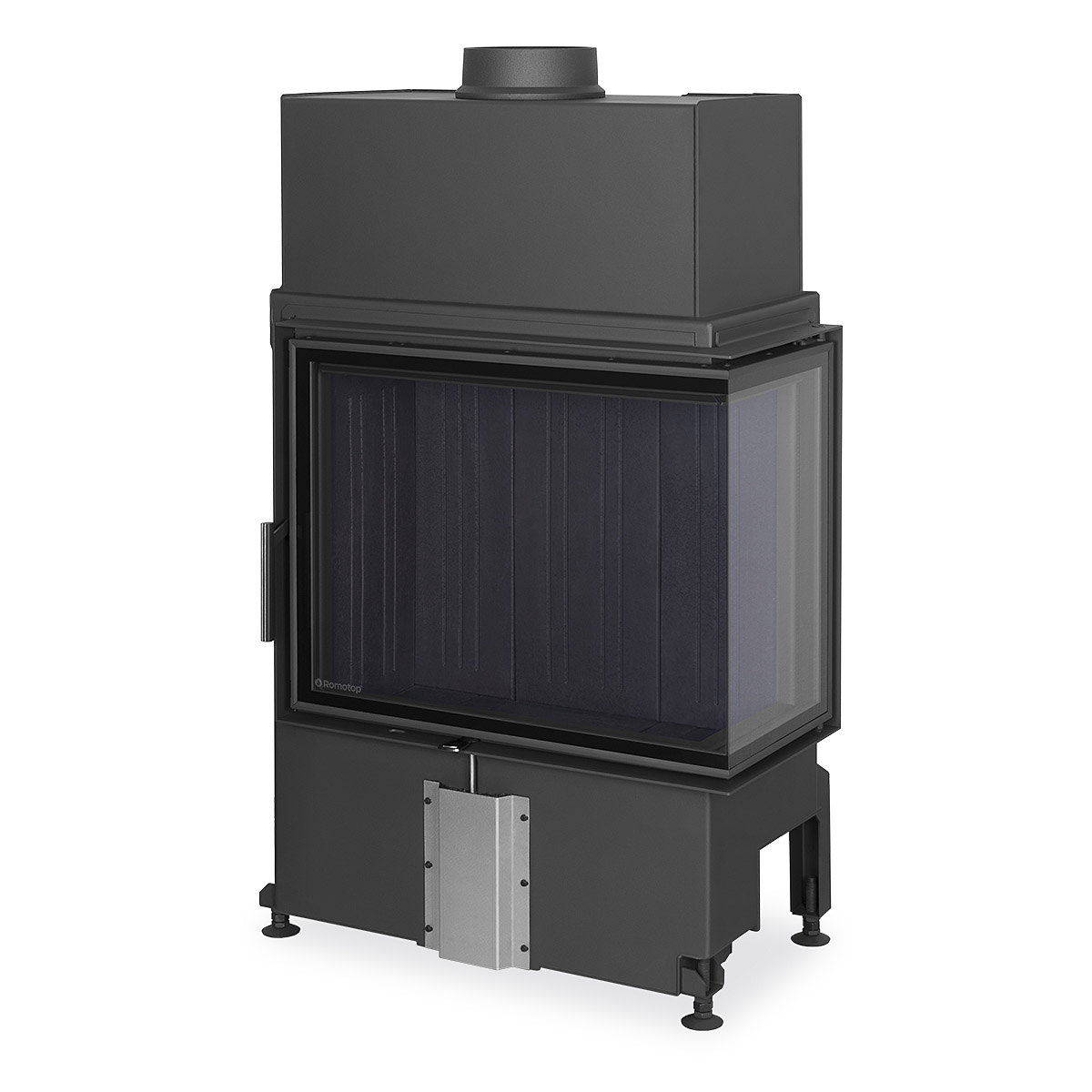

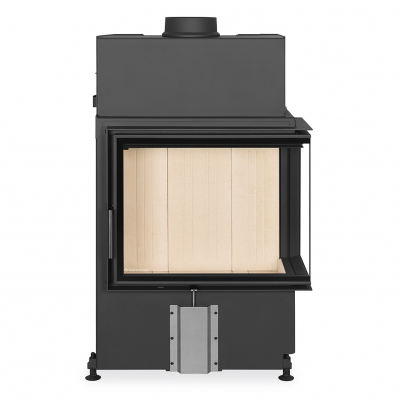

IMPRESSION R/L 2g S 71.60.34.21

Steel

IMPRESSION R/L 2g S 71.60.34.21 - Steel
In product comparison: 0 pc
Go to product comparison

maximum of 3 side accumulation sets

Technical parameters
  • Height1369 mm
  • Width828 mm
  • Depth487 mm
  • Door height556 mm
  • Door width706 mm
  • Door depth339 mm
  • Weight*205/195 kg
  • Regulated output5,0-13,0 kW
  • Smoke flue diameter150-200 mm
  • Flue socket diameter200 mm
  • External air intake diameter150 mm
  • Axis height of rear outlet1190 mm
  • Draught12 Pa
  • Efficiency81,0 %
  • Average wood consumption2,8 kg/h
  • *weight including black / cream combustion chamber

IMPRESSION R/L 2g S 58.60.34.21

Steel

IMPRESSION R/L 2g S 58.60.34.21 - Steel
  • Split glazing - right variant - order code: IR2SF 21
  • Split glazing - left variant - order code: IL2SF 21

IMPRESSION R/L 2g S 71.60.34.21

Steel

IMPRESSION R/L 2g S 71.60.34.21 - Steel
  • Split glazing - right variant - order code: IR2SG 21
  • Split glazing - left variant - order code: IL2SG 21
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 1324 mm
  • Width 703 mm
  • Depth 487 mm
  • Door height 556 mm
  • Door width 583 mm
  • Door depth 339 mm
  • Weight* 174/166 kg
  • Regulated output 3,7-9,6 kW
  • Smoke flue diameter 150-180 mm
  • Flue socket diameter 180 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1160 mm
  • Draught 11 Pa
  • Efficiency 81,6 %
  • Average wood consumption 2,1 kg/h
  • *weight including black / cream combustion chamber
Technical parameters
  • Height 1369 mm
  • Width 828 mm
  • Depth 487 mm
  • Door height 556 mm
  • Door width 706 mm
  • Door depth 339 mm
  • Weight* 205/195 kg
  • Regulated output 5,0-13,0 kW
  • Smoke flue diameter 150-200 mm
  • Flue socket diameter 200 mm
  • External air intake diameter 150 mm
  • Axis height of rear outlet 1190 mm
  • Draught 12 Pa
  • Efficiency 81,0 %
  • Average wood consumption 2,8 kg/h
  • *weight including black / cream combustion chamber
