SPIRIT

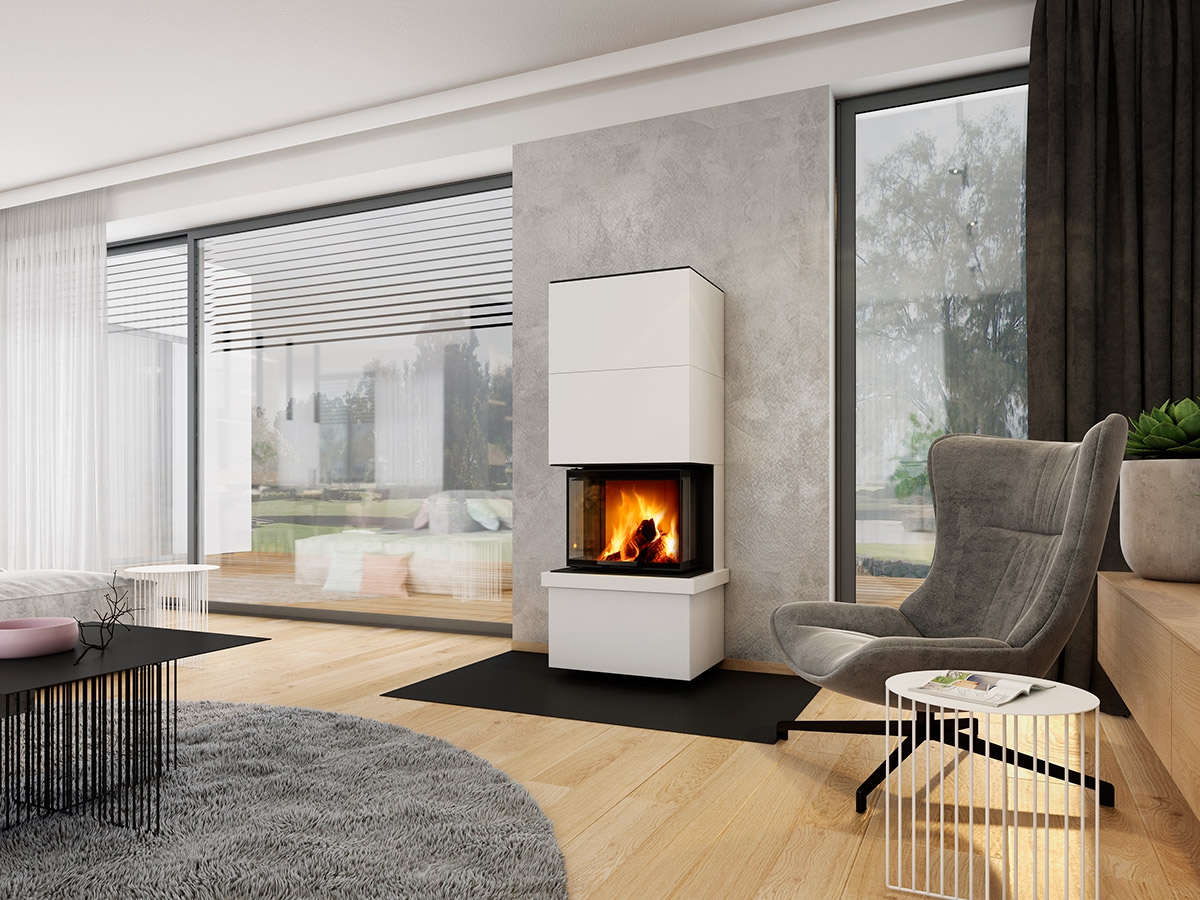

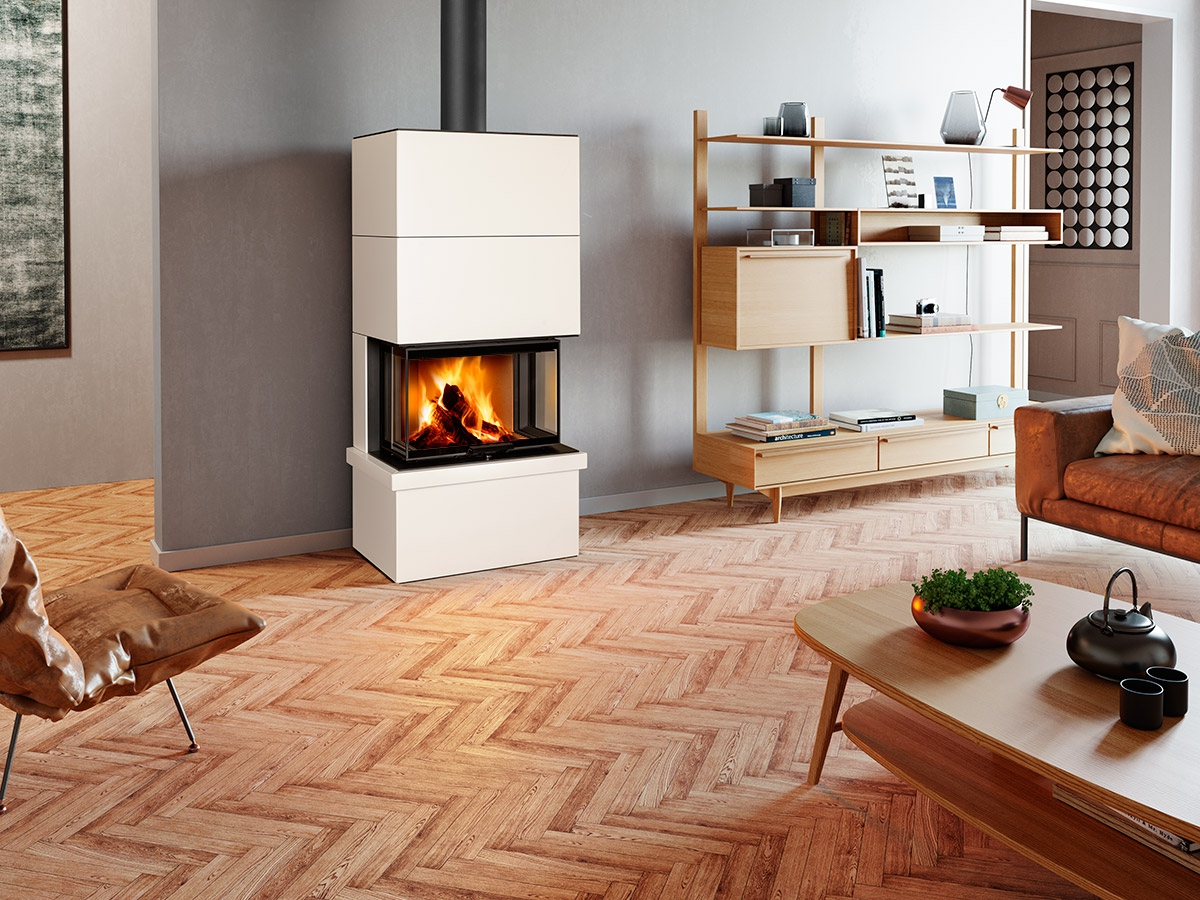

SPIRIT Tiled accumulation fireplaces with lifting door

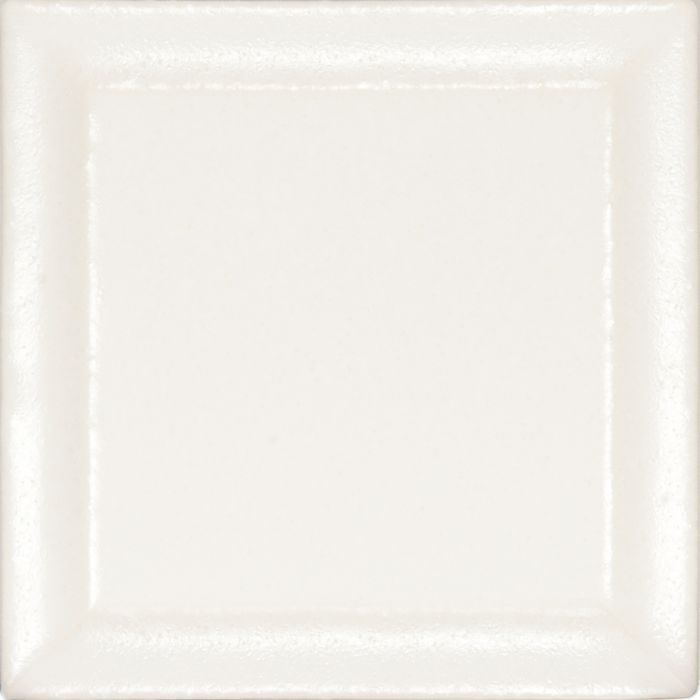

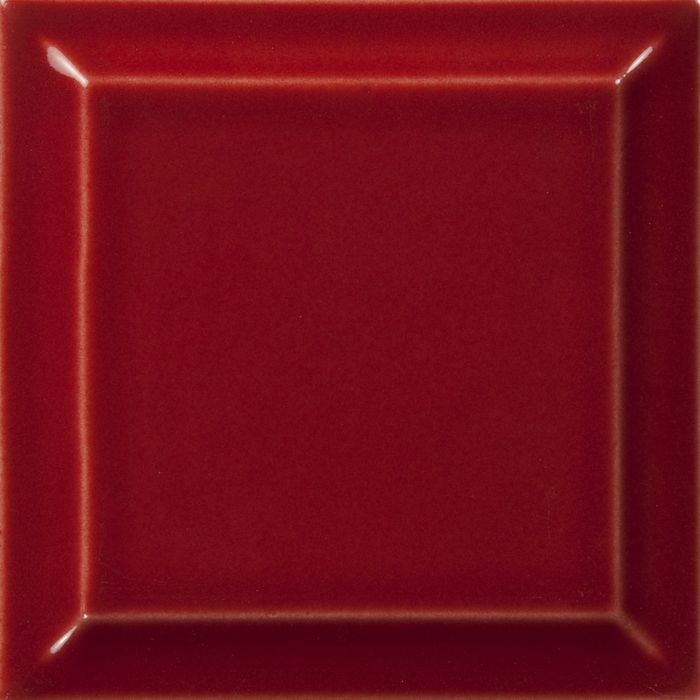

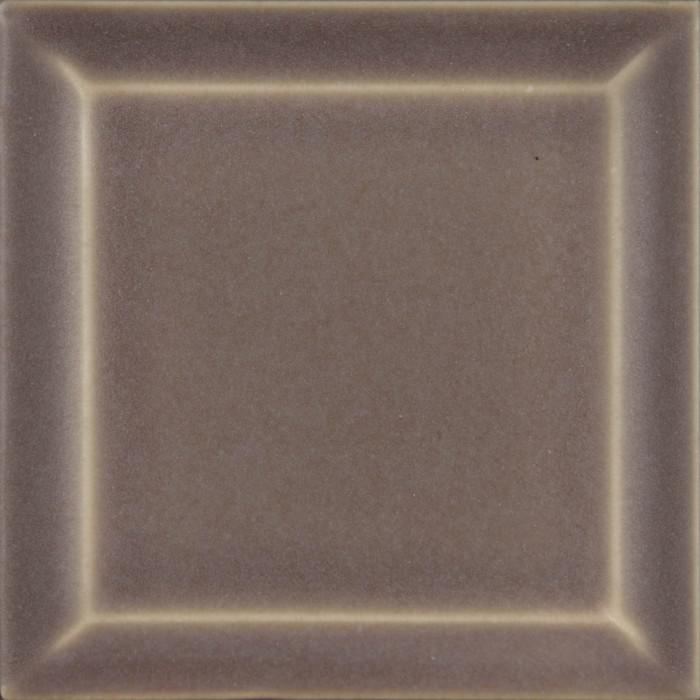

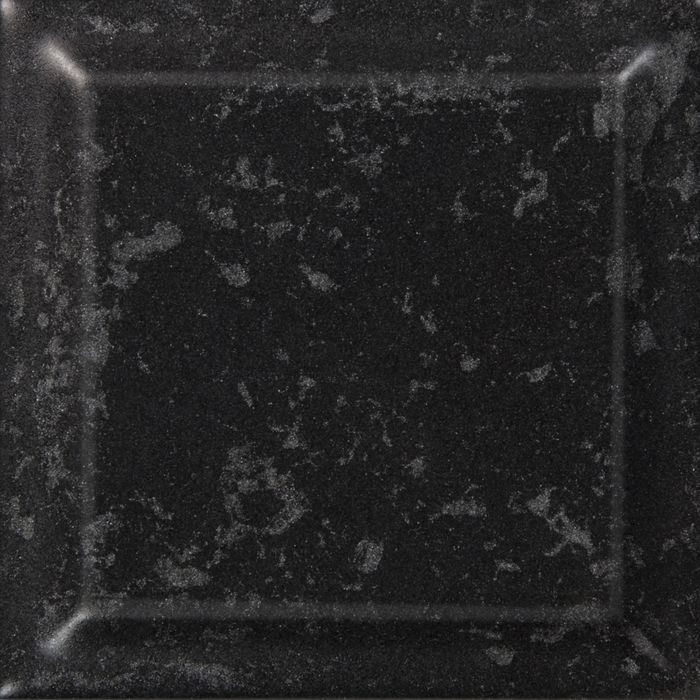

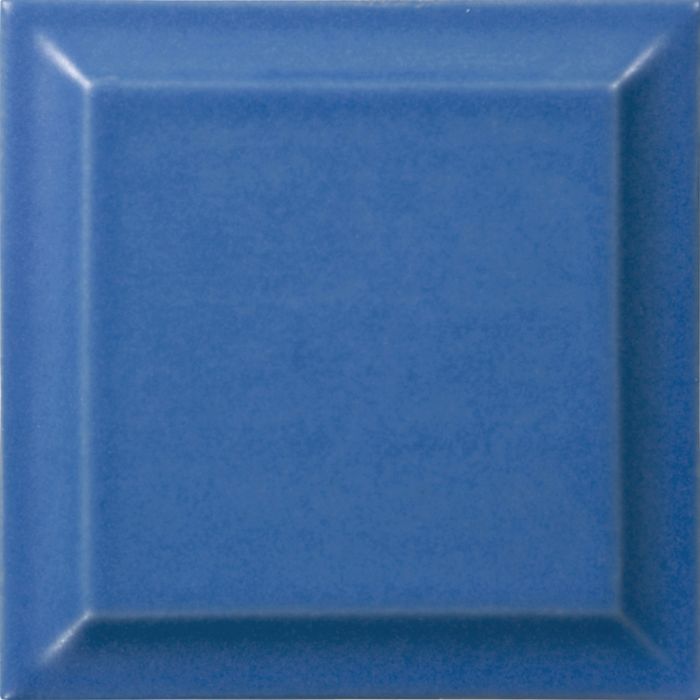

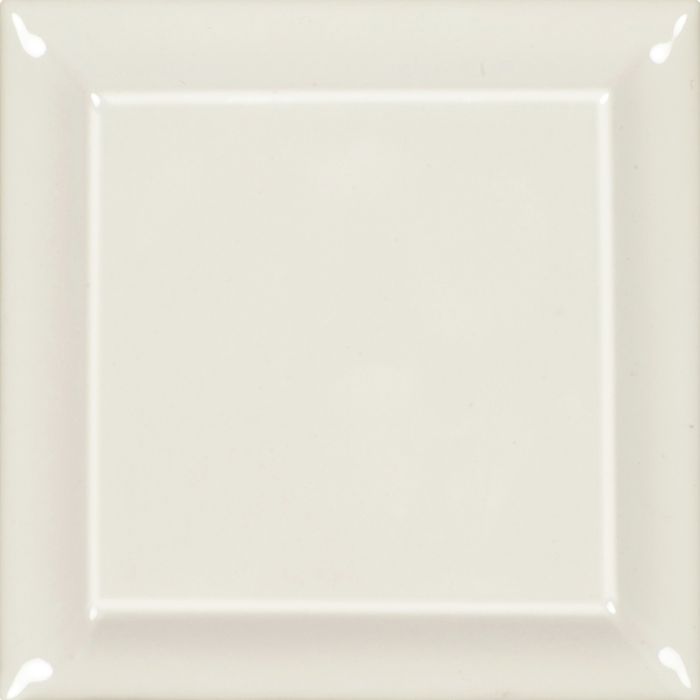

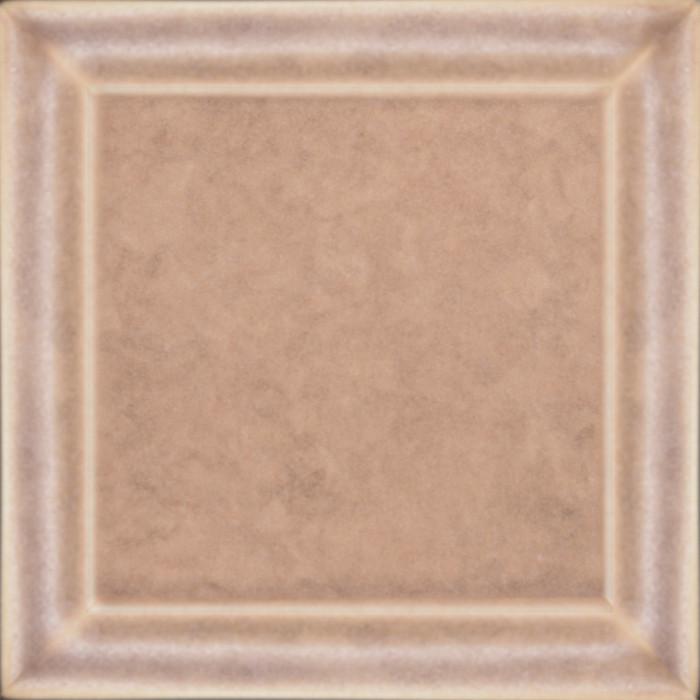

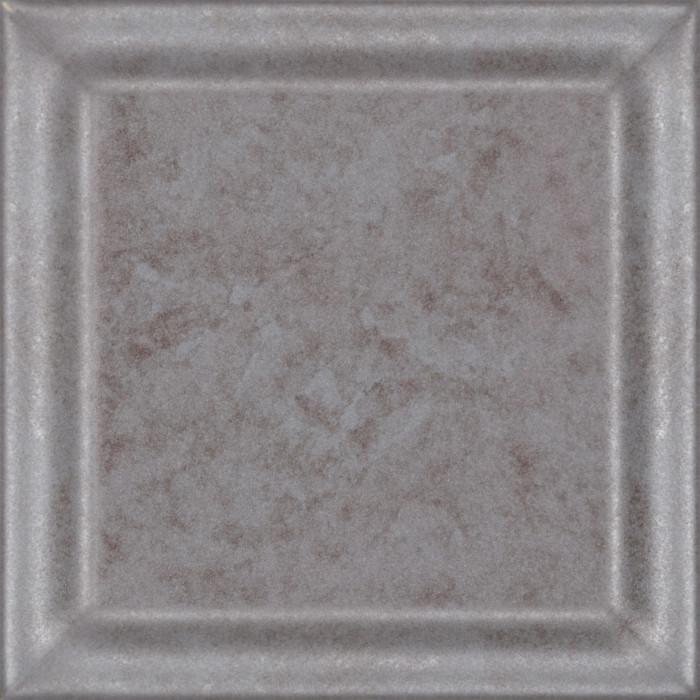

Appealing fireplace with three-side glazing, sophisticated details and focus on overall design and technical workmanship: These elements feature an impressive complex, addressing even the most demanding customers. The structure of the fireplace is covered with large format ceramic tiles that are ideal for efficient heat transmission.

Tiled accumulation fireplaces SPIRIT C1 are also suitable for low energy houses. They have sliding doors with precise and easy operation SILENT LIFT. The combustion chamber is cladded with fireclay fittings. Standard combustion chamber model is without grate, but it can be easily modified to a model with grate. In order to optimise the combustion process, tertiary air is led to the upper section of the combustion chamber. Innovative exhaust gas management system DOUBLE SPIN increases overall efficiency of the unit. Standard flue gas outlet is on the top or in the back. Secondary air intake will provide for door glass cleaning to avoid dirt deposits, a person sitting at the stove can look into the fire, without being disturbed by dirty glass of the door. Primary and secondary air intake is easily controlled by a one control element. Sufficient air for an optimum combustion process will be provided by the EAI system (external air intake from the exterior). The fireplace can be improved by installation of accumulation fittings, intended for accumulation of heat and its subsequent transfer back into the room, continuing even during several hours after the flame has extinguished. Thanks to back side shielding, the stove can be installed close to the wall. SPIRIT C2 M model is fitted with removable metal cornice.

SPIRIT C1

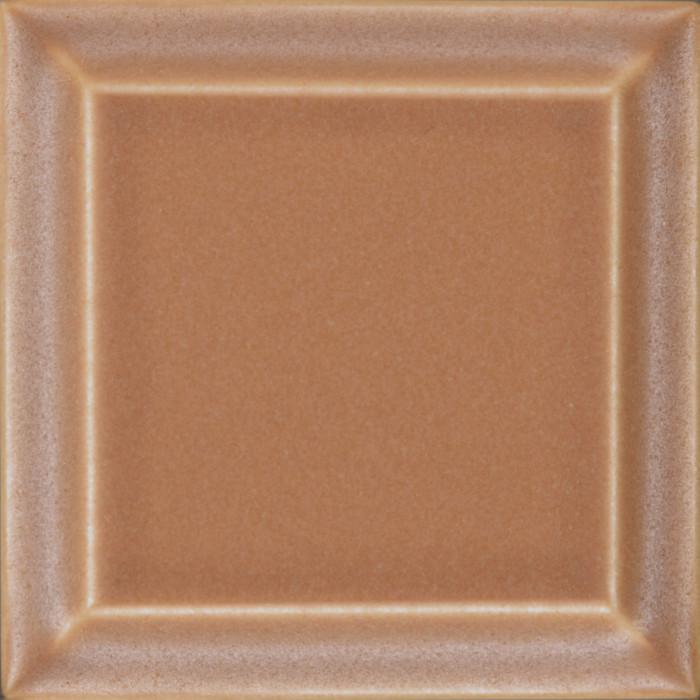

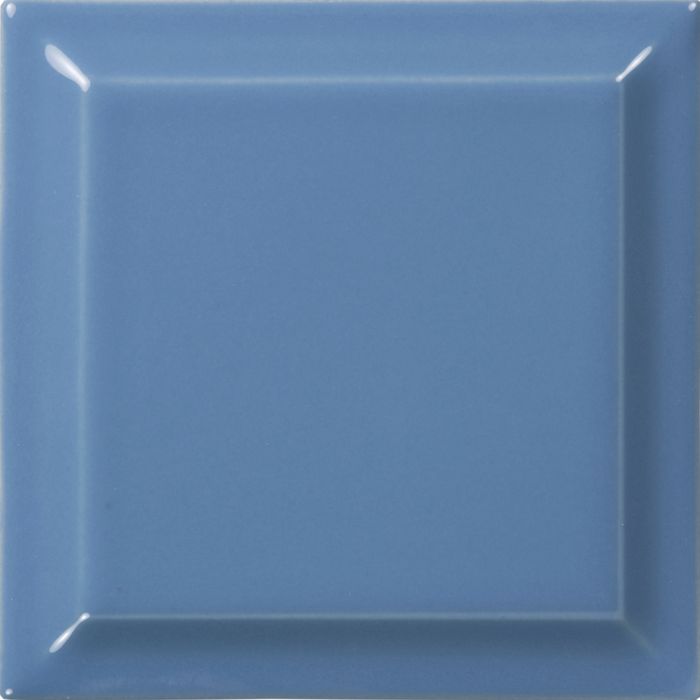

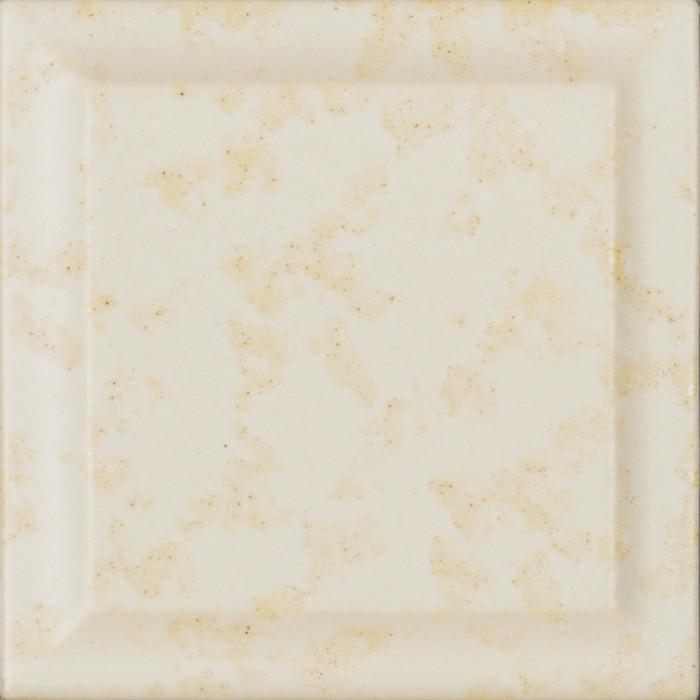

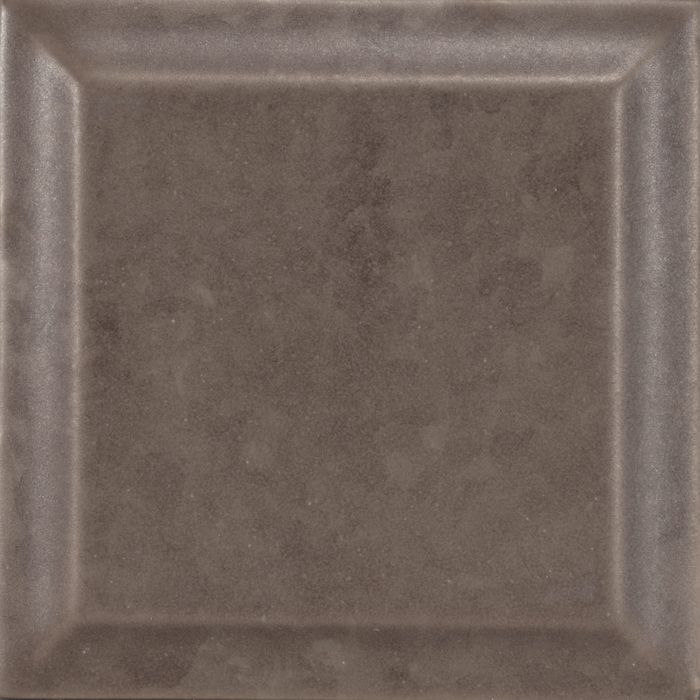

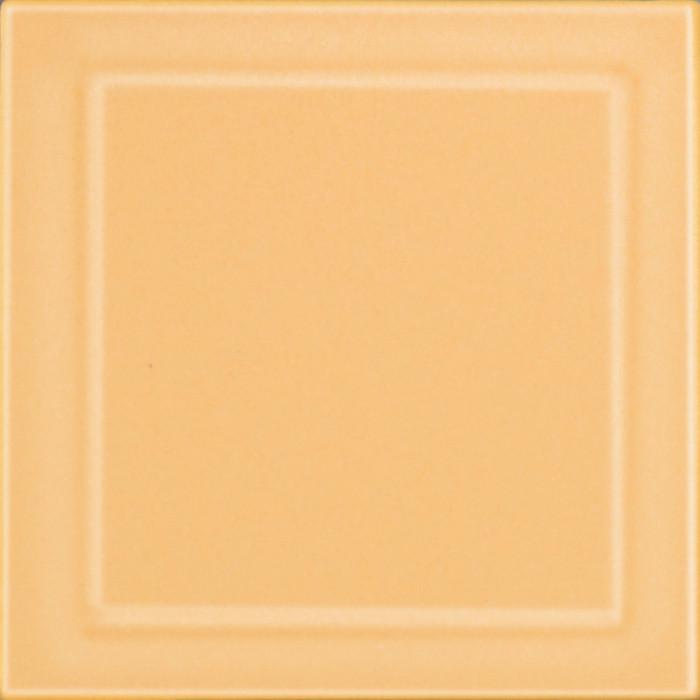

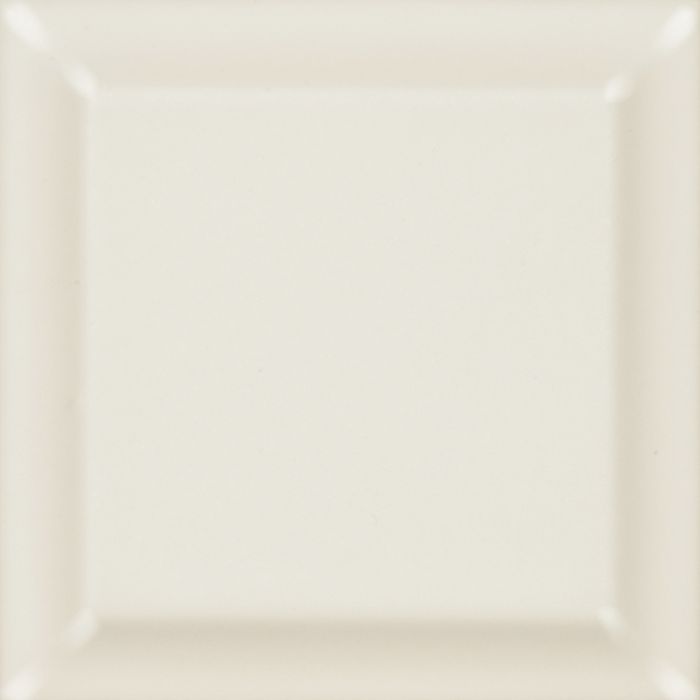

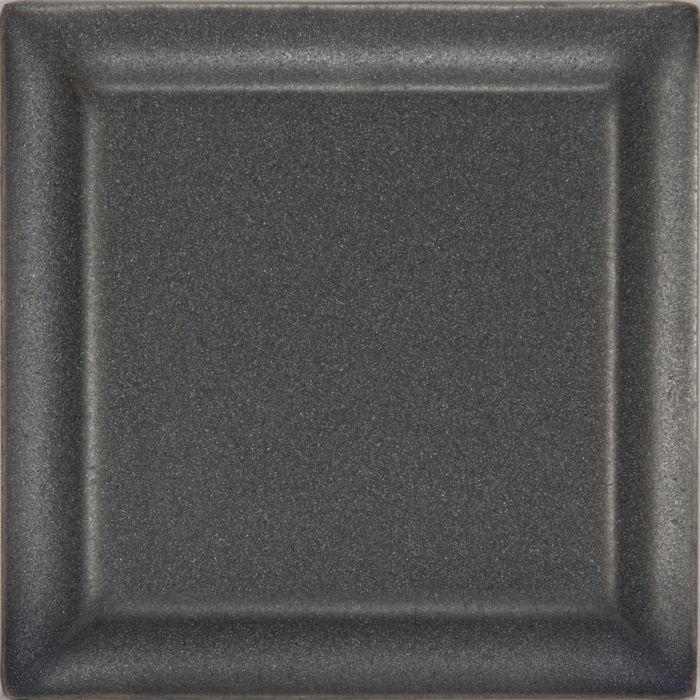

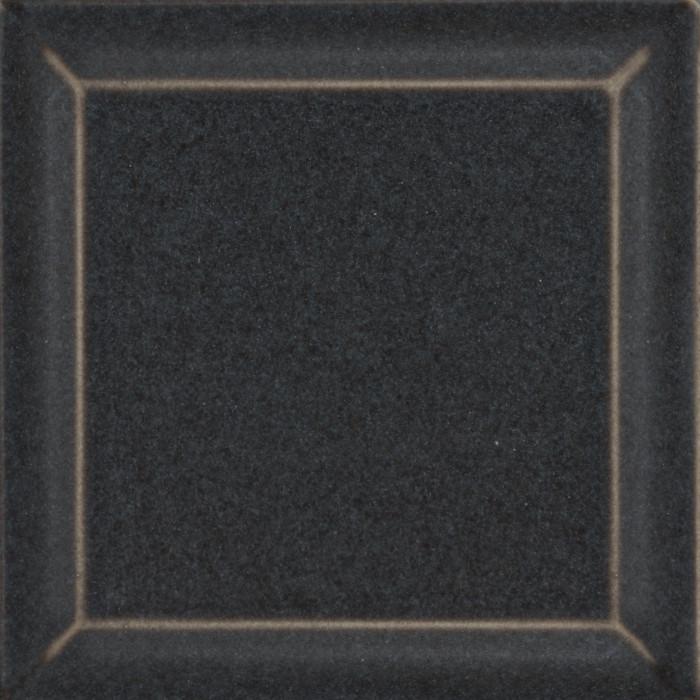

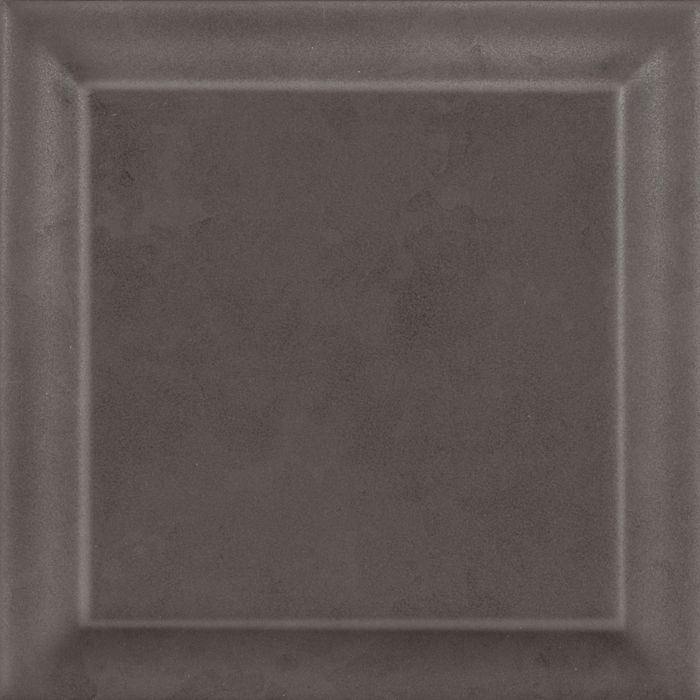

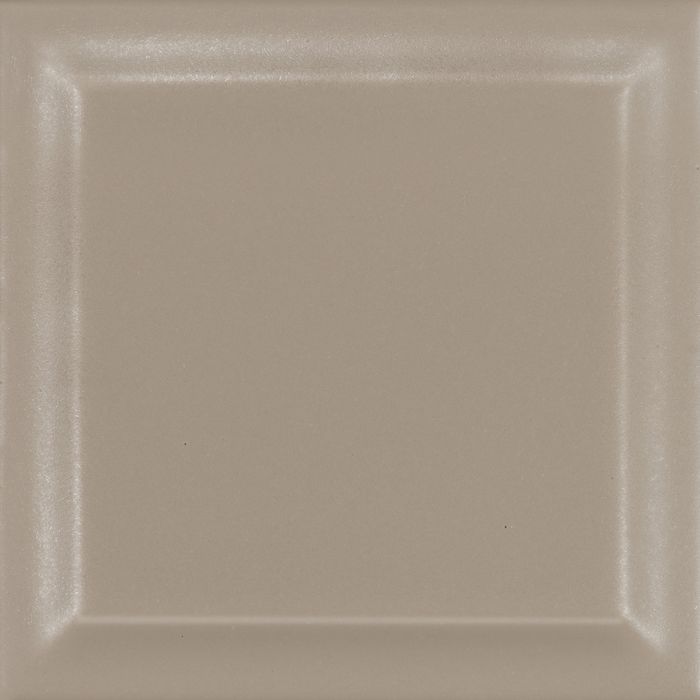

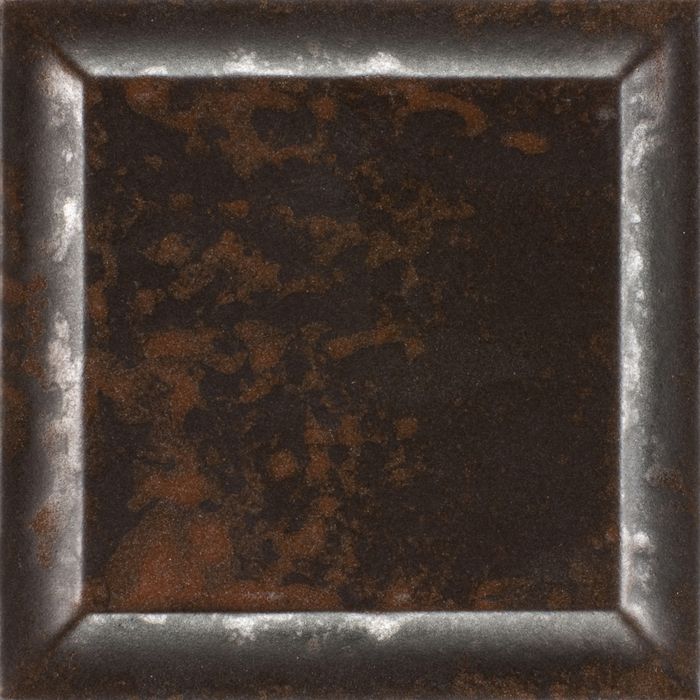

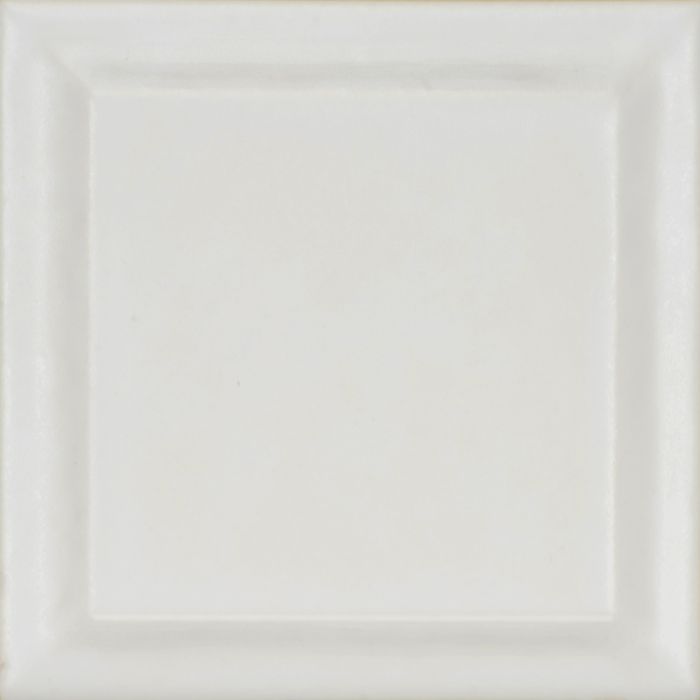

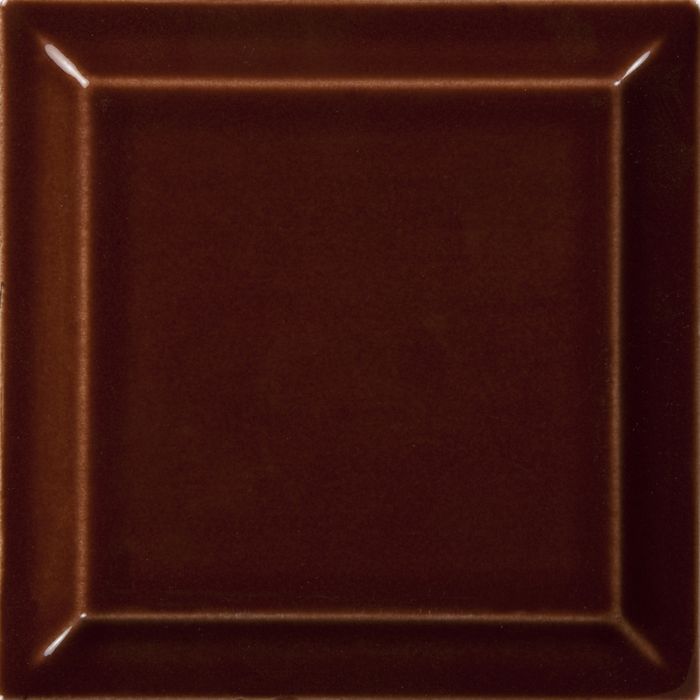

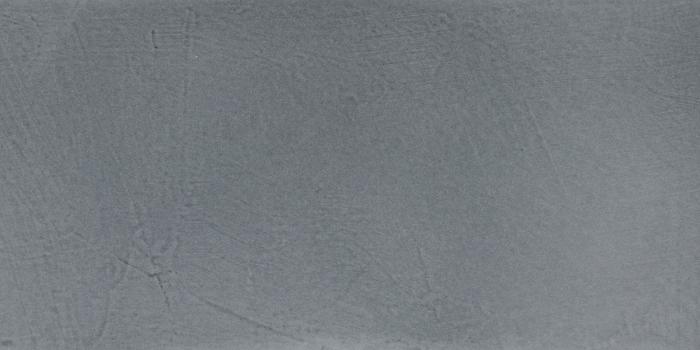

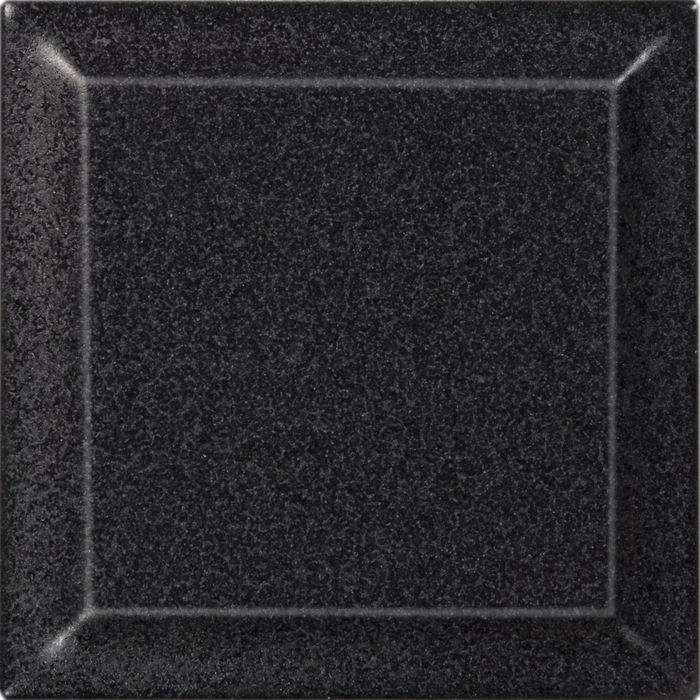

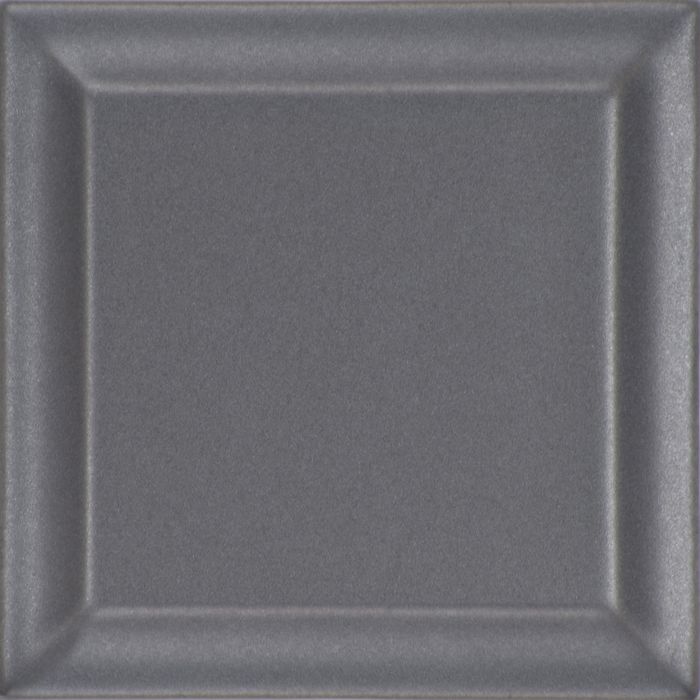

Tile

SPIRIT C1 - Tile
  • order code: SPI C1

SPIRIT C2

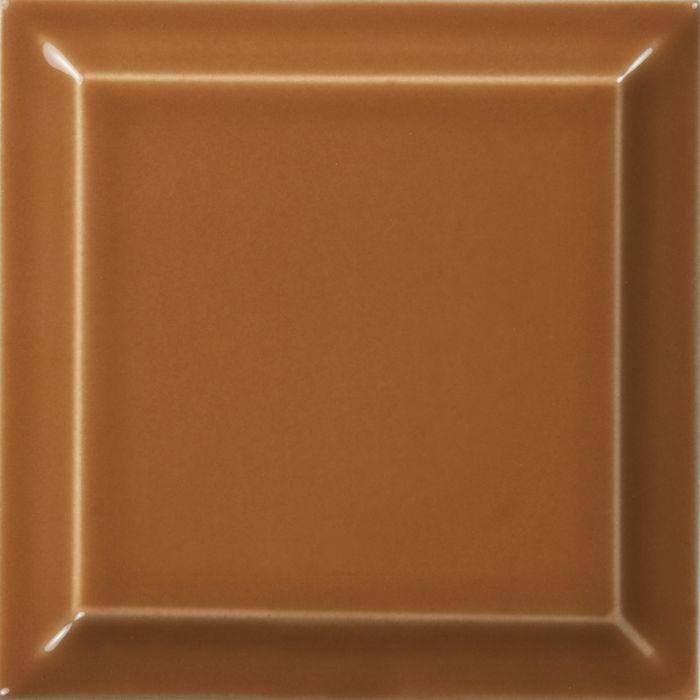

Tile

SPIRIT C2 - Tile
  • order code: SPI C2

SPIRIT C2 M

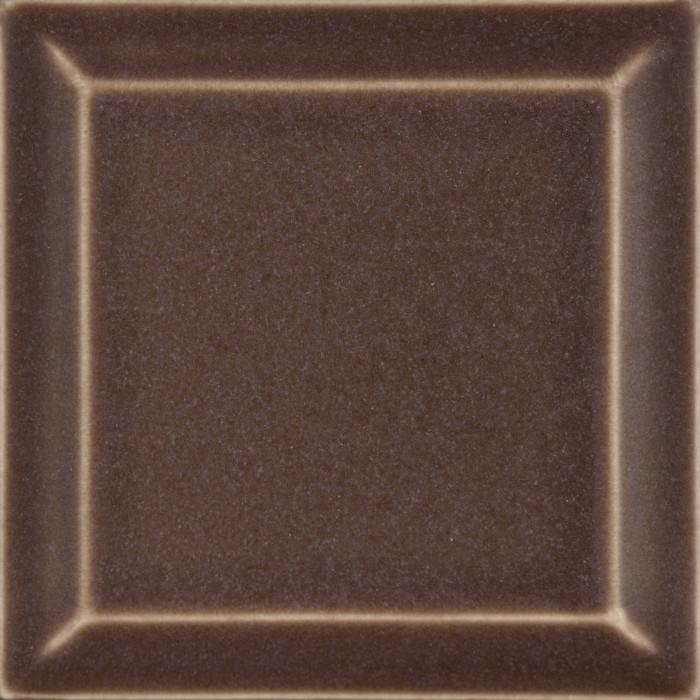

Tile

SPIRIT C2 M - Tile
  • order code: SPI C2 M
  • Technical parameters
  • Accessories
  • Download
Technical parameters
  • Height 1702 mm
  • Width 680 mm
  • Depth 530 mm
  • Weight 277 kg
  • Regulated output 2,9-7,4 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1320/1370 mm
  • Draught 10 Pa
  • Efficiency 82,1 %
  • Average wood consumption 1,6 kg/h
Technical parameters
  • Height 1703 mm
  • Width 834 mm
  • Depth 532 mm
  • Weight 318 kg
  • Regulated output 3,9-10,1 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1320/1370 mm
  • Draught 11 Pa
  • Efficiency 82,8 %
  • Average wood consumption 2,2 kg/h
Technical parameters
  • Height 1703 mm
  • Width 870 mm
  • Depth 550 mm
  • Weight 319 kg
  • Regulated output 3,9-10,1 kW
  • Smoke flue diameter 150 mm
  • Flue socket diameter 150 mm
  • External air intake diameter 125 mm
  • Axis height of rear outlet 1320/1370 mm
  • Draught 11 Pa
  • Efficiency 82,8 %
  • Average wood consumption 2,2 kg/h
